Default DIY door panels?

Has anybody here made door panels from ABS, carbon fiber, or any other material? While mine are nice Katzkin leather panels, the fiber board is falling apart, the clips are missing or falling off, and the leather is losing it's bond with the board. I'd much rather have a nice, simple piece of plastic screwed to the door shell and be done with it. Can any of you share pictures if you do have something like this done? Trying to get ideas. I'm thinking for cost sake, just some simple ABS plastic. I'm just not sure where to find it local, so it will probably have to be ordered and shipped. Or, give me some creative ideas for materials to use, other than ABS sheets, something I could maybe find in a local hardware store, that is evading my mind.
NA6C-Guy is offline   Reply With Quote
Old 09-04-2011, 06:34 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

I have no pics but have seen a good bit of people on here make some. Search in the "build threads" for some inspiration.
18psi is offline   Reply With Quote
Old 09-04-2011, 07:12 PM   #3
Elite Member
iTrader: (11)

chicksdigmiatas's Avatar

Join Date: Apr 2008
Location: Texas, 'Murica
Posts: 2,505
Total Cats: 7
Default

Yeah, I have seen it done, and my fiber boards are falling apart as well. In for win. You could be a baller and use diamond plate to match the floor pans that blow out from having too much nos...
chicksdigmiatas is offline   Reply With Quote
Old 09-04-2011, 07:50 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

(Posting from my phone.)

Diamond plate and miatas do not mix
Braineack is offline   Reply With Quote
Old 09-04-2011, 08:10 PM   #5
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

People said that about RX7s once, Brainy, then the Truckasaurus Rex came into being.
blaen99 is offline   Reply With Quote
Old 09-04-2011, 08:19 PM   #6
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

I've seen them made from sheet aluminum. Looks surprisingly good.
hornetball is offline   Reply With Quote
Old 09-04-2011, 09:42 PM   #7
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by Braineack View Post
Diamond plate and miatas do not mix
By that logic, the only door-cards we should have access to would be crushed velvet with pink tiger-stripes.
Joe Perez is offline   Reply With Quote
Old 09-04-2011, 10:56 PM   #8
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Just had an idea... plexiglass? It's cheap and local, easy to source. Of course it's clear, but not after a good coat of paint or a covering of some type of fabric with some spray adhesive. Spray the back of the glass to keep a smooth and shiny surface. Anybody see any problem with using plexi? Or could that be a possible danger in an accident? Since it tends to break into sharp edges?
NA6C-Guy is offline   Reply With Quote
Old 09-04-2011, 11:03 PM   #9
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

I'm very interested in this... since I will not be using speakers, will have power windows, only need to make a cut for the door pull + handle.
FRT_Fun is offline   Reply With Quote
Old 09-05-2011, 03:04 AM   #10
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

My biggest motivation for this is that aside from the actual fiber board falling apart, the damn upper section is completely separate from the lower section now, after I removed the panel the other day to inspect my window regulator assembly. The last of the 5 or 6 tabs that the screws go into on the upper part broke off, so now I just snap the lower section in, and slide the upper part over it. I could make a false move with the top down and lose that whole upper part going down the road.
NA6C-Guy is offline   Reply With Quote
Old 09-05-2011, 11:49 AM   #11
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Bradenton, FL
Posts: 291
Total Cats: 5
Default

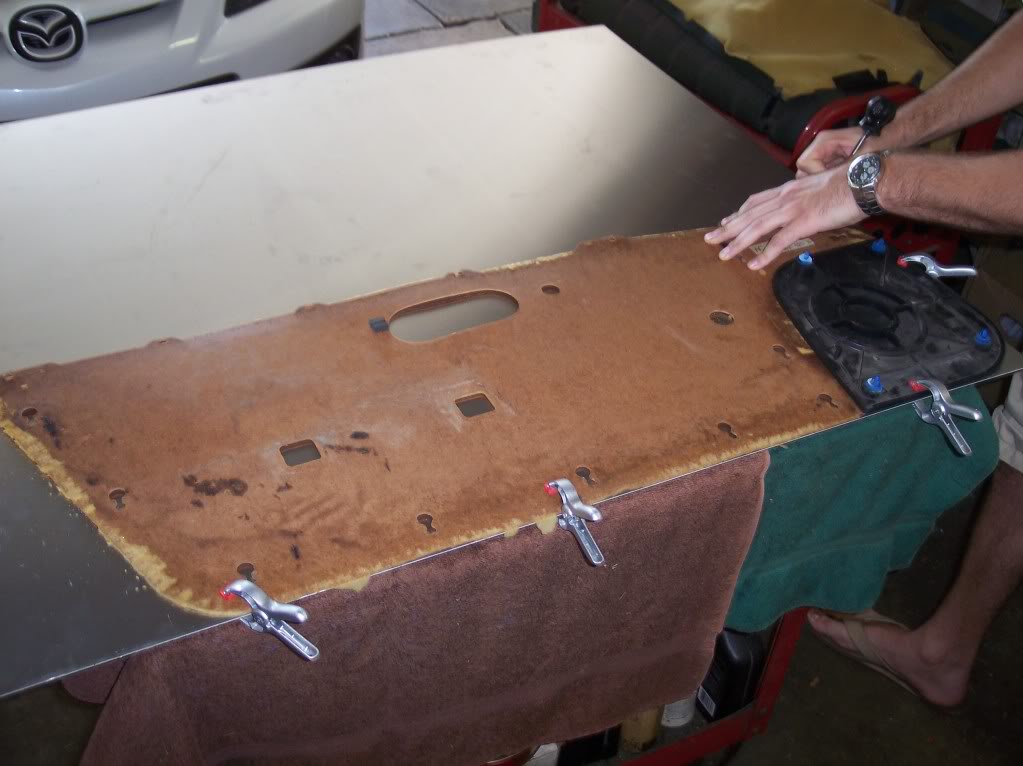

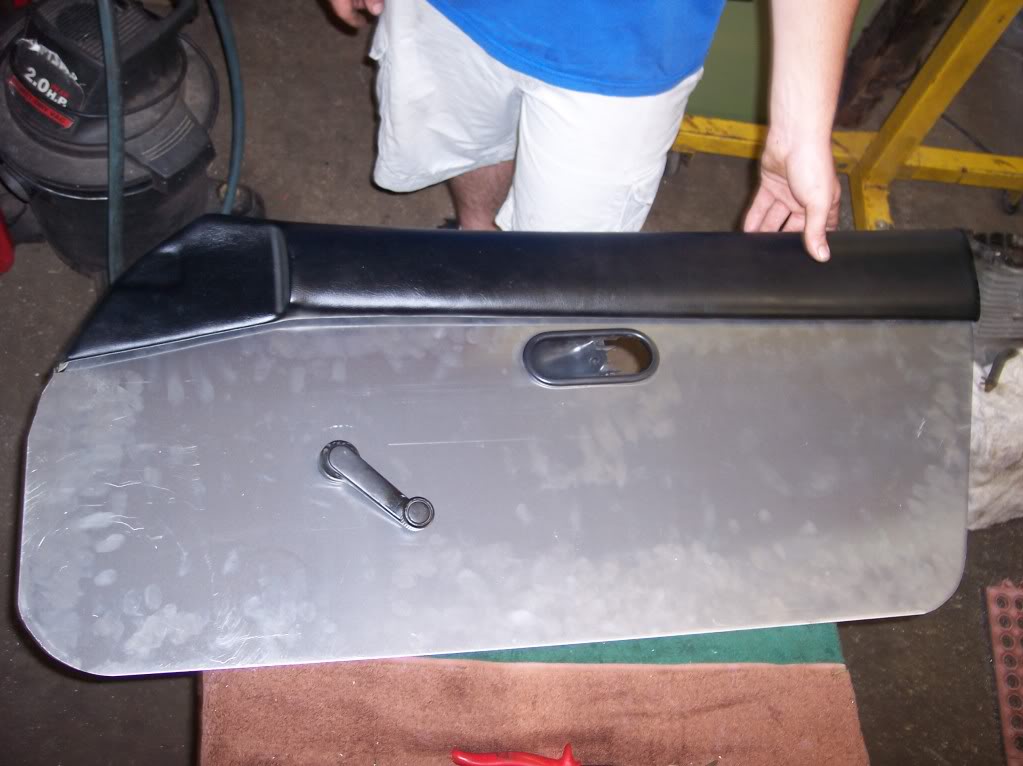

I made mine with aluminum. Mostly to delete the door handle and speaker and make it look presentable.





Attached Thumbnails
DIY door panels?-100_2820.jpg   DIY door panels?-100_2828.jpg   DIY door panels?-100_2848.jpg
Sokool is offline   Reply With Quote
Old 09-05-2011, 11:53 AM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by blaen99 View Post
People said that about RX7s once, Brainy, then the Truckasaurus Rex came into being.
pics after it hits another wall?

yeah...





Quote:
Originally Posted by Joe Perez View Post
By that logic, the only door-cards we should have access to would be crushed velvet with pink tiger-stripes.
not in the least. I'd say if you have a mullet, you can use diamond plate door cards and floormats.
Attached Thumbnails
DIY door panels?-d556be63.jpg   DIY door panels?-17b12b69.jpg
Braineack is offline   Reply With Quote
Old 09-05-2011, 01:59 PM   #13
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

I think I ruled out acrylic glass, just too easy to crack. I did find some .080 for a good price, but I would still be left having to paint it, and avoid cracking it while drilling holes and shaping it. Might just buy the ABS online and be done with it. Only question now is thickness. Not sure if I should do 1/8'' or 3/16''. I want it to be rigid enough that it won't wrinkle and wave between screws, in the large open areas of the door panel. Not sure how thick it would need to be to be stiff enough. I think 1/8'' would do it, but I might feel better about 3/16'', even though it costs a good bit more. $60 for 48x48 at 1/8'' vs $92 for same dimension but 3/16'' thick. Getting it from Grainger, so I can pick it up local and save on shipping. I'll keep you guys up to date with my handy work, when I get it. I'm thinking leather loop strap for the pulls, and I will have to come up with something for the speaker grills. Also not sure how I will attach the upper piece of the panel to the ABS, as it has no tabs to screw into. Maybe velcro will work as a easy to remove fastener.

Last edited by NA6C-Guy; 09-05-2011 at 02:21 PM.
NA6C-Guy is offline   Reply With Quote
Old 09-05-2011, 02:19 PM   #14
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

Why not get some aluminum from home depot and paint/glue some carpet/other similar material to it?
triple88a is offline   Reply With Quote
Old 09-05-2011, 02:45 PM   #15
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Arrow

Quote:
Originally Posted by NA6C-Guy View Post
Just had an idea... plexiglass?
There is at least one guy (maybe from Oz or UK) that did the plexiglass and left it clear.

There was another guy that made some really nice ones out of sheet aluminum and then shared a template file for CAD. His had some pretty trick speaker holes.


Another option might be the alumilite style materials people use for front splitters.
Scrappy Jack is offline   Reply With Quote
Old 09-05-2011, 02:56 PM   #16
Elite Member
iTrader: (1)

Join Date: Dec 2010
Location: SoCal
Posts: 4,165
Total Cats: 19
Default

As far as Plexiglas goes, Ive attempted to use Opetx and Duraplex (sp?) in the past to replace a rear window with no luck. One of the two (Duraplex I think but not sure at all) was freaking imposable to cut without it cracking, I tired one of those cutting tools, a fine tooth saw ect and nothing worked. The other one could be cut with a fine tooth saw as long as the blade was kept lubed with WD-40 or a rotory tool. Also, Plexiglas would probably shatter/crack in cold weather or an accident and rattle like crazy all the damn time. Aluminum seems like a nice choice.
gearhead_318 is offline   Reply With Quote
Old 09-05-2011, 03:05 PM   #17
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

Dont cut it...melt it. Use a good soldering gun and melt away.
triple88a is offline   Reply With Quote
Old 09-05-2011, 03:28 PM   #18
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

I'm pretty sure I don't want aluminum. No dent resistance, and it would have to either be painted, or brushed to look decent. Plus it scratches easy and they show up easily. ABS is the route I am taking. Already black, the color I want, won't dent or crack with abuse, not easily scratched, and if it does, can easily be painted.
NA6C-Guy is offline   Reply With Quote
Old 09-05-2011, 03:34 PM   #19
Elite Member
iTrader: (1)

Join Date: Dec 2010
Location: SoCal
Posts: 4,165
Total Cats: 19
Default

Quote:
Originally Posted by triple88a View Post
Dont cut it...melt it. Use a good soldering gun and melt away.
Tried that, but I didn't want to be breathing in whatever toxic crap the fumes contained.
gearhead_318 is offline   Reply With Quote
Old 09-05-2011, 03:49 PM   #20
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

Quote:
Originally Posted by Gearhead_318 View Post
Tried that, but I didn't want to be breathing in whatever toxic crap the fumes contained.
Yeah thats a problem, definitely gotta cut it in a ventilated area with a fan blowing at your face to keep the fresh air going.
triple88a is offline   Reply With Quote
