Old 06-14-2012, 09:50 AM   #81
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

Great work man, I'm impressed!

Are you putting a pull strap on it?
chpmnsws6 is offline   Reply With Quote
Old 06-14-2012, 10:03 AM   #82
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Quote:
Originally Posted by chpmnsws6 View Post
Great work man, I'm impressed!

Are you putting a pull strap on it?
Thanks. Yeah. It's sort of half finished at this point. I'll have to take it back off and cut out for the speaker grill, and cut the slot for the vinyl webbing for a pull. I can't decide if I want subtle accents, black to match the panels. Or do I want a chrome speaker grill and a red door pull, to sort of match the red stitched seats...? Choices.
NA6C-Guy is offline   Reply With Quote
Old 06-14-2012, 10:06 AM   #83
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

Black straps, and I'm going to try just putting pinholes int he ABS to let the sound though. Anything that sticks out and it will clip the **** every time you roll the window down. My PO had a screen over the speakers that did that.

*Edit*

What about a piece of the speaker screen wrapped around and sandwiched between a piece of the ABS or whatever you used, then bolted to the other piece? Make it thin, clean, and functional. I think I'm actually going to do that haha.
chpmnsws6 is offline   Reply With Quote
Old 06-14-2012, 10:09 AM   #84
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,684
Total Cats: 555
Default

Those don't look half bad. Put a strap on it. Black.
rleete is offline   Reply With Quote
Old 06-14-2012, 10:10 AM   #85
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Quote:
Originally Posted by chpmnsws6 View Post
Black straps, and I'm going to try just putting pinholes int he ABS to let the sound though. Anything that sticks out and it will clip the **** every time you roll the window down. My PO had a screen over the speakers that did that.

*Edit*

What about a piece of the speaker screen wrapped around and sandwiched between a piece of the ABS or whatever you used, then bolted to the other piece? Make it thin, clean, and functional. I think I'm actually going to do that haha.
----, good point. I may not run a grill at all then, just clean up the hole and put some sort of edging around the opening and fabric edge, and let the tweeter stick out. The grill would have to extend out at least 3/4" to clear the tweeter. With the fabric still over the opening, the speaker pushes the fabric out to a bulge, a good 1/2" past flush. Just hope nobody kicks my speakers and breaks them.
NA6C-Guy is offline   Reply With Quote
Old 06-14-2012, 12:14 PM   #86
Senior Member
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

Quote:
Originally Posted by NA6C-Guy View Post
I want to fill those holes that pass beside the fuel tank hump leading into the trunk.

I stuck garbage bags up in those holes and then stuffed it as full as I could with pillow stuffing material. It worked pretty well. Killed a lot of the exhaust drone coming through. It's also much easier to remove than great stuff should you ever need to. Either that, or you can do the same trash bag trick and then fill it with great stuff foam. If you ever have to remove it, stab it a million times with a screw driver and pull it out.
baron340 is offline   Reply With Quote
Old 06-14-2012, 06:20 PM   #87
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Quote:
Originally Posted by baron340 View Post
I stuck garbage bags up in those holes and then stuffed it as full as I could with pillow stuffing material. It worked pretty well. Killed a lot of the exhaust drone coming through. It's also much easier to remove than great stuff should you ever need to. Either that, or you can do the same trash bag trick and then fill it with great stuff foam. If you ever have to remove it, stab it a million times with a screw driver and pull it out.
Yeah. I did have them filled the best I could with carpet padding material. I like the trash bag idea though.
NA6C-Guy is offline   Reply With Quote
Old 06-14-2012, 07:17 PM   #88
Junior Member

Join Date: Apr 2007
Location: Asheville, NC
Posts: 98
Total Cats: 2
Default

Quote:
Originally Posted by EErockMiata View Post
FWIW i paid $28 for 4'x8' .090" Black textured 1 side abs plastic. I had the sheet cut in half and only used 48x48 to make the door cards. I still have a 6" rip of that 4by left over and the entire other 4x4 sheet left un touched.
where did you get it
mgtmse01 is offline   Reply With Quote
Old 06-15-2012, 10:27 AM   #89
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Panel 2.0 is mostly complete. Took the first model off and stripped the fabric off and traced the pattern onto a new board. My speaker hole was going to be too hard to alter, so I just started new. Board is cut and new fabric is on, but I still need to cut out the fabric from around the holes, find some edging to go around the speaker opening, then screw it back on. This one even fits a little better I think. The bottom had a 1/2" gap last time, and the back edge near the latch nearly snagged. I wish I could just make a pattern and have someone with a laser or something to cut them out. ---- is sort of tough to cut and get a smooth edge. Spent more time with a razor blade cleaning up frayed edges than I did actually tracing and cutting.

This new speaker hole is approximately the size of the 6.5" speaker, out to the rubber surround around the woofer. So all of the sound should make it out unimpeded, no grill or fabric to block it.
NA6C-Guy is offline   Reply With Quote
Old 06-16-2012, 08:45 PM   #90
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

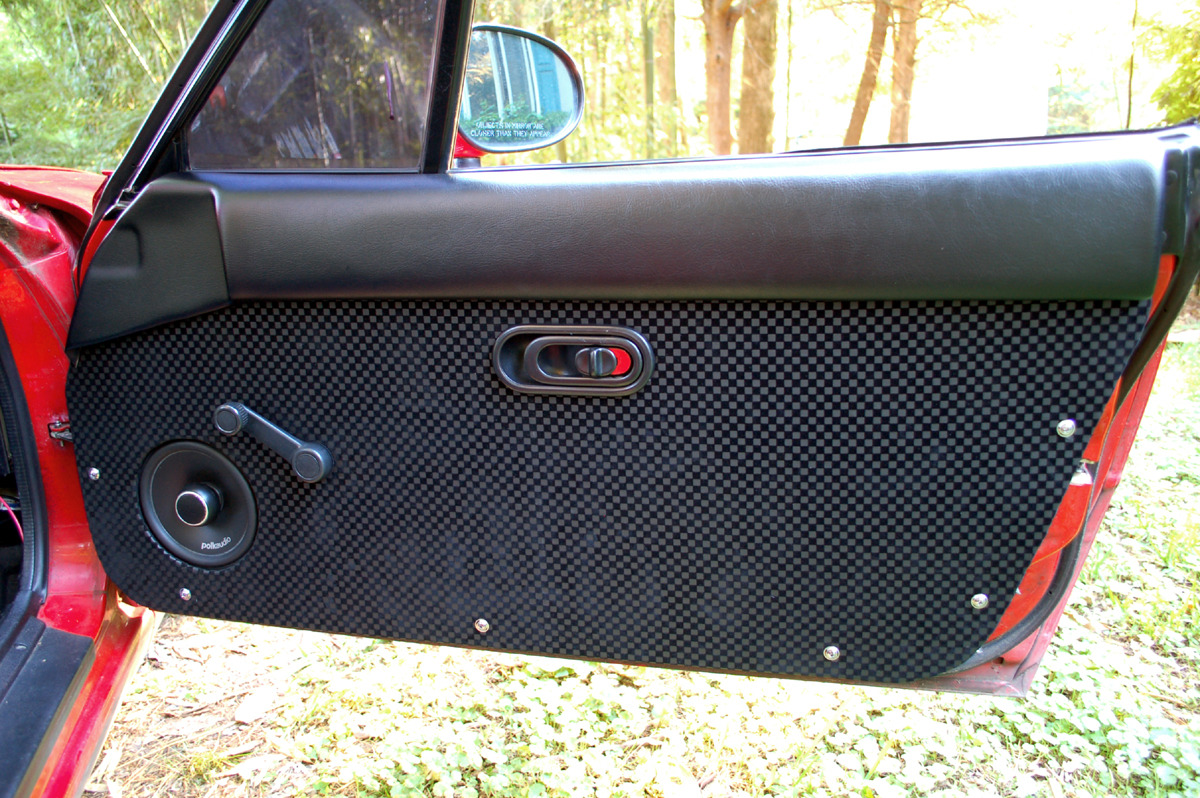

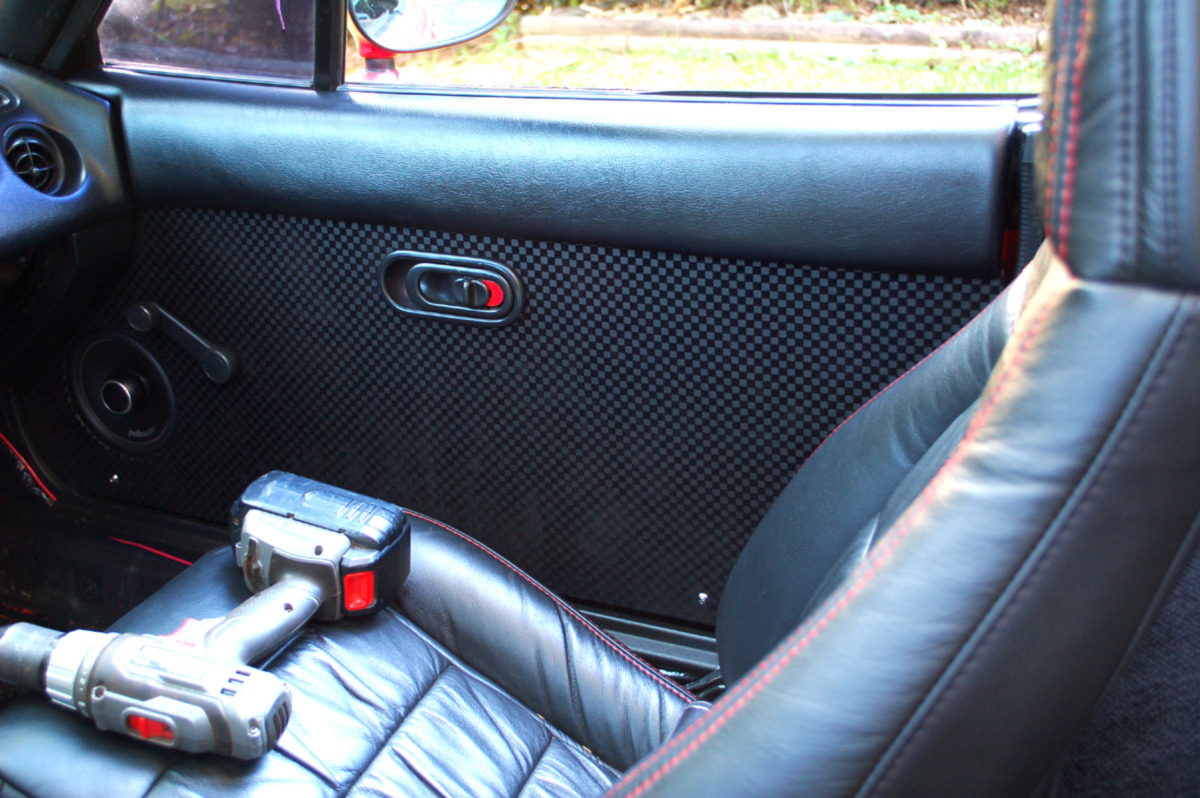

Mark II complete. Well, except for the pulls, which I am redeciding at the moment. Hole already in the board, just need to put the screw through the fabric.

I also wired in a 4 channel Alpine amp today. Quite a bit more power. Though I ended up bridging it to 2 channel since I'm only running fronts. Fatmat in both doors, and now all I lack is the trans tunnel and floors. I'll probably just do the sides of the tunnel and the top where I can get to it, since I don't feel like pulling the dash right now. Also take care of the floors once I get some carpet in hand. Having trouble finding used carpet on ebay or from partsgroup.





Again, I must say, not bad for a ~$20 investment for each panel.
Attached Thumbnails
DIY door panels?-door5.jpg   DIY door panels?-door4.jpg
NA6C-Guy is offline   Reply With Quote
Old 06-16-2012, 09:50 PM   #91
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

So whats the weight savings of this over stock?
triple88a is offline   Reply With Quote
Old 06-16-2012, 09:57 PM   #92
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Quote:
Originally Posted by triple88a View Post
So whats the weight savings of this over stock?
Probably +2lb, since I now have FatMat lined doors. Just the panel is probably about even with stock.
NA6C-Guy is offline   Reply With Quote
Old 06-17-2012, 12:52 AM   #93
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

Looks great!!!
chpmnsws6 is offline   Reply With Quote
Old 06-17-2012, 01:10 AM   #94
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,069
Total Cats: 253
Default

It's....it's beautiful...

Teach me, master
viperormiata is offline   Reply With Quote
Old 06-17-2012, 01:41 AM   #95
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

To clean them up more you might consider using the industrial self-adhesive velcro on the back of the panels. They have 1" and 2" wide strips at Lowes or HD and the adhesive holds well. Just rip them off if you need to remove them.

NO SCREWS!
Stein is offline   Reply With Quote
Old 06-17-2012, 01:41 AM   #96
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

One thing I really don't like is the stock window cranks. Makes me want power windows. Or at least a crank that looked better than the faded black plastic stockers. Same for the door latches/handles. I could go for some of those ballin' ***, straight out of Nippon silver/chrome metal handles that some of the Miata sites sell. Just looked as I was typing that... ------- $450-$500 for just the ------- aluminum pull handle, not even the surround/cup part. They are out of their ------- minds! Or I'm in the wrong business.

I actually sort of like the screws. Though I wish I had gotten the spacing on the back edge by the latch a bit better. They are both a bit too low to my eyes.

And knowing that I can do it pretty well, I may venture into ABS and do it fully proper. Though this hardboard might hold up fine. It's slightly more flimsy than I thought, and seeing what just morning dew did to the piece I left on the back porch overnight sort of worries me. Hopefully I don't forgot to roll my windows up and get them soaked. Come out to a flimsy, twisted up mess of fabric. Hell, even the water getting in past my destroyed beltline weatherstripping may do some damage. At least the white board lamination side is facing out. The untreated brown part is fabric covered. Plus I have the plastic covered in evil sticky black ---- covering the openings in the door shell. ---- that black stuff.
NA6C-Guy is offline   Reply With Quote
Old 06-17-2012, 06:56 AM   #97
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

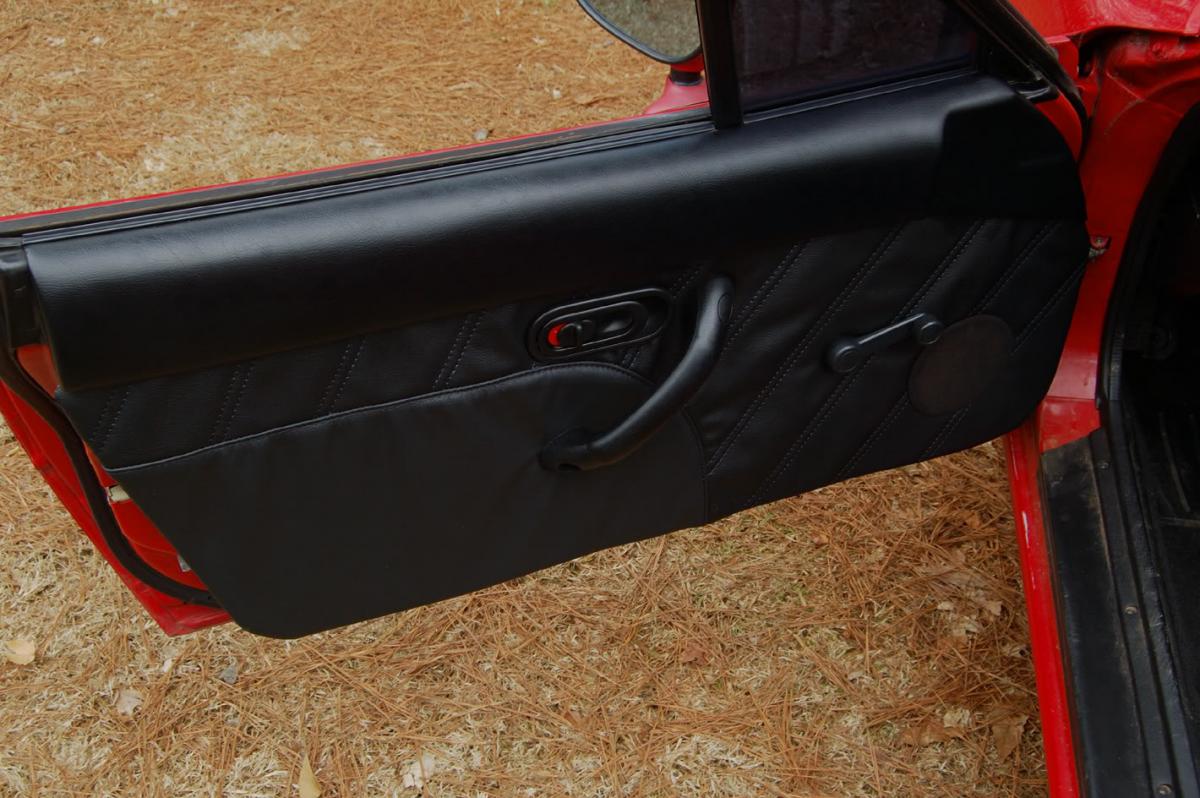

For comparison, old vs new.

I really liked my old ones, before they starting coming loose from the tattered board under the leather, and before I cut the damn holes too large and the ---- sagged and exposed padding and board behind. This is just after install. Still pretty baller status.



New



I'm excited to see them with carpet installed, and center console back in the car for the first time in years.

PS. If anyone wants the Katzkin leather door coverings, they are still in great shape and intact. The only issue that is possibly not fixable, is where I cut the drive side door handle/latch hole maybe 1/2" too large and the leather never stayed tucked behind the cup very well. Probably fixable by sewing a strap behind it to hold it taut. Someone taking their time could definitely make some awesome door panels out of them. I just installed them hurried onto already destroyed cardboard junk door cards, so they never looked quite right and always fit loose and wrinkly like my *****. $50 shipped. $129 new before shipping.
Attached Thumbnails
DIY door panels?-cc5.jpg   DIY door panels?-door5.jpg
NA6C-Guy is offline   Reply With Quote
Old 06-17-2012, 07:09 PM   #98
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

After blasting some more base through the speakers, the passenger side panel has failed my QC check. I cut the fabric around the speaker hole too close, and didn't give myself enough overlap. I was originally going to put some sort of c channel trim around the hole, but discovered that the fabric was pretty flexible and would fold around the edge and glue down. I did this on the driver side and it seems to be holding very well, but the passenger side is now peeling away around the speaker hole. So I'll either have to recover it, or go with the trim idea.
NA6C-Guy is offline   Reply With Quote
Old 06-17-2012, 07:16 PM   #99
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default



Quote:
Originally Posted by NA6C-Guy View Post
New


Attached Thumbnails
DIY door panels?-u-wizard0.jpg
triple88a is offline   Reply With Quote
Old 06-17-2012, 09:28 PM   #100
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Quote:
Originally Posted by triple88a View Post
Yes, something like that.
NA6C-Guy is offline   Reply With Quote
