Old 06-12-2012, 09:17 AM   #61
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Quote:
Originally Posted by tomiboy View Post
Maybe you should think about selling a DIY kit with the template. Purchaser sources the ABS. Or just the template.
Why? Remove the old panels, trace... template! It's not rocket science.
NA6C-Guy is offline   Reply With Quote
Old 06-12-2012, 09:21 AM   #62
Junior Member
iTrader: (3)

Join Date: Oct 2011
Location: Naperville
Posts: 369
Total Cats: 3
Default

Yet you've been working on it for 9 months!
tomiboy is offline   Reply With Quote
Old 06-12-2012, 09:32 AM   #63
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Quote:
Originally Posted by tomiboy View Post
Yet you've been working on it for 9 months!


No, I was going to, then lost interest or got tied up in other ----, and never went and picked up my ABS from Grainger. With my speaker install last weekend I got another taste of how much I despise my current door panels, so I was compelled to finish what I had started, finally.
NA6C-Guy is offline   Reply With Quote
Old 06-12-2012, 02:08 PM   #64
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

So you bought $9 worth of whiteboard material? Am I reading this right?

Was this HD or Lowes? If I'm ever truly motivated I'll do the same, utilizing the stock speaker covers. The holes from the deleted armrest have been getting to me.
curly is offline   Reply With Quote
Old 06-12-2012, 02:14 PM   #65
Senior Member

Join Date: May 2011
Posts: 549
Total Cats: 56
Default

FWIW i paid $28 for 4'x8' .090" Black textured 1 side abs plastic. I had the sheet cut in half and only used 48x48 to make the door cards. I still have a 6" rip of that 4by left over and the entire other 4x4 sheet left un touched.
EErockMiata is offline   Reply With Quote
Old 06-12-2012, 06:18 PM   #66
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Quote:
Originally Posted by curly View Post
So you bought $9 worth of whiteboard material? Am I reading this right?

Was this HD or Lowes? If I'm ever truly motivated I'll do the same, utilizing the stock speaker covers. The holes from the deleted armrest have been getting to me.
It was $9 per sheet, x2. So still only $20 after tax.
NA6C-Guy is offline   Reply With Quote
Old 06-13-2012, 05:20 AM   #67
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Got my fabric. These panels will either be bad ***, or complete fail. It could go either way, since I can't tell with the fabric off the panel. Going to start with the cutting at first light this morning. Should at least finish one today.
NA6C-Guy is offline   Reply With Quote
Old 06-13-2012, 08:53 AM   #68
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

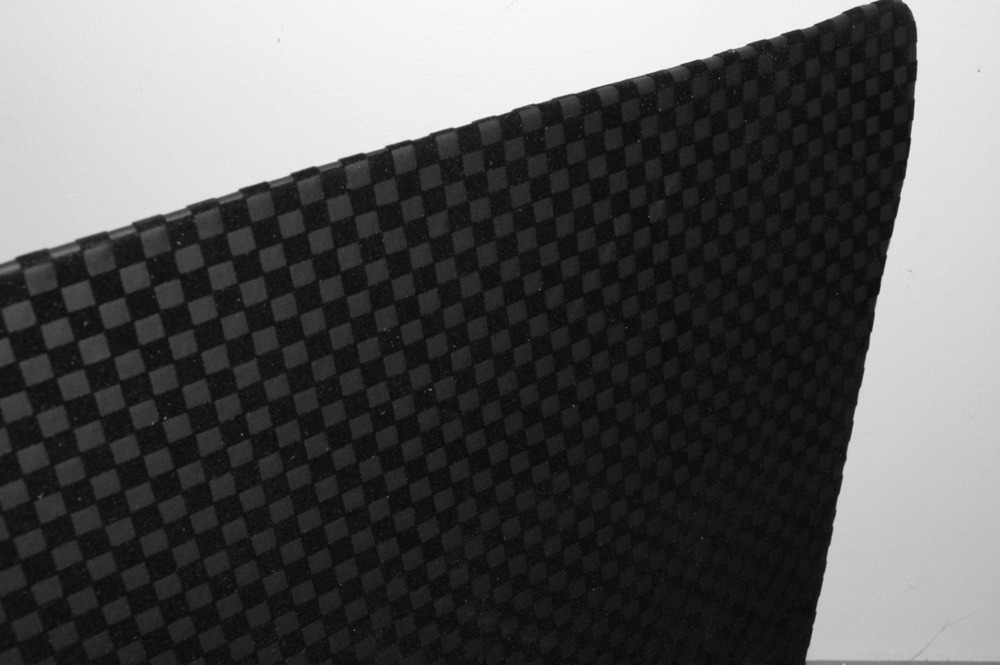

Bah. This may be a test run. It came out well, except for the fabric picked up some dirt and ---- that I don't know if it will clean off well or not. It also has one small area of wrinkles around the door latch "cup" that I couldn't get out before the adhesive set. I'll let it finish drying and check it when I wake up and see if I can clean it up a bit, and see how it looks mounted maybe tomorrow. But for the cost, even if it turns out like I think it will, it's an improvement, and I won't feel bad scrapping it and trying again if I need to. Just one panel is worth about 2 hours work and about $20.

Dust and dirt speckles stuck all over that ----. Ignore the crooked lines at the top, that is a crooked cut, not a crooked fabric, at least I think. The bottom edge is straight to within 1/2 square over the length of the panel, and the top will be covered by the top bolster part of the stock door.

Attached Thumbnails
DIY door panels?-dp.jpg
NA6C-Guy is offline   Reply With Quote
Old 06-13-2012, 09:13 AM   #69
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Default

Definite potential. You could try one of those lint rollers with the reversed sheets of masking tape to clean up the fuzz and lint.
Scrappy Jack is offline   Reply With Quote
Old 06-13-2012, 09:21 AM   #70
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

It may actually be the adhesive I'm seeing. The material isn't very thick, and I put the adhesive on pretty heavy, so it may have leached through in some places. I'll see later. In sunlight though, it's hardly noticeable.
NA6C-Guy is offline   Reply With Quote
Old 06-13-2012, 10:07 AM   #71
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,689
Total Cats: 560
Default

Try using spray on adhesive. 3M stuff, available at fabric stores.
rleete is offline   Reply With Quote
Old 06-13-2012, 10:16 AM   #72
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Quote:
Originally Posted by rleete View Post
Try using spray on adhesive. 3M stuff, available at fabric stores.
Did. Well, the Loctite variant. I did have some 3M 77, but it's pretty old. I do think I need something stronger at least for the extra that gets pulled tight and bonded to the back of the panel. Anything strong enough for my liking has too long of a cure time. I got the Loctite medium spray, which has the fastest tac time and bonds much faster, but doesn't hold quite as well as their heavier stuff.

Now my concern is fastening it to the door. I have to drill pilot holes, and I'm scared the bit is going to rip at the fabric and ****** it loose around the screws. I guess I should have done that prior to adhering the fabric, but it didn't occur to me at the time. Any ideas that might save my ***? I guess I could use a really hot punch to burn the fabric away, then drill. Maybe that would prevent fraying and ripping/twisting around the bit.
NA6C-Guy is offline   Reply With Quote
Old 06-13-2012, 11:08 AM   #73
Senior Member
iTrader: (8)

Join Date: Sep 2010
Location: misery
Posts: 1,130
Total Cats: 9
Default

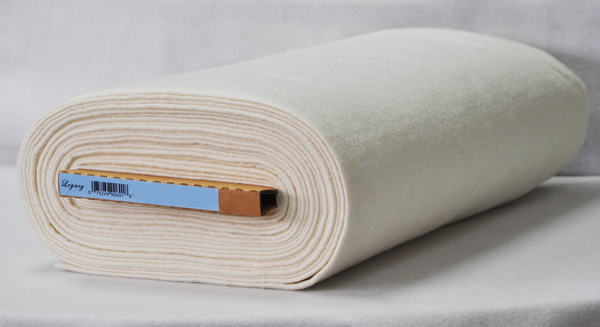

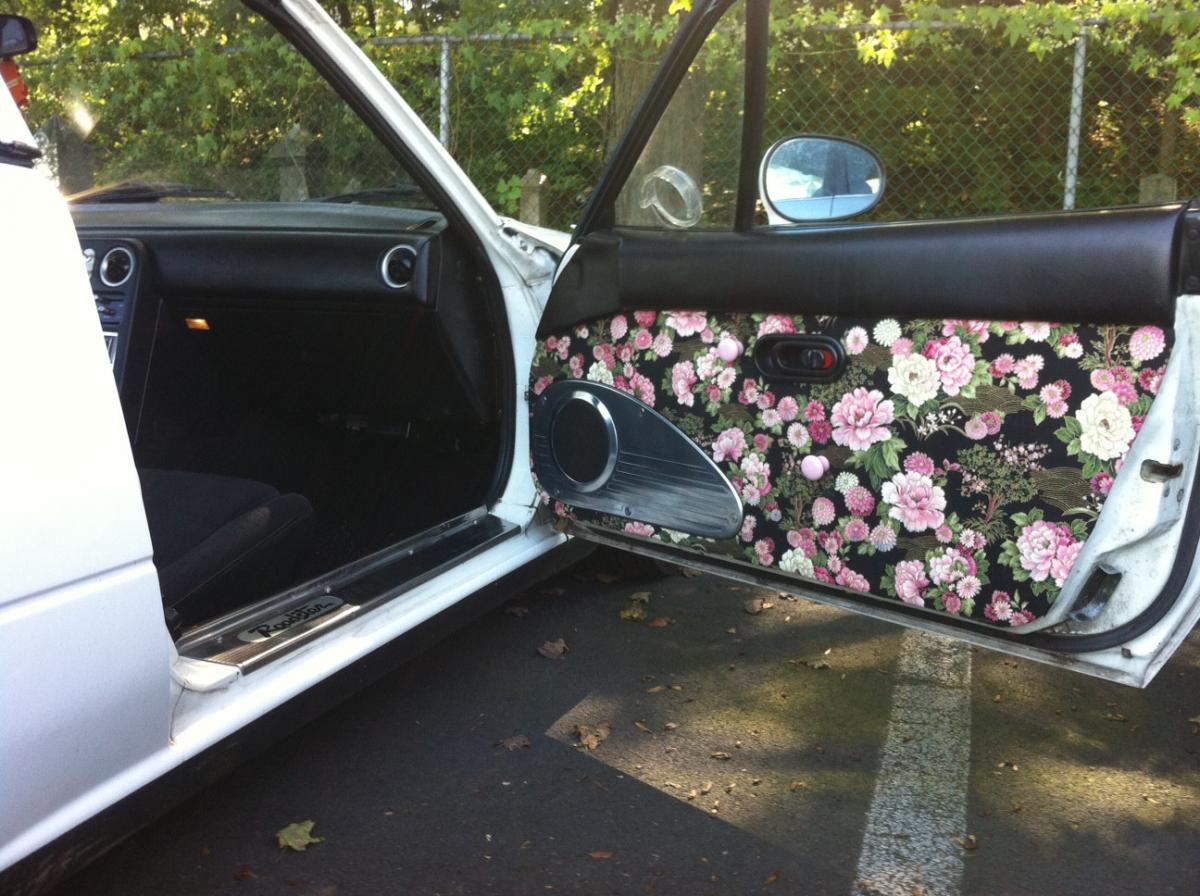

i used spray adhesive. i also used some other ---- under the fabric itself.



i'd like to redo them though since the oem cardboard i used was in pretty shitty condition.

Attached Thumbnails
DIY door panels?-5xcto.jpg   DIY door panels?-4mfje.jpg
phillyb is offline   Reply With Quote
Old 06-13-2012, 01:10 PM   #74
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,689
Total Cats: 560
Default

Quote:
Originally Posted by NA6C-Guy View Post
Now my concern is fastening it to the door.
You fooked up. Shoulda drilled the holes first, and then after covering done the hot nail/punch to make the hole in the fabric.

Are you planning on using any type of decorative screw backers? If so (they're cheap), you can punch out a hole with a Harbor Freight hole punch and you don't have to be that accurate.
rleete is offline   Reply With Quote
Old 06-13-2012, 06:24 PM   #75
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Well, the screws I'm using have a fairly large head, so it should cover approximately 1/2".
NA6C-Guy is offline   Reply With Quote
Old 06-13-2012, 07:09 PM   #76
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,689
Total Cats: 560
Default

Use these: http://www.mcmaster.com/#standard-co...ashers/=hyq5od for a more finished look. Or, buy those press-in tree things.
rleete is offline   Reply With Quote
Old 06-13-2012, 07:18 PM   #77
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Probably will use something like that. I do think these will be just a practice run. Turns out I have enough board and fabric to do 4 panels. I learned what to do and not to do on this first one, so I have one more practice panel, then two for the final makes.
NA6C-Guy is offline   Reply With Quote
Old 06-14-2012, 06:36 AM   #78
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

I wish I could shrink myself down to a much smaller size to fit in tight areas. Not only for working on cars, but for crawling in slave ***. Just looking at the ------- door shell, and the two small holes full of mechanics that I have to access to apply the fatmat to the door skin. Looks like frustration. Anyone think it would be a problem using Great Stuff in places that might see dampness? Does that stuff hold moisture? I don't want to rot my relatively rust free body away. I want to fill those holes that pass beside the fuel tank hump leading into the trunk.
NA6C-Guy is offline   Reply With Quote
Old 06-14-2012, 09:10 AM   #79
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

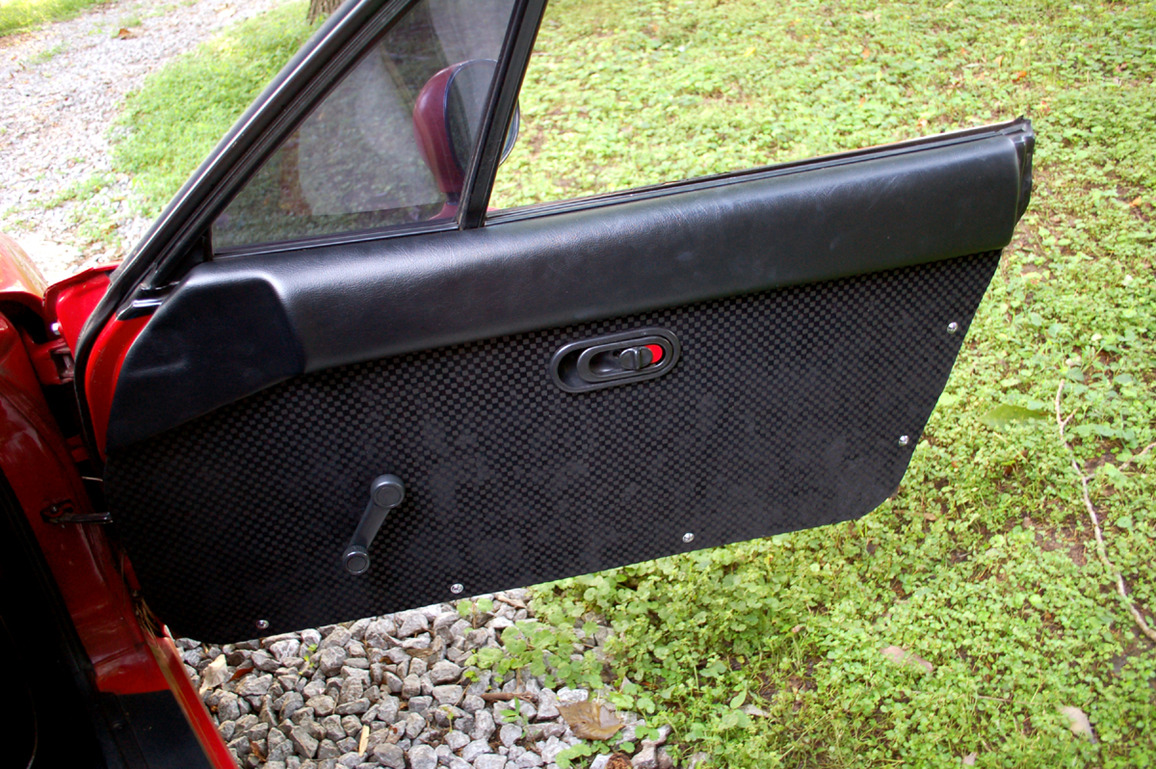

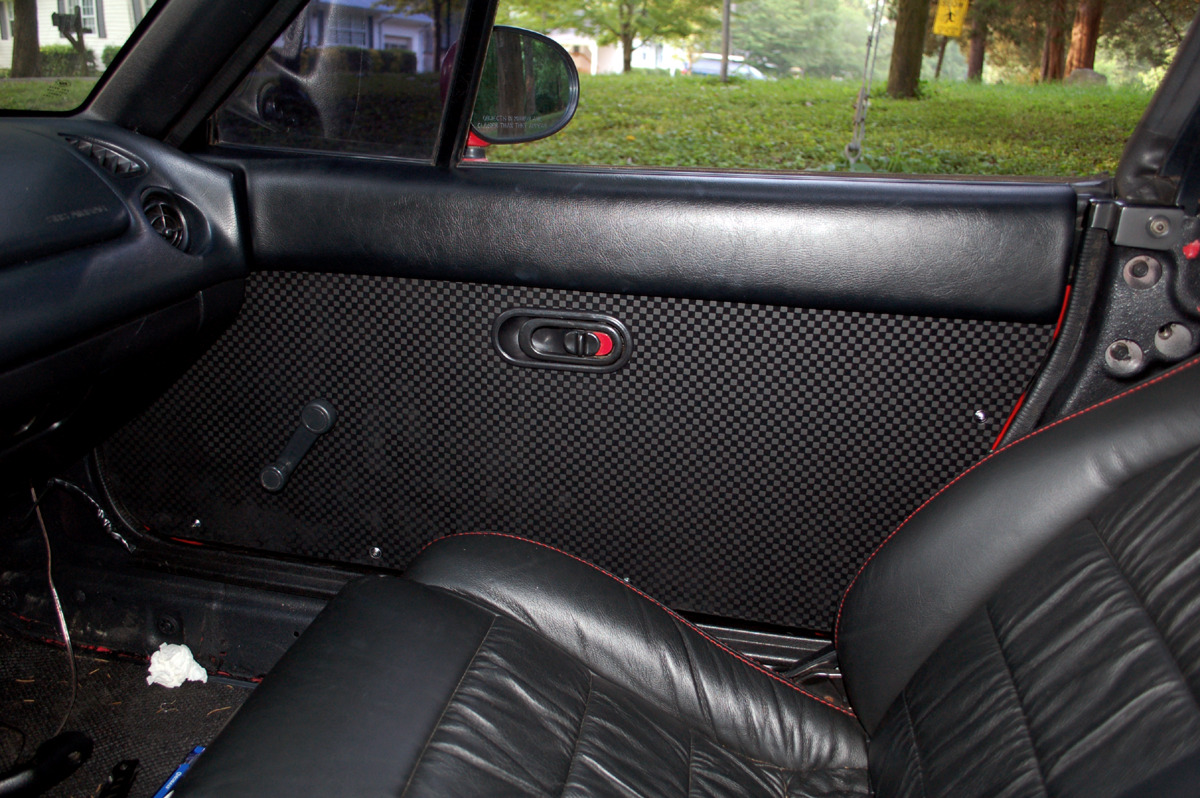

I have to say... for once I am somewhat pleasantly surprised by something I did on this car turning out better than expected. Not perfect for a first attempt, but not bad compared to what I had. Excuse the rest of the wrecked interior. It's a bit of a workshop/daily/storage lately.

As usual the flash makes every shade of black look different, and it looks a lot worse than it does in person. The screws I got were countersunk with washer, which I didn't realize. You can see the variations in color on the fabric. It's sort of a suede leather effect with the raised squares, I think anyway. Also less noticeable in person. Overall, I'm pleased for the 3 hours total, and around $15 investment for that one panel.







I can't wait to get this car back into a condition where I give a ---- about it again. At one point, dirt in the door jambs would have been unacceptable. Now... ---- it. New paint and getting the interior back to stockish level clean will respark my interest in keeping it clean and looking nice.
Attached Thumbnails
DIY door panels?-door1.jpg   DIY door panels?-door2.jpg

Last edited by NA6C-Guy; 06-14-2012 at 09:57 AM.
NA6C-Guy is offline   Reply With Quote
Old 06-14-2012, 09:12 AM   #80
Junior Member
iTrader: (6)

Join Date: Jun 2008
Location: Lansdale, PA
Posts: 462
Total Cats: 3
Default

I think it looks nice man, good job.
