Old 02-28-2010, 11:40 PM   #21
Newb

Join Date: Dec 2009
Posts: 9
Total Cats: 2
Default

Quote:
Originally Posted by Cspence View Post
Is that louver/vent metal? Right now I am using a pontiac gtp vent/louver and its plastic so I am a bit worried about the heat (Not that I couldn't put some reflective material and or make a metal shield to mount under it). Also what are the dimensions on that sucker?
I've seen your build, very inspiring! The vent is not made of metal. I think it's FRP. It's pretty sturdy and it was made to go on a hood, so I'm pretty sure it will take heat pretty well.

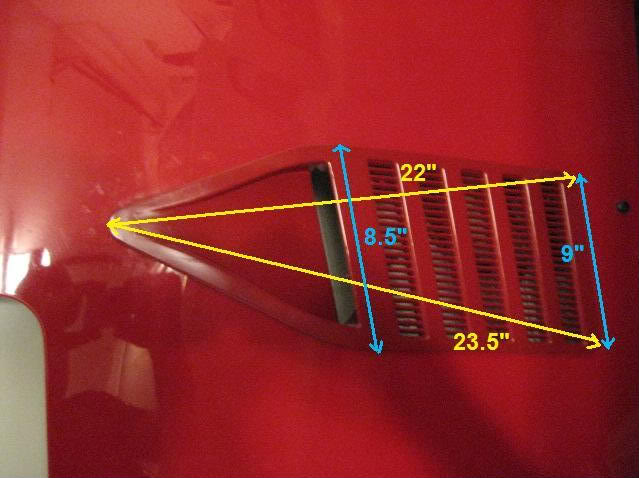

Here are the dimentions:

Name:  dimentions.jpg
Views: 197
Size:  48.1 KB
whataboutno is offline   Reply With Quote
Old 02-28-2010, 11:46 PM   #22
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Thanks! Not to be a complete moron, but what is FRP?

Nevermind, Fiber reinforced plastic....google ftw
Cspence is offline   Reply With Quote
Old 03-01-2010, 10:19 AM   #23
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Quote:
Originally Posted by Cspence View Post
I had considered that vent, but didn't get it since I thought it was a little large. Looks good though.....
Me too- before the cooper scooper. Actually bought one and laid it on the hood, which made me realize just how long the ZX's hood actually is. About that time Ben cut the extractor in his hood just behind the rad and had great results- that convinced me. The best solution IMO is reducing the positive pressure under the hood- it works well at speed and at a stop.



This was my second option for something over the turbo, an 80s trans-am fender extractor:
m2cupcar is offline   Reply With Quote
Old 03-01-2010, 08:01 PM   #24
Newb

Join Date: Dec 2009
Posts: 9
Total Cats: 2
Default

Where were you when I was looking for pictures of that scoop on a miata! Haha
That Trans Am scoop looks nice too
whataboutno is offline   Reply With Quote
Old 03-01-2010, 11:10 PM   #25
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

It's posted here... somewhere.
m2cupcar is offline   Reply With Quote
Old 03-02-2010, 03:30 PM   #26
Newb

Join Date: Feb 2010
Location: Denver,CO
Posts: 27
Total Cats: 0
Default

Quote:
Originally Posted by whataboutno View Post
Here's my recent project, it's still not done...

It's a Nissan (Datsun?) 280zx turbo hood scoop/vent. It's a bit big, but I think it's going to be pretty efficient.







Nice hood! It looks like it would work well. I have been thinking of doing something similar with a vent on both sides, like Autonixion's hood
Uneek719 is offline   Reply With Quote
Old 03-02-2010, 03:38 PM   #27
Junior Member
iTrader: (2)

Join Date: Oct 2007
Location: Near buffalo
Posts: 140
Total Cats: 0
Default

I've got that same datsun scoop in my hood. It was installed by the previous owner and I didn't know it was from a datsun until this thread. Thanks,
mikewolf is offline   Reply With Quote
Old 03-02-2010, 03:43 PM   #28
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

Thats sexier than the cooper scooper... but whats more efficient... an extractor or intake scoop?
Pen2_the_penguin is offline   Reply With Quote
Old 03-02-2010, 04:15 PM   #29
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Both of those look intended to deal with heat from the turbo, not to help with flow through the heat exchangers. That Nissan vent with the Naca in front will vent turbo heat but the Naca will be adding to the pressure under hood I'd think.

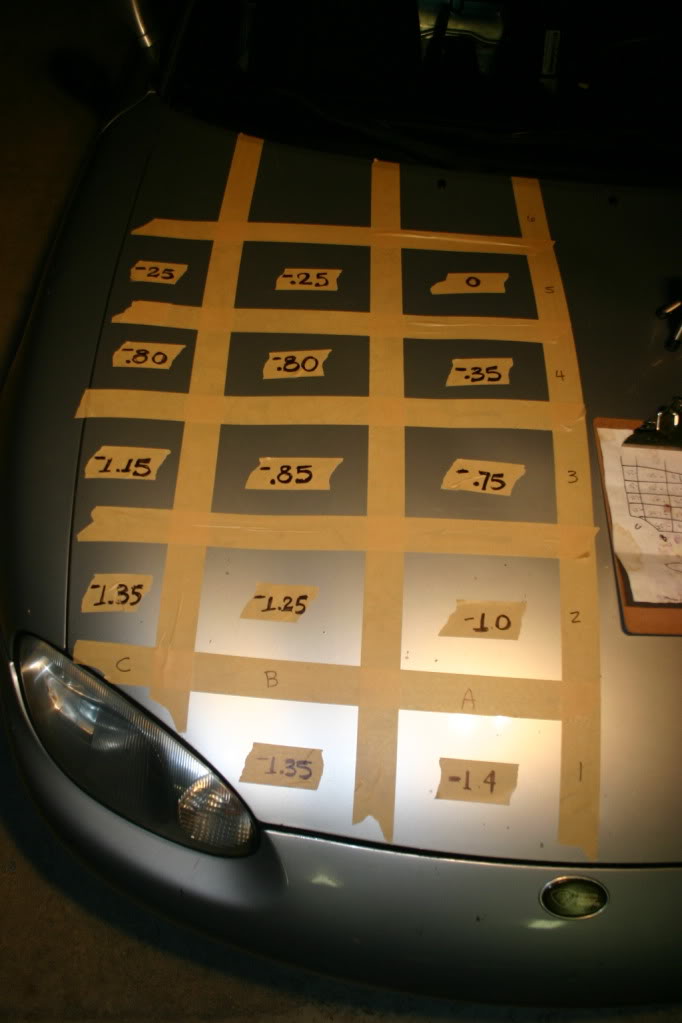

Here's the pic I've been looking for. Looking at the pressure differentials the optimal spot for flow out of the engine bay looks like it would be further forward.

Name:  NBHOOD.jpg
Views: 265
Size:  62.5 KB
cueball1 is offline   Reply With Quote
Old 03-02-2010, 04:32 PM   #30
Junior Member
iTrader: (2)

Join Date: Oct 2007
Location: Near buffalo
Posts: 140
Total Cats: 0
Default

Do you have a similar grid for an NA? It looks like the shape of the headlights might be causing the low pressures so an NA may have different different low pressure areas.
mikewolf is offline   Reply With Quote
Old 03-02-2010, 07:15 PM   #31
Newb

Join Date: Dec 2009
Posts: 9
Total Cats: 2
Default

Quote:
Originally Posted by mikewolf View Post
I've got that same datsun scoop in my hood. It was installed by the previous owner and I didn't know it was from a datsun until this thread. Thanks,
Got any pics?
whataboutno is offline   Reply With Quote
Old 05-30-2010, 01:16 PM   #32
Elite Member
Thread Starter
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

So has anyone made a pressure grid for an NA? I've searched for it a bit this morning but have come back empty handed.
chpmnsws6 is offline   Reply With Quote
Old 05-30-2010, 01:26 PM   #33
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

Thank god someone revived this... any progress? I am also insterested in a grid for an NA
Pen2_the_penguin is offline   Reply With Quote
Old 05-30-2010, 01:42 PM   #34
Elite Member
Thread Starter
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

I have a second hole in the hood with a carbontrix vent, but the hole is cut in a way that the vent can be shifted forward/backward about 2 inches. Its not riveted in yet since I'm going to strip and polish the hood.

Last edited by chpmnsws6; 05-30-2010 at 02:41 PM.
chpmnsws6 is offline   Reply With Quote
Old 05-30-2010, 02:33 PM   #35
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

not yours:

hustler is offline   Reply With Quote
Old 05-30-2010, 02:43 PM   #36
Elite Member
Thread Starter
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

Neat. Now do you have a grid showing the pressure differential on the hood? My cutout is in the same location.
chpmnsws6 is offline   Reply With Quote
Old 05-30-2010, 03:17 PM   #37
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

I think you'd be safe referencing the pattern of pressure on the NB hood. Pressure is definitely relative to the coordinates on the hood. Based on that assumption, the further forward the extractor the better it will reduce pressure. Hustler's is just about in that location. You need also consider that too far forward is going to put the scoop over top the radiator. My cooper scooper sits with the tail end just in front of the hood bubble.
m2cupcar is offline   Reply With Quote
Old 05-31-2010, 01:03 AM   #38
Elite Member
Thread Starter
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

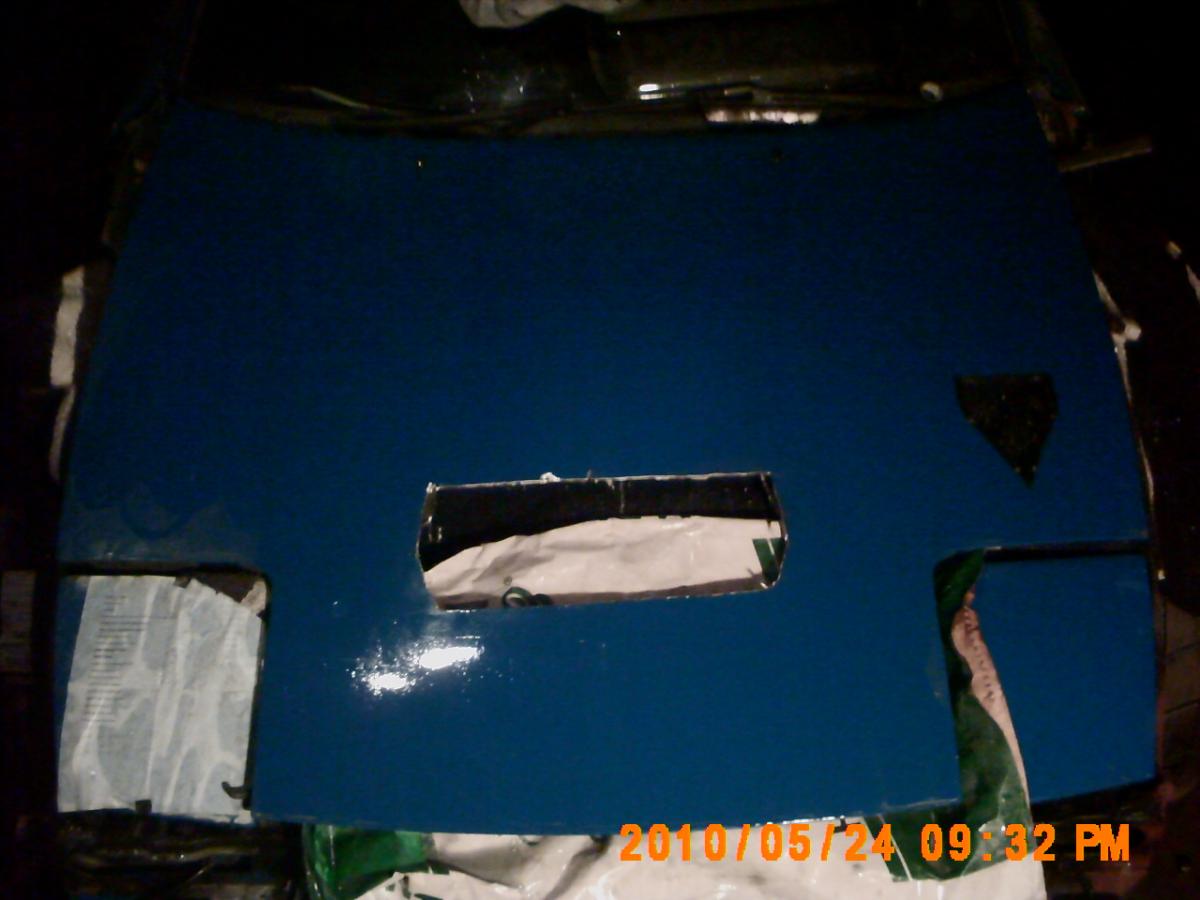

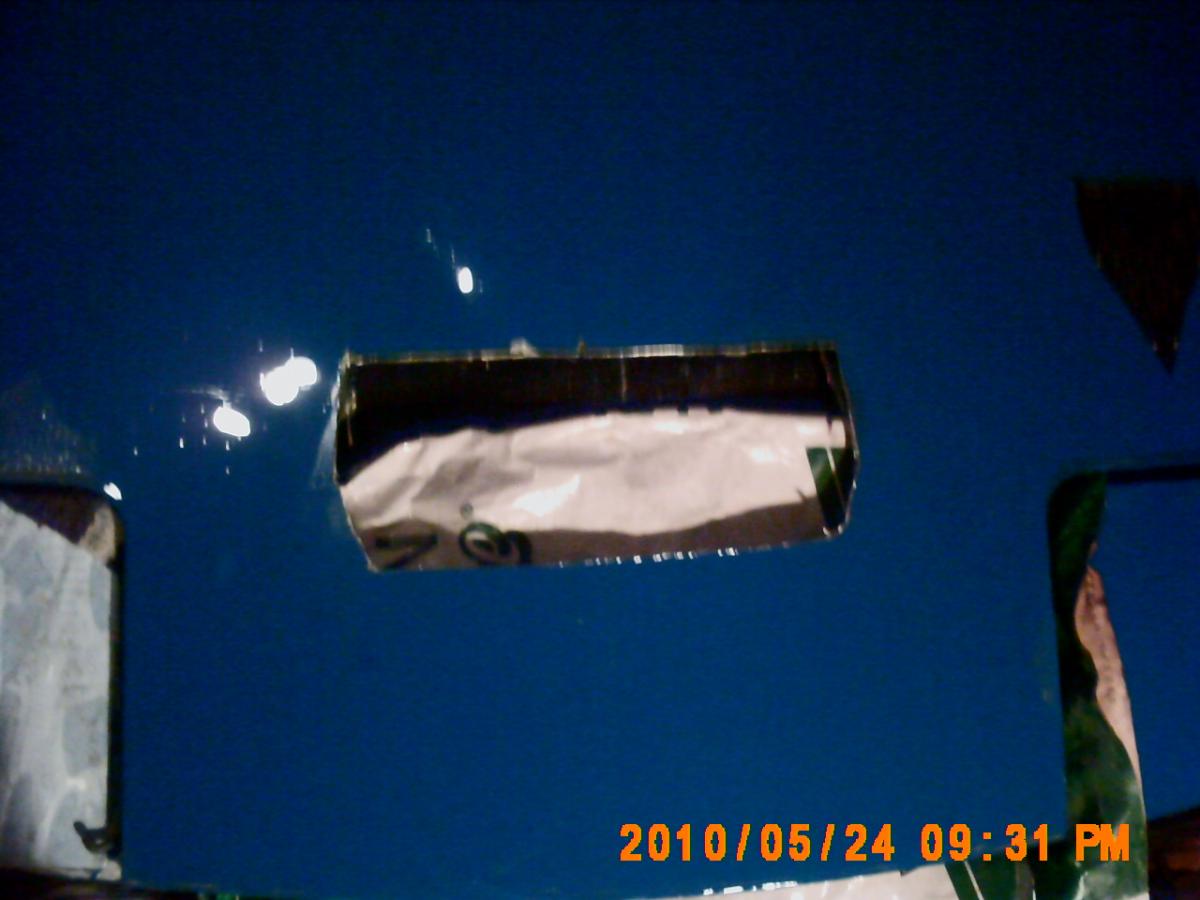

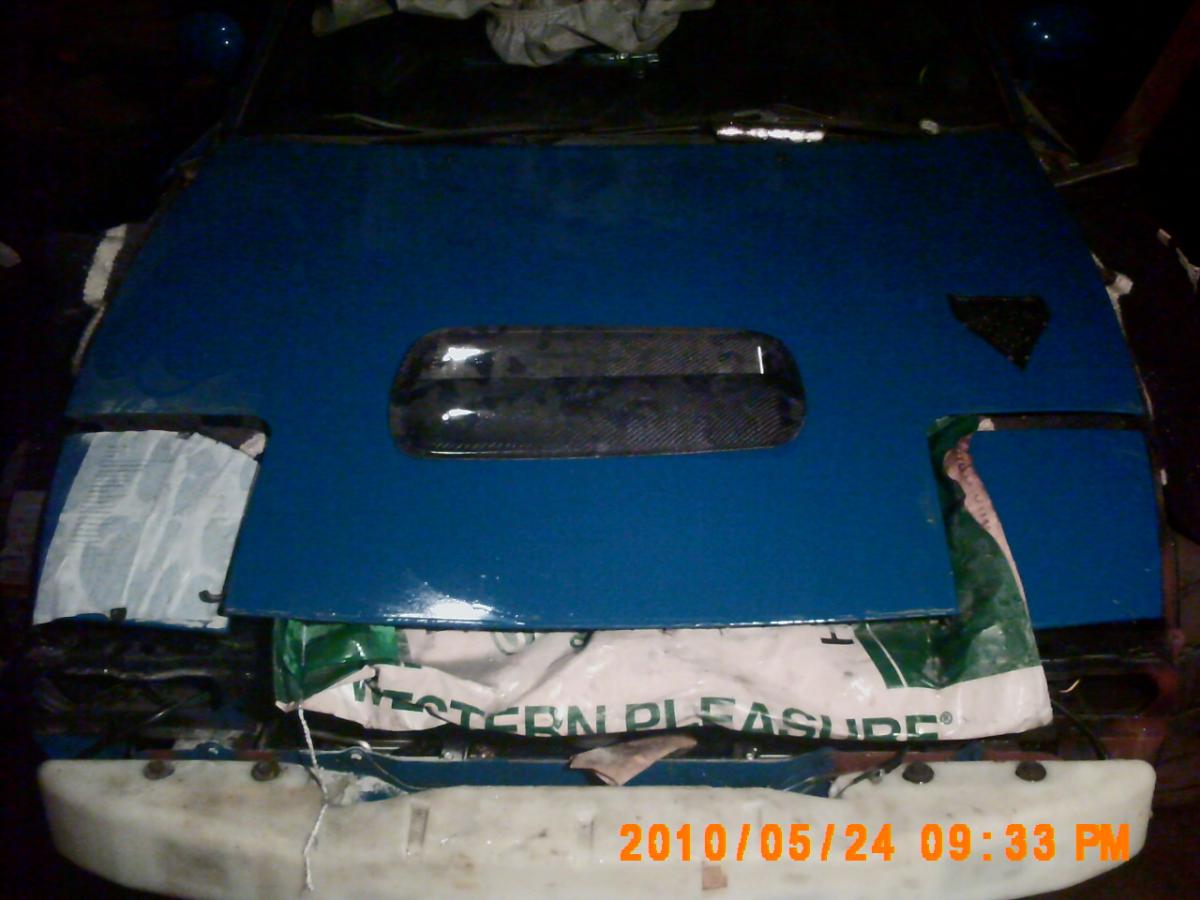

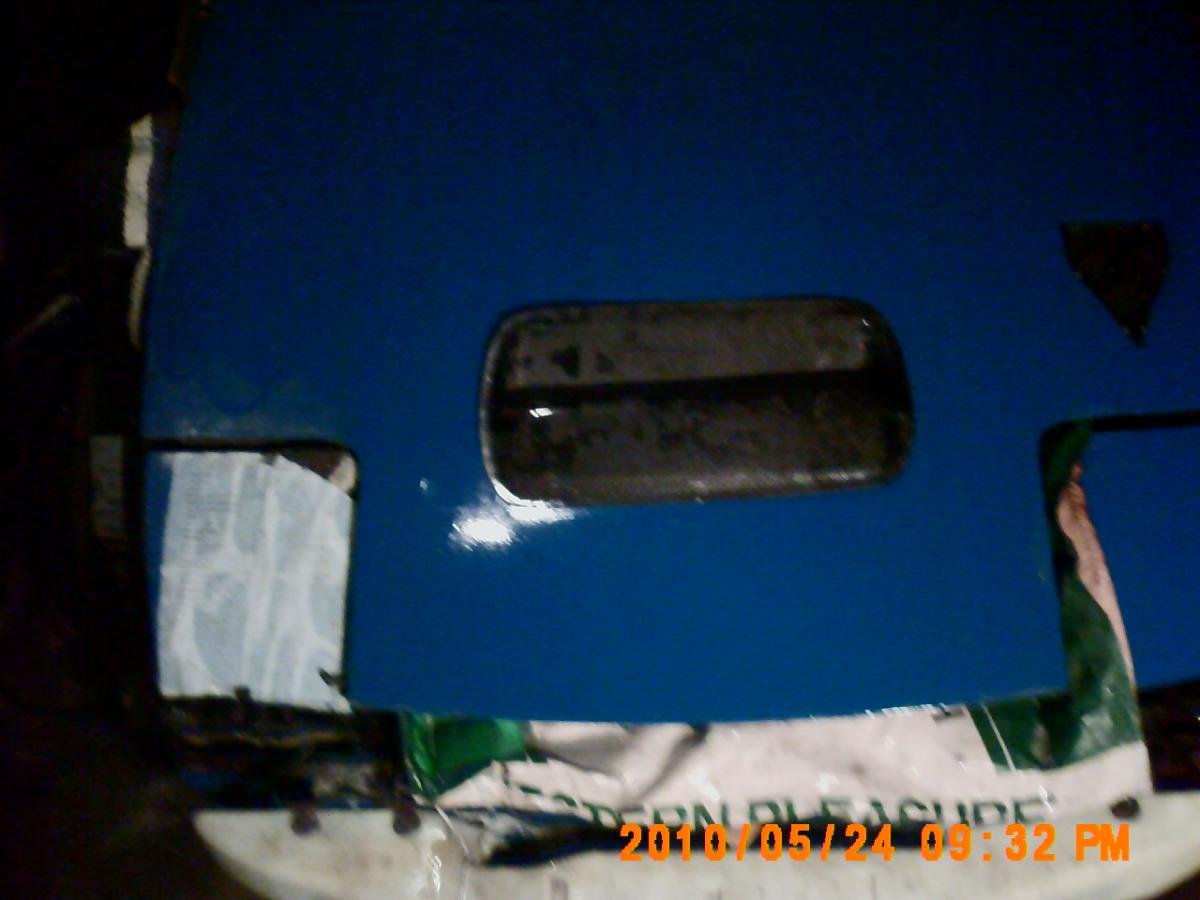

Progress so far. Sorry about the crappy pictures.
Attached Thumbnails
DIY Miata hood vents?-hood1.jpg   DIY Miata hood vents?-hood2.jpg   DIY Miata hood vents?-hood3.jpg   DIY Miata hood vents?-hood4.jpg
chpmnsws6 is offline   Reply With Quote
Old 06-08-2010, 10:27 PM   #39
Elite Member
Thread Starter
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

chpmnsws6 is offline   Reply With Quote
Old 06-08-2010, 10:43 PM   #40
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

A little air foil or raised portion in front of the vent will also dramatically decrease pressure over the vent. I taped yarn to the inside of the vent in my new hood and the yarn stood straight up and flew off after a few miles thanks to scotch tape...the FM just let the yarn dance around a bit although it did effectively pull air out.
hustler is offline   Reply With Quote
