You might need to add more pins behind the headlights, dzus fasteners at least.

http://streetperformanceusa.com/i-72...r-10-pack.html
chpmnsws6 is offline   Reply With Quote
Old 12-19-2011, 11:53 PM   #62
Senior Member
iTrader: (22)

Join Date: Oct 2007
Location: bay area, ca
Posts: 551
Total Cats: 19
Default

Quote:
Originally Posted by pusha View Post
Those vents are like $54 from the Ford dealer, right?
That sounds right. I paid just under $70 shipped.
orion4096 is offline   Reply With Quote
Old 12-20-2011, 06:25 PM   #63
Elite Member
Thread Starter
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

http://forum.miata.net/vb/showpost.p...0&postcount=80

2nd picture for an idea. It looks clean and would only cost 10-15 dollars from the hardware store.
chpmnsws6 is offline   Reply With Quote
Old 12-20-2011, 06:40 PM   #64
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

shameless plug.

I have an R56 MINI scoop up FS in the classifieds.

I will probably do a vent when my car begins to see more track time.
240_to_miata is offline   Reply With Quote
Old 01-09-2012, 11:00 PM   #65
Senior Member
iTrader: (22)

Join Date: Oct 2007
Location: bay area, ca
Posts: 551
Total Cats: 19
Default

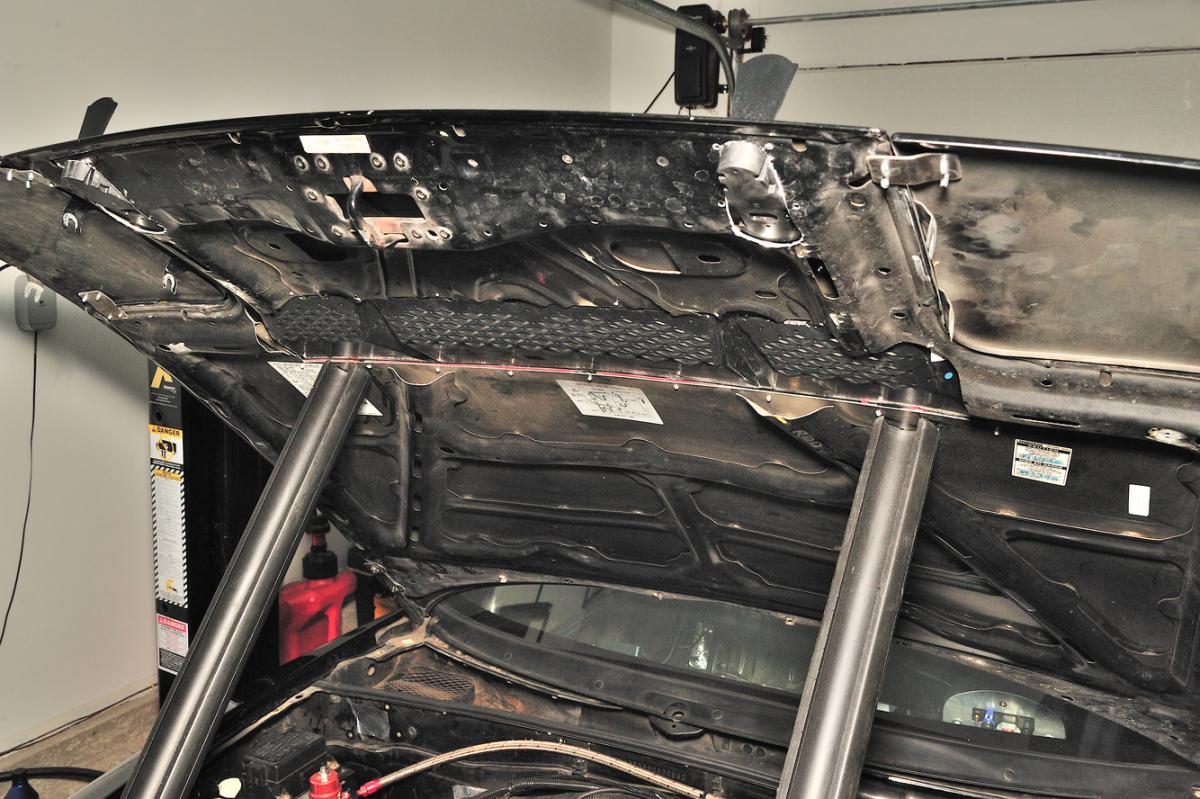

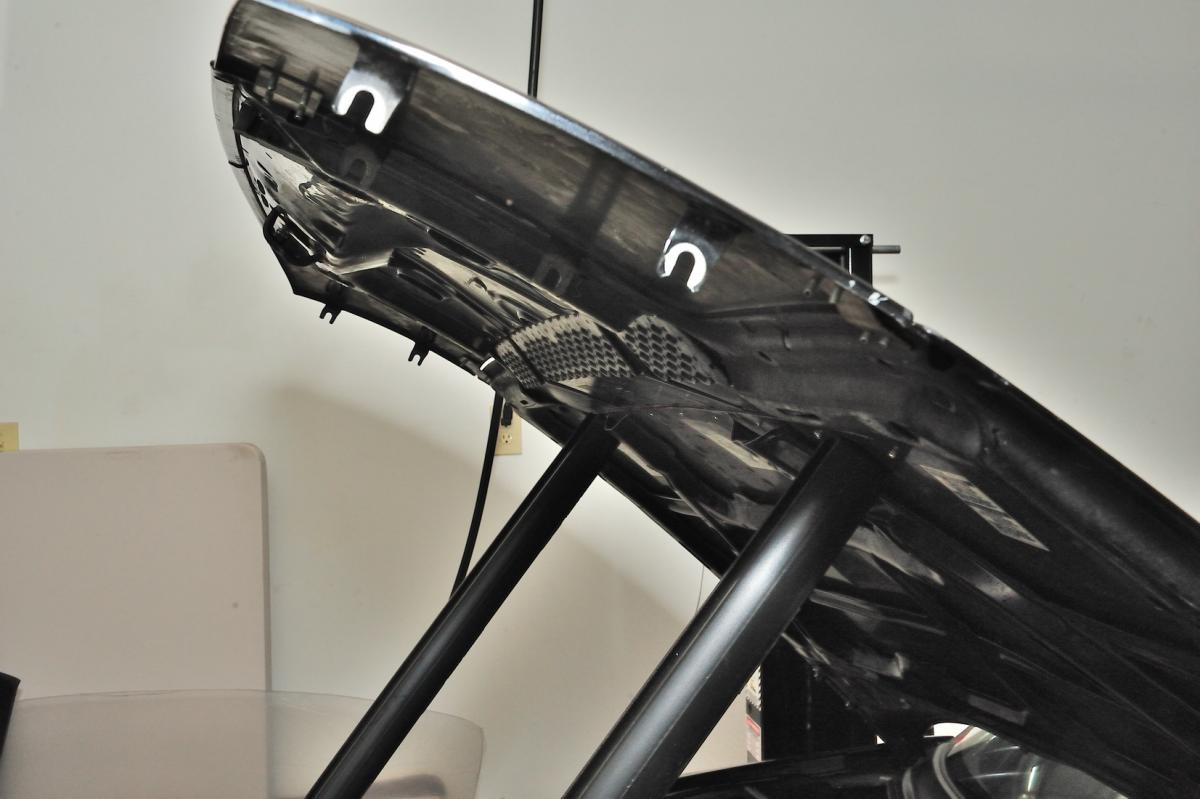

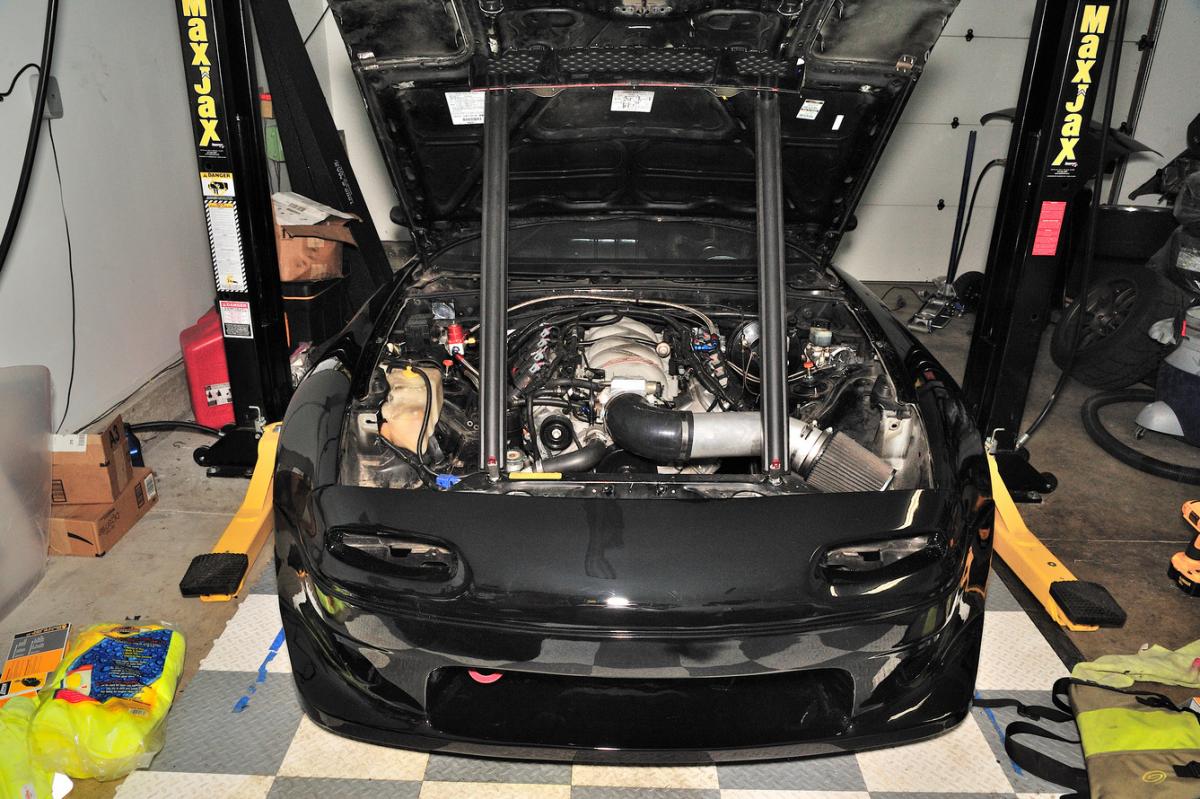

Someone asked for underhood shots. I forgot to peel off that red tape before riveting it down... I have some TB clearance issues up front so the vent is pretty far forward. It looks like a good spot for airflow with it being right behind the radiator. The hood is stiff enough that I'll probably not reinforce it, but it flexes a bit when raising and lowering. You can shave off some of the honeycomb area if you want another 1/4" of clearance. I might do that if the hose clamp on the TB coupler rubs.





Attached Thumbnails
DIY Miata hood vents?-fa2fda4d.jpg   DIY Miata hood vents?-89cf3b3a.jpg   DIY Miata hood vents?-a921edc4.jpg
orion4096 is offline   Reply With Quote
Old 01-10-2012, 02:27 AM   #66
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

Can you post a more direct under hood shot, like perpendicular to the vent?
vehicular is offline   Reply With Quote
Old 01-10-2012, 11:54 PM   #67
Senior Member
iTrader: (22)

Join Date: Oct 2007
Location: bay area, ca
Posts: 551
Total Cats: 19
Default

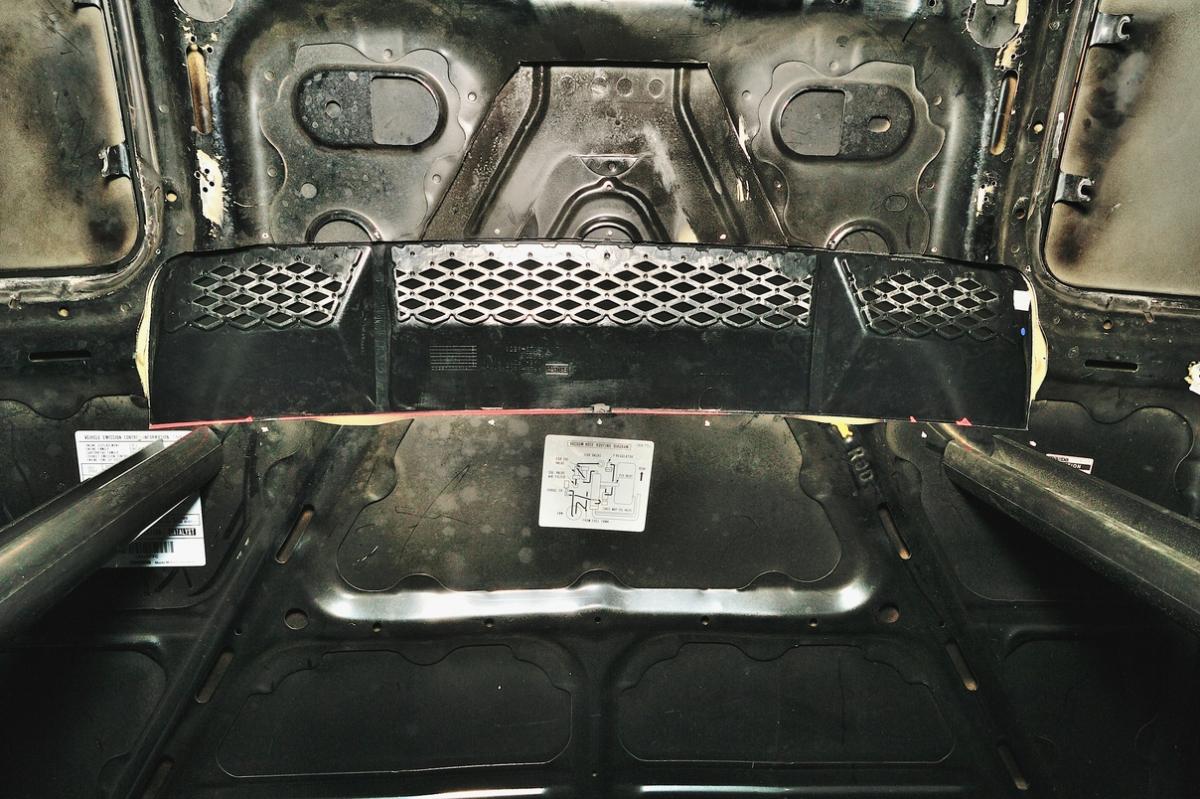

Like dat?

Attached Thumbnails
DIY Miata hood vents?-52941333.jpg
orion4096 is offline   Reply With Quote
Old 01-11-2012, 12:38 AM   #68
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

Perfect. Expect pics of mine... as soon as I can get this damn exhaust project finished up.
vehicular is offline   Reply With Quote
Old 01-11-2012, 02:21 AM   #69
Senior Member

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

Here is a pic of what i had, it help keep the air going into my turbo cold.



Its hard to see but its that piece of aluminum on the hood. Its on the dip of the hood so that it wouldn't stick out into the air stream so much.

Last edited by miatamike203; 01-11-2012 at 06:51 AM.
miatamike203 is offline   Reply With Quote
Old 05-28-2012, 05:26 AM   #70
Newb

Join Date: Feb 2011
Posts: 32
Total Cats: 2
Default

Ha, I had one of those Ford vents on my Civic.

http://www.d-series.org/forums/diy-f...r-install.html

I didn't put a whole ton of thought behind my choosing of the location for it, I just ballparked where the low pressure zone on the hood "should" be and stuck it there. Plus with it being FWD, it was also ventilating the hell out of the turbo that was cooking my hood.

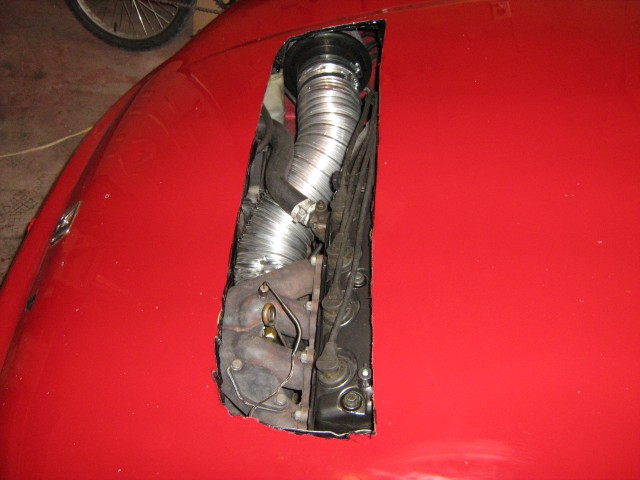

Ignore the dryer duct, it was temporary. Car was my DD and had to drive it to work while I finished the actual 4" intake.
Attached Thumbnails
DIY Miata hood vents?-3udna.jpg
Sentry is offline   Reply With Quote
Old 05-28-2012, 08:44 AM   #71
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

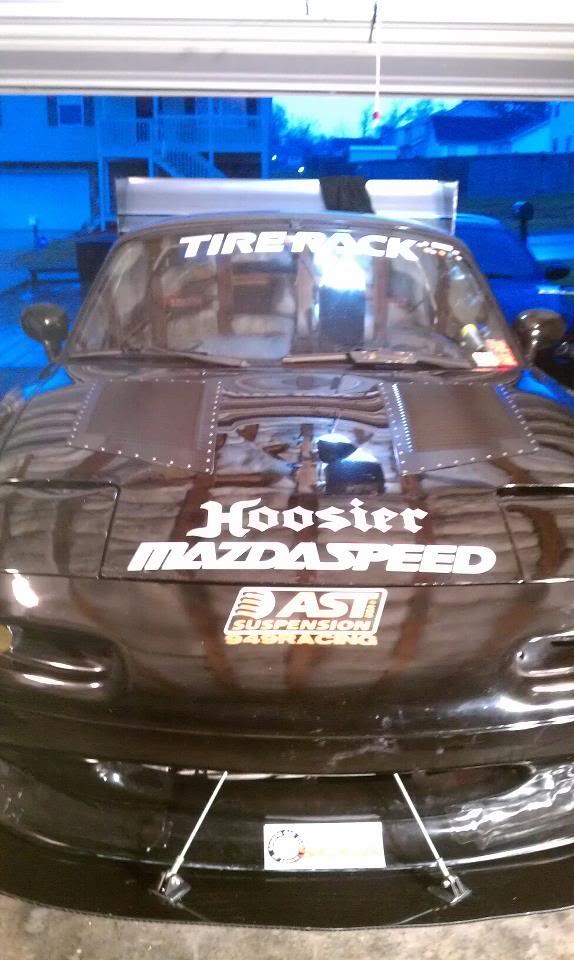

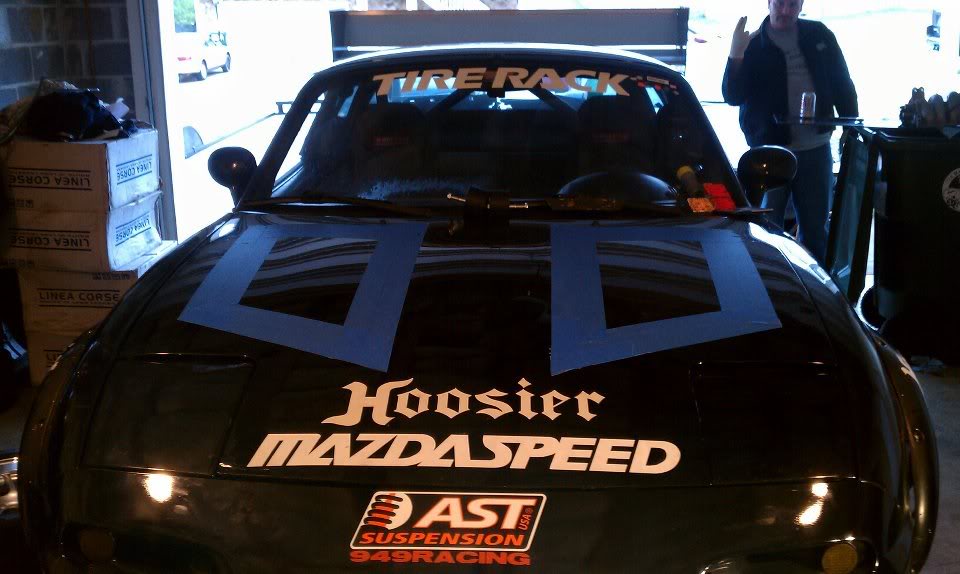

I don't know if you consider this DIY since I installed a pre made set of louvers but here is my hood.







The louvers are made by this company.
http://www.hoodlouvers.com/
Attached Thumbnails
DIY Miata hood vents?-431699_10150574098164242_500104241_8848179_24136851_n.jpg   DIY Miata hood vents?-393857_10150572904339242_500104241_8844043_1514386159_n.jpg
TNTUBA is offline   Reply With Quote
Old 05-28-2012, 08:32 PM   #72
Newb
iTrader: (1)

Join Date: Dec 2009
Location: SA, Tx
Posts: 32
Total Cats: 0
Default

Quote:
Originally Posted by chpmnsws6 View Post

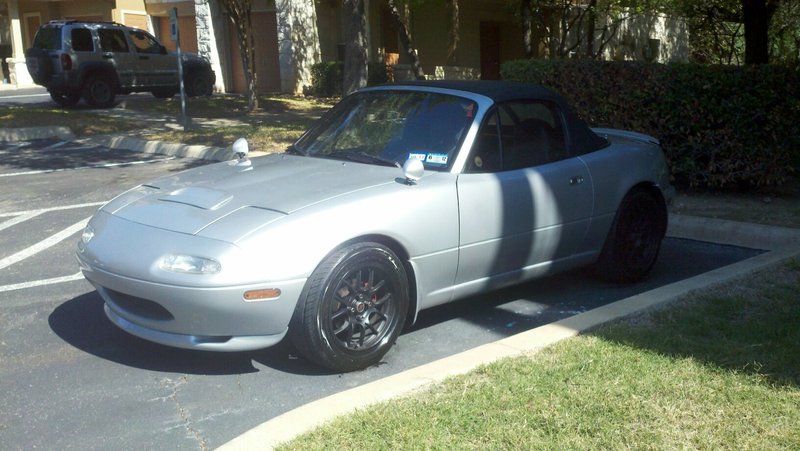

Thanks guys. Through a PM from a fellow swap member, I think a Carbontrix hood vent might be the solution after seeing the thread Levnubbin posted. Apparently, "extraction hood" brings up a better idea of what I was after.



Hoping the hood will come out about like this. The bump in the vent should intensify the venturi effect, helping to pull the air out of the radiator.
Is there more pictures of his car?
Im really liking his hood louvers. and bumper naca duct intake thing. ive been looking into ways to cut up the bumper but make it look good too.

I already have the mini scoop reversed just want to get some more air in/out on the driver (supercharger) side.


By oscargarza88 at 2012-04-15\

Also want to get more air flowing thru the intercooler which it seems like a hole in the bumper will be the best solution to doing so...



Uploaded with ImageShack.us
Attached Thumbnails
DIY Miata hood vents?-29024310100104717572195.jpg

Last edited by oscargarza88; 05-29-2012 at 10:39 AM.
oscargarza88 is offline   Reply With Quote
Old 05-29-2012, 10:15 AM   #73
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

Quote:
Originally Posted by chpmnsws6 View Post
You might need to add more pins behind the headlights, dzus fasteners at least.

http://streetperformanceusa.com/i-72...r-10-pack.html
Just as a public service announcement: don't use fasteners like that on a hood. Nothing worse than watching a car burn while people try to find a dzus wrench... nevermind if something happens on track when your tool is in the pits.

They make ones that look like wing nuts that will create a tiny amount of aero drag but at least a corner worker can open the hood. Always need to plan for the worst case scenario.
njn63 is offline   Reply With Quote
Old 05-29-2012, 08:05 PM   #74
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Where are you guys getting these GT500 vents? I keep seeing references to a $32 or $54 price on other forums, but best price I can find is closer to $64. PN is AR3Z-16C630-AA if that helps anyone.

For refrence, my local Ford stealership parts dept wants $128
EO2K is offline   Reply With Quote
Old 05-30-2012, 12:18 AM   #75
573
Junior Member
iTrader: (2)

573's Avatar

Join Date: Nov 2011
Location: Troy, Michigan
Posts: 252
Total Cats: 16
Default

I'll play.







573 is offline   Reply With Quote
Old 05-30-2012, 12:46 PM   #76
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

Quote:
Originally Posted by EO2K View Post
Where are you guys getting these GT500 vents? I keep seeing references to a $32 or $54 price on other forums, but best price I can find is closer to $64. PN is AR3Z-16C630-AA if that helps anyone.

For refrence, my local Ford stealership parts dept wants $128
Ford quadrupled the price over the last few years. I paid a little under $80 for mine after shipping, which was the best price I could find at the time.
vehicular is offline   Reply With Quote
Old 05-30-2012, 02:23 PM   #77
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by 573 View Post
I'll play.
Ooo, very nice! Props for posting pics and datalogging with airflow indication filament

Last image appears to be a screencap from a video, possible its posted somewhere?

Quote:
Originally Posted by vehicular View Post
Ford quadrupled the price over the last few years. I paid a little under $80 for mine after shipping, which was the best price I could find at the time.
DAMN YOU FORD! DAAAAMN YOUUUUU!!!!

I've been thinking about picking up an extra hood and a '500 vent, mostly for the funsies. My car needs a 3rd panel of a different color before anyone will take it seriously anyway.
EO2K is offline   Reply With Quote
Old 06-02-2012, 02:57 AM   #78
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Quote:
Originally Posted by vehicular View Post
Ford quadrupled the price over the last few years. I paid a little under $80 for mine after shipping, which was the best price I could find at the time.
Quote:
Originally Posted by EO2K View Post
Ooo, very nice! Props for posting pics and datalogging with airflow indication filament

Last image appears to be a screencap from a video, possible its posted somewhere?


DAMN YOU FORD! DAAAAMN YOUUUUU!!!!

I've been thinking about picking up an extra hood and a '500 vent, mostly for the funsies. My car needs a 3rd panel of a different color before anyone will take it seriously anyway.
http://www.tousleyfordparts.com/part...&siteid=214771

$63.32 + shipping.
elesjuan is offline   Reply With Quote
Old 01-28-2013, 07:29 PM   #79
Junior Member

Join Date: Jan 2012
Location: Miami
Posts: 210
Total Cats: 1
Default

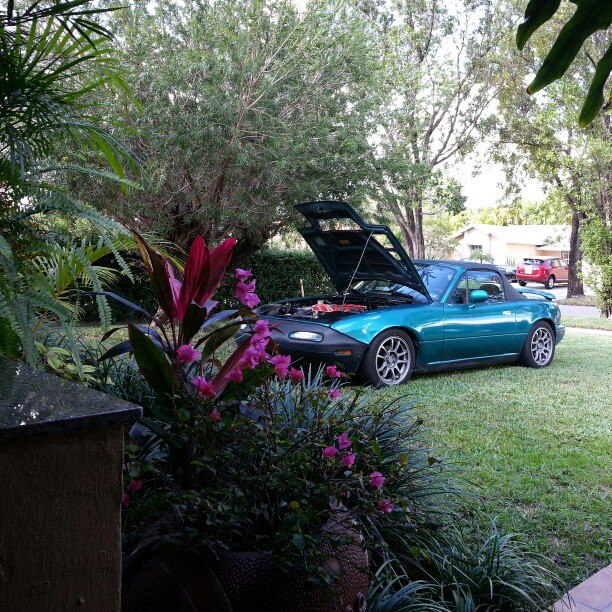

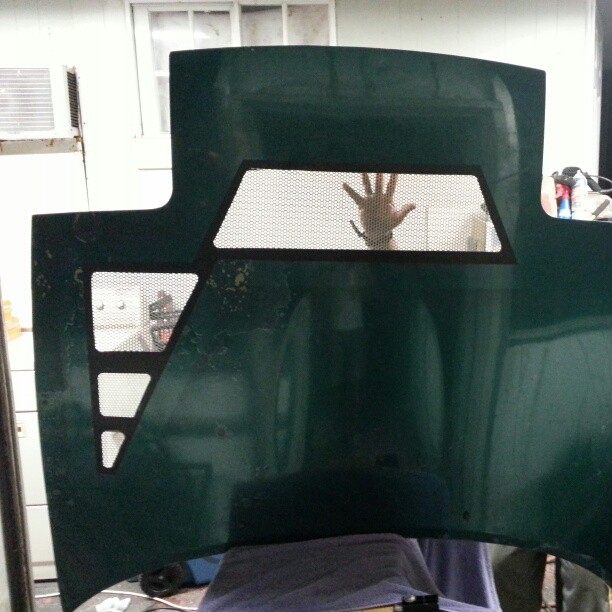

This thread and others like it on other Miata sites and the S2000 forums led me to doing some hood vents. I did one large one right behind the radiator and before the engine block and some triangular venting on the driver's side. They will be painted black so they don't look so ghetto. Disregard the black stripes, we did a vent on my buddy's AE86 hood and he painted them on while forgetting my hood is aluminum and will not rust. My whole car is being painted soon so that will be gone. So far we have both noticed a reduction in fumes in our cars and watched the heat pour out of there while we drive. My buddy reports reduced drag, but I think that's all in his head





Attached Thumbnails
DIY Miata hood vents?-391280_10151485164587868_1087107279_n.jpg   DIY Miata hood vents?-74131_10151472197402868_334023628_n.jpg

Last edited by MatosMiata; 01-28-2013 at 07:40 PM.
MatosMiata is offline   Reply With Quote
Old 03-11-2013, 07:43 PM   #80
Newb

Join Date: Mar 2013
Posts: 5
Total Cats: -1
Default

Quote:
Originally Posted by GeneSplicer View Post
I didn't pay attention to all the low/high pressure ****... mine works - maybe not the MOST effecient but works none the less... it always lets me know when I have a loose (likely missing) flange bolt as I puff smoke out the vent during decel - sucking oil through bad exhaust valve stems - or the journal bearing.

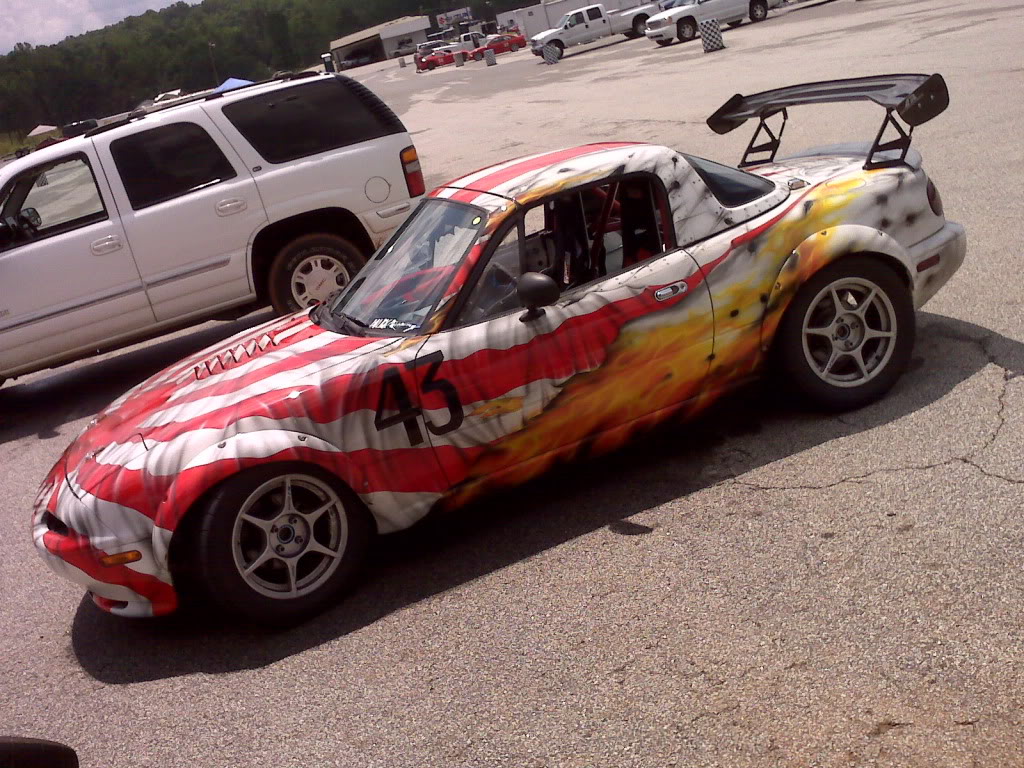

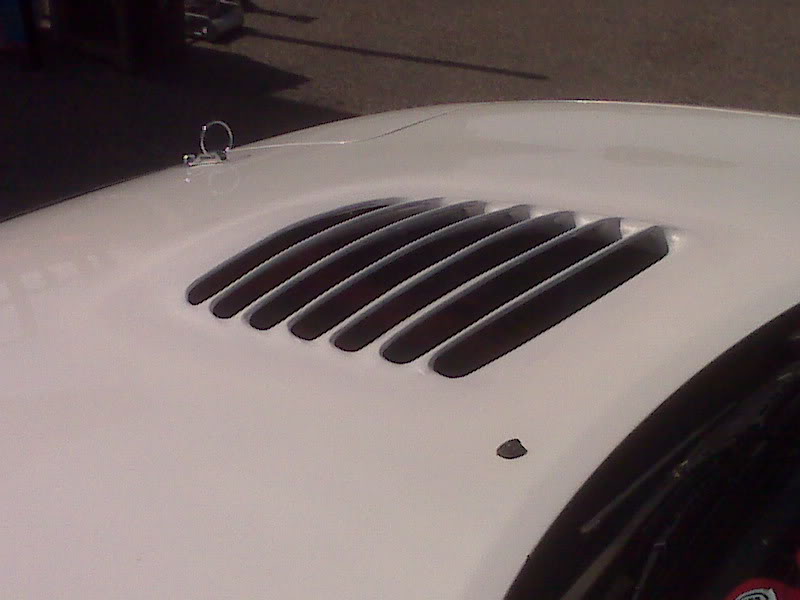

So rain wise would this be bad to do if I get a lot of rain where I live?
Attached Thumbnails

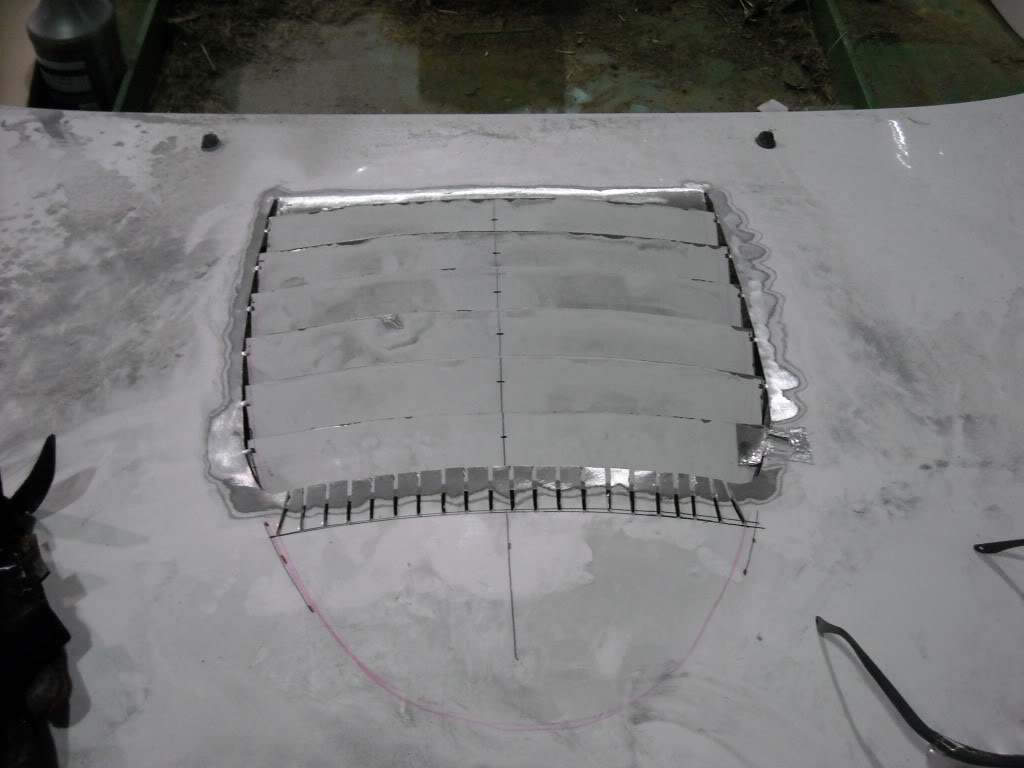

DIY Miata hood vents?-033.jpg   DIY Miata hood vents?-img00256.jpg   DIY Miata hood vents?-img00386.jpg
sonelane is offline   Reply With Quote
