Old 03-15-2013, 05:16 PM   #81
Junior Member

Join Date: Jan 2012
Location: Miami
Posts: 210
Total Cats: 1
Default

Quote:
Originally Posted by sonelane View Post
So rain wise would this be bad to do if I get a lot of rain where I live?
I live in South Florida where the last few months have been nothing but torrential downpours and my car is running fine. With the proper vent locations, your coilpacks are not exposed so it does not matter. Think of it this way, when you drive in a flood your engine bay gets soaked and people drive jeeps through rivers with water up to the windows (their intake is snorkeled and their distributor is sealed) but nothing happens to the engine. A little rain water in a hood vent does nothing. Evos come from the factory with a huge hood vent, as do Shelby Mustangs.
MatosMiata is offline   Reply With Quote
Old 03-17-2013, 01:28 PM   #82
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

Quote:
Originally Posted by sonelane View Post
So rain wise would this be bad to do if I get a lot of rain where I live?
I wouldn't want the rain coming through directly over the cam cover where it would pool there and depending on what coils you are running, they could be sitting in standing water too. There are better places on the hood surface that are more effective so leave the umbrella over the engine itself.
mr_hyde is offline   Reply With Quote
Old 06-24-2015, 12:08 PM   #83
Junior Member
iTrader: (1)

Join Date: Mar 2010
Posts: 147
Total Cats: 3
Default

Singular offers the ultimate option now, but the cheap crowd should look at these as an option: Subaru Impreza Mk2 2001 2003 Front Bumper Vents BV220

I think they would look decent on an NA, but maybe not much else. I'll have pictures up sometime in July after I decide if I will paint them black or paint match them to my car (white).

Last edited by RyanLewo; 06-24-2015 at 12:09 PM. Reason: Fuck this thread is ancient...getting caught up reading through too much cool old shit I guess.
RyanLewo is offline   Reply With Quote
Old 06-24-2015, 01:07 PM   #84
Senior Member
iTrader: (3)

Join Date: Dec 2008
Location: KY
Posts: 698
Total Cats: 48
Default

Your link is all fucked up.
jpreston is offline   Reply With Quote
Old 06-24-2015, 01:22 PM   #85
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,684
Total Cats: 555
Default

Works fine for me.
rleete is offline   Reply With Quote
Old 06-24-2015, 01:26 PM   #86
Senior Member
iTrader: (3)

Join Date: Dec 2008
Location: KY
Posts: 698
Total Cats: 48
Default

Yeah, nevermind. My company internet blocks UK websites for some reason. Works fine on my phone. I tried Right Click-> Copy Link Location earlier but the forum software creates a big jumbled mess when you do that on firefox, which is what threw me.
jpreston is offline   Reply With Quote
Old 07-12-2015, 11:38 AM   #87
Junior Member
iTrader: (1)

Join Date: Mar 2010
Posts: 147
Total Cats: 3
Default

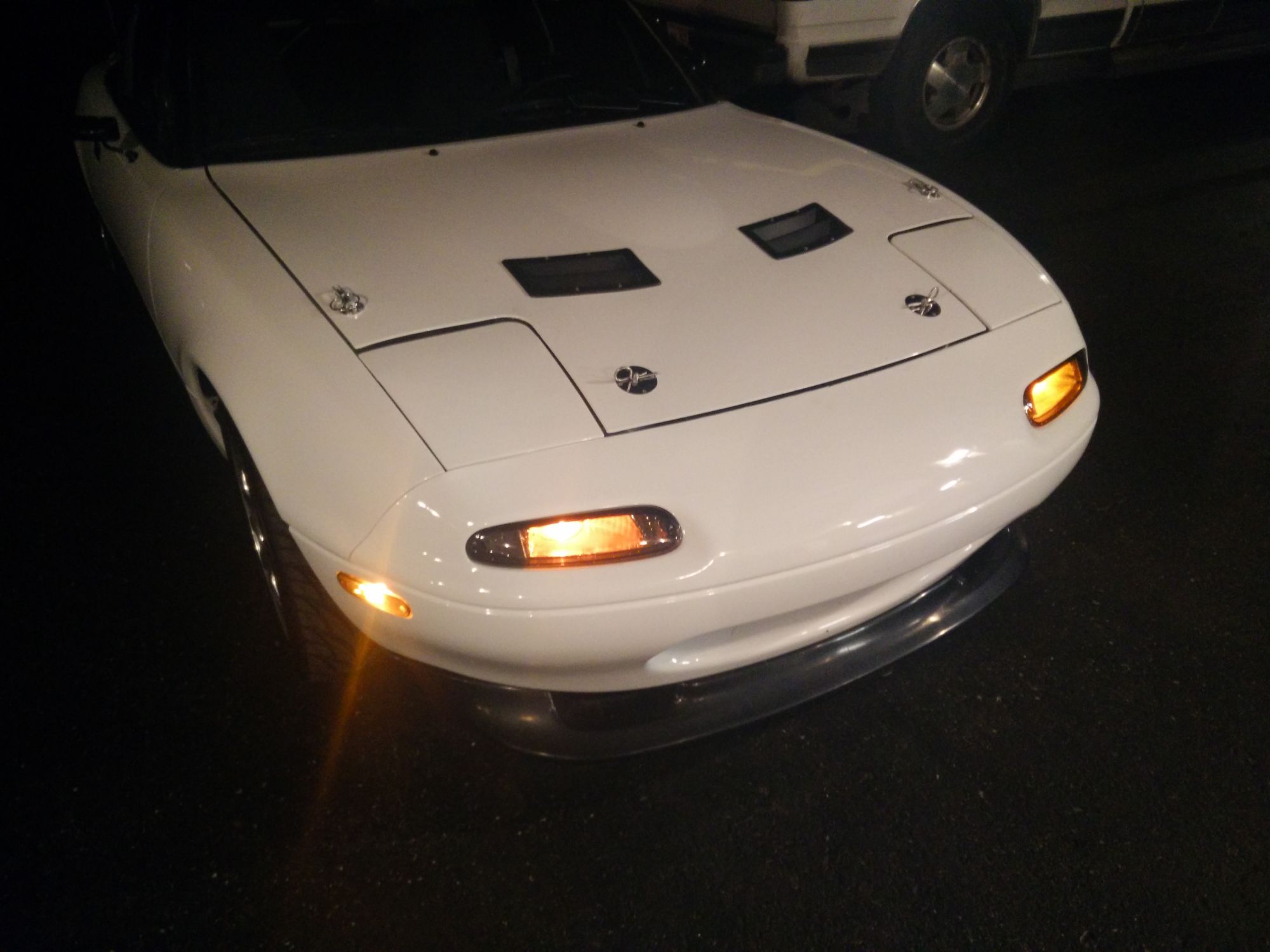

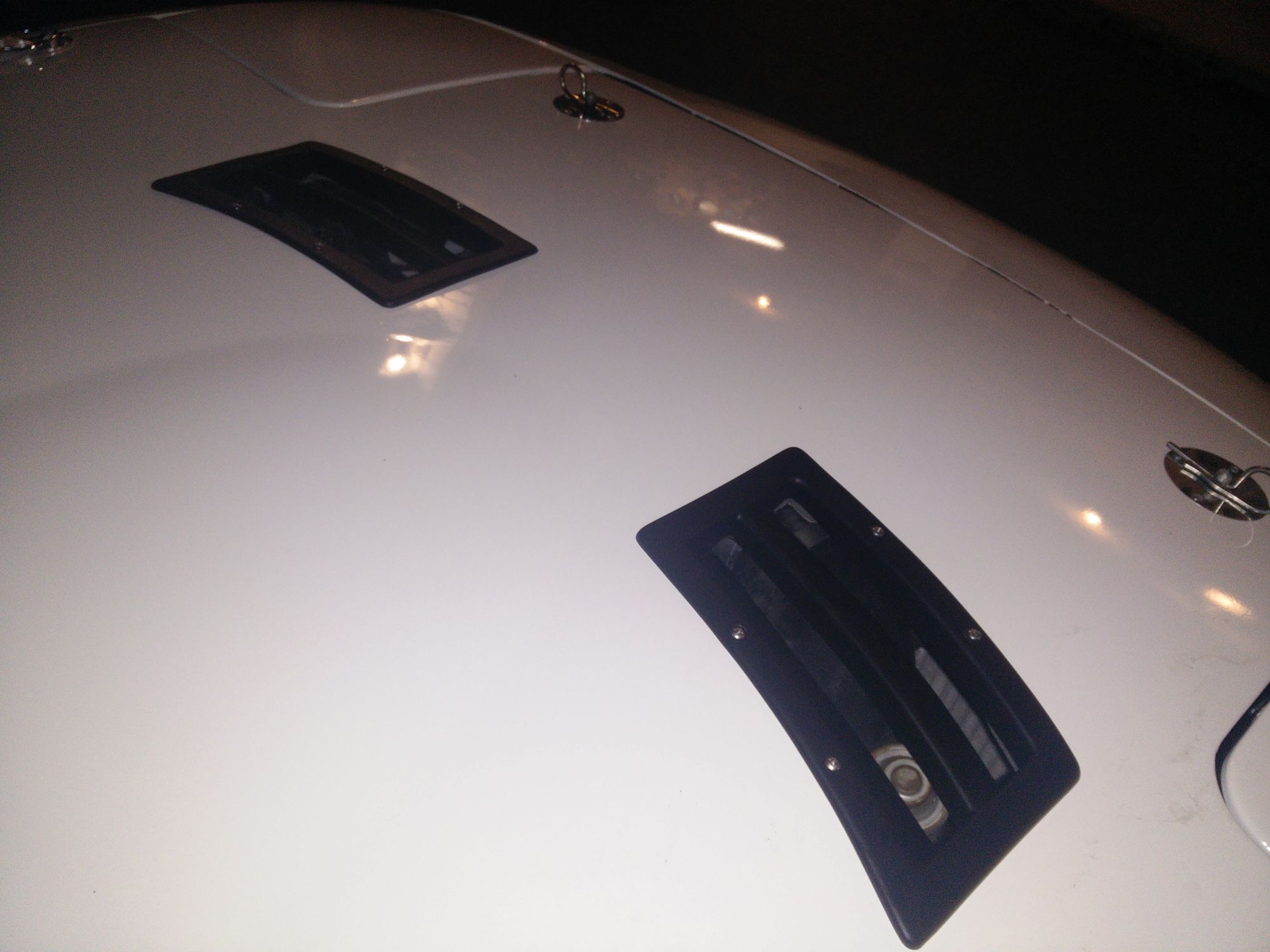

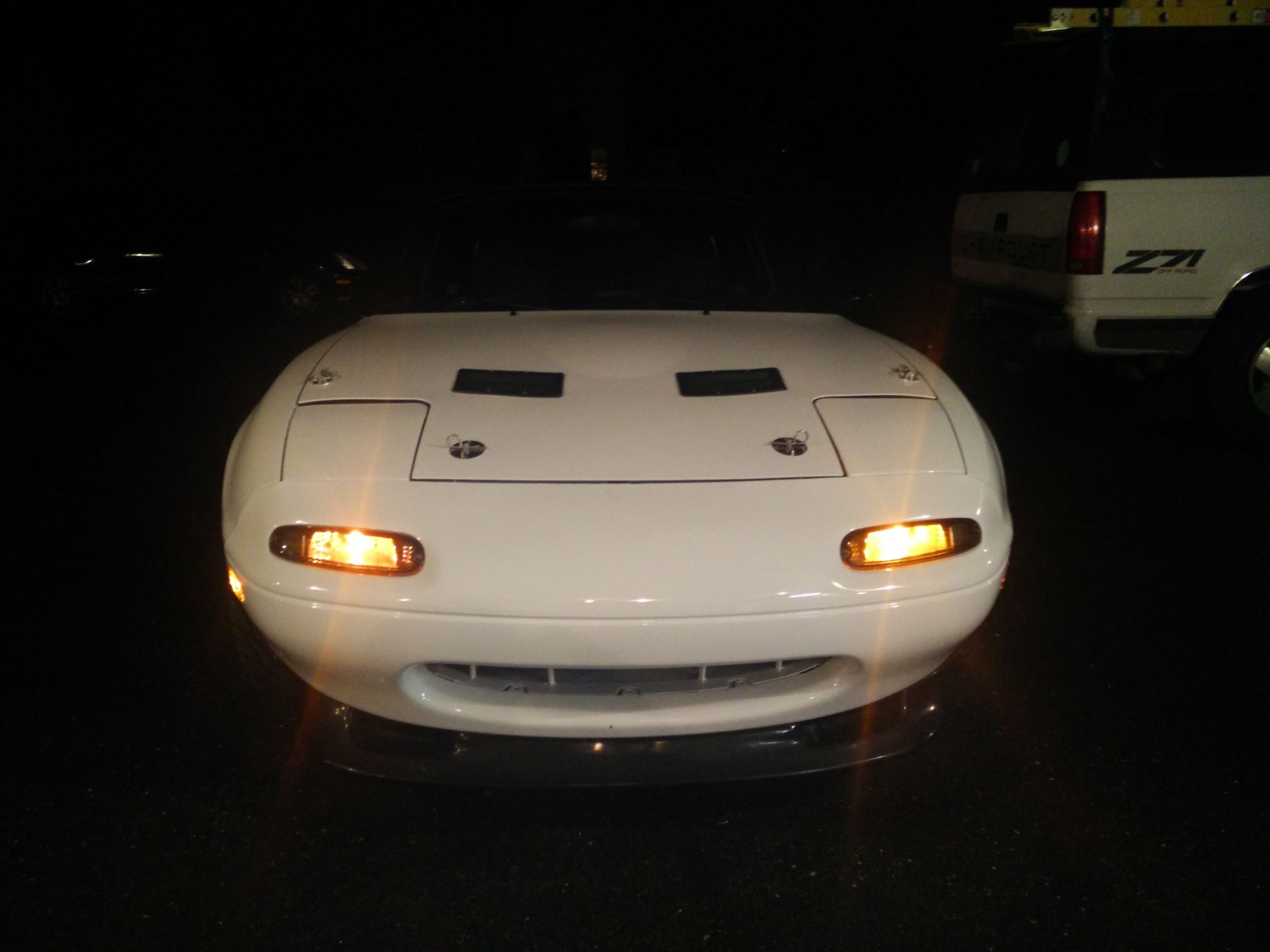

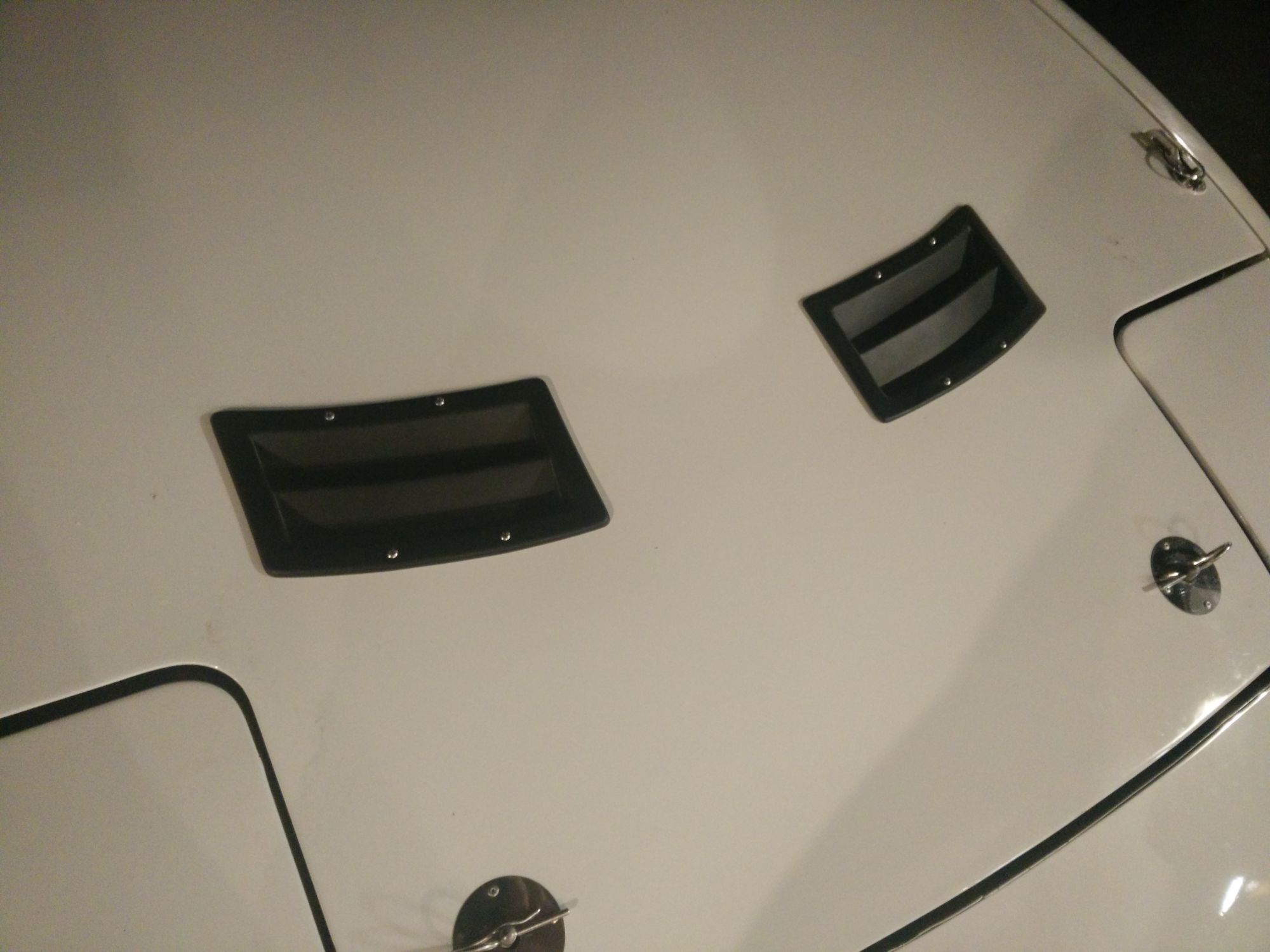

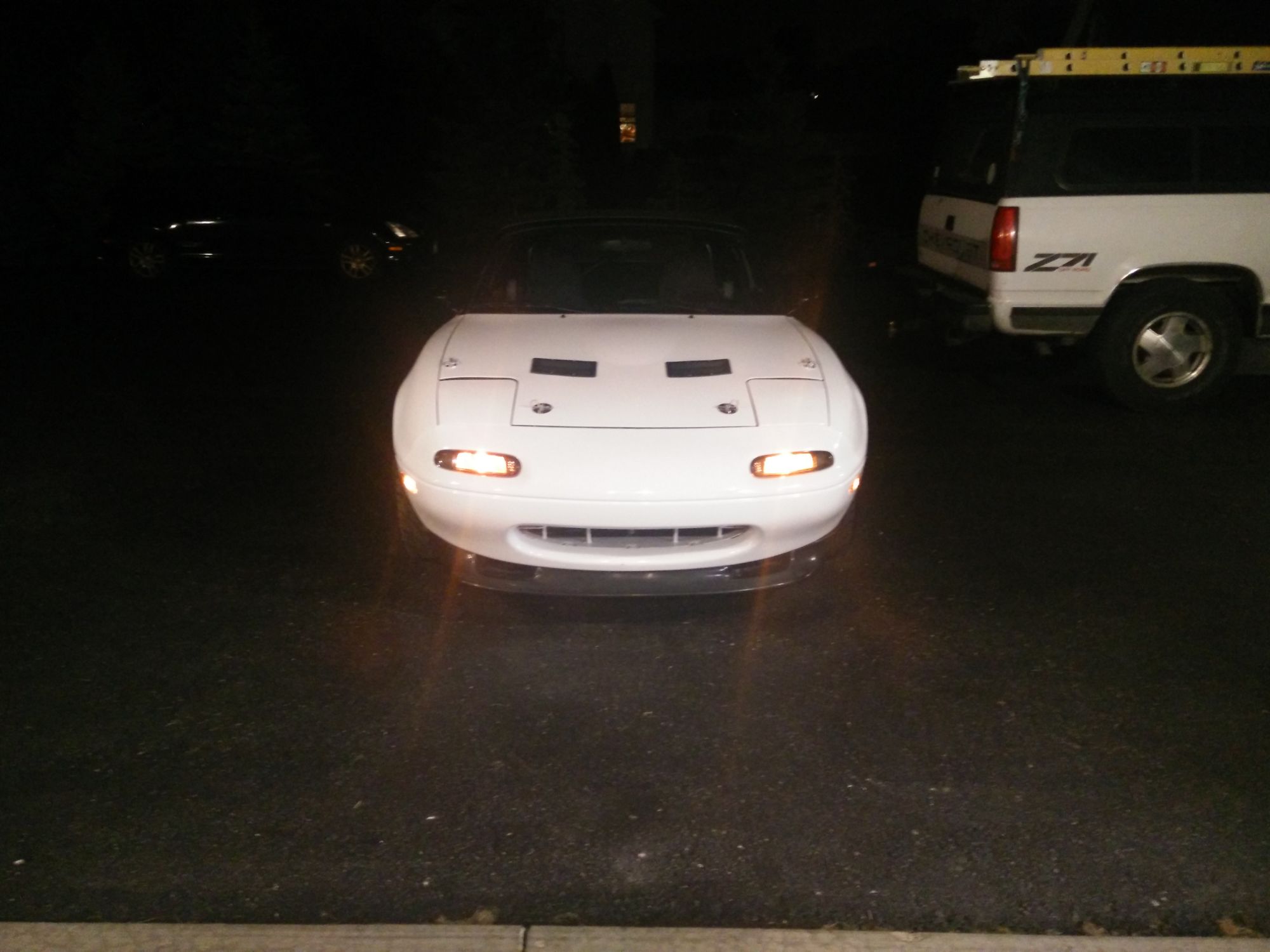

Here's an update with the BV220 Subaru bumper vents.















Attached Thumbnails
DIY Miata hood vents?-80-img_20150711_215915_5a2c405d008058b25c1527a71d50155e75f5db1b.jpg   DIY Miata hood vents?-80-img_20150711_215925_46bc9462326e1278487692c9d9c910354050d715.jpg   DIY Miata hood vents?-80-img_20150711_215826_ee01c9262b602b7bfd09e076f32bae5f83265b12.jpg   DIY Miata hood vents?-80-img_20150711_215833_85c77b4b37fb10ba60fbc83c7ff2de8ef7b2ded3.jpg   DIY Miata hood vents?-80-img_20150711_215844_ca535708d0a622a31f43dba51311d87fc99742fd.jpg

RyanLewo is offline   Reply With Quote
Old 07-12-2015, 04:26 PM   #88
Junior Member

Join Date: Jul 2014
Posts: 60
Total Cats: 2
Default

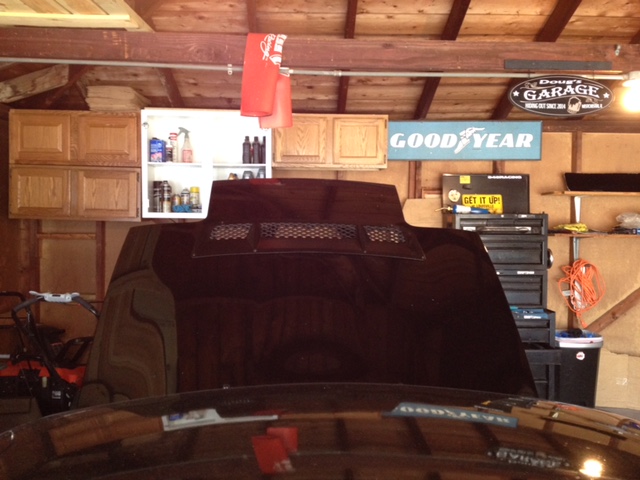

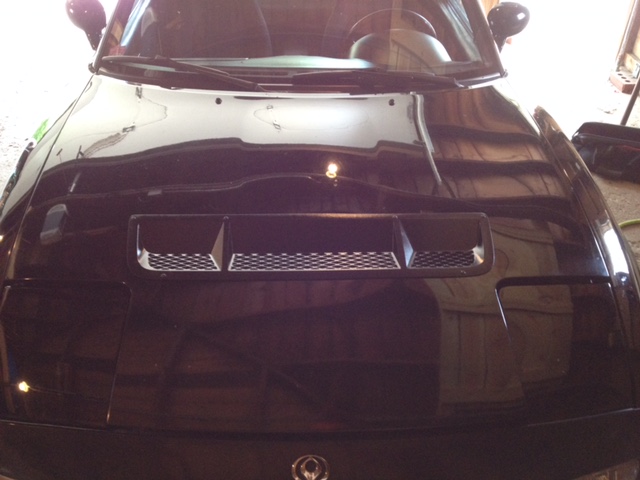

I recently did the gt500 scoop and figured I could post a few pics. I really just did it because I got the scoop cheap from my brother and it gave me piece of mind that the car wouldn't over heat as readily. Probably a waste because I'm not boosted but meh. Also I had seen that folks had issues with the hood being floppy after cutting out all the bracing so I did it a little differently.

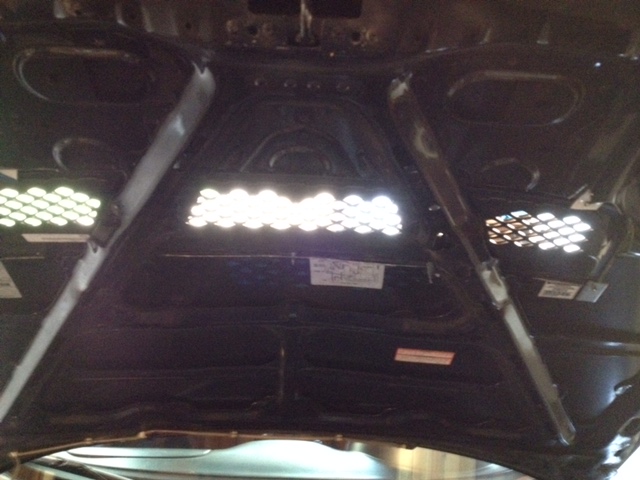

I first cut the outer skin of the hood out using a cut off tool. Once i had cut it I pried it off from the hood bracing. Looking at it I felt like I could leave a little of the bracing in and just trim it to fit the scoop. The pictures are pretty self explanatory
Attached Thumbnails
DIY Miata hood vents?-img_5753.jpg   DIY Miata hood vents?-img_5754.jpg   DIY Miata hood vents?-img_5755.jpg
Justin case is offline   Reply With Quote
