Default downpipe brace

Hey everyone im changing my headgasket and i need to move my manifold. However the bolts are stripped to the downpipe brace and i cant fit a wheel grinder in there. Are there any other ideas to taking it out..? I dont care if it gets broken, i wont use it on my turbo downpipe. Also, i can get the bottom Tranny bolt, but not the top one..
Dow.tom is offline   Reply With Quote
Old 08-31-2007, 11:50 PM   #2
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

take the trans bolts out that hold it down and undo the downpipe from the cat and pull the whole thing out the top
Mach929 is offline   Reply With Quote
Old 09-01-2007, 12:04 AM   #3
Senior Member
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

I cut mine out with a sawzall
UofACATS is offline   Reply With Quote
Old 09-01-2007, 12:09 AM   #4
Senior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2007
Location: Odenton, MD
Posts: 713
Total Cats: 0
Default

can a sawzall really cut through that, i guess that's my next step.
Dow.tom is offline   Reply With Quote
Old 09-01-2007, 12:12 AM   #5
Senior Member
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

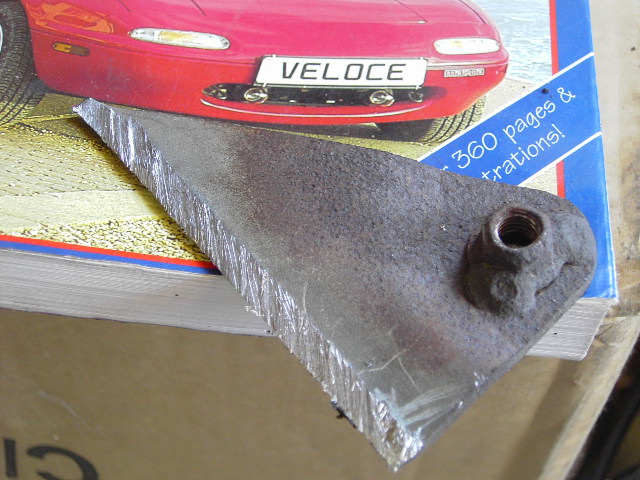

yeah. Get under it, and use a shorter blade.
Attached Thumbnails
downpipe brace-pict0381.jpg
UofACATS is offline   Reply With Quote
Old 09-01-2007, 12:17 AM   #6
Senior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2007
Location: Odenton, MD
Posts: 713
Total Cats: 0
Default

im guessing you cut where the 2 bolts are? Really can't tell from the picture. Alrighty, now i've got a grin on my face heh. Also, any idea on how to take the head off once that's done? I have all the bolts off. Scott said to rock back and forth until the "seal" is broken.
Dow.tom is offline   Reply With Quote
Old 09-01-2007, 12:18 AM   #7
Senior Member
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

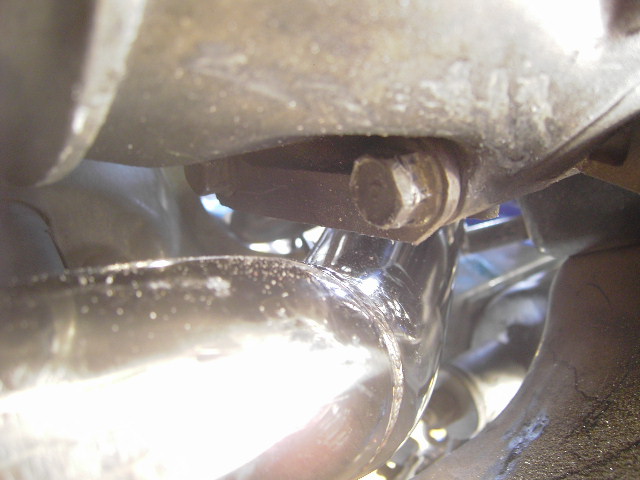

What's left of the brace
Attached Thumbnails
downpipe brace-pict0388.jpg
UofACATS is offline   Reply With Quote
Old 09-01-2007, 12:21 AM   #8
Senior Member
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

Taking off a head is tricky sometimes. Just depends on the car. No good advice from me, I think (I can't recall anything anymore) I tapped it with a rubber hammer and nothing happened, but that might be completly wrong. It's not going to "shake" loose. It should just lift off nice n easy, but it probably wont. Good advice I know.

I think just applying slow, even pressure on one side lifting straight up ended up working.

I'd just listen to Scott.
UofACATS is offline   Reply With Quote
Old 09-01-2007, 12:27 AM   #9
Senior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2007
Location: Odenton, MD
Posts: 713
Total Cats: 0
Default

thanks for the advice, i'll tackle it tomorrow.
