Old 07-22-2015, 10:17 AM   #81
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

IIRC the main fan is 13" diameter and a/c fan 12".
Braineack is offline   Reply With Quote
Old 07-22-2015, 10:27 AM   #82
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

So the shroud is something like 14 x 15?
Full_Tilt_Boogie is offline   Reply With Quote
Old 07-24-2015, 12:01 PM   #83
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,662
Total Cats: 1,560
Default

Quote:
Originally Posted by Leafy View Post
A good ecu should be able to do this with the IAC valve.
For reference, here is a screenshot of my IAC settings:

Attached Thumbnails
Ebay slim fan performance vs Spal-80-combat2600screen2_a1d65d98b389ac89d6c08f7d8a424f7e6e771e06.jpg
sixshooter is offline   Reply With Quote
Old 07-24-2015, 12:10 PM   #84
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

Well there's the problem right there, it's supposed to be set on pac-man, no wonder your idle sucks
18psi is offline   Reply With Quote
Old 07-24-2015, 12:38 PM   #85
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Not enough processor for Pac-Man.
hornetball is offline   Reply With Quote
Old 07-24-2015, 01:04 PM   #86
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I got a Vic-20 in the closet I'll sell ya cheap.
EO2K is offline   Reply With Quote
Old 07-24-2015, 01:15 PM   #87
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

he needs to upgrade to nintendo
18psi is offline   Reply With Quote
Old 08-29-2015, 02:08 PM   #88
Senior Member
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

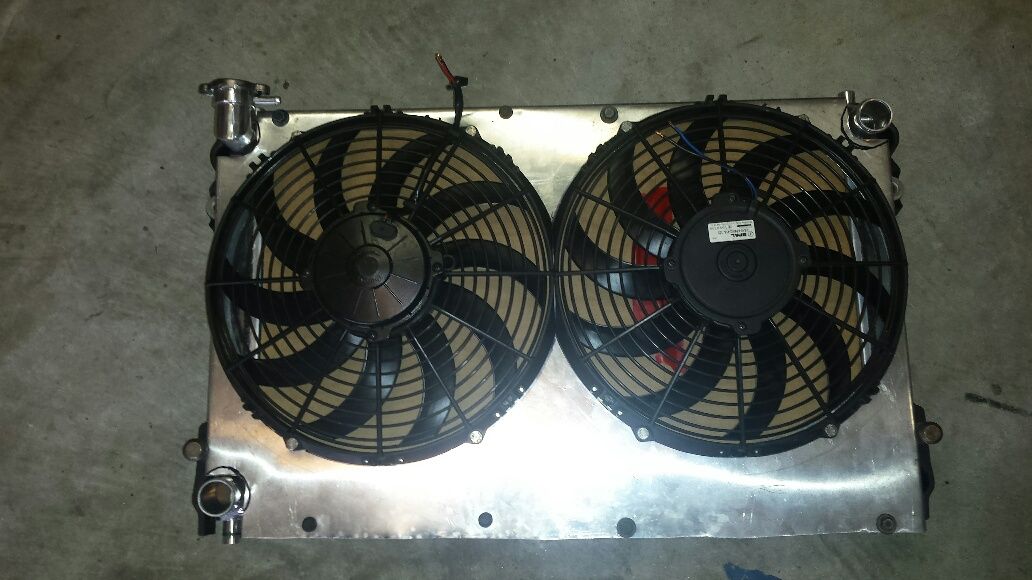

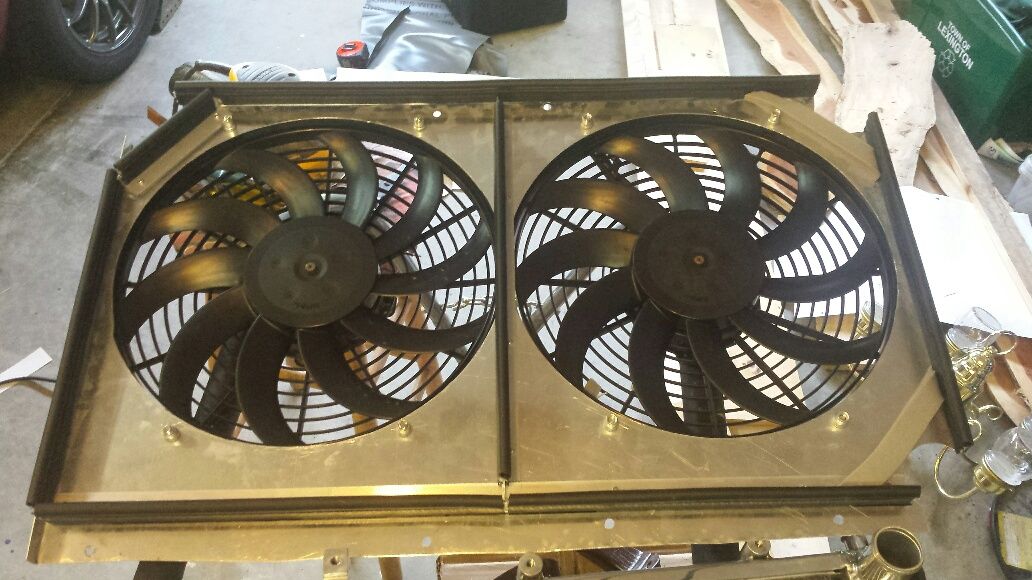

While I was making the new fan shroud for my 949 Supermiata radiator and FM spec SPAL fans I took the opportunity to collect some relevant data to compare the 12" EBAY fans that I had on my old EBAY radiator to the smaller and bigger SPAL fans that are specced for the FM high air flow fan kits.

I hooked each fan to my battery charger, used a model airplane power/amp meter and Magnehelic gauge to measure the DP across the radiator with each fan.

Small Spal fan (3010.1522) 0.48" H2O, 9A, 11.3V
Big Spal fan (3010.2029) 0.50" H20, 9.5A, 11.25V
EBAY 12" fan, 0.25" H2O, 5.5A, 11.6V

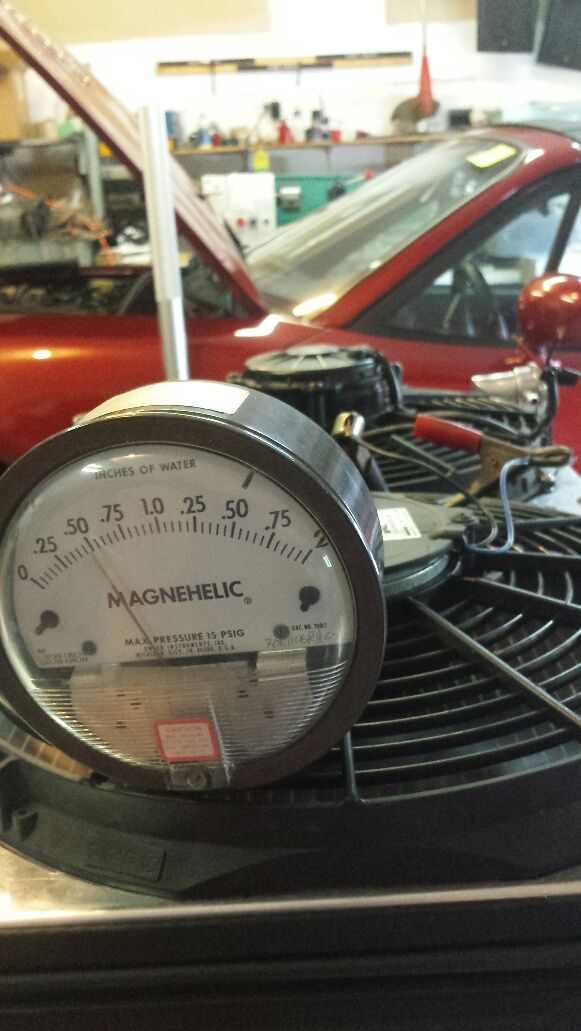

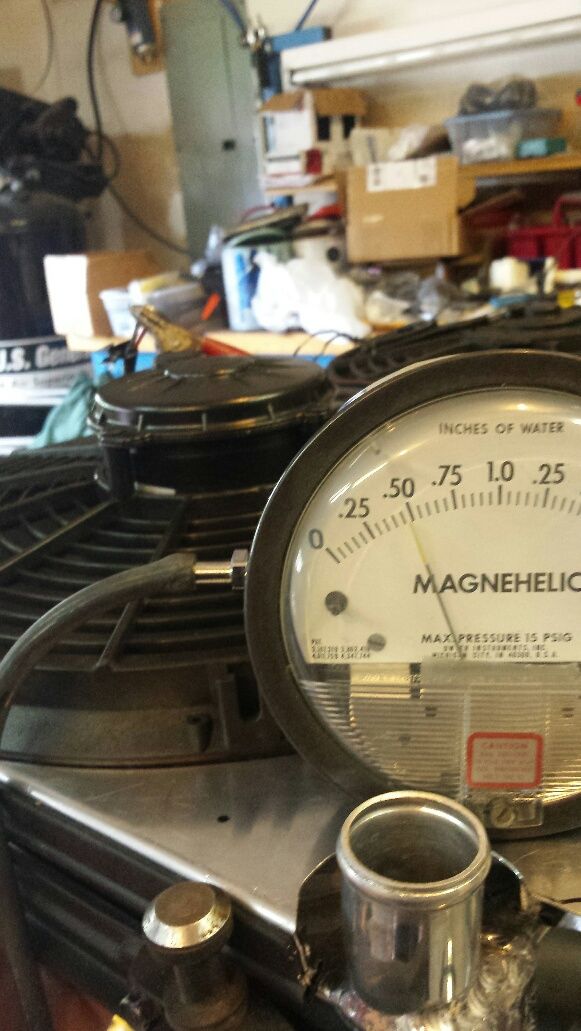

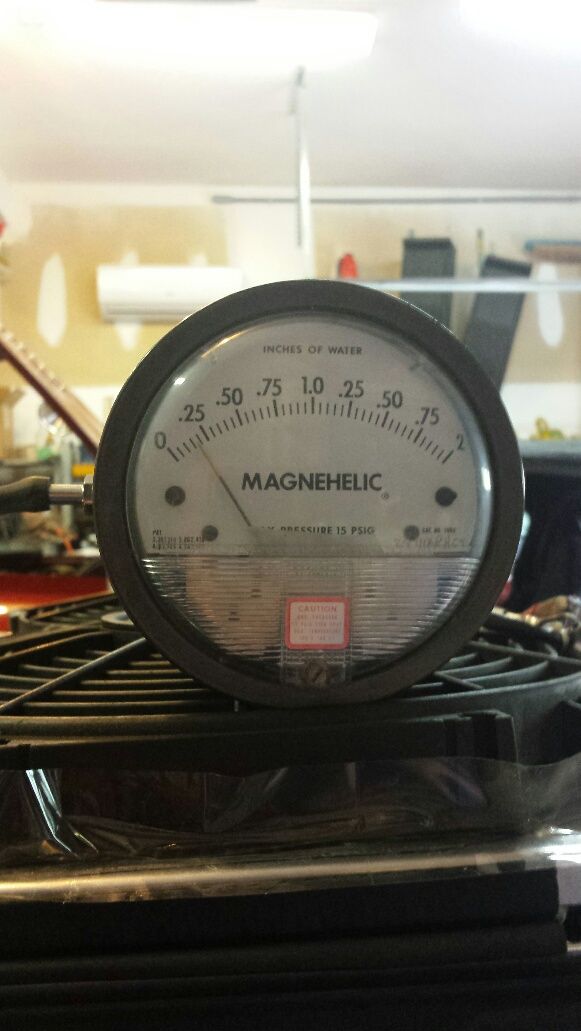

See the pictures below of the measured DPs.

These SPAL fans were bought used and I have had the EBAY fans on the car for a few years so I am not comparing a new SPAL to a used EBAY fan. No matter how you slice it, that is half the DP which equals half the flow for the EBAY fan versus the SPAL fans. The SPALs make a ton more noise too and it is easy to tell they move more air.

I wish I had the time to dig up my factory fans and hook them up for a comparison.





EBAY


Big Spal


Small SPAL
Attached Thumbnails
Ebay slim fan performance vs Spal-80-20150822_150616_resized_1_6aa5ff777e4a249b2ba591af20b62dc8917214b0.jpg   Ebay slim fan performance vs Spal-80-20150828_111858_resized_bfd421aa24af3415ddc1c8eb7f2244525de58a1b.jpg   Ebay slim fan performance vs Spal-80-20150829_112451_resized_b2ee8fe6919ed9b72622c6fa61b0fd449bef48eb.jpg   Ebay slim fan performance vs Spal-80-20150829_112554_resized_f44f5a9fa0ec5d26fa99389df777479553e1ee04.jpg   Ebay slim fan performance vs Spal-80-20150829_113017_resized_fcea8052db1fb7ec3896a3f2d4c2ea233f19ab85.jpg


Last edited by Rallas; 08-31-2015 at 10:13 AM.
Rallas is offline   Reply With Quote
