Old 06-25-2015, 03:17 PM   #61
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

I hear that. I just chose to have radiator only.
concealer404 is offline   Reply With Quote
Old 06-25-2015, 03:27 PM   #62
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

With stock fans I once overheated on the freeway with a/c on because one fan wasn't running due to a bad relay. Fixed relay, overheating gone.
JasonC SBB is offline   Reply With Quote
Old 06-25-2015, 04:09 PM   #63
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,884
Total Cats: 1,790
Default

I once overheated on the highway because my head gasket failed.

replaced the headgasket and overheating gone.
Braineack is online now   Reply With Quote
Old 06-25-2015, 04:29 PM   #64
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

This one time...

....in band camp
18psi is offline   Reply With Quote
Old 06-25-2015, 04:48 PM   #65
Senior Member
iTrader: (1)

Join Date: Nov 2010
Location: Marylandistan
Posts: 841
Total Cats: 44
Default

I had coolant ejection on my bugeye, when the a/c fan wore a whole through the upper rad hose. That didnt work well.

Ninja edit

Last edited by stratosteve; 06-25-2015 at 05:04 PM.
stratosteve is offline   Reply With Quote
Old 06-25-2015, 10:10 PM   #66
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

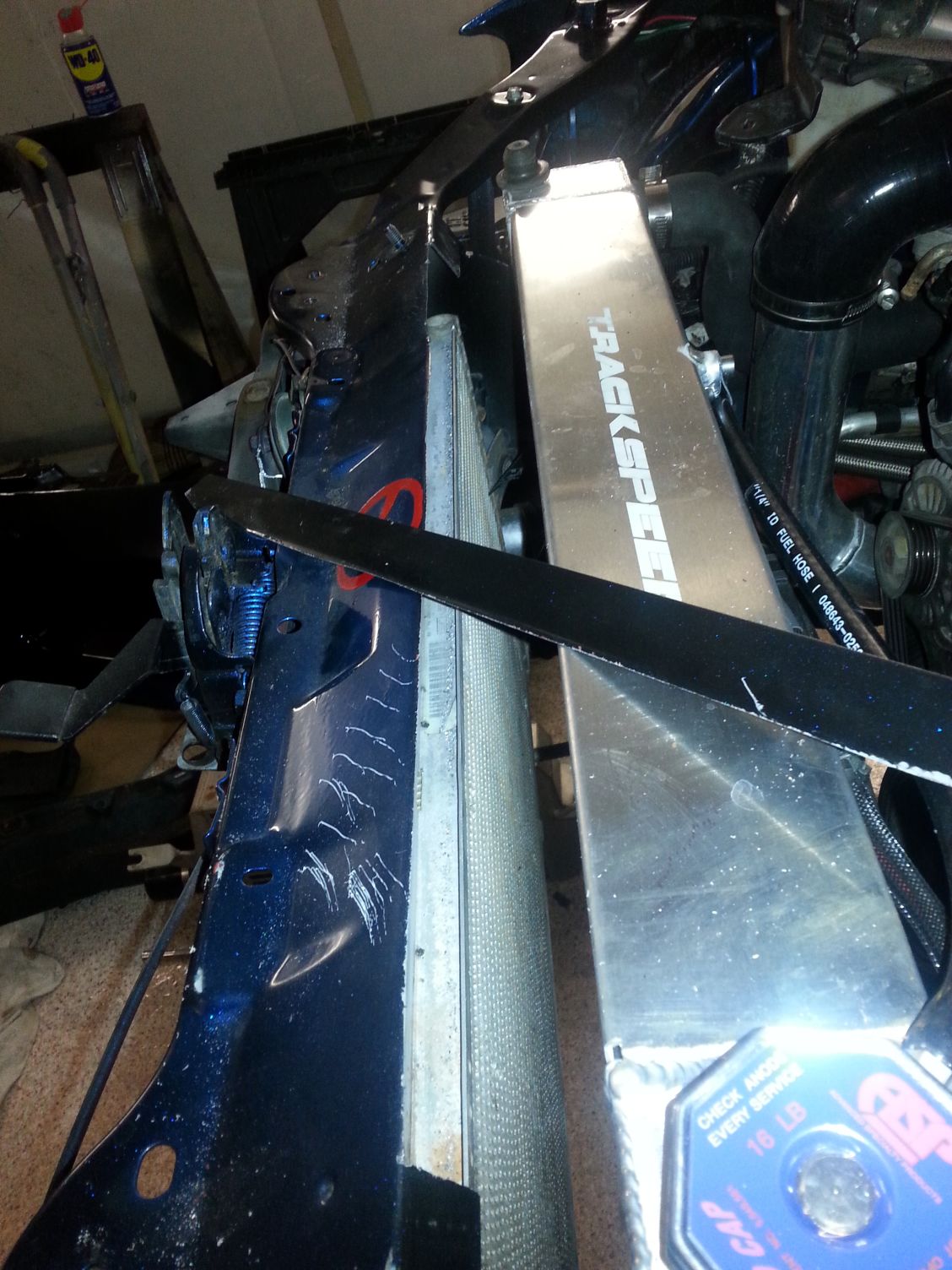

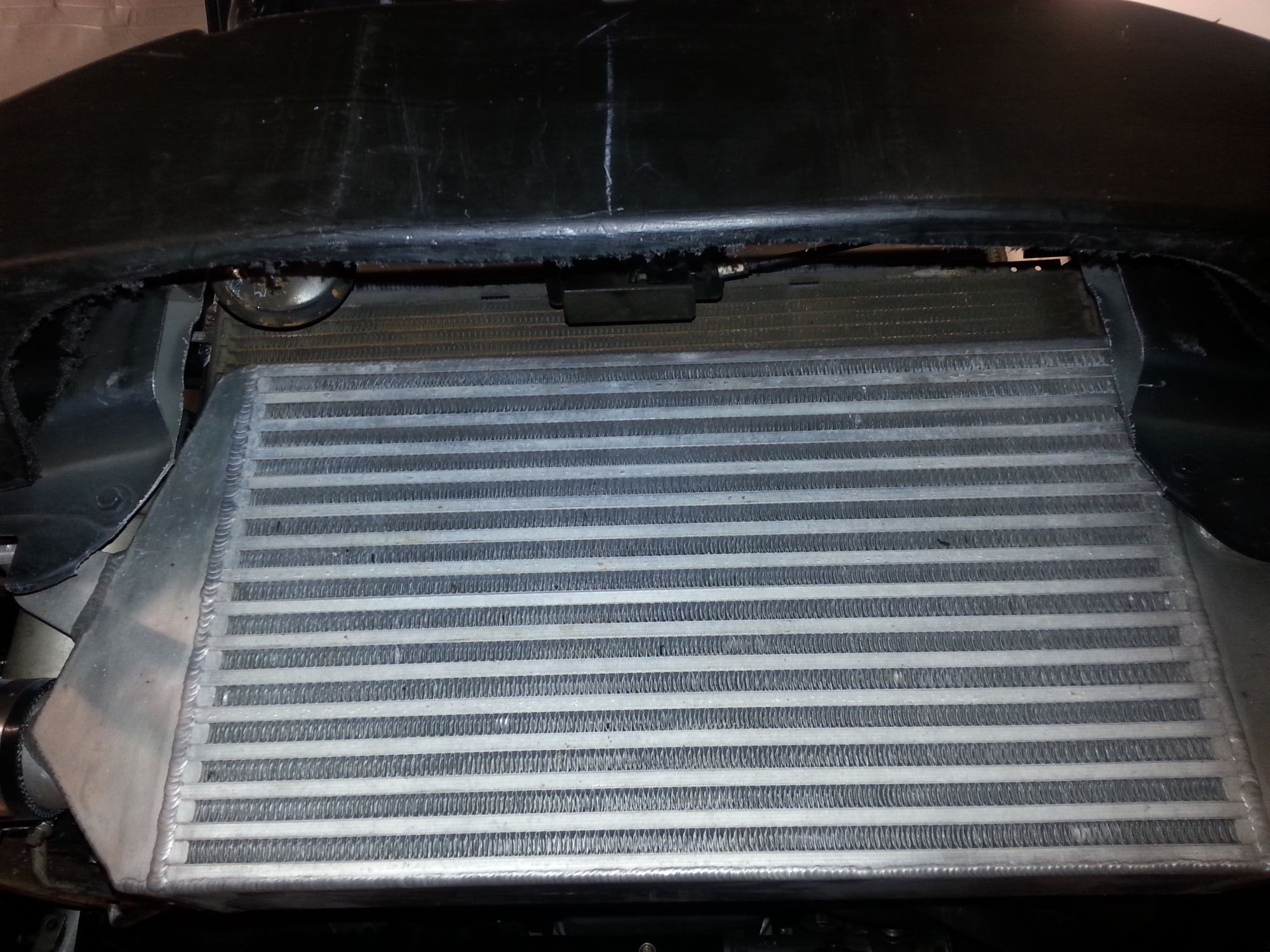

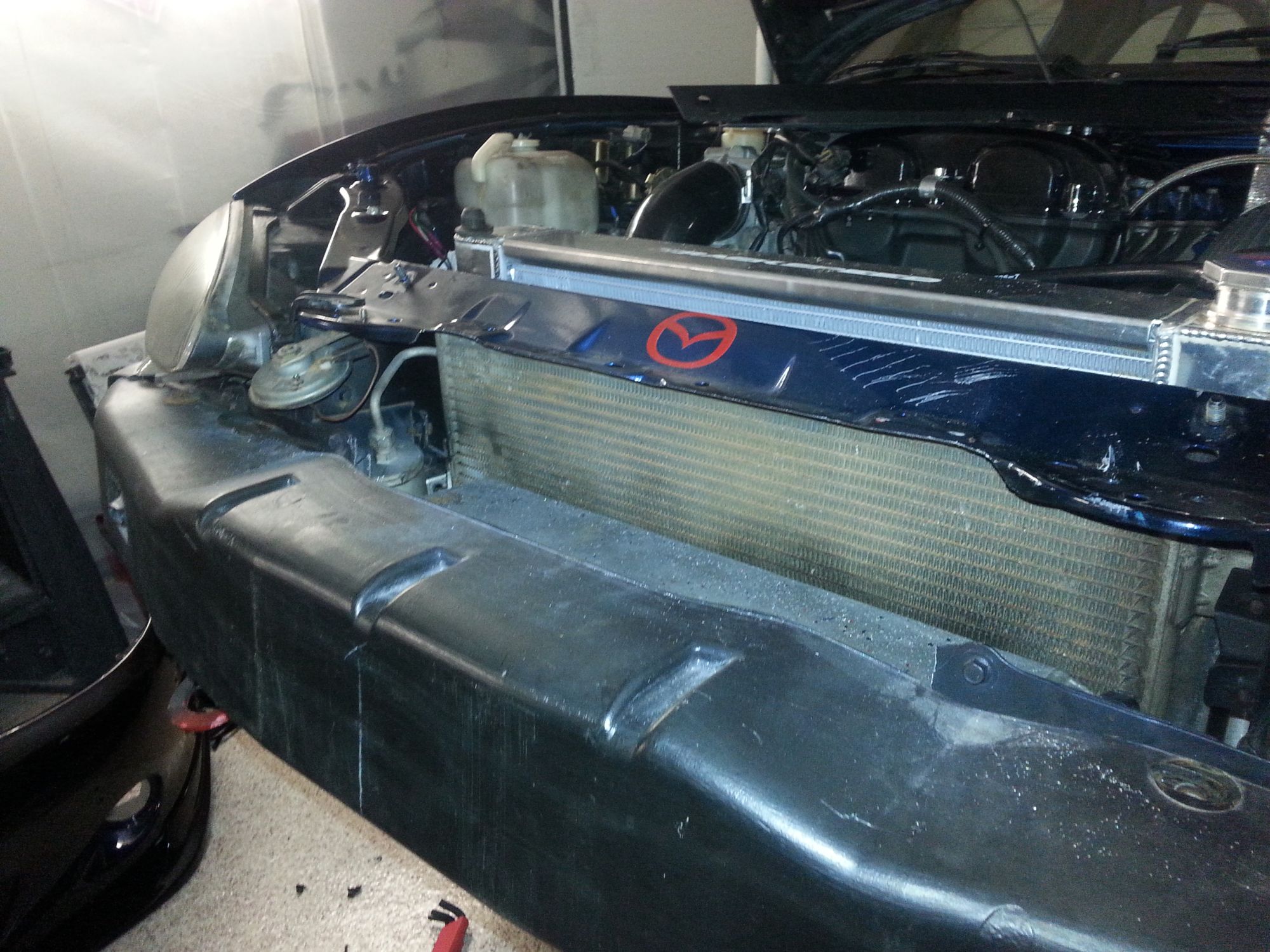

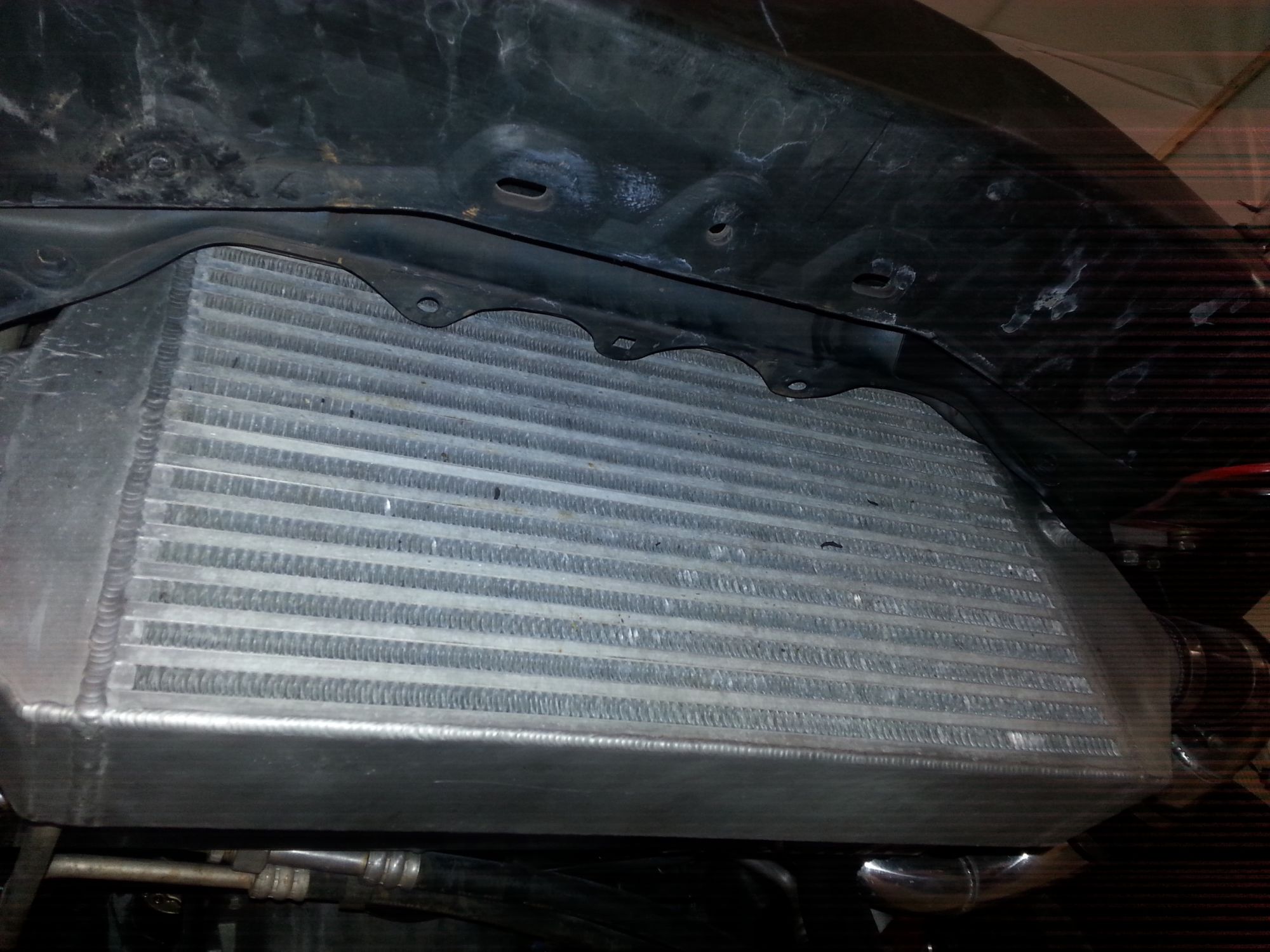

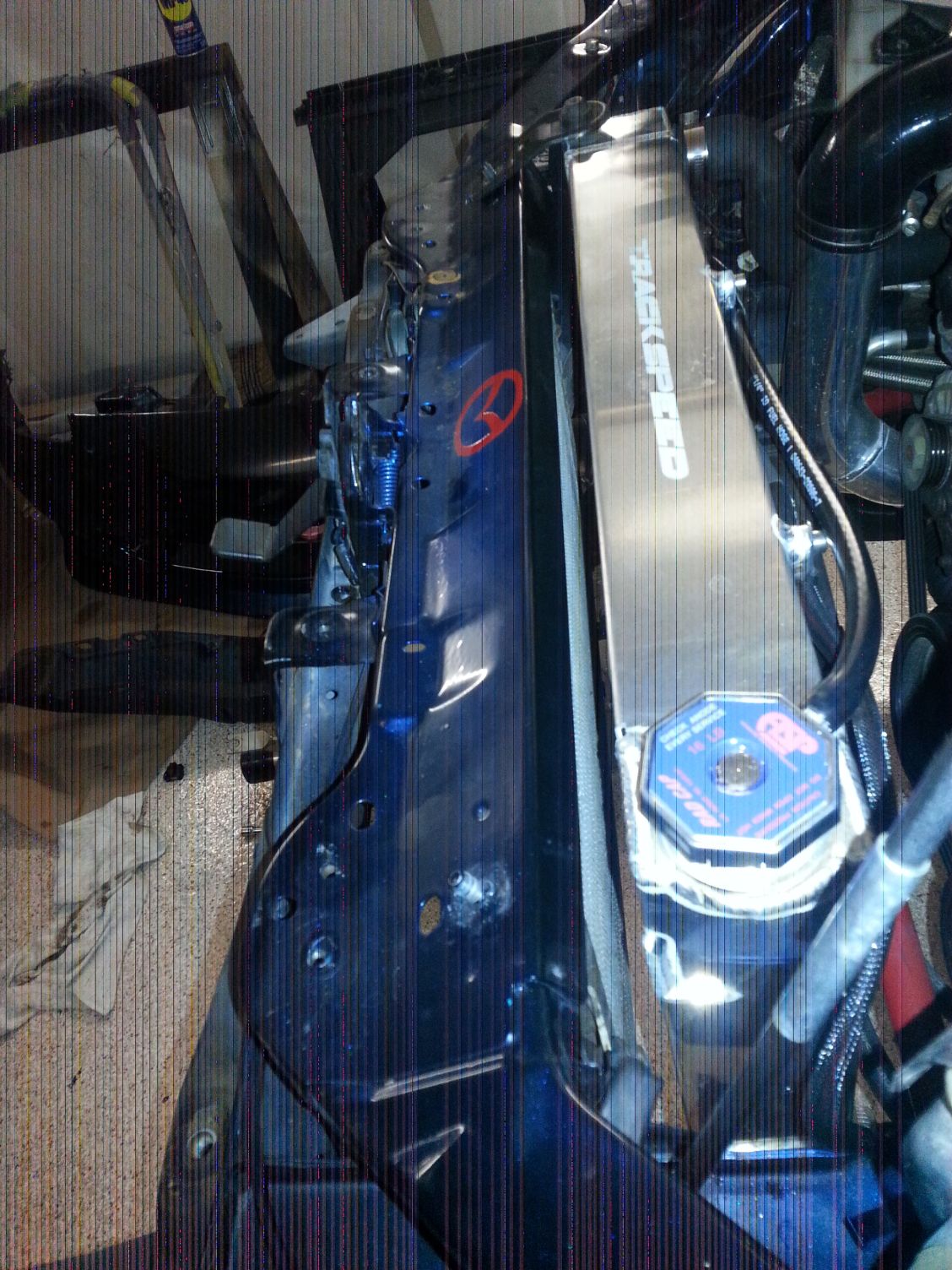

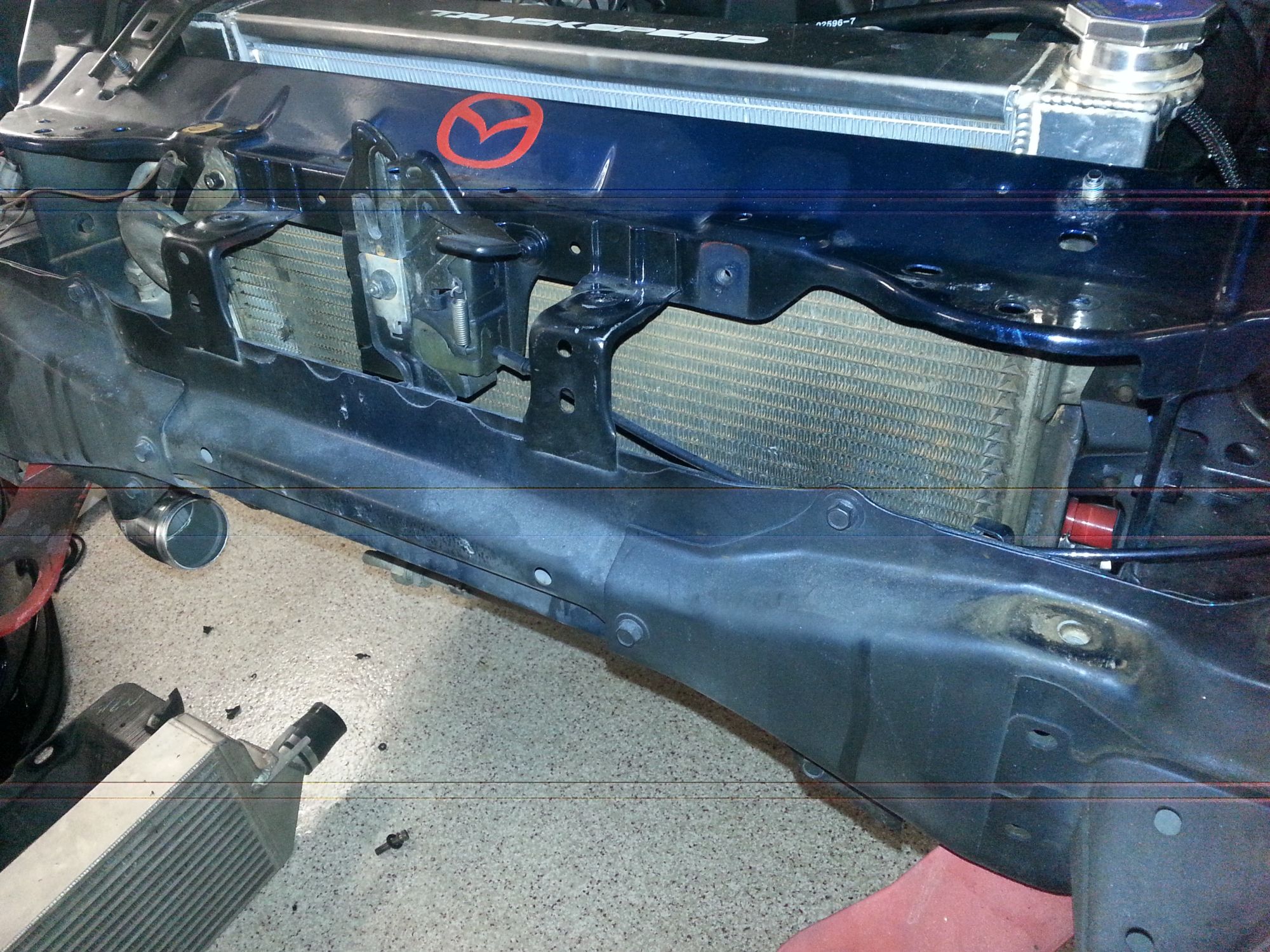

I've gone full stupid - no ******* way I'm turning off my ac again on interstate because of 3" Begi hogging all the air causing overheating...
I will be welding a cross bar to make up for the section i cut out - and I've got aero catch to replace the hood catch










After cutting **** out













Now for the ducting to feed the top section of cond/rad over the ic. And ducting from bottom between the cond and rad.
Attached Thumbnails
Ebay slim fan performance vs Spal-80-20150623_195301_fa741500243e7ac00ba1f3cc9fedc72f3becdc39.jpg   Ebay slim fan performance vs Spal-80-20150623_203450_1962d1773b0a02a069e003e1e104d454f246a350.jpg   Ebay slim fan performance vs Spal-80-20150623_203724_953d2a005260fe69e4bab95e9581085dc0a7578c.jpg   Ebay slim fan performance vs Spal-80-20150625_190015_fc5990147b1a6e0fe4dfa57fb5243b0eb439c3fb.jpg   Ebay slim fan performance vs Spal-80-20150625_191146_c30c50251547e4628511f28d02938d4105dd891c.jpg

Ebay slim fan performance vs Spal-80-20150625_183446_2198d0deb89c7b433de6e2c26fab6e480853929a.jpg
GeneSplicer is offline   Reply With Quote
Old 06-25-2015, 10:12 PM   #67
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,998
Total Cats: 1,465
Default

<p>Jesus that thing is huge.</p>
aidandj is offline   Reply With Quote
Old 06-25-2015, 10:29 PM   #68
Junior Member
iTrader: (8)

Join Date: Jun 2012
Location: Indianapolis, IN
Posts: 421
Total Cats: 9
Default

That's what she said...

Also. You really shoved that thing in there
slammed200 is offline   Reply With Quote
Old 06-25-2015, 10:36 PM   #69
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

IC mounted by their "stock" mounting points - which is still off-center. They welded mounting tabs to bolt down on one of the tow bolts on each side.
GeneSplicer is offline   Reply With Quote
Old 06-26-2015, 09:45 AM   #70
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,884
Total Cats: 1,790
Default

you can clearly see it's off-center to clear the a/c dryer.
Braineack is online now   Reply With Quote
Old 06-26-2015, 09:57 AM   #71
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

Quote:
Originally Posted by 18psi View Post
This one time...

....in band camp
bassoon player hua?

Attached Thumbnails
Ebay slim fan performance vs Spal-80-playing_bassoon_813bf7aaca93851d998743a55a54dd47f9aff4d2.jpg
OGRacing is offline   Reply With Quote
Old 06-26-2015, 06:45 PM   #72
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

Quote:
Originally Posted by Braineack View Post
you can clearly see it's off-center to clear the a/c dryer.
Which I still had to unbolt and shove to the side.
GeneSplicer is offline   Reply With Quote
Old 07-20-2015, 11:42 PM   #73
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 683
Total Cats: 3
Default

Gene, any data to report back? I was thinking about raping my front bumper support today but didn't......
Amellrotts is offline   Reply With Quote
Old 07-21-2015, 09:30 AM   #74
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

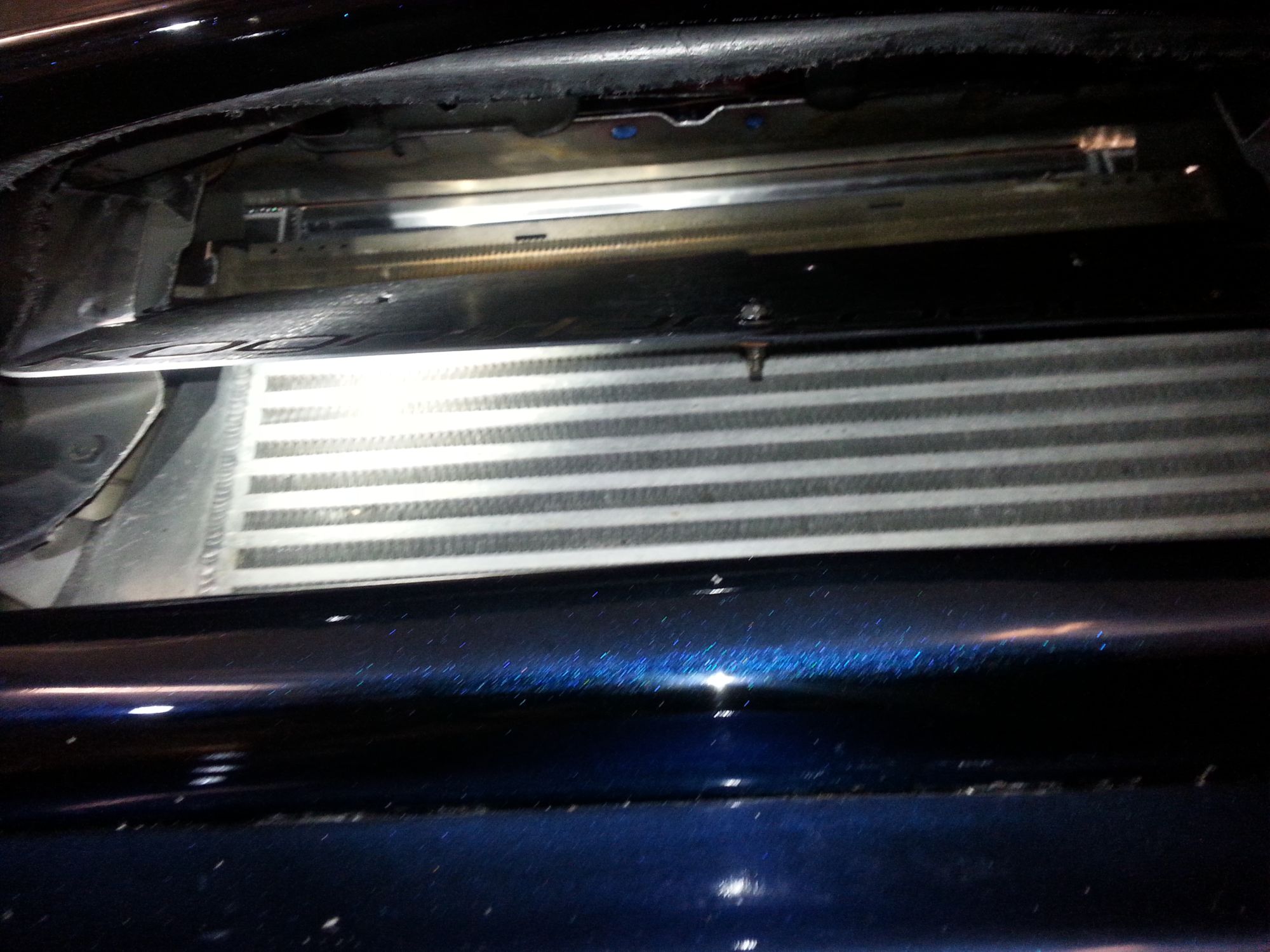

Yeah, but i posted the following in the wrong fan thread. I haven't taken it back on track but running my ac is no longer a issue when cruising. However, in stalled traffic, it will cut out on high pressure because I didn't duct the gaps between the condenser and radiator - so cooler air to radiator but bypassing condenser. I also need to likely shroud as street car (primarily).

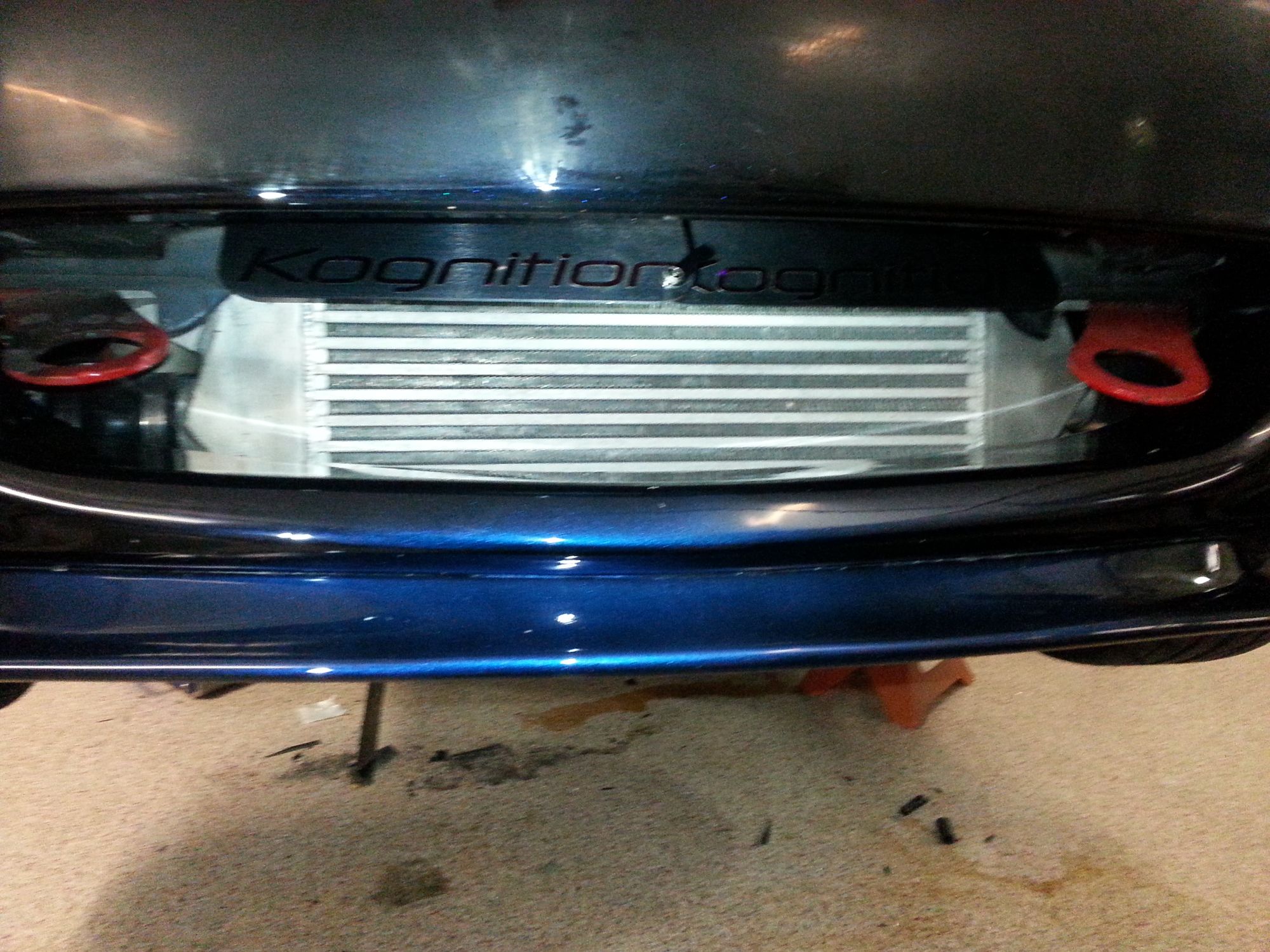

Using single ebay 12" fan and a smaller 8" - if this fails, then I'll pick up a spal. I used the end plates from my Kognition wing since Passey hooked me up with his version for the Kog wing - i did help support him on it )
Still need to get some dom tubing and weld in a brace to replace the section i cut out.
More ducting at sides and from under needed - today.

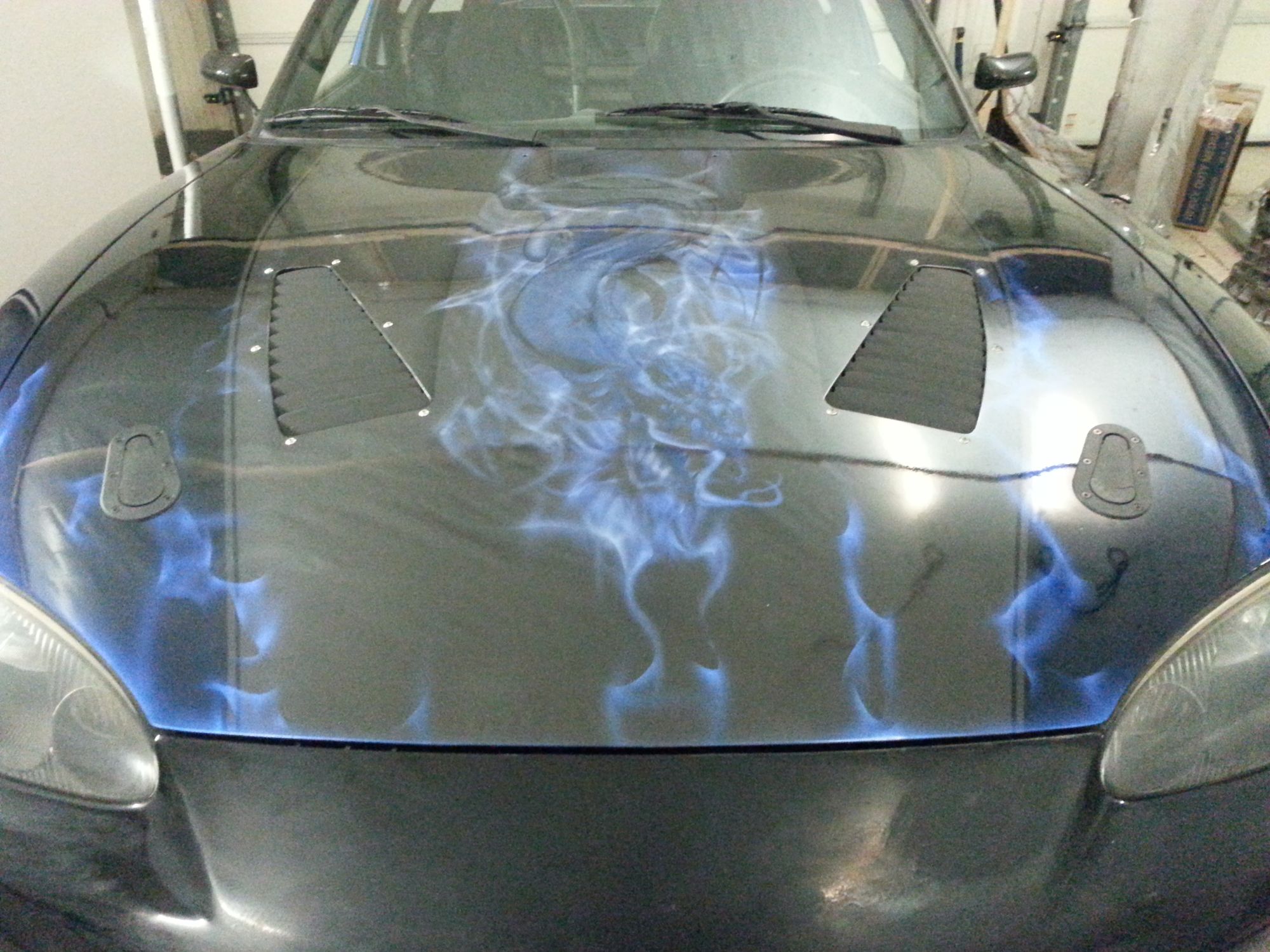

And since i cut out the hood catch assembly, i had to install my aerocatch.


GeneSplicer is offline   Reply With Quote
Old 07-21-2015, 01:14 PM   #75
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,673
Total Cats: 1,561
Default

I'm using a single Spal 16 with a full shroud and still have a/c. The condenser is not sealed to the radiator because it is more important to me that the radiator maximum receive air, but everything works very well. The fan draws a lot of air and sounds like a tornado. Don't let squirrels, cats, or small dogs walk by the bumper mouth while it is on. It also draws current pretty well when combined with the a/c compressor, which makes it tougher for the old ms1 to keep going. But that's not the fan's fault.

Here is one on ebay: Spal Fan 16" Puller 3 47" Deep 1918CFM 30102120 | eBay
sixshooter is online now   Reply With Quote
Old 07-21-2015, 01:23 PM   #76
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by sixshooter View Post
I'm using a single Spal 16 with a full shroud and still have a/c. The condenser is not sealed to the radiator because it is more important to me that the radiator maximum receive air, but everything works very well. The fan draws a lot of air and sounds like a tornado. Don't let squirrels, cats, or small dogs walk by the bumper mouth while it is on. It also draws current pretty well when combined with the a/c compressor, which makes it tougher for the old ms1 to keep going. But that's not the fan's fault.

Here is one on ebay: Spal Fan 16" Puller 3 47" Deep 1918CFM 30102120 | eBay
If it helps you any, I wire a boost solenoid inline with high-current draw devices like my fans, that way the motor instantly gets more air when the fans turn on. My setup my RPMs actually go down 40-50 RPMs once the fans go from Low to High due to higher alternator load. So I set the orrifice to get enough airflow to raise it back. It's dirt simple and now the fans kicking on is barely noticeable vs before.
patsmx5 is offline   Reply With Quote
Old 07-21-2015, 07:44 PM   #77
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

Just bought it Steve - thanks for the lazylink!

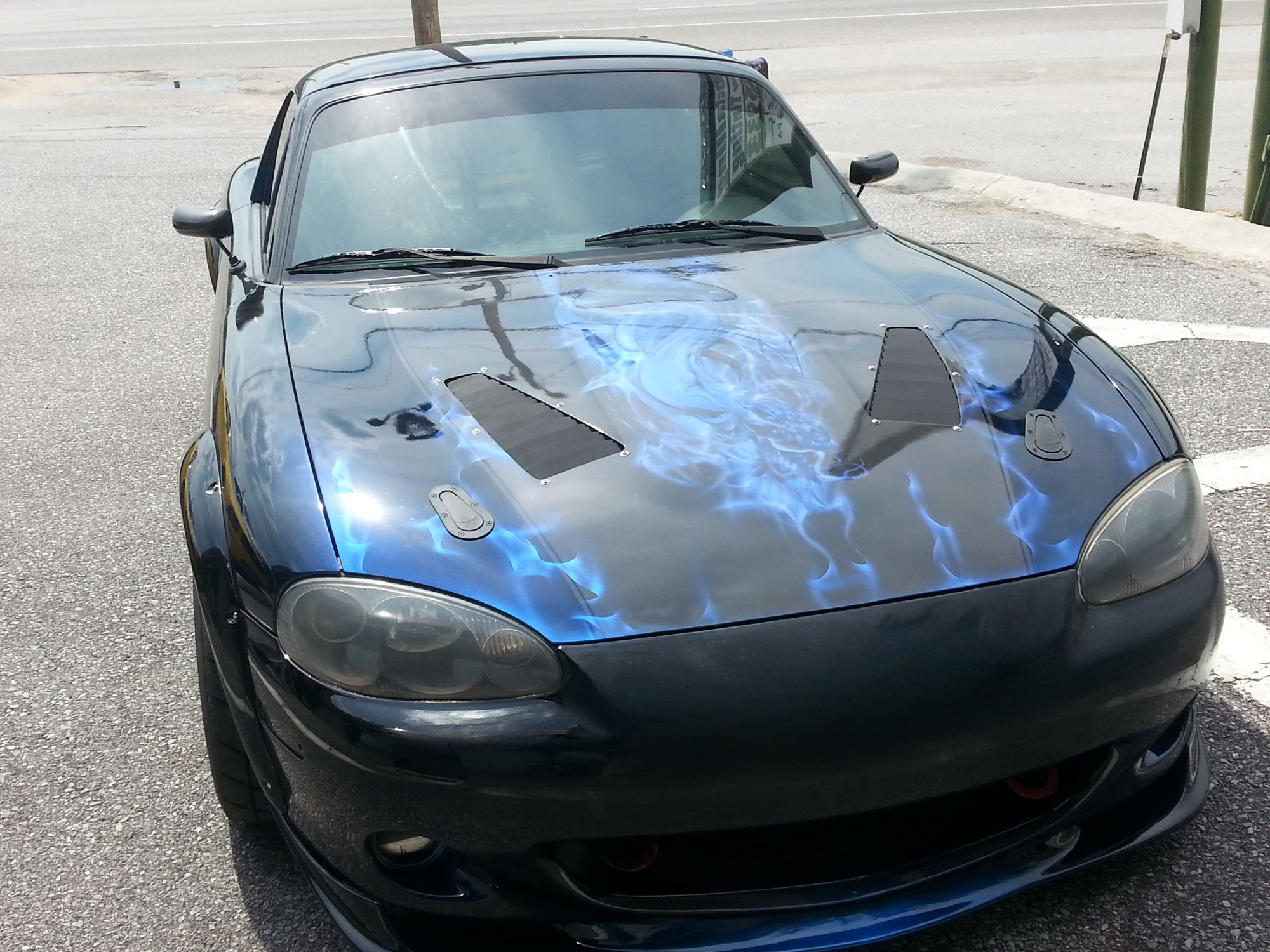

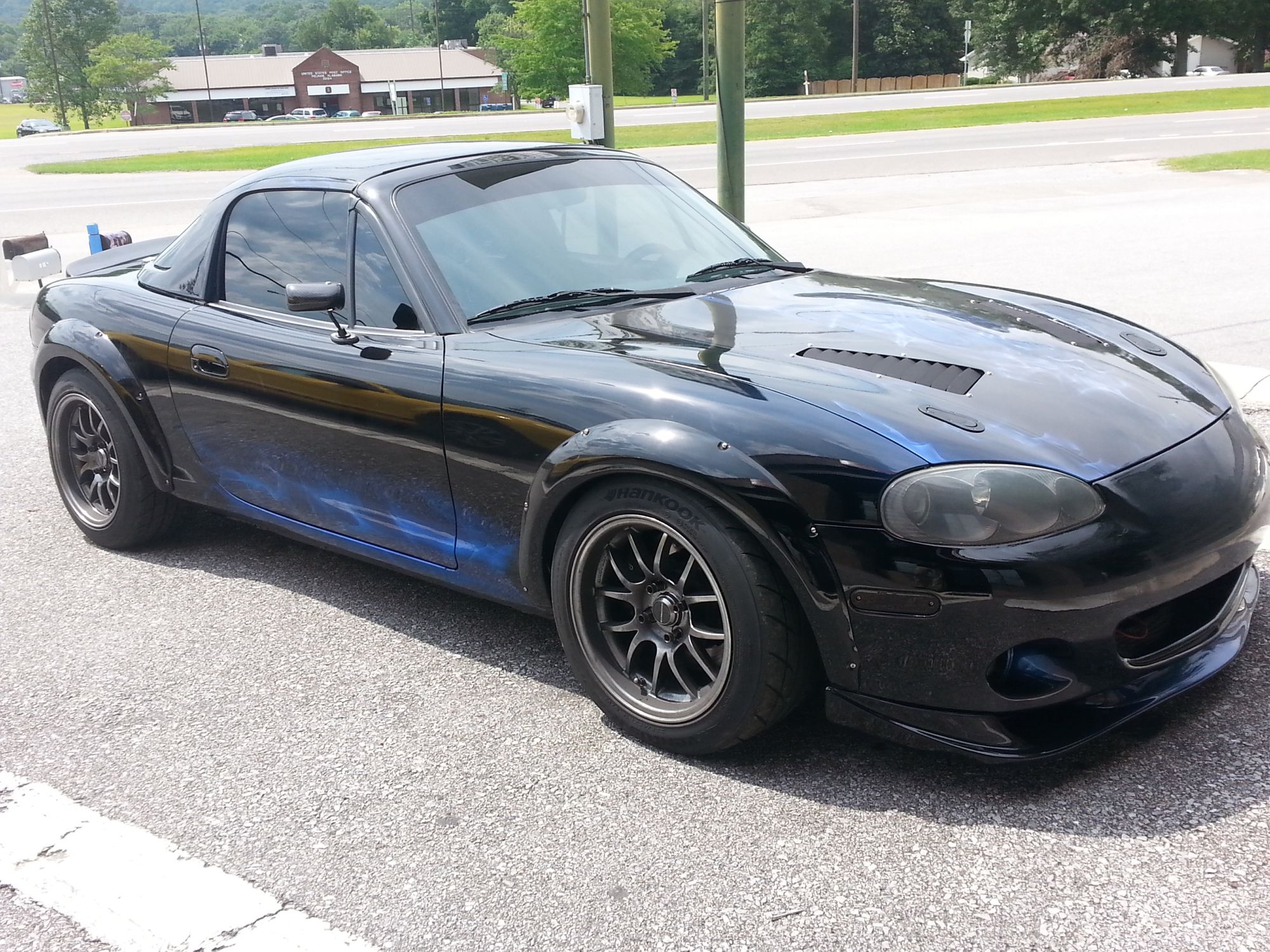

further testing today, 96f and ac didn't cut out on high pressure switch and also didn't start overheating. I kinda had to test as i just had the windows tinted and he said no opening windows for 2 days. Car looking menacing now - me likes
Attached Thumbnails
Ebay slim fan performance vs Spal-80-20150721_150923_ce60d3d02f8e7f5d3771587a28aec61b19f832c0.jpg   Ebay slim fan performance vs Spal-80-20150721_150938_69796372ec39fba5cab9ef98e949a92757afbe6e.jpg

Last edited by GeneSplicer; 07-21-2015 at 09:33 PM.
GeneSplicer is offline   Reply With Quote
Old 07-21-2015, 07:50 PM   #78
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by patsmx5 View Post
If it helps you any, I wire a boost solenoid inline with high-current draw devices like my fans, that way the motor instantly gets more air when the fans turn on. My setup my RPMs actually go down 40-50 RPMs once the fans go from Low to High due to higher alternator load. So I set the orrifice to get enough airflow to raise it back. It's dirt simple and now the fans kicking on is barely noticeable vs before.
A good ecu should be able to do this with the IAC valve.
Leafy is offline   Reply With Quote
Old 07-22-2015, 09:01 AM   #79
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,673
Total Cats: 1,561
Default Ebay slim fan performance vs Spal

Quote:
Originally Posted by Leafy View Post
A good ecu should be able to do this with the IAC valve.
As stated above, my ECU is an Atari 2600.
sixshooter is online now   Reply With Quote
Old 07-22-2015, 09:48 AM   #80
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Can anybody tell me the dimensions of the stock fan? Like the size of the shroud (height, width)?
Full_Tilt_Boogie is offline   Reply With Quote
