Default engine lift points - am I screwed?

I plan on removing my engine in less than a week, but I just realized I removed the lift points a long time ago..

1. Do I need them?

2. Has anyone removed an engine w/o them?

3. If I need them, can anyone loan me theirs?

kotomile is offline   Reply With Quote
Old 11-08-2007, 01:31 PM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

You can make your own with some bolts and pieces of chain.
cjernigan is offline   Reply With Quote
Old 11-08-2007, 02:10 PM   #3
Elite Member
Thread Starter
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Hmm, didn't think of that..

Anyone know the thread of the bolts?
kotomile is offline   Reply With Quote
Old 11-08-2007, 02:11 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,867
Total Cats: 1,790
Default

m10x1.5 iirc.
Braineack is offline   Reply With Quote
Old 11-08-2007, 02:55 PM   #5
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

that is correct.
neogenesis2004 is offline   Reply With Quote
Old 11-08-2007, 03:10 PM   #6
Elite Member
Thread Starter
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Awesomeness! Thanks!

I got the bit and tap from you the other day too, neogen, gracias!
kotomile is offline   Reply With Quote
Old 11-08-2007, 03:12 PM   #7
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

send it back to scott when you're done.
neogenesis2004 is offline   Reply With Quote
Old 11-08-2007, 03:14 PM   #8
Elite Member
Thread Starter
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

but of course!
kotomile is offline   Reply With Quote
Old 11-08-2007, 04:24 PM   #9
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

dont lift by loose bolts or you'll be one unhappy camper. make a flat plate like the original lift point if you can.

why: the bolts wont support the weight well in bending. they support it by clamping the hook to the motor and using that clamping force (tension) to prevent relative movement of the two.
y8s is offline   Reply With Quote
Old 11-08-2007, 04:30 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,867
Total Cats: 1,790
Default

most engine levers come with plates instead of hooks, just bolt them to the head. that's what I did.
Braineack is offline   Reply With Quote
Old 11-08-2007, 04:31 PM   #11
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Use a bolt with a large washer and a couple chain links. It will clamp to the head fine.
Most of the engine hoists i've worked with had the metal plate tabs on the chains to bolt to the motor already.


Edit.Beat me to it scott.
cjernigan is offline   Reply With Quote
Old 11-08-2007, 05:07 PM   #12
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

Quote:
Originally Posted by y8s View Post
dont lift by loose bolts or you'll be one unhappy camper. make a flat plate like the original lift point if you can.
our motors are fairly light... I lifted directly off the bolts and didn't have a problem. The moment arm is pretty short so it's not too big a deal lifting such a light load.
Arkmage is offline   Reply With Quote
Old 11-08-2007, 05:20 PM   #13
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

I guess if you dont drop it... i just had bad visions of Ben's new head.

https://www.miataturbo.net/showthrea...uminum+welding
y8s is offline   Reply With Quote
Old 11-09-2007, 04:12 AM   #14
Elite Member
Thread Starter
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

So Summit was selling this little $13 dealy that's basically a length of chain with two bolt-on tabs on the ends, so I got that. Now I just gotta get the bolts.

Oh, I ordered an oil pan gasket and it came in today. It's two curved gasket fragments (about 4" long) and two tubes of silicone in a box.. is that right?
kotomile is offline   Reply With Quote
Old 11-09-2007, 08:20 AM   #15
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by kotomile View Post
So Summit was selling this little $13 dealy that's basically a length of chain with two bolt-on tabs on the ends, so I got that. Now I just gotta get the bolts.

Oh, I ordered an oil pan gasket and it came in today. It's two curved gasket fragments (about 4" long) and two tubes of silicone in a box.. is that right?
yup
olderguy is offline   Reply With Quote
Old 11-11-2007, 03:39 AM   #16
Elite Member
Thread Starter
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

cool, thanks, I was a little worried.
kotomile is offline   Reply With Quote
Old 11-12-2007, 08:11 PM   #17
Elite Member
Thread Starter
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

The bolts are 10x1.25 on MY engine...

Came out easily enough (sorry for camera phone pics)

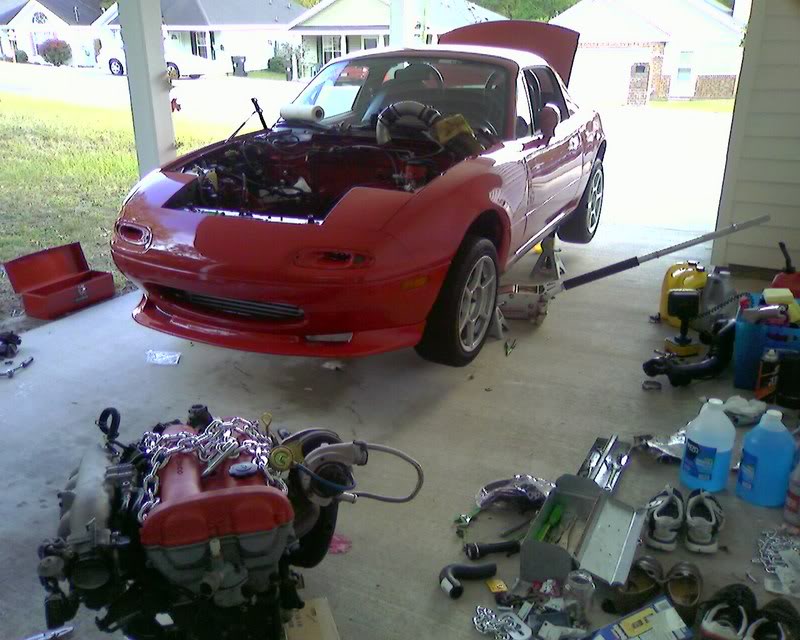

Name:  img004.jpg
Views: 21
Size:  89.1 KB

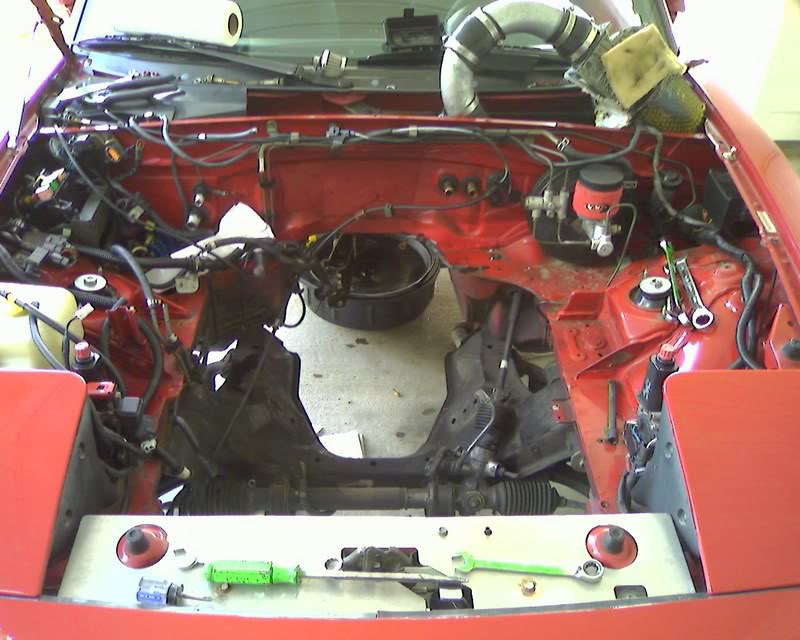

Name:  img005.jpg
Views: 20
Size:  86.5 KB

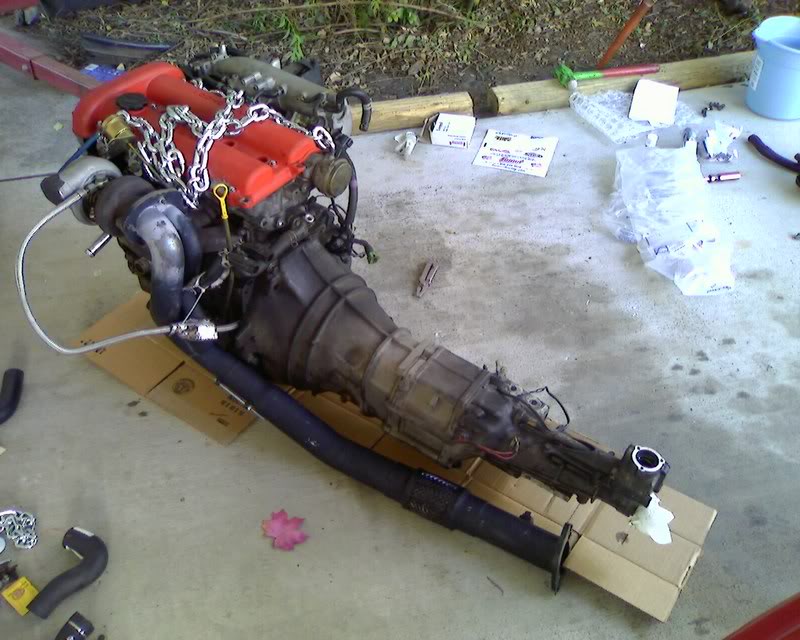

Name:  img006.jpg
Views: 20
Size:  89.5 KB

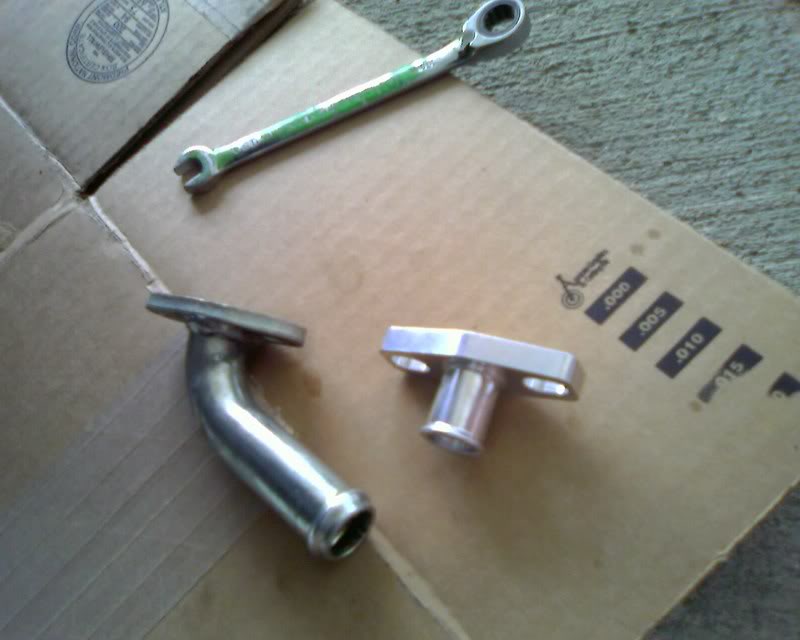

and I already started the drain project:

Name:  img007.jpg
Views: 20
Size:  45.5 KB

more to follow.
