Default Fd rx7 front calipers

i was wondering what it would take to put a set of fd rx7 front calipers on my 94 1.8?
miata94 is offline   Reply With Quote
Old 07-27-2010, 10:49 PM   #2
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Well, first you'd need a set of RX-7 front calipers.
Joe Perez is offline   Reply With Quote
Old 07-27-2010, 10:50 PM   #3
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

Quote:
Originally Posted by Joe Perez View Post
Well, first you'd need a set of RX-7 front calipers.
Then you need a 94 Mazda Miata.
Full_Tilt_Boogie is offline   Reply With Quote
Old 07-27-2010, 10:51 PM   #4
Junior Member
Thread Starter

Join Date: Jul 2010
Location: oceanside,ca
Posts: 64
Total Cats: 0
Default

well i know that but what kind of mounting brackets would i need? could i mod the stock ones? ive heard that they sell kits for this upgrade.
miata94 is offline   Reply With Quote
Old 07-27-2010, 10:52 PM   #5
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

Quote:
Originally Posted by miata94 View Post
well i know that but what kind of mounting brackets would i need? could i mod the stock ones? ive heard that they sell kits for this upgrade.
Maybe you should buy on of these kits?
Full_Tilt_Boogie is offline   Reply With Quote
Old 07-27-2010, 10:55 PM   #6
Junior Member
Thread Starter

Join Date: Jul 2010
Location: oceanside,ca
Posts: 64
Total Cats: 0
Default

well someone who has done this swap chime in
miata94 is offline   Reply With Quote
Old 07-27-2010, 11:42 PM   #7
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,683
Total Cats: 1,561
Default

Quote:
Originally Posted by miata94 View Post
well someone who has done this swap chime in
You'll be waiting awhile.

Search this forum for "corrado" and you might find something interesting you can use.
sixshooter is offline   Reply With Quote
Old 07-28-2010, 01:58 AM   #8
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

Unless you run 16's, good luck getting the wheel not to rub on the caliper. They rubbed on my 15x7 ATS's when I mocked FD calipers up to Corrado rotors.
chpmnsws6 is offline   Reply With Quote
Old 07-28-2010, 11:14 AM   #9
Junior Member
Thread Starter

Join Date: Jul 2010
Location: oceanside,ca
Posts: 64
Total Cats: 0
Default

i was planning on running 16s anyways so wheel fitment isnt an issue
miata94 is offline   Reply With Quote
Old 07-28-2010, 12:28 PM   #10
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Attached Thumbnails
Fd rx7 front calipers-whalers_art.jpg
Doppelgänger is offline   Reply With Quote
Old 07-28-2010, 12:54 PM   #11
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

I have lost at least 10 brain cells reading this stupid ******* thread. OP you are a brain cell killer.
18psi is offline   Reply With Quote
Old 07-28-2010, 12:55 PM   #12
Want fries with that?
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

I was thinking guys, what about a mazda forumula 1 brake swap? They're from a Mazda so they should go easily, what do you think?
rider384 is offline   Reply With Quote
Old 07-28-2010, 02:38 PM   #13
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Search for my thread in the Suspension and Braking sub-forum.
wayne_curr is offline   Reply With Quote
Old 07-28-2010, 02:46 PM   #14
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

I can be done but I it is not easy I looked into this before I went with sport brakes. As far as I know no one makes a kit and the easiest way is with a straight adapter and a welder other than that you would have to be a decent machinist to get it to work. And 16'' would be a must as well as some bigger rotors. Good luck.

Google works wonders on weird stuff like this.
Sean is offline   Reply With Quote
Old 07-28-2010, 04:58 PM   #15
Junior Member
iTrader: (5)

Join Date: May 2009
Location: Gay Area, CA
Posts: 220
Total Cats: 6
Default

You better have some damn FD3S calipers, but I'm a helpful guy.

Many OEM big brake upgrades are this simple in similar chassis vehicles (same make):
  • Larger Caliper, corresponding pad
  • Modified (shaved or shimmed) caliper bracket or custom fabbed bracket if necessary
  • Sufficiently larger rotor. Sometimes redrilling, centering ring, or spacer is needed
  • Miscellaneous - Sometimes brake lines/fittings, longer caliper bolts etc. Little *****

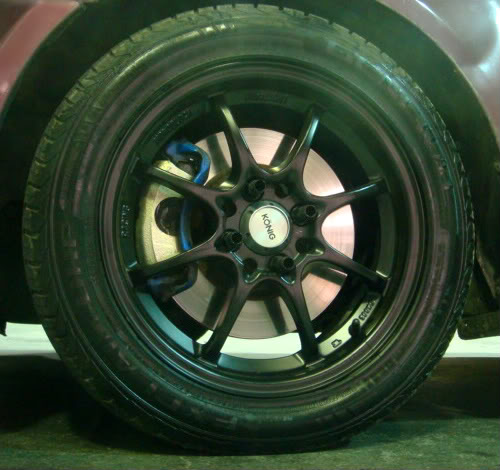

I put OEM 11.1" Integra Type-R brakes on a '93 Civic for under $300 total.
This was under 15x6.5" Konigs. Just had to drill Prelude Type-S rotors to 4x100 &
shave 3.2mm off the ITR brackets' mating surface. That was it, bolted it up & had BAMF brakes.

Name:  EeeJayWon024.jpg
Views: 11
Size:  45.3 KB


Hub bore, bolt locations, brake lines & fittings etc were unchanged.

Try putting Corrado or "Sport" rotor + FD3S caliper/bracket/pad on & start
taking measurements to see how far different mounting points are then
stock. Hopefully you can just shave or shim the FD caliper brackets.

FD RX-7 calipers are obviously not popular on Miata's because they're rare &
expensive... and heavier than Wilwoods... but I like them because they're less
blang but still very potent like my Type-R brakes.

Good luck.
Import Al is offline   Reply With Quote
Old 07-28-2010, 10:43 PM   #16
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

Fabbing the bracket will be a bit of a pain, but doable with a welder and some fab skills.

Just get the Wilwood setup from Trackspeed and save yourself the frustration.
