well when it was taped up, it had an unfinished look to it. I had a bunch of split loom, and well it's already done, and frankly I'm tired of working on the damn thing. mainly I also did want an outer barrier around the harness where it sneaks through the intake mani, in case someting wanted to rub. also the factory uses split loom over most of their connections, so this fits right in. maybe I need to dirty it up a little to make it match the factory loom?

i'm going to leave the coil pack on the back of the motor for the next few days, just to make sure I don't get stranded in the N.GA mountains sunday. I've left the coils on, and have an ignitor and a set of plug wires in the trunk. If all goes well Sunday, I'll pull it next week.
__________________
DIYAutoTune.com Tech Support
10AE-T|BEGi S4|MSPNP-Pro EMS|Enthuza Duals|6UL|Etc
Track Rat|2001|VVT|MS3-Pro EMS|Enthuza|Exocet in Progress

Originally Posted by concealer404 View Post
Buy an MSPNP Pro, you'll feel better.

Last edited by Ben; 09-25-2007 at 05:33 PM.
Ben is offline
Old 09-25-2007, 06:26 PM
  #42
Senior Member
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,234
Total Cats: 0
Default

I think it looks really good.
miataspeed1point6 is offline
Old 09-25-2007, 06:41 PM
  #43
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,195
Total Cats: 1
Default

Nice. Guess I should jump on the bandwagon soon.
Atlanta93LE is offline
Old 09-25-2007, 11:34 PM
  #44
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,553
Total Cats: 273
Default

Very nice job Ben. Looks great to me.
TurboTim is offline
Old 09-30-2007, 06:53 PM
  #45
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,895
Total Cats: 0
Default

Originally Posted by Arkmage View Post

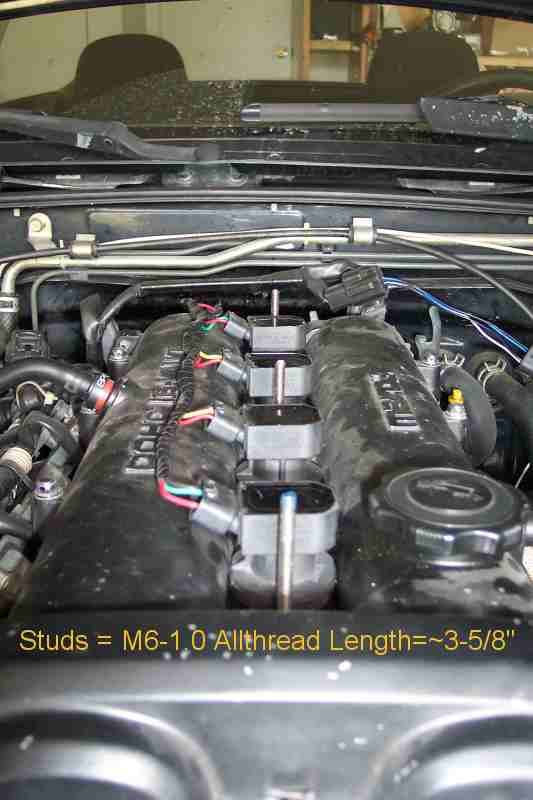

I'm going a little different route... I'm going with the aluminum plate over, aluminum spacers, and all thread through the valve cover... so I'll actually be using the valve cover hold down (3) holes for mounting this. The trick will be getting the spacers just the right length. Too short and the valve cover gasket won't seal in the middle. Too tall and the coils will still walk out. Should look good though.

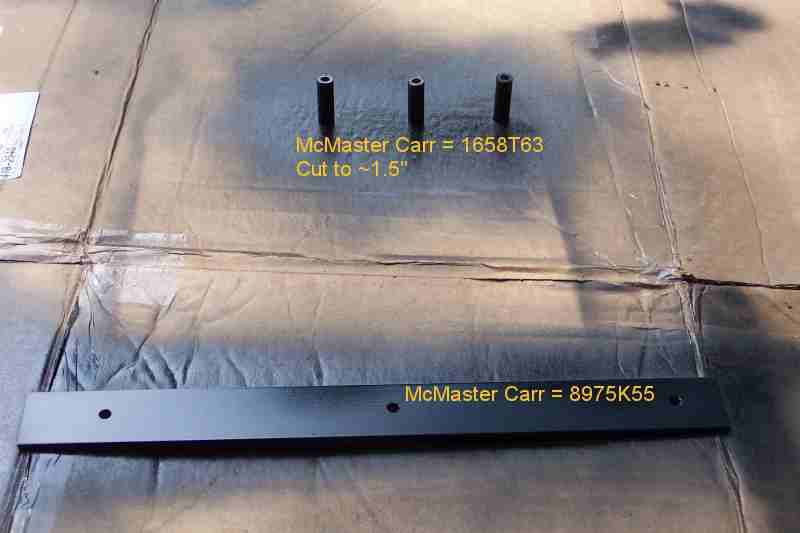

Find an industrial bolt supply place. It cost me under $30 for 2 ft of SS M10x1.5, 6 feet of SS M6x1.0, and a wide assortment of stainless/brass nuts and washers. The aluminum flat bar and the aluminum tube (for spacers) was about $30 from McMaster and I have about 10 feet of each.

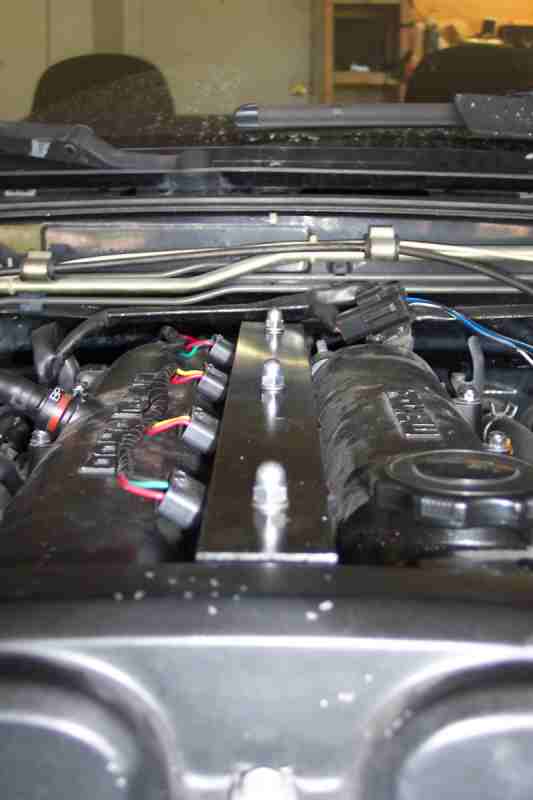

Here's pics of my method. It seems to work great, it actually compresses the rubber rings under the COP a bit so hopefully I can wash my engine again without filling my plug holes. Now, anyone know if these use an inverted or non-inverted trigger? I want to get spark up and running on the MS, it's been hooked up for ages but since the stock coils seem to be random on trigger direction I chose not to use it in the interest of not toasting coils on the DD.
Attached Thumbnails Finally some progress!-100_0624.jpg   Finally some progress!-100_0623.jpg   Finally some progress!-100_0625.jpg
Arkmage is offline
Old 10-02-2007, 09:23 PM
  #46
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,895
Total Cats: 0
Default

Originally Posted by Arkmage View Post
Now, anyone know if these use an inverted or non-inverted trigger? I want to get spark up and running on the MS
Anyone?
Arkmage is offline
Old 10-02-2007, 09:34 PM
  #47
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,119
Total Cats: 477
Default

keep bugging scott brainy.
y8s is offline
Old 10-02-2007, 09:36 PM
  #48
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,413
Total Cats: 18
Default

They fire normal (non inverted)
neogenesis2004 is offline
Old 10-02-2007, 10:01 PM
  #49
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,895
Total Cats: 0
Default

Excellent... thanks.
Arkmage is offline
Old 10-02-2007, 11:07 PM
  #50
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,651
Total Cats: 111
Default

that's correct. non inverted.
mine are doing well. but as an experiment I'm going to power them directly off the battery through a relay, using the oem power supply at the relay coil.
__________________
DIYAutoTune.com Tech Support
10AE-T|BEGi S4|MSPNP-Pro EMS|Enthuza Duals|6UL|Etc
Track Rat|2001|VVT|MS3-Pro EMS|Enthuza|Exocet in Progress

Originally Posted by concealer404 View Post
Buy an MSPNP Pro, you'll feel better.
Ben is offline
Old 10-15-2007, 03:30 PM
  #51
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,651
Total Cats: 111
Default

These cops work fine up to 17.5 psi at .040" plug gap.
After that, my overboost shut down cuts fuel.
__________________
DIYAutoTune.com Tech Support
10AE-T|BEGi S4|MSPNP-Pro EMS|Enthuza Duals|6UL|Etc
Track Rat|2001|VVT|MS3-Pro EMS|Enthuza|Exocet in Progress

Originally Posted by concealer404 View Post
Buy an MSPNP Pro, you'll feel better.
Ben is offline
Old 10-15-2007, 03:40 PM
  #52
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 75,089
Total Cats: 2,114
Default

wow nice. i forgot to re-gap mine this weekend.
Braineack is offline
Old 10-15-2007, 03:42 PM
  #53
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,941
Total Cats: 38
Default

sweet. I eventually want to do this as well. Just to be like the cool kids.
