Default GT3071R or GT3076R?

Which one, and why? I am leaning one way, but would like to hear what you all think.

HP target is 350+ while producing reasonable boost in the low 4k range. I use an AVC-R to manage an external wastegate to help with this.

This will be going on a built motor. Oversize valves, ported head, Wisecos, forged rods, etc etc. Turbo will be V-banded with the Tial .64 housing.
pschmidt is offline   Reply With Quote
Old 08-24-2010, 12:56 PM   #2
Elite Member
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

Do the .86 housing over the .64. I had the .64 and wished I had the .86. The 3071R is a great turbo and would fit well with your goal.
rharris19 is offline   Reply With Quote
Old 08-24-2010, 12:58 PM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,193
Total Cats: 2,583
Default

76 .86 gets my vote.
but I'm biased
18psi is offline   Reply With Quote
Old 08-24-2010, 01:11 PM   #4
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

I'd say GT3071R, I used to have a 76 and spool took years.
Preluding is offline   Reply With Quote
Old 08-24-2010, 01:16 PM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,193
Total Cats: 2,583
Default

Years?

what rpm did you hit peak boost in with 76 compared to the 71?
Mine spools pretty quick considering the size of the sucker.Then again I have the china 76 so the sizing is a bit different.
18psi is offline   Reply With Quote
Old 08-24-2010, 01:23 PM   #6
Senior Member
Thread Starter
iTrader: (19)

Join Date: Oct 2007
Location: MoCo, MD
Posts: 703
Total Cats: 0
Default

Are you guys sure on the .86 vs .64? My disco potato is .86, and it's a little laggy. I'm worried it'll be exacerbated with the larger turbo.
pschmidt is offline   Reply With Quote
Old 08-24-2010, 05:07 PM   #7
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

If you think a .86 potato is laggy, a 3076R will mortify you. Get the 3071 .86 or a 2871 .86.
Savington is online now   Reply With Quote
Old 08-24-2010, 05:34 PM   #8
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

am I the only guy who loves his .64 housing? my **** is win.

just last night braineack was saying how my car felt peppy -- like it just had a bigger motor.

my turbo is a 2876R .64 turbine

based on that, i'd go 3076 .64. the larger wheel should get you to 350 no problem and not have so much headroom that it leaves you wanting more down low.

or just be a super baller and get both housings and sell the one you dont want.
y8s is offline   Reply With Quote
Old 08-24-2010, 05:41 PM   #9
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

3071R, .86 housing.
Bryce is offline   Reply With Quote
Old 08-24-2010, 06:23 PM   #10
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

I had a built motor (1.9) with the 2871 .64, wish I had the .86, top end was choked.
dc2696 is offline   Reply With Quote
Old 08-24-2010, 06:40 PM   #11
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

Quote:
Originally Posted by 18psi View Post
Years?

what rpm did you hit peak boost in with 76 compared to the 71?
Mine spools pretty quick considering the size of the sucker.Then again I have the china 76 so the sizing is a bit different.
Maybe thats stetching it a little.... hit peak boost just before 5k with restrictive exhaust... thats years for me, city driving blows that way
Preluding is offline   Reply With Quote
Old 08-24-2010, 06:50 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by dc2696 View Post
I had a built motor (1.9) with the 2871 .64, wish I had the .86, top end was choked.

then replace the cams and IM...problem solved.
Braineack is offline   Reply With Quote
Old 08-24-2010, 07:08 PM   #13
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,193
Total Cats: 2,583
Default

Quote:
Originally Posted by Preluding View Post
Maybe thats stetching it a little.... hit peak boost just before 5k with restrictive exhaust... thats years for me, city driving blows that way
Mine gets there by 4300.

Then again I don't mind a little lag.

Gives the other cars a chance
18psi is offline   Reply With Quote
Old 08-24-2010, 08:21 PM   #14
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Wirelessly posted

Buy my begi s5 mani, gt3071, tial gate, and begi downpipe. With a 15lb spring in my tial, I hit 10 psi at 3600rpm. Dynoed 200whp at a pissant 6lbs! Of boost without tuning timing. I will sell it to you for 25pct off new prices. The differences are nominal. You can check out my setup in person if you like since I am local...
Faeflora is offline   Reply With Quote
Old 08-24-2010, 08:30 PM   #15
Junior Member

Join Date: Mar 2009
Location: maine
Posts: 224
Total Cats: -1
Default

odly enough a 35r will spool faster and make more power i believe this is with the t3 turbine.


link to entire thread http://forum.miata.net/vb/showthread.php?t=307213
94blackmx5 is offline   Reply With Quote
Old 08-24-2010, 08:40 PM   #16
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Wirelessly posted

Quote:
Originally Posted by 94blackmx5
odly enough a 35r will spool faster and make more power i believe this is with the t3 turbine.


link to entire thread http://forum.miata.net/vb/showthread.php?t=307213
Yah and that is why I am going to get a gt3582. More hp everywhere. That dyno story is very persuasive.
Faeflora is offline   Reply With Quote
Old 08-24-2010, 09:32 PM   #17
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

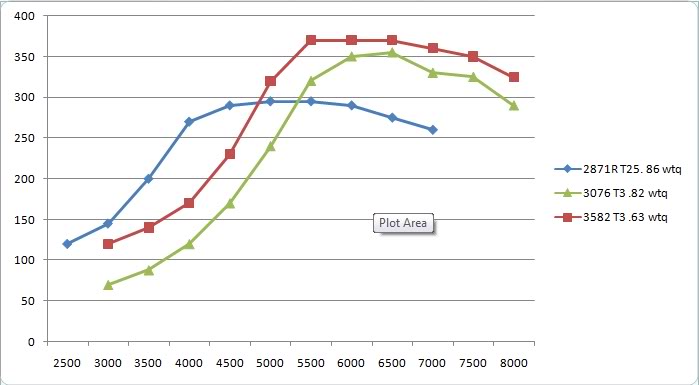

Name:  2871vs3076vs3582.jpg
Views: 266
Size:  31.8 KB

Forgive me if I'm not impressed, especially for a street car.
Savington is online now   Reply With Quote
Old 08-24-2010, 09:38 PM   #18
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

Quote:
Originally Posted by y8s View Post
am I the only guy who loves his .64 housing? my **** is win.
Plenty of love for .64 housings from the 2560R guys, plenty of love from the ~250whp guys. Not so much love from the 300whp guys.
Savington is online now   Reply With Quote
Old 08-24-2010, 09:40 PM   #19
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,193
Total Cats: 2,583
Default

Peak torque at 6500? HAHAHA
18psi is offline   Reply With Quote
Old 08-24-2010, 10:03 PM   #20
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,107
Total Cats: 48
Default

Quote:
Originally Posted by Braineack View Post
then replace the cams and IM...problem solved.
i 2nd this, everything works together, hence why im making 418whp on 18psi, thats with a 3071 .64.
ctdrftna is offline   Reply With Quote
