Default Hood Vents

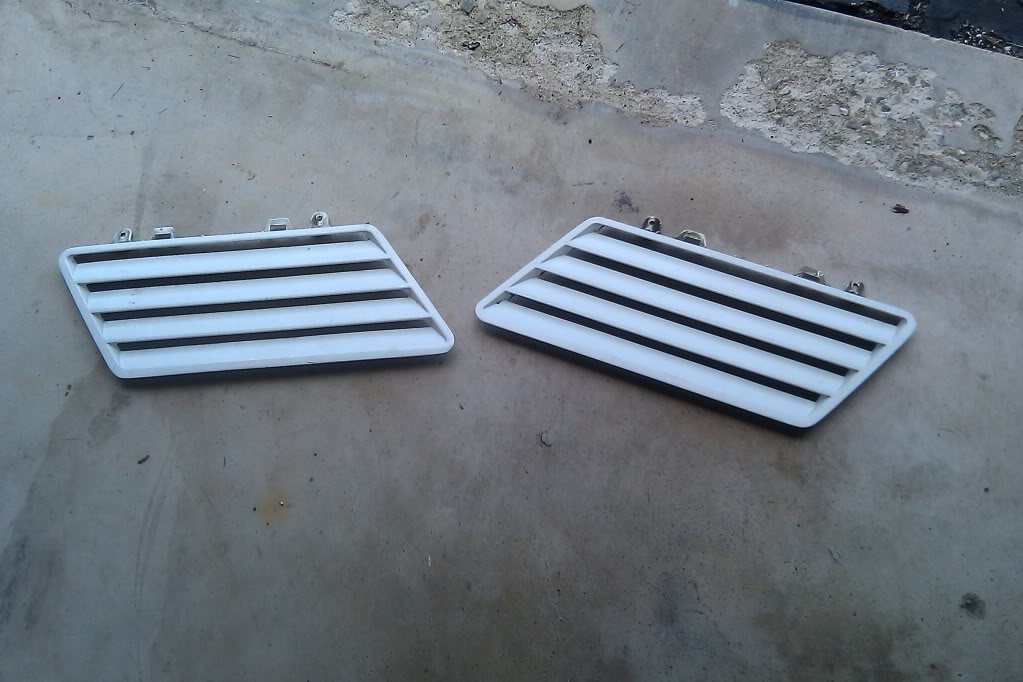

i Got the idea from cspences build thread, like it so i went to the JY and found myself a set the z34 hood vents.

painted them black

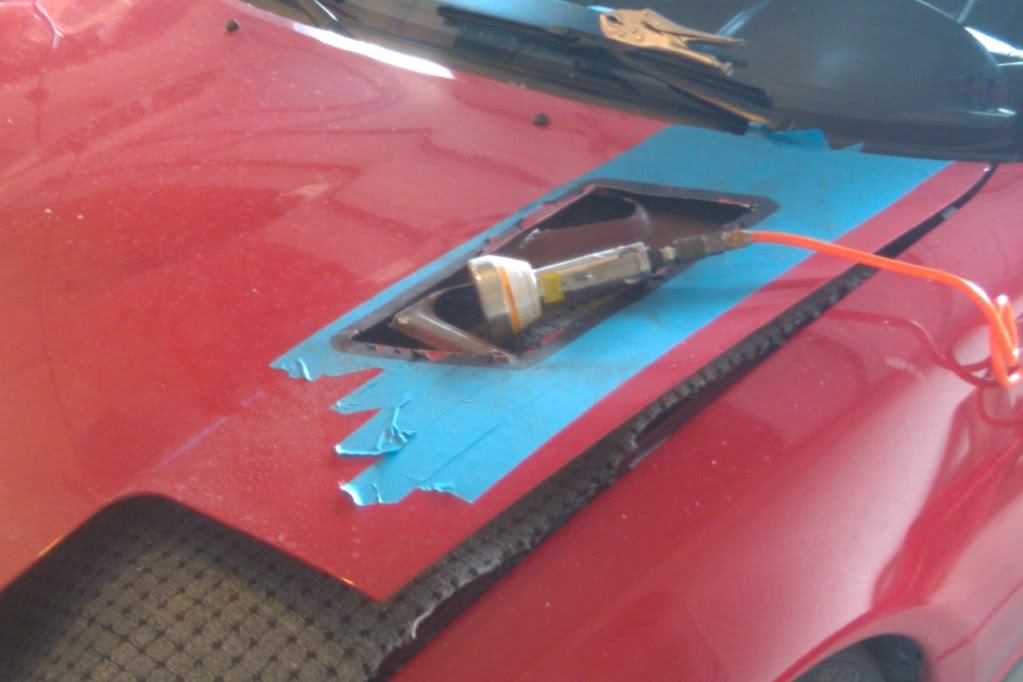

started cutting away

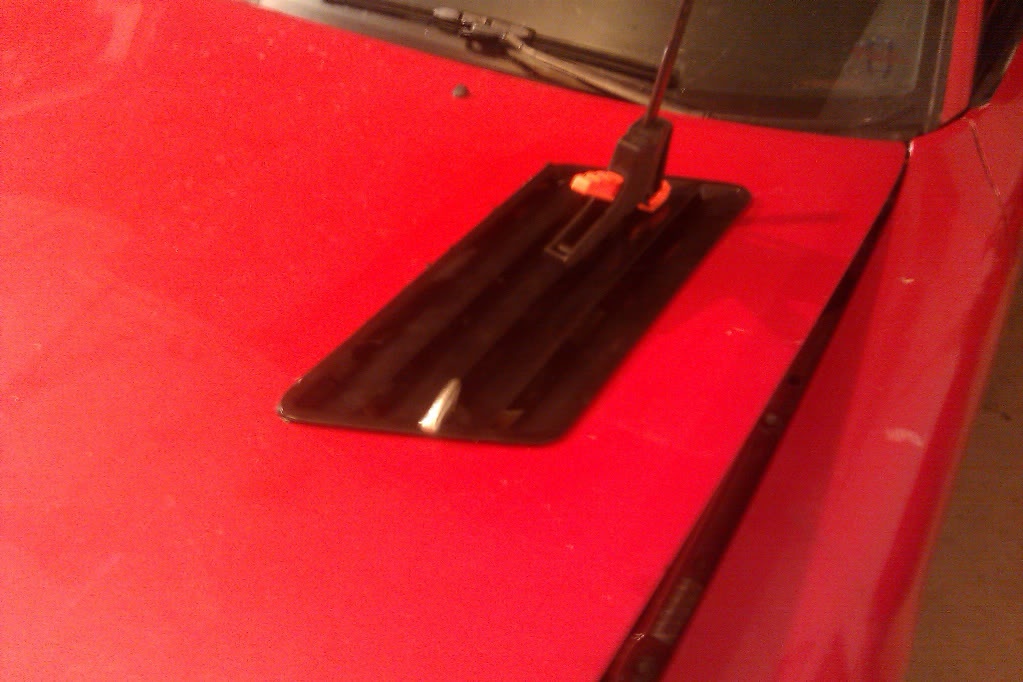

letting some rtv dry

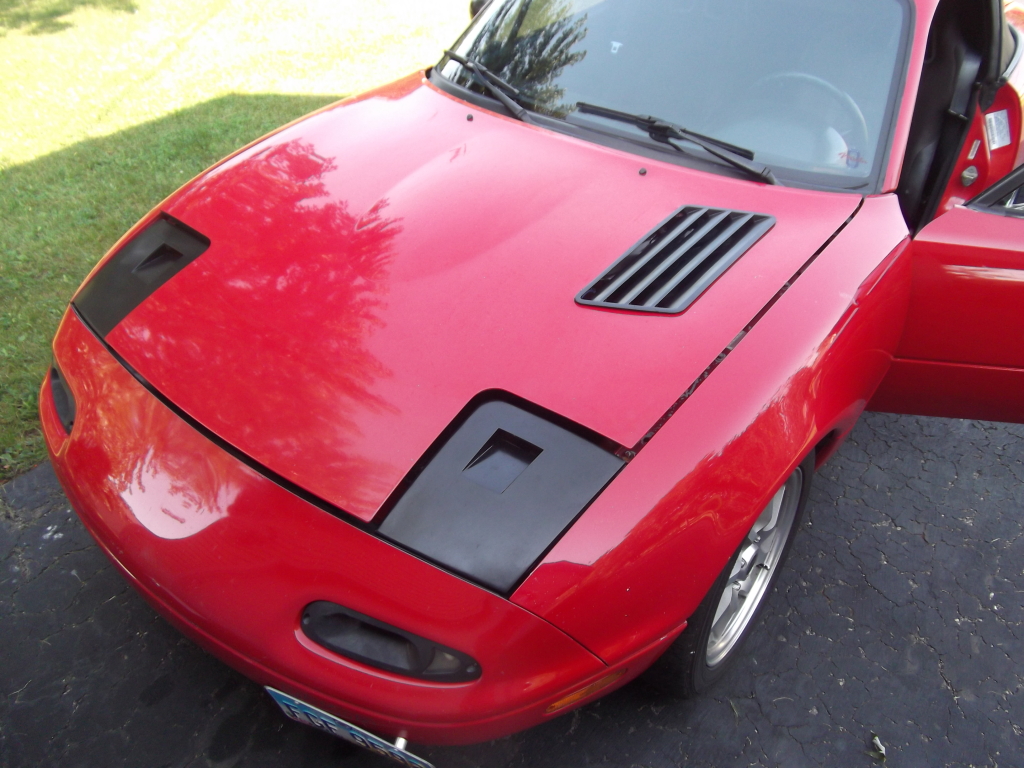

Finished
Attached Thumbnails
Hood Vents-imag0118.jpg   Hood Vents-imag0122.jpg   Hood Vents-imag0125.jpg   Hood Vents-dscf3273.jpg
redturbomiata is offline   Reply With Quote
Old 09-13-2011, 01:31 PM   #2
Junior Member

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

my buddy has one just like it on his na
fastivab6tg25mr is offline   Reply With Quote
Old 09-21-2011, 11:04 AM   #3
Newb

Join Date: Sep 2011
Posts: 16
Total Cats: 0
Default

Any noticible increase in airflow or drop in on the thermostat?
acitydweller is offline   Reply With Quote
Old 09-21-2011, 11:43 AM   #4
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Quote:
Originally Posted by acitydweller View Post
Any noticible increase in airflow or drop in on the thermostat?
Your not really going to notice a drop in the thermostat, but after an autocross run you can see the heat pouring out of the vent. so the airflow is better.
redturbomiata is offline   Reply With Quote
Old 09-21-2011, 12:17 PM   #5
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

My understanding was that putting a vent back there actually decreases the cooling efficiency of the cooling system. The vent should be put immediately behind the radiator so that air comes in through the front nose, through the rad, and then out. And no, there will be no drop in thermostat as our motors aren't exactly air cooled.
dustinb is offline   Reply With Quote
Old 09-21-2011, 03:23 PM   #6
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Quote:
Originally Posted by dustinb View Post
My understanding was that putting a vent back there actually decreases the cooling efficiency of the cooling system. The vent should be put immediately behind the radiator so that air comes in through the front nose, through the rad, and then out. And no, there will be no drop in thermostat as our motors aren't exactly air cooled.
its almost directly overtop the turbo, so alot of the heat from it is expelled through there
redturbomiata is offline   Reply With Quote
Old 09-21-2011, 04:49 PM   #7
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by redturbomiata View Post
its almost directly overtop the turbo, so alot of the heat from it is expelled through there
Ok so you've made the ambient temperature above the turbo cooler. What about the warmer coolant and oil now going through the turbo? That's what is actually cooling it. Ambient temperature isn't doing crap.
dustinb is offline   Reply With Quote
Old 09-21-2011, 05:02 PM   #8
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Quote:
Originally Posted by dustinb View Post
Ok so you've made the ambient temperature above the turbo cooler. What about the warmer coolant and oil now going through the turbo? That's what is actually cooling it. Ambient temperature isn't doing crap.
my air filter is right near the turbo, and it would pull the hot air from the turbo. oil cooler is on the buy list. and its just oil cooled turbo.
redturbomiata is offline   Reply With Quote
Old 09-21-2011, 05:27 PM   #9
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by redturbomiata View Post
my air filter is right near the turbo, and it would pull the hot air from the turbo. oil cooler is on the buy list. and its just oil cooled turbo.
Your turbo will super heat the air coming in, and that's why you install an intercooler. I would say cooling the air at the filter is unnecessary.
dustinb is offline   Reply With Quote
Old 09-21-2011, 08:49 PM   #10
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Quote:
Originally Posted by dustinb View Post
Your turbo will super heat the air coming in, and that's why you install an intercooler. I would say cooling the air at the filter is unnecessary.
Makes perfect sense to me, although I believe it's a highly debated topic. Doesn't hurt to do some sort of CAI if you have the space, but does 5* cooler air equal 5* cooler air before going into the intercooler? Or does the turbo negate any difference?
curly is offline   Reply With Quote
Old 09-22-2011, 12:02 AM   #11
Newb

Join Date: May 2011
Location: Puerto Rico
Posts: 43
Total Cats: 0
Default

It will help you to get the hot air out of there when you are stop. And it looks like a nice work done!
Rotary Heart is offline   Reply With Quote
Old 09-22-2011, 12:34 AM   #12
Senior Member
iTrader: (9)

Join Date: Sep 2009
Location: Yamato Japan
Posts: 692
Total Cats: 26
Default

Quote:
Originally Posted by redturbomiata View Post
its almost directly overtop the turbo, so alot of the heat from it is expelled through there
If that vent is under a high pressure area, no, no it won't. Your vent placement is border line. I'm not sure if that's considered high or low pressure. It's kind of on the edge. I would think the back of the vent is having air rammed in, but the front of it may be in a low pressure zone.
tasty danish is offline   Reply With Quote
