Default How the hell do I get the high-pressure steering rack hose off?

The one with metal inside of it?

Here's a picture:
Name:  Picture002edit.jpg
Views: 77
Size:  85.5 KB

I just completely removed everything having to do with power steering (Pump, reservoir, lines, those things) and I was going to finish up by looping the steering rack lines and that just has to **** me in the face now.

And on a side note, how much does a full PS system go for?
rider384 is offline   Reply With Quote
Old 08-03-2010, 02:19 AM   #2
Junior Member
iTrader: (1)

Join Date: May 2009
Location: TN
Posts: 328
Total Cats: 4
Default

unscrew it
Attached Thumbnails

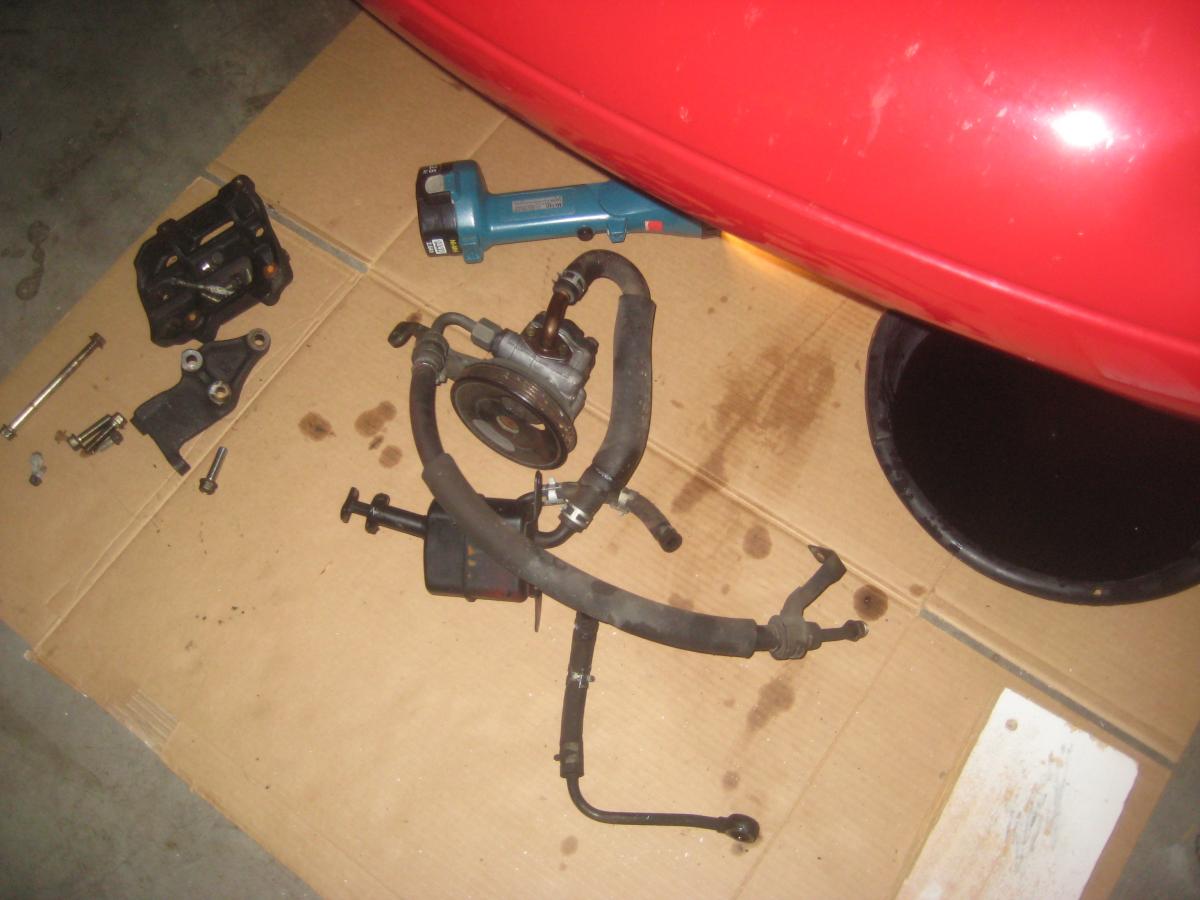

How the hell do I get the high-pressure steering rack hose off?-surgery-003.jpg
southernmx5 is offline   Reply With Quote
Old 08-03-2010, 02:27 AM   #3
Want fries with that?
Thread Starter
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

So it's permanantly connected besides that? In that case I'm going to cut it a couple inches in front of where it screws in and just loop it that way.
rider384 is offline   Reply With Quote
Old 08-03-2010, 02:30 AM   #4
Junior Member

Join Date: May 2007
Location: Atlanta
Posts: 384
Total Cats: 38
Default

17mm wrench that goes to a flare-end nut (exactly like a brake hardline), 10mm bolt on the subframe that goes to a holding bracket.

There are lots of writeups on rack depowering, including how to properly depower and plug sizes so you don't get crap inside the rack.

http://www.flyinmiata.com/tech/depower.php
gooflophaze is offline   Reply With Quote
Old 08-03-2010, 02:34 AM   #5
Junior Member
iTrader: (1)

Join Date: May 2009
Location: TN
Posts: 328
Total Cats: 4
Default

Yeah, either loop the line or use some metric plugs. Don't forget to turn the wheel lock to lock a few times first.
Attached Thumbnails

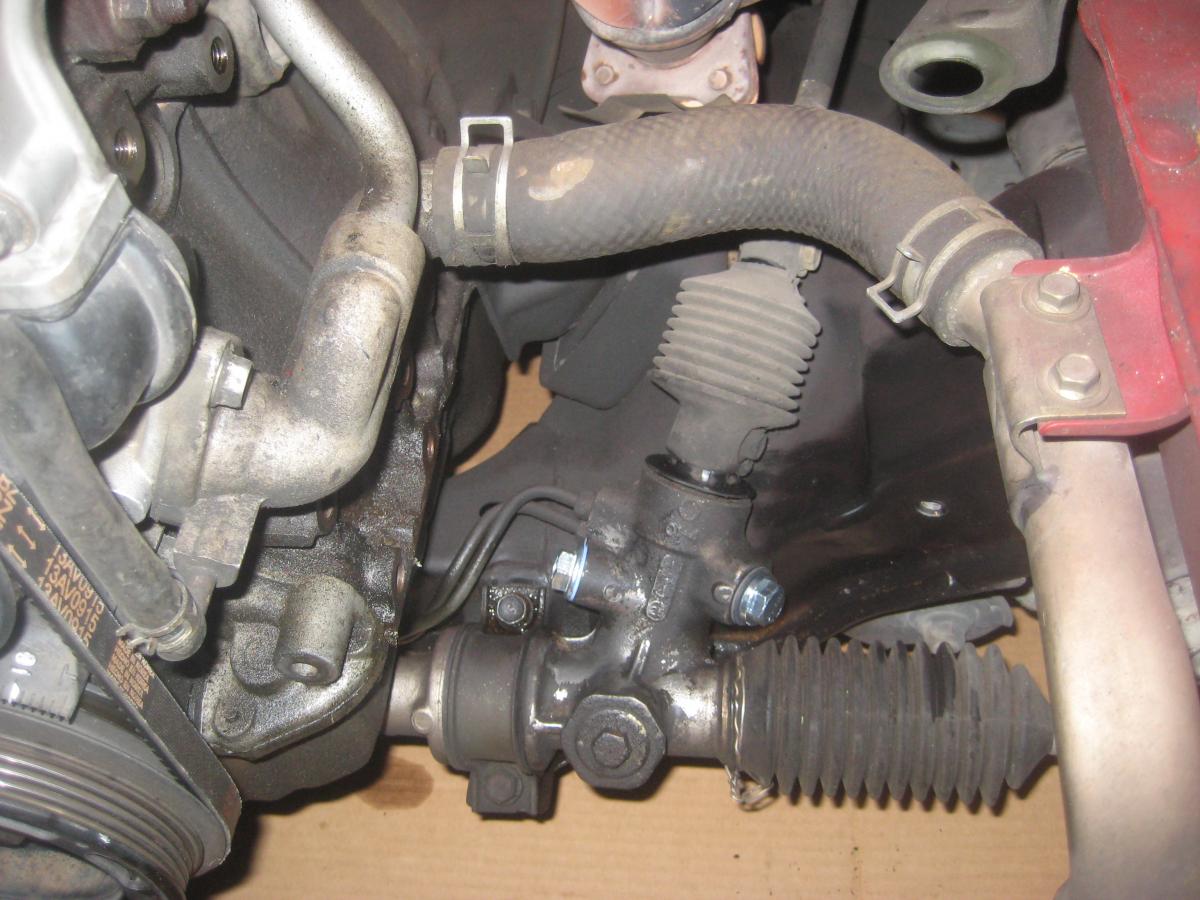

How the hell do I get the high-pressure steering rack hose off?-surgery-002.jpg
southernmx5 is offline   Reply With Quote
Old 08-03-2010, 02:35 AM   #6
Senior Member
iTrader: (14)

Join Date: Aug 2008
Location: Tinley Park, IL
Posts: 1,488
Total Cats: 0
Default

The hose is swaged on the tube with a crimped collar, if that's what you're referring to. It's not removable. I think you have to cut it in order to use the tube nut and the leftover tube.
lordrigamus is offline   Reply With Quote
Old 08-03-2010, 02:56 AM   #7
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

I sold my pump for 35 shipped. Sometimes it takes a quick tightening before you can back it out.
chpmnsws6 is offline   Reply With Quote
