Old 10-15-2010, 08:45 AM   #41
Want fries with that?
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

Quote:
Originally Posted by faeflora View Post
**** *************, nothing's wrong with a damn BOV. What's wrong with making a car sound a particular way? Don't make this poor bastard worry about that ****. Is MT now miata.net? Does a BOV sully the purity of your stock exhaust tone? Fu
No one said he needed a new one you stupid ****, but if you're still on stock ECU and VAF it needs to be recirculated.
rider384 is offline   Reply With Quote
Old 10-15-2010, 08:58 AM   #42
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by rider384 View Post
No one said he needed a new one you stupid ****, but if you're still on stock ECU and VAF it needs to be recirculated.
Reread the thread you shitbrained ----. There's a few BOVs are dumb posts.
Faeflora is offline   Reply With Quote
Old 10-15-2010, 09:37 AM   #43
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

I must say..for someone who picked up a car with potential, I am impressed at how articulated the OP is and his seriousness in asking questions and getting answers. I see this car getting "finished" properly. I dig the satin finish...it's done right which many people don't do. I think it pulls off the 17" wheels quite well too...not many NAs can do that. I'd imagine you'll have to stay with 17"s if you want to keep the brakes.

As for the MBC, I use a Hallman, my GF has a Hallman and most other people I know have Hallman MBCs. They're damn good and accurate with little to no creep/overboost issues. Hell, I'm running a Hydra ECU and I have chosen to NOT use the EBC feature. What does that tell you?

As for the short shifter- Some like it and some don't. I had one on my 96 and my 99 and loved it. If your stocker is junked, I say go for it. Just make sure you get a real short throw and not a "shortened" stock shifter. I'm sure you know the difference though
Doppelgänger is offline   Reply With Quote
Old 10-15-2010, 12:01 PM   #44
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Nothing in the shots of the engine bay that can't be fixedin short order, but a few more pictures of other parts of the car so we can check it out would be helpful.

What is the braided line going across the top of the valve cover? I'll assume it's an oil feed line from a sandwich plate for now... pretty bad considering the feed-port purpose built into the block under the heater-core hoses.

I see they took out the AC/ but left the condensor under the passenger dash... an awesome extra 10lbs for no reason.

I see the huge-*** front brakes but stock rear brakes... but no proportioning valve... that'll be super awesome first time you need to do a panic-stop.

And please tell me you've disconnected the wastegate arm by now.
samnavy is offline   Reply With Quote
Old 10-15-2010, 12:20 PM   #45
Junior Member

Join Date: Aug 2006
Location: Cedar City, UT
Posts: 228
Total Cats: 4
Default

Quote:
Gonna get it registered in NC and surpass all smog Woes.
Yeah, one nice thing about being in the military, get the car registered in your home state, and the car is subject to those rules, not where you are stationed

A lot of people i know changed residence to florda when they were in tech school, I recently switched mine from NC to MN for both the car and tax reasons...
Dlaitini is offline   Reply With Quote
Old 10-15-2010, 12:56 PM   #46
Junior Member
Thread Starter

Join Date: Jul 2010
Location: Camp Pendleton, CA
Posts: 93
Total Cats: 2
Default

That's not a braided line, its a silver colored vacuum line. Checked that out yesterday. Haven't had daylight hours off work yet to take lots of pics but tomorrow morning I'm gonna get them all. Haven't discontected the waste gate yet, but I'm not driving it wither so no harm no foul.

I really like the rims/front brake combo so ill start looking at a new proportioning valve and a rear upgrade. Any recomendations?.

Gotta order lots of parts this next few weekends. I'm off to the nsx expo in vegas week after next so some stuff will have to wait on cash. Flow unfortunatly
Darthteddy is offline   Reply With Quote
Old 10-15-2010, 01:26 PM   #47
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

If I were to make a recommendation on the brakes it would be to grab the BMC from a 2001-05 Sport without ABS and MSM, along with the rear rotors and calipers. It'll balance out better. Those rears are 11' rotors and the BMC has a larger piston bore.

Last edited by Doppelgänger; 10-15-2010 at 01:46 PM.
Doppelgänger is offline   Reply With Quote
Old 10-15-2010, 04:59 PM   #48
Elite Member
iTrader: (11)

Trent's Avatar

Join Date: Feb 2006
Location: Louisiana
Posts: 1,625
Total Cats: 5
Default

Quote:
Originally Posted by Darthteddy View Post
That's not a braided line, its a silver colored vacuum line. Checked that out yesterday.
I see the silver vaccuum line running by the thermostat housing. What about that braided line running over the top of the valve cover? Is that connected to the turbo?

Do me a favor next time your looking at the engine. There should be a small oil feed fitting near the base of the dipstick.



There should be a bolt in that fitting to plug it. I'm wondering about this, because the 1.6L should have that fitting for oil feed for your turbo. If it isn't there, then that means more than likely that you have a replacement block, many of which did not include the oil feed fitting for some reason. Nothing to worry about, just some insight into your car's history.
Trent is offline   Reply With Quote
Old 10-15-2010, 05:32 PM   #49
Junior Member
iTrader: (1)

Join Date: May 2009
Location: TN
Posts: 328
Total Cats: 4
Default

Poor miata..
southernmx5 is offline   Reply With Quote
Old 10-15-2010, 05:57 PM   #50
Junior Member
Thread Starter

Join Date: Jul 2010
Location: Camp Pendleton, CA
Posts: 93
Total Cats: 2
Default

Wow I feel even more retarded. Lmao. Yea looked at the line again just now. It goes down the other side of the engine but I couldn't see where it goes. Tomorrow ill get it up on jacks and have a peek..

For sure have much much more to learn about these cars. Big change from small block v8s and lifted jeeps. The gay writeup about the car on that web site says its a "built" motor. No clue wtf that means or if their just talking out of their ***. I'm just ready to fix this bitch the right way and drive it.
Darthteddy is offline   Reply With Quote
Old 10-15-2010, 05:59 PM   #51
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

**** I say revert it back to the way it was when you bought it, buy an add in Super Street and sell it for $35,000.
Faeflora is offline   Reply With Quote
Old 10-15-2010, 08:04 PM   #52
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,324
Total Cats: 1,922
Default

Quote:
Originally Posted by samnavy View Post
I see they took out the AC/ but left the condensor under the passenger dash... an awesome extra 10lbs for no reason.
Interesting.

Darthteddy, I'll make you a deal. I will remove that huge, heavy evaporator box from your car, and give you the crossover tube you need to put in its place so that your heater and windscreen defogger still work.

(Seriously, I am looking for an evap box, and I do have the crossover tube to replace it.)



Quote:
I see the huge-*** front brakes but stock rear brakes... but no proportioning valve... that'll be super awesome first time you need to do a panic-stop.
Could always be worse. Big brakes out back and stockers up front would make the car stop like a Porsche.
Joe Perez is offline   Reply With Quote
Old 10-15-2010, 09:43 PM   #53
Junior Member
Thread Starter

Join Date: Jul 2010
Location: Camp Pendleton, CA
Posts: 93
Total Cats: 2
Default

Yea man its all yours. Ill try gettin it out this weekend. I cant say ive ever owned a car with AC...why start now. lmao.

Played under the hood a little bit just now. Discovered that one of the bolts holding the turbo to the exhaust manifold was finger tight.

That and a few other lines here and there had either loose clamps or were off the nipple a little bit. Adjusted them as best I could for now. Gonna clean it all up tomorrow and get pics of it front to back, inside out, so we can uncover what other mysteries this beast has to hide.
Darthteddy is offline   Reply With Quote
Old 10-19-2010, 12:52 AM   #54
Junior Member
Thread Starter

Join Date: Jul 2010
Location: Camp Pendleton, CA
Posts: 93
Total Cats: 2
Default

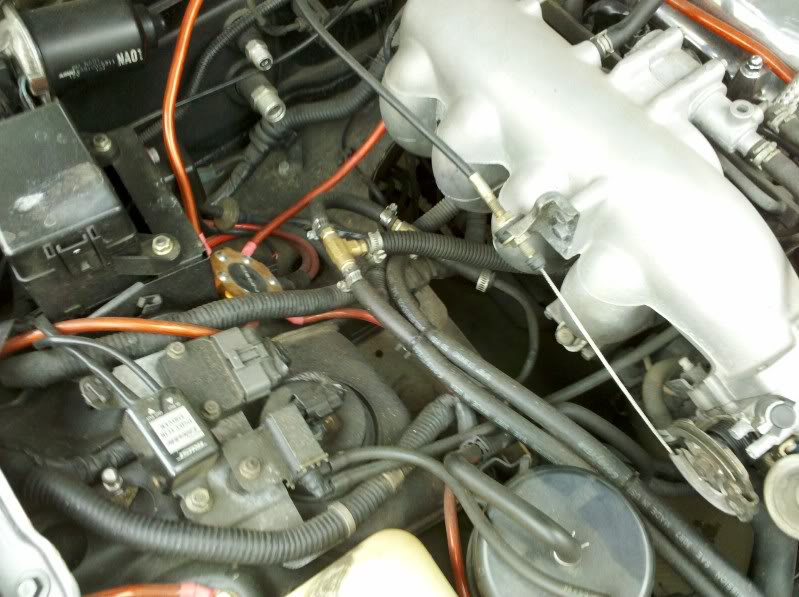

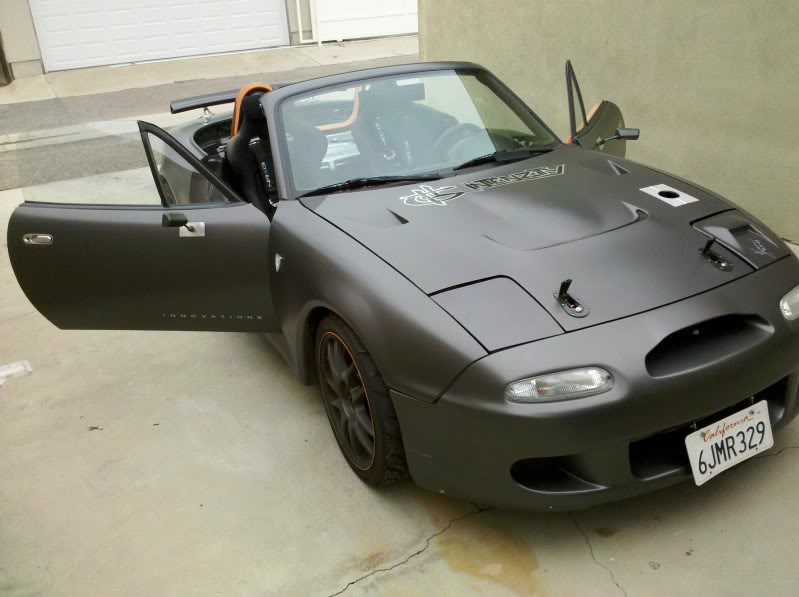

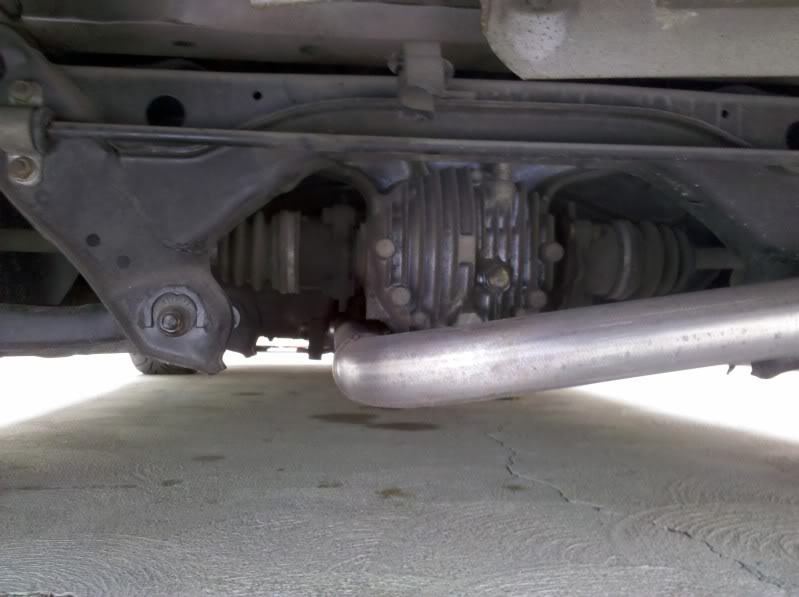

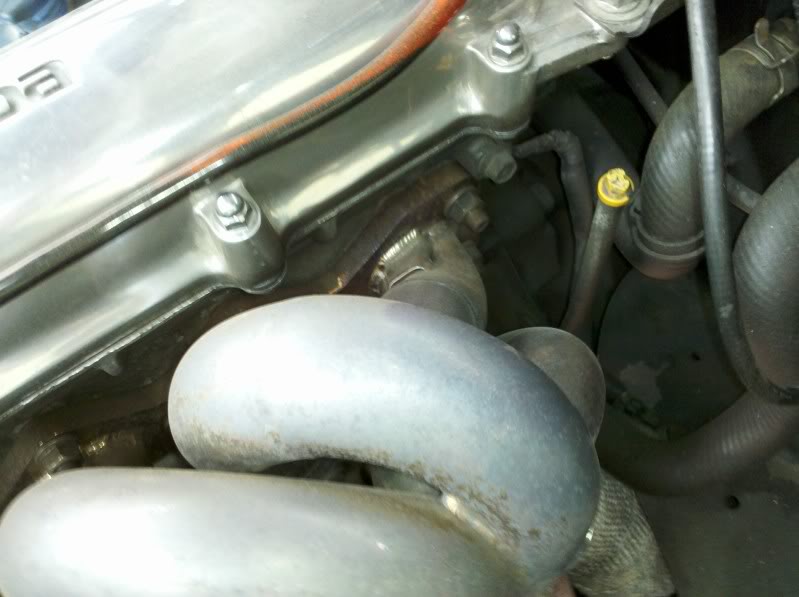

Okay got some pictures. Lemme know what yall spot or what else you need pics of.

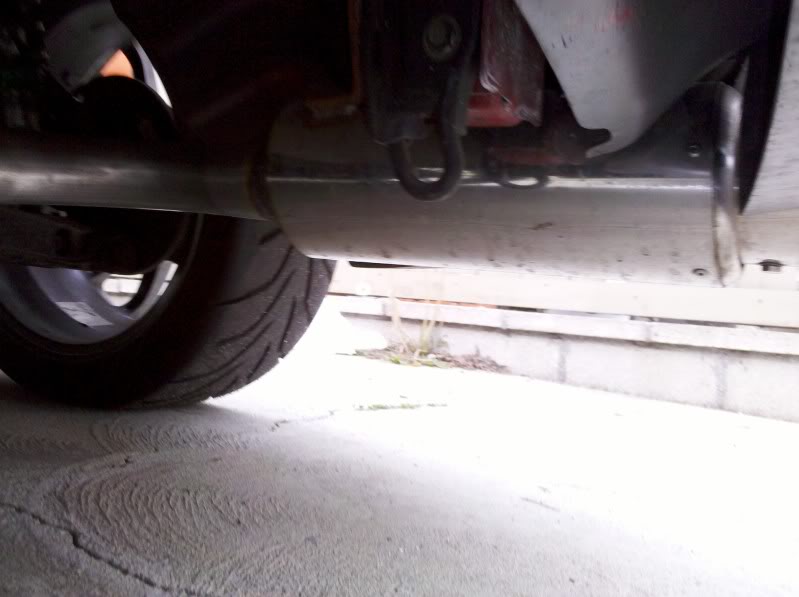

Name:  IMG_20101016_135104.jpg
Views: 1
Size:  67.9 KB
Name:  IMG_20101016_135057.jpg
Views: 1
Size:  72.5 KB
Name:  IMG_20101016_134937.jpg
Views: 1
Size:  77.4 KB
Name:  IMG_20101016_134848.jpg
Views: 1
Size:  117.5 KB
Name:  IMG_20101016_134839.jpg
Views: 1
Size:  125.0 KB
Name:  IMG_20101016_134831.jpg
Views: 2
Size:  76.8 KB
Name:  IMG_20101016_134805.jpg
Views: 1
Size:  95.1 KB
Name:  IMG_20101016_134700.jpg
Views: 1
Size:  47.1 KB
Name:  IMG_20101016_134641-1.jpg
Views: 1
Size:  79.3 KB

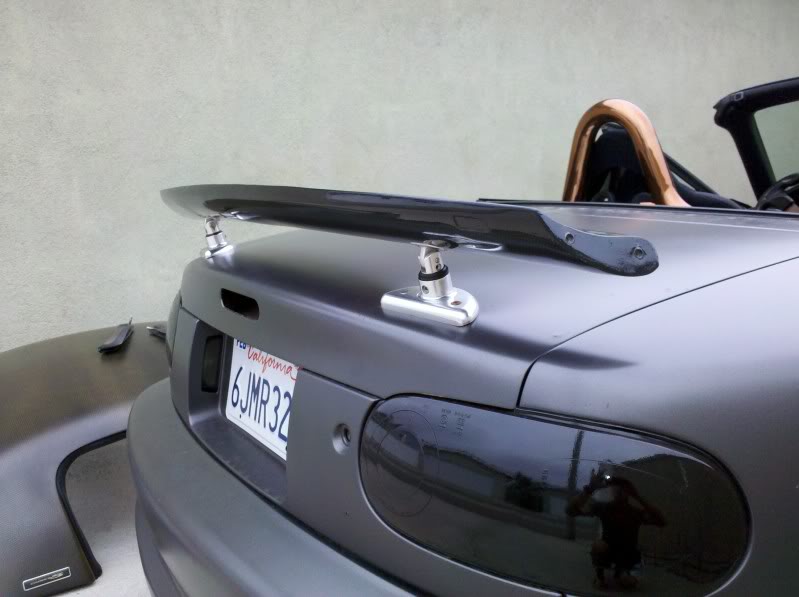

Name:  IMG_20101016_135140.jpg
Views: 1
Size:  73.3 KB
Darthteddy is offline   Reply With Quote
Old 10-19-2010, 01:08 AM   #55
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

It looks 'off' without the whole package. Go ahead and take the style bar off, it won't save your life. And the wing! Sell the flashy **** that will be piling up in your garage.

Good luck with your new Ho.
turotufas is offline   Reply With Quote
Old 10-19-2010, 10:02 AM   #56
Elite Member
iTrader: (11)

Trent's Avatar

Join Date: Feb 2006
Location: Louisiana
Posts: 1,625
Total Cats: 5
Default

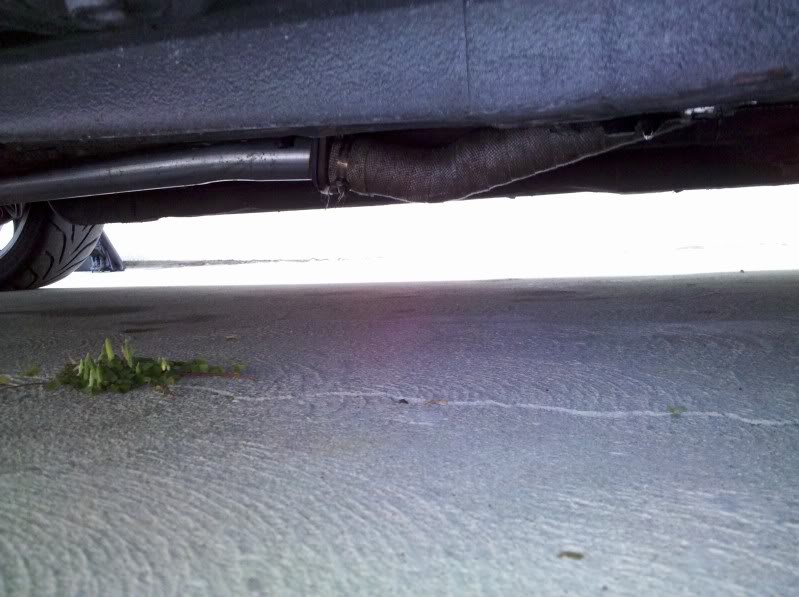

Search "tapping oil pan". You would be able to get rid of that long oil return line if you tapped the driver's side of the oil pan and put a fitting for the turbo oil return line. You don't want the oil return line to ever go "uphill", and it looks like it is in it's current "around the engine" configuration.
Trent is offline   Reply With Quote
Old 10-19-2010, 10:42 AM   #57
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Looks like an overkill intake tube to me, esp seeing that one of the lines is plugged with a bolt. lol

I also agree that the oil return line needs to be addressed. The going around the engine method that goes between the rad and motor, that gradually goes downhill is one thing. Going under the oil pan and UPHILL to the oem return tit is another. I would put that on top priority list.

Looks wise I would remove the style bar and little "wing", sell those on cr, and use that money toward a real rollbar and the car will look so much better.

Good to see that you are ready to fix all the little **** ups here and there. Put the time into it and before you know it, it'll be all around better, more your taste, and you'll have a better idea where everything is and how it works.
Vashthestampede is offline   Reply With Quote
Old 10-19-2010, 10:58 AM   #58
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

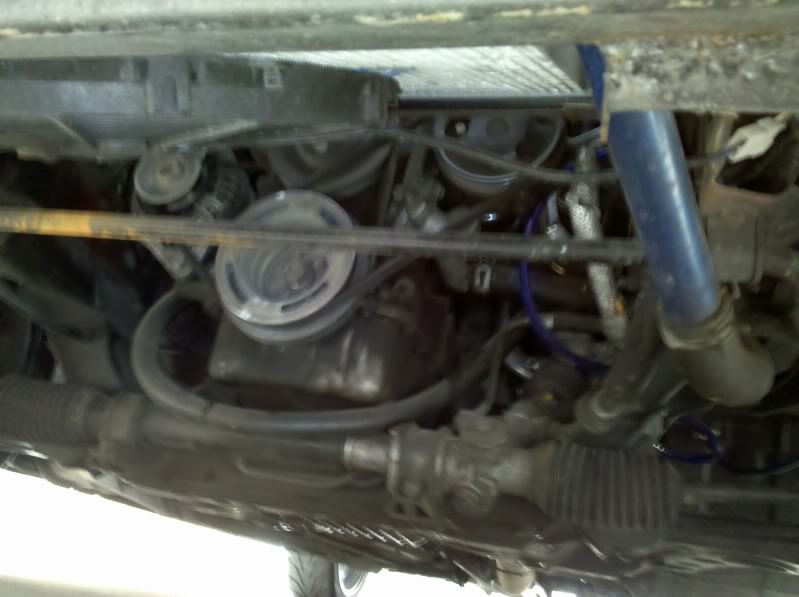

someone help me out here, is that a stocker 1.6 crank pulley? I'm not sure if the 1.6's are different than the 1.8s, and my 1.8 pulleys dont look like that...just want to make sure it's not an underdrive...

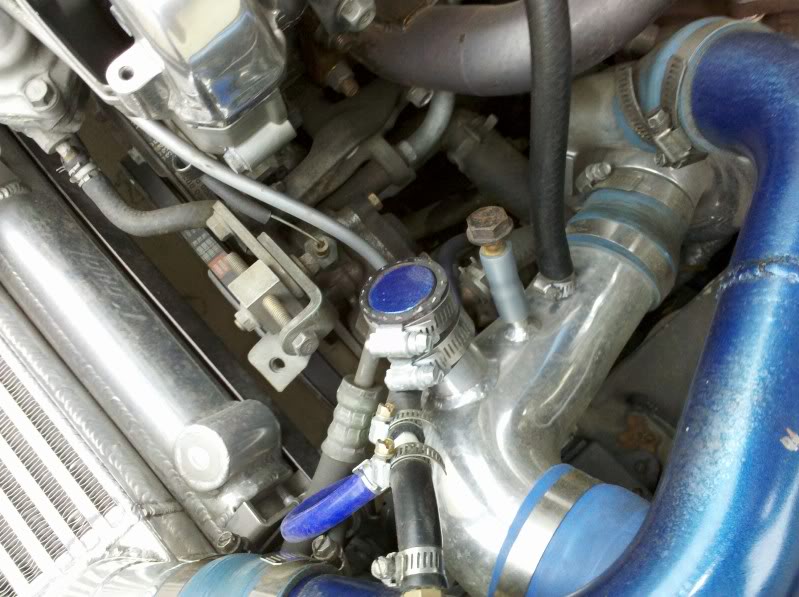

regarding the pic of your intake piping: HOLY WORM CLAMPS, BATMAN!
fooger03 is offline   Reply With Quote
Old 10-19-2010, 11:29 AM   #59
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

looks like a stock 1.6 pulley to me. the pulley on our 96 looks the same as well.
magnamx-5 is offline   Reply With Quote
Old 10-19-2010, 11:57 AM   #60
Junior Member

Join Date: Nov 2008
Posts: 145
Total Cats: -1
Default

First let me say that overall this isn't as bad as you may think from all the posts here. This car has potential. There are some parts here that will save you in the long run. You just need to make sure you are not on the verge of destroying the engine from poor tuning.

It looks like the PO has pulled the fenders this can be a good thing to get some real tire under it later but for now I would keep the tires they will grip well and they make the car look good. Also there are other more critical issues to worry with.

You mentioned the injectors being 330 then you mentioned something about the second hole. Are the 330 injectors piggy to stock?? Meaning are their 8 injectors in the manifold? If so then you could leave them for now and start working on how they handled the extra injectors. There may be a piggyback ECU under the dash somewhere. That may be the wiring mess you referred to in the glove box.

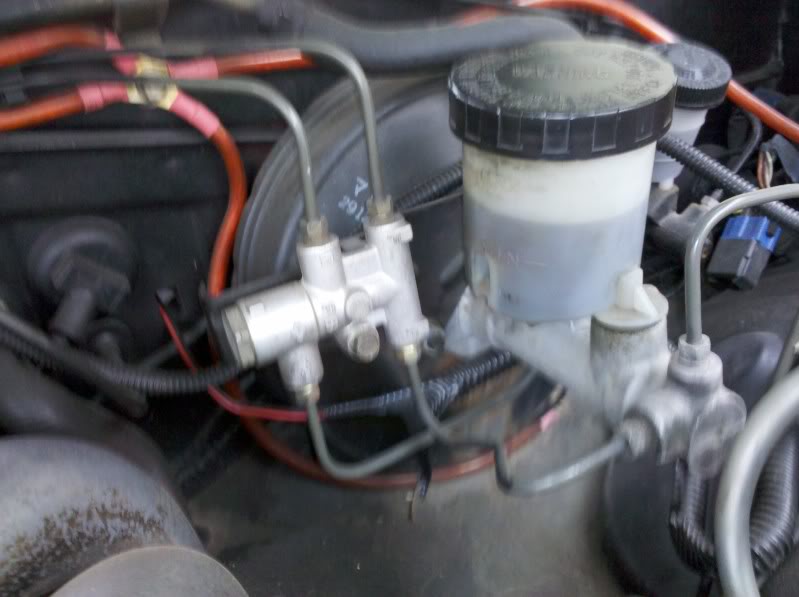

Flush the brake fluid it is almost black. Those calipers will feel a lot better. Brake fluid mixes with water then it boils and you have air. Also the water causes corrosion.

The line running over the valve cover appears to be the turbo oil feed line. Order a longer one and move it away from manifold. Running it between the pipes only makes the oil hotter. Also if it did leak yo would have a fire. Try going back to the fire wall then around to the brake master then up to the turbo on the outside of the manifold.

Is there a FMU? Fuel metering unit? It adds pressure to the fuel when the boost rises. It should be on the passenger side plumbed into the fuel line. It will have a boost reference hose attached.

Check all hardware. This being a show car probably has had parts come on and off and most of the time it is brought on a trailer. So there will be a high probability that many things aren't put together properly.

Fix that rubber seal between the engine compartment and wiper area. It will keep the cabin cooler.

Close the hole in front of the inter cooler. It will let the air pass right by the cooler and basically render the whole set up useless

Leave the wing. It doesn't look too bad and if you remove it there will be holes left in the trunk lid. Wait until you find a proper wing then plan the replacement.

Those ground cables are more of a gimmick than anything. There is one under the master that runs through the fire wall that is melting and could cause a fire. Personally I would remove them.

Good luck, Greg
DOHCPanther is offline   Reply With Quote
