Default knocksense install

I know, I'm lazy or whatever.


When I install knocksense, can I use hardware in the spot from the stock knocksensor, or do I need to get a bolt or some **** with a setup like what Fm sales?

wtf?

hustler is offline   Reply With Quote
Old 08-30-2007, 12:15 AM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

What the hell is wrong with your signature.

I'm actually trying to figure out if the KS will work with the stock '99 knock sensor before i order it. I think it will. Reverant built his own knock sense style unit and uses the stock '01 sensor.
cjernigan is offline   Reply With Quote
Old 08-30-2007, 12:19 AM   #3
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by cjernigan View Post
What the hell is wrong with your signature.

I'm actually trying to figure out if the KS will work with the stock '99 knock sensor before i order it. I think it will. Reverant built his own knock sense style unit and uses the stock '01 sensor.
I just want to now if the knocksense sensor will bolt where the stock one goes, or if I need to go buy a bolt, nuts...or what the **** ever. I'm tired of dicking around like a ------ with this ****, and I'm about to put my 3-day weekend to work with Ms, knocksense, swaybars, and awesomeness.
hustler is offline   Reply With Quote
Old 08-30-2007, 12:29 AM   #4
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

easiest thing is to order a mount from FM. $17
In reality, all you need is a stud that matches the thread of a motor mount bolt and 2 nuts.
Ben is offline   Reply With Quote
Old 08-30-2007, 12:32 AM   #5
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Anyone know what the stock '99 sensor is? Is it a bosch or what? Everyone I call short of partsgroup.com told me they had no idea what the hell it was. It doesn't look or feel like the bosch unit when i reach under my mani blindly but i could be wrong.
cjernigan is offline   Reply With Quote
Old 08-30-2007, 12:42 AM   #6
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

If I were to hazzard a guess, I'd say it's a denso unit. I've never seen the NB KS in person, only pictures on the interweb. It looks nothing like the bosch sensor I know and love.

I paid something like $25 for my bosch sensor--I've seen them for a little less (used), but I paid a little premium for the 1 stop shop deal. And Boris ended up throwing in the LED kit for me.
Ben is offline   Reply With Quote
Old 08-30-2007, 12:53 AM   #7
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I need to talk to reverant. Maybe he can spec the stock sensor for me to know if it will work with the Knocksense. I'd love to just wire the knock sense up in the cab to the stock harness. Man that would be nice.
Might end up adding the bosch unit though.
cjernigan is offline   Reply With Quote
Old 08-30-2007, 03:21 AM   #8
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

What kind of signal would the oem 99 knock sensor send?

You think I could possibly log the signal via the EMB?

Greets
Zaphod is offline   Reply With Quote
Old 08-30-2007, 08:32 AM   #9
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Ben View Post
easiest thing is to order a mount from FM. $17
In reality, all you need is a stud that matches the thread of a motor mount bolt and 2 nuts.
thanks...any idea what threadpitch? I suppose a 3" long stud will get the job done.
hustler is offline   Reply With Quote
Old 08-30-2007, 12:44 PM   #10
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

**** it, I'm not installing it. I can't find a dyno shop who can resist ******* me.

They all want $600 to tune the car. One estimated $1800 and would need the car for 2 days...lol.
hustler is offline   Reply With Quote
Old 08-30-2007, 12:51 PM   #11
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

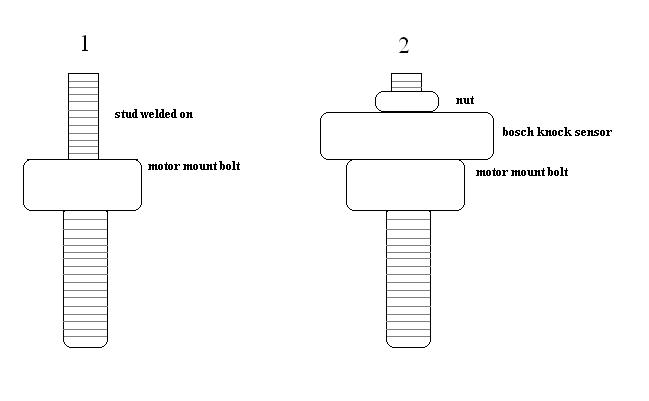

just took a look at my FM KS mount. It's 2.5" top to bottom. However, something I didn't realize before: the motor mount bolt has a larger circumference (1 cm) than the knock sensor's bolt hole (.6 cm). Since you can't hog out the knock sensor itself, probably the best thing to do is weld a stud that fits through the knock sensor's mounting hole to the top of an original motor mount bolt, and then capture the sensor to it with a nut.

Uhm, easiest thing it to by the FM mount tho
Attached Thumbnails
knocksense install-ksmount.jpg
Ben is offline   Reply With Quote
Old 08-30-2007, 12:55 PM   #12
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

You've got a wideband, road tune it yourself. Work on drivability while you are NA. I wouldn't waste the $$$ on the dynoe before you install the turbo.
jayc72 is offline   Reply With Quote
Old 08-30-2007, 12:59 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

motor mount bolt is m10x1.5 IIRC, bosch sensor needs a m8 (or m6 cant remember) size stud however.
Braineack is offline   Reply With Quote
Old 08-30-2007, 01:14 PM   #14
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

hmm i could make a few. How long is the stock bolt? Grade 8 should be enough. The stud would probably be too long to use a deep socket on the bolt but you could wrench it in the alright i think. I've never changed motormounts so I don't know off hand.
cjernigan is offline   Reply With Quote
Old 08-30-2007, 01:14 PM   #15
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by jayc72 View Post
You've got a wideband, road tune it yourself. Work on drivability while you are NA. I wouldn't waste the $$$ on the dynoe before you install the turbo.
I don't really want to do an hour of track time on a motor out of tune.
hustler is offline   Reply With Quote
Old 08-30-2007, 01:16 PM   #16
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I would just leave the stock ECU in until I had the turbo in then. What does it take, 10 minutes to install the MS including carpet and plate removal. You can still do the other wiring in the meantime though and just run it into the cab.
cjernigan is offline   Reply With Quote
Old 08-30-2007, 01:23 PM   #17
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by cjernigan View Post
I would just leave the stock ECU in until I had the turbo in then. What does it take, 10 minutes to install the MS including carpet and plate removal. You can still do the other wiring in the meantime though and just run it into the cab.
I'm itching to do something with this car, but I guess I have to wait.
hustler is offline   Reply With Quote
Old 08-30-2007, 01:28 PM   #18
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

You could install the IAT sensor in your IC plumbing, install the knock sensor, mount the intercooler, wideband, and any other gauges you might have. Crap like that.
cjernigan is offline   Reply With Quote
Old 08-30-2007, 01:33 PM   #19
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by cjernigan View Post
You could install the IAT sensor in your IC plumbing, install the knock sensor, mount the intercooler, wideband, and any other gauges you might have. Crap like that.
The motor, rad, and subframes still have to come out for swapping and powder.
hustler is offline   Reply With Quote
Old 08-30-2007, 03:23 PM   #20
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

if enough people are interested I can get double sided studs made which will have the proper length/thread for the engine mount with a hex head in the middle, and the proper length and thread pitch for the bosch unit on the other side... so all you'd need is this stud and a nut to install.

Price would probably be around $15-20 ea though.

*edit* quote request sent to manufacturer, I'll update you guys when I hear back.

Last edited by Arkmage; 08-30-2007 at 03:37 PM.
Arkmage is offline   Reply With Quote
