Default Let's talk about intercooler piping.

I'm putting the finishing touches on the stash of parts in my garage, and this is on the list. If you're intercooled, could you tell me everything you know about your setup? What kind of couplers you used, what bends and how many of them, and what you did for a bypass valve fitting. The setup will be a T25 on a 1.8, with a 27x6x2.5 front mount, if it matters.

Also, what should I be looking for as far as kits go? I've heard some talk about a vendor on eBay that allows you to choose your bends and straights, but I've also heard he's hard to find. How did everyone else do it?
Savington is offline   Reply With Quote
Old 04-25-2007, 01:24 AM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

http://store.racing-solutions.org/
They to have good prices.
If you join homemadeturbo.com you get a 5% discount and if you call in your order you can request cheaper USPS shipping versus UPS.
cjernigan is offline   Reply With Quote
Old 04-25-2007, 01:35 AM   #3
Senior Member
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,254
Total Cats: 7
Default

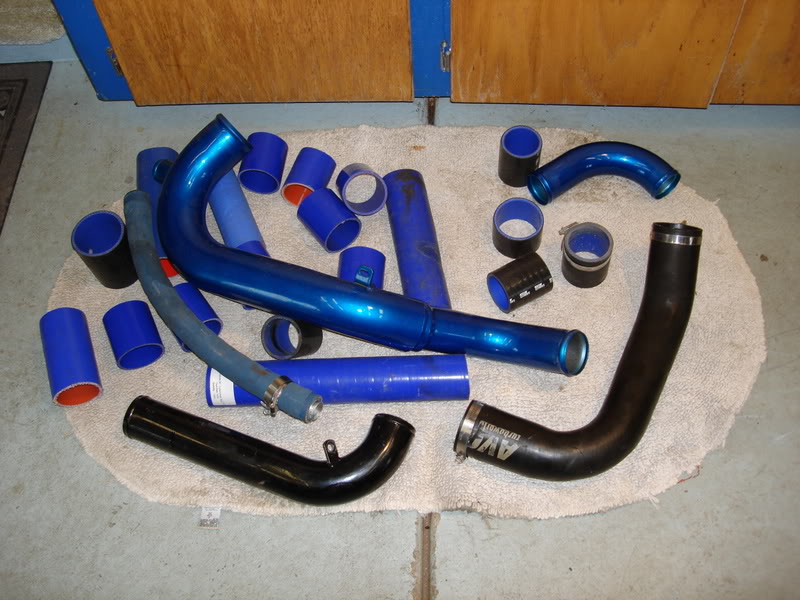

I bought a universal 2.5" pipe kit on ebay and ended up only using the two 75 degree pipes, some leftover pipes from my dad's subie, and a bunch of 90 degree silicone elbows from treadstone performance. I made my own bov pipe out of exhaust adapters.
2 of the 75 degree pipes...
Name:  DSC00392.jpg
Views: 6
Size:  7.0 KB
I only used the black 90 degree pipe here because it had a tighter radius bend.
Name:  DSC00391.jpg
Views: 6
Size:  96.3 KB

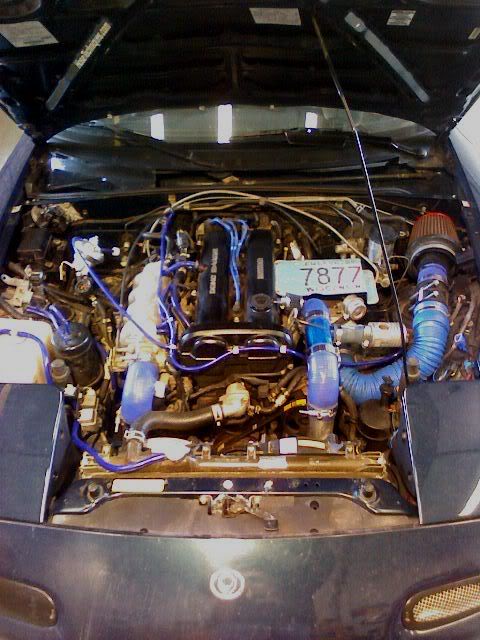

Name:  0406071611.jpg
Views: 6
Size:  64.2 KB

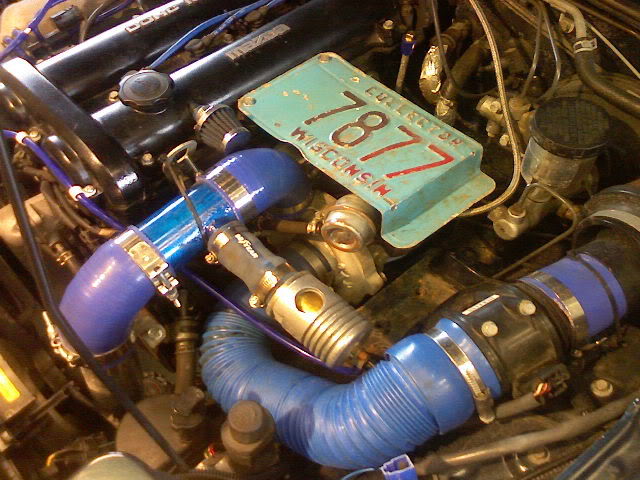

Name:  0406071726.jpg
Views: 6
Size:  75.1 KB

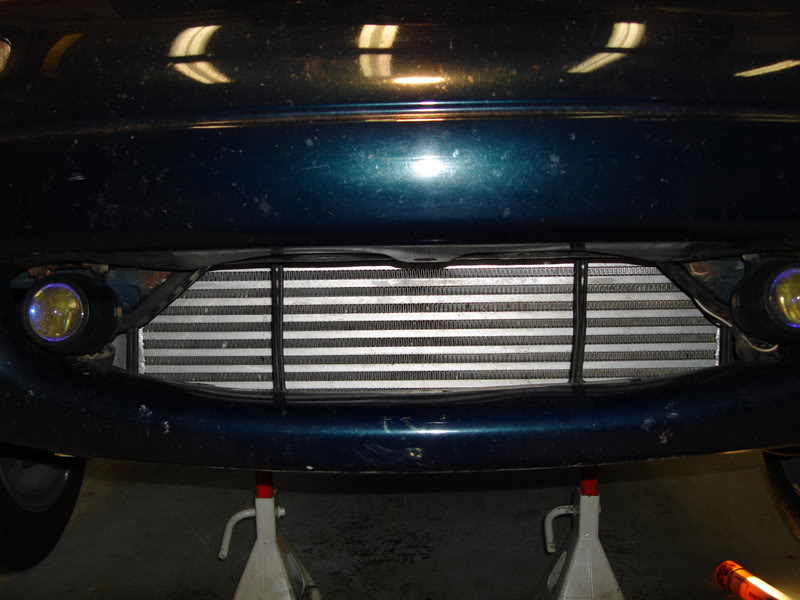

Name:  DSC00393.jpg
Views: 6
Size:  64.9 KB

Last edited by SamS; 04-25-2007 at 01:46 AM.
SamS is offline   Reply With Quote
Old 04-25-2007, 01:40 AM   #4
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

License plate heatshields rock.
cjernigan is offline   Reply With Quote
Old 04-25-2007, 01:45 AM   #5
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

Al Hounos is offline   Reply With Quote
Old 04-25-2007, 09:04 AM   #6
Senior Member
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default

Best heatshield EVER!

As for piping and whatnot, take a look at the link for stripes IC setup at the upper right (mx5projects.com). That should give you at least somewhat of a roadmap.
brgracer is offline   Reply With Quote
Old 04-25-2007, 10:21 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

(2) 2" 90° bends
(2) 2.5" 90° bends
few lengths of straight

(1) 2" 90° coupler
(1) 2" hump hose coupler
(1) 2" 45° coupler
(1) 2"-2.5" coupler
(2) 2.5" coupler
(1) 2.5" 90° coupler





Braineack is offline   Reply With Quote
Old 04-25-2007, 10:50 AM   #8
Senior Member

Join Date: Mar 2007
Location: Denver, CO
Posts: 564
Total Cats: 0
Default

I'd like to see more shots from underneath, specifically of pipes that go under the radiator. Thanks.
jwarriner is offline   Reply With Quote
Old 04-25-2007, 10:52 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by jwarriner View Post
I'd like to see more shots from underneath, specifically of pipes that go under the radiator. Thanks.

why?






Braineack is offline   Reply With Quote
Old 04-25-2007, 11:16 AM   #10
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

m2cupcar is offline   Reply With Quote
Old 04-25-2007, 11:19 AM   #11
Senior Member

Join Date: Mar 2007
Location: Denver, CO
Posts: 564
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
why?
Curiousity. I am new. I just got my Miata last Friday, I've been lurking here for about two weeks and then other than that my knowledge is limited to the time I've spent looking under the hood and in the wheel wells.

I can see why under the radiator might not be a good idea, low hanging pipes- a tall speed bump or anything of that nature and the pipes could be toast, especially if the car is lowered. But it looks like you have to be very careful going around the radiator due to the tires. Maybe I'm wrong and there is more space there than I think.

Thanks for the pics though. Tells me what I wanted to know.
jwarriner is offline   Reply With Quote
Old 04-25-2007, 11:28 AM   #12
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by jwarriner View Post
Curiousity. I am new. I just got my Miata last Friday, I've been lurking here for about two weeks and then other than that my knowledge is limited to the time I've spent looking under the hood and in the wheel wells.

I can see why under the radiator might not be a good idea, low hanging pipes- a tall speed bump or anything of that nature and the pipes could be toast, especially if the car is lowered. But it looks like you have to be very careful going around the radiator due to the tires. Maybe I'm wrong and there is more space there than I think.

Thanks for the pics though. Tells me what I wanted to know.
There aren't any tire clearance problems by going around.
cjernigan is offline   Reply With Quote
Old 04-25-2007, 11:29 AM   #13
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by jwarriner View Post
I can see why under the radiator might not be a good idea, low hanging pipes- a tall speed bump or anything of that nature and the pipes could be toast, especially if the car is lowered.
My 91 is pretty low and the charge pipes go under the radiator. It's not been a problem, even driving in Atlanta. The pipes really aren't any lower than the plastic under tray.
Ben is offline   Reply With Quote
Old 04-25-2007, 11:31 AM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

plently of room....look how much extra piping i wasted by my big *** turns....then look here:

Braineack is offline   Reply With Quote
Old 04-25-2007, 11:41 AM   #15
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Now that is nice.
cjernigan is offline   Reply With Quote
Old 04-25-2007, 11:43 AM   #16
Senior Member
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default

Now I wonder if there would be clearance issues with around the rad with bigger wheels/tires a la 6ULs w/225-245. If only he still had some in stock so I could find out....
brgracer is offline   Reply With Quote
Old 04-25-2007, 11:44 AM   #17
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

https://www.miataturbo.net/forums/sh...ht=intercooler
Check this thread out as well. That guy has a pretty nice setup with good pictures.
cjernigan is offline   Reply With Quote
Old 04-25-2007, 11:49 AM   #18
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by brgracer View Post
Now I wonder if there would be clearance issues with around the rad with bigger wheels/tires a la 6ULs w/225-245. If only he still had some in stock so I could find out....
I'm not running that big of rubber but my 205/40rz17 don't rub.
cjernigan is offline   Reply With Quote
Old 04-25-2007, 09:45 PM   #19
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

I've got no AC or PS, but I'll link to all my previous posts.

First, the IC and the way I mounted it. A small piece of aluminum stock and a couple threaded rods.... then fabbed up a air deflector from stainless sheet stock to hold the bottom in place. It is EXACTLY as wide as the radiator, perfect for a 90* coupler to go around. Drilled a couple holes in the radiator brace for the threaded rods to go through and then double nutted it to hold.
https://www.miataturbo.net/forums/sh...&postcount=185

Second, hot side: One piece of 45* bend, a 90* coupler, and a 45* coupler. https://www.miataturbo.net/forums/sh...&postcount=205
https://www.miataturbo.net/forums/sh...&postcount=208
https://www.miataturbo.net/forums/sh...&postcount=210
Cold side is a single 45* pipe bend cut into 3 pieces, a 90* coupler, T-coupler, and 90* 2-2.5" enlarging coupler. I'm recirculating my BOV now as well.
samnavy is offline   Reply With Quote
Old 04-25-2007, 10:20 PM   #20
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

Sam...as always, your my hero.
miatamania is offline   Reply With Quote
