Old 04-26-2007, 03:50 AM   #21
FHS
Senior Member
iTrader: (2)

Join Date: Oct 2004
Location: Los Angeles, Ca.
Posts: 502
Total Cats: 0
Default

With no AC or PS, the piping on the Starion IC is cake. The IC intakes fall right in line with the turbo exhaust port and throttlebody. So:

Hotside: 1 180 degree U bend, 2 90 degree elbows, 1 45 degree elbow
Coldside: 1 45 degree elbow, 1 90 degree elbow.

I just retained the U bend and throttlebody pipes from my old Jimmyboy Saab kit, and fit new SS pipes to those for the Starion. I live 30 minutes from this guy:

http://www.mazzurisuper.com/?OVRAW=s...OVMTC=advanced

He charged me $60 for all the bends and lengths of pipe I needed for the job.

Yeah, my pipes go under my radiator, but I haven't come close to scraping them. I scrape my exhaust piping and the bottom of my RB Type II nose all the time.
FHS is offline   Reply With Quote
Old 04-26-2007, 04:47 PM   #22
Junior Member

Join Date: Aug 2005
Location: Iowa
Posts: 338
Total Cats: 0
Default

Quote:
Originally Posted by samnavy View Post
I've got no AC or PS, but I'll link to all my previous posts.

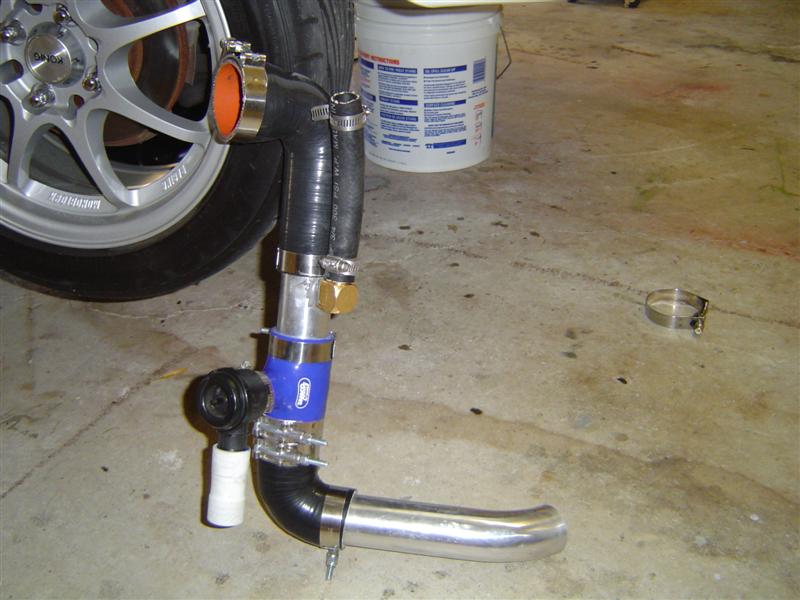

i've been meaning to ask you, what is that white thing you put on the tip of the BOV?
Mouglie is offline   Reply With Quote
Old 04-26-2007, 04:51 PM   #23
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by Mouglie View Post
i've been meaning to ask you, what is that white thing you put on the tip of the BOV?
It was a Lowes check valve when running the BOV VTA. He has now recirculated the BOV and solved many problems that he was having while cruising at speed. The bosch valve leaks and really needs to be recirc'd for your car to run right. It tends to make the engine "buck" because it is releasing metered air that should be entering the motor.
cjernigan is offline   Reply With Quote
Old 04-26-2007, 08:19 PM   #24
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,326
Default

Sam, should I be removing that check valve from your old BOV and running it recirc?
Savington is online now   Reply With Quote
Old 04-26-2007, 08:20 PM   #25
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

YES, unless you want the same stumbling issues that he had.
cjernigan is offline   Reply With Quote
Old 04-27-2007, 02:48 AM   #26
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,326
Default

https://www.miataturbo.net/forums/at...0&d=1163224580

Sam, how'd you hook the BOV up like that? Does someone offer that silicone fitting or did you make it yourself?
Savington is online now   Reply With Quote
Old 04-27-2007, 09:35 AM   #27
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

special silicone coupler...
Braineack is offline   Reply With Quote
Old 04-27-2007, 10:55 AM   #28
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Sam, great post, what are the dimensions of that IC?
kotomile is offline   Reply With Quote
Old 04-27-2007, 11:35 AM   #29
Senior Member
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,254
Total Cats: 7
Default

Quote:
Originally Posted by Braineack View Post
special silicone coupler...
Yeah, it's called a t-piece. I couldn't find one the right size so I welded my own out of steel.
SamS is offline   Reply With Quote
Old 04-27-2007, 11:48 AM   #30
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

y8s is offline   Reply With Quote
Old 04-27-2007, 04:36 PM   #31
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,326
Default

Quote:
Originally Posted by cjernigan View Post
YES, unless you want the same stumbling issues that he had.
I thought switching from a MAF to a MAP sensor would fix that, though. Is Sam MSed? I plan to be.
Savington is online now   Reply With Quote
Old 04-27-2007, 05:17 PM   #32
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

all MAP systems are fine with VTA bovs. samnavy is running bandaids, so he had to recirc.
Al Hounos is offline   Reply With Quote
