Mechanical engineers: help me calculate stuff. - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



General Miata Chat A place to talk about anything Miata

Reply



LinkBack Thread Tools
Old 12-11-2014, 10:35 PM   #1
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,920
Default Mechanical engineers: help me calculate stuff.

Such as how much HP does it take to move an NA down the highway at a constant 50 MPH on level ground, assuming ordinary all-season tires in the ~195 width range.

With the top up / down?

With the headlights up / down?

What about 65 MPH?

Etc.
Joe Perez is offline   Reply With Quote
Old 12-11-2014, 11:09 PM   #2
Junior Member

Join Date: Nov 2007
Location: Monterey Bay area
Posts: 53
Total Cats: 2
Default

Is this what you are looking for ?
Calculate HP For Speed
and
Part 6: Speed and Horsepower
my90 is offline   Reply With Quote
Old 12-11-2014, 11:15 PM   #3
Junior Member

Join Date: Jul 2014
Location: The Plentiful Land of Beer and Cheese
Posts: 417
Total Cats: 65
Default

It all depends on the coefficient of drag on the car, which can be then converted into a force, which can then be converted into power/torque

so unless someone has the experimental C_d values for what your looking for from full scale model testing, then your guess is as good as mine. Even then its going to differ from real-world results

I mean, how accurate of an answer are you looking for?
Padlock is offline   Reply With Quote
Old 12-11-2014, 11:18 PM   #4
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Doesn't MS have a HP readout given the required sensor inputs? I feel like dataloging that once its calibrated would give the best answer for your brake drag, bearing condition, headlight gaps, etc etc
curly is offline   Reply With Quote
Old 12-11-2014, 11:22 PM   #5
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,701
Total Cats: 269
Default

Whoever wrote Virtual Dyno assembled all that. His documentation and possibly the program has it in it.
DNMakinson is offline   Reply With Quote
Old 12-11-2014, 11:28 PM   #6
Junior Member

Join Date: Jul 2014
Location: The Plentiful Land of Beer and Cheese
Posts: 417
Total Cats: 65
Default

this calculator has the basic necessities included on an accurate estimation

Aerodynamic & rolling resistance, power & MPG calculator - EcoModder.com
Padlock is offline   Reply With Quote
Old 12-11-2014, 11:42 PM   #7
Junior Member

Join Date: Jul 2014
Location: The Plentiful Land of Beer and Cheese
Posts: 417
Total Cats: 65
Default

Quote:
Originally Posted by curly View Post
Doesn't MS have a HP readout given the required sensor inputs? I feel like dataloging that once its calibrated would give the best answer for your brake drag, bearing condition, headlight gaps, etc etc
The problem with this is that yes you theoretically should be able to estimate the power the car MAKES given the sensor inputs/outputs, but this doesnt tell you the power the car NEEDS to go that speed.

Drag Force = .5 * Drag Coefficient * Velocity^2 * Frontal Area * Air Density

^this can be converted to power fairly easily if all the variables are known

Estimated Engine HP based off MS = some complex function of the sensors given calibration is accurate. The uncertainty in this I'd imagine would be pretty high, but then again it should give you a ballpark
Padlock is offline   Reply With Quote
Old 12-11-2014, 11:53 PM   #8
Elite Member
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by Joe Perez View Post
Such as how much HP does it take to move an NA down the highway at a constant 50 MPH on level ground, assuming ordinary all-season tires in the ~195 width range.

With the top up / down?

With the headlights up / down?

What about 65 MPH?

Etc.
Vehicle Coefficient of Drag List - EcoModder

Calculate HP For Speed

Top down drag coefficient is .46, which means that 50mph takes 10.9 hp
Top up drag coefficient of .38 means 50mph takes 9.69 hp
cordycord is offline   Reply With Quote
Old 12-12-2014, 12:09 AM   #9
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by DNMakinson View Post
Whoever wrote Virtual Dyno assembled all that. His documentation and possibly the program has it in it.
That algorithm relies on acceleration. You can get the drag force empirically by doing a cost down test from 80 to 60mph and then get the rolling friction force by doing a coast down test from below 40 to like 10 mph. And thats just some math. And once you have that you can do your calculations on the horsepower required.
Leafy is offline   Reply With Quote
Old 12-12-2014, 01:38 AM   #10
Newb

Join Date: Apr 2010
Location: Dallas Texas
Posts: 30
Total Cats: 0
Default

I love this thread already.
chewy is offline   Reply With Quote
Old 12-12-2014, 02:28 AM   #11
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Quote:
Originally Posted by Leafy View Post
That algorithm relies on acceleration. You can get the drag force empirically by doing a cost down test from 80 to 60mph and then get the rolling friction force by doing a coast down test from below 40 to like 10 mph. And thats just some math. And once you have that you can do your calculations on the horsepower required.
lol.


EDIT: For the record, I did not write the paragraph seen there using the word "ration"
Schuyler is offline   Reply With Quote
Old 12-12-2014, 09:10 AM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

the mpgs in my WRX drop significantly when cruising above 60mph compared to cruising at 55mph behind a big truck.

hope that helps.

“( ͡ ͜ʖ ͡)”
Braineack is offline   Reply With Quote
Old 12-12-2014, 10:15 AM   #13
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,701
Total Cats: 269
Default

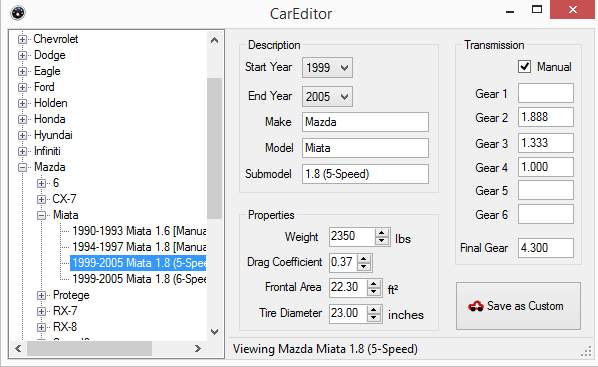

Note Frontal Area and Cd. VD includes drag.

Anyway, there is the info for a NB. I don't know where to find lights up / lights down. CC gave you top up and top down.
Attached Thumbnails
Mechanical engineers: help me calculate stuff.-vd_input.png
DNMakinson is offline   Reply With Quote
Old 12-12-2014, 05:29 PM   #14
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

It would be FAR easier and better to do some logs then hire a dyno for an hour.

Dann
nitrodann is offline   Reply With Quote
Old 12-17-2014, 01:23 PM   #15
Senior Member
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

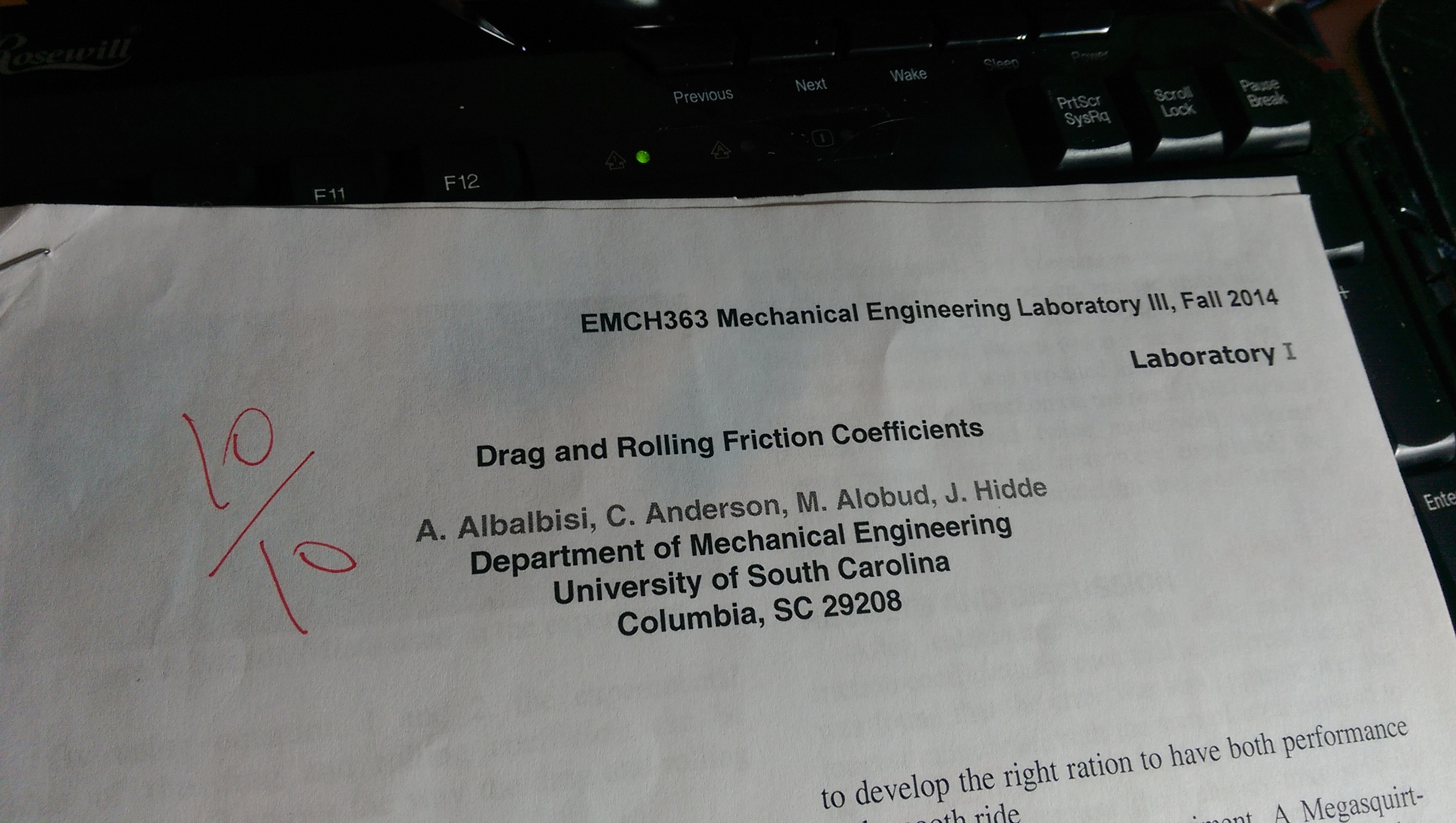

I remember that class!

Quote:
Originally Posted by Schuyler View Post
lol.


EDIT: For the record, I did not write the paragraph seen there using the word "ration"
Rallas is offline   Reply With Quote
Old 12-17-2014, 04:14 PM   #16
Junior Member
iTrader: (2)

Join Date: May 2014
Location: Arlington, TX
Posts: 328
Total Cats: 40
Default

Quote:
Originally Posted by Leafy View Post
That algorithm relies on acceleration. You can get the drag force empirically by doing a cost down test from 80 to 60mph and then get the rolling friction force by doing a coast down test from below 40 to like 10 mph. And thats just some math. And once you have that you can do your calculations on the horsepower required.
^This. What Leafy describes is basically a SAE test to determine the rolling resistance as well as the drag force, but with a slight deviation.

The TL;DR process is in red.

For the rolling resistance, hook a force gauge up to a strap that is connected to the front tie down hooks. Pull the car from a stop using the force gauge, as close to parallel to the ground as possible. This has to be done on a smooth surface that is level. At a steady 1mph or so, record the steady state force reading, just make sure that you are not accelerating or slowing down, this will greatly affect the readings. This is your rolling resistance in Lbs.

Perform a coast down test at a relatively high speed, such as 70-40mph. Knowing the weight of the car as well as the frontal area and other parameters, subtract the rolling resistance from the resistance calculated from the high speed tests, this will tell you the aero drag force, and from this you can find the coefficient of drag.

Using the information above with the calculations you guys posted, you can find out approximately how much HP is needed to go a certain speed.

Keep in mind, when you find this HP rating, this is the raw HP needed to accomplish this speed, it does not take any driveline or other losses into account. So if you are doing some project like trying to do a EV conversion and want to know how powerful the motor needs to be to achieve a certain speed, take a conservative estimate of the losses and go from there.

Long winded, but hope this helps.
Dustin1824 is offline   Reply With Quote
Old 12-17-2014, 05:23 PM   #17
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

why can't we just get a REALLY LONG inclined road of known angle and let the car coast to terminal velocity?
y8s is offline   Reply With Quote
Old 12-17-2014, 05:27 PM   #18
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by y8s View Post
why can't we just get a REALLY LONG inclined road of known angle and let the car coast to terminal velocity?
with frictionless rollers on it in a perfect vacuum at absolute zero?
Leafy is offline   Reply With Quote
Old 12-17-2014, 05:43 PM   #19
Junior Member
iTrader: (1)

Join Date: Sep 2013
Posts: 186
Total Cats: 10
Default

Quote:
Originally Posted by Leafy View Post
with frictionless rollers on it in a perfect vacuum at absolute zero?
Simple. Build a road at Mt. Everest Peak down to the bottom with a run off road and all in a sealed tube to pull a vacuum.

carbon is offline   Reply With Quote
Old 12-17-2014, 05:59 PM   #20
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

Going back to why dont youy just do a log and then use a dyno?
nitrodann is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
1991 special edition with hard top full part out JC, NJ russian Miata parts for sale/trade 6 10-08-2015 04:01 PM
Odd Steering issue interestedofold Suspension, Brakes, Drivetrain 5 09-29-2015 02:42 PM
Stripped clutch slave bell housing threads. EricJ Suspension, Brakes, Drivetrain 6 09-13-2015 10:44 PM
ME221 Now has Autotune and Long Term Fuel Trim Tables Motorsport-Electronics ECUs and Tuning 0 09-05-2015 09:02 AM


Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 04:49 AM.
