Old 09-08-2014, 11:19 AM   #1
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,188
Total Cats: 545
Default ND reveal in Barcelona

I was invited to Barcelona over the weekend for the ND reveal shindig...

Yes, I have pics, but please bear in mind I had to battle a ton of people crowding the area to get some shots, so the quality is less than optimal.

Also, I "drove" the car. Pics to follow.

Couple of points:
(Trying to get info from the factory people was almost impossible - they are VERY tight lipped)

* There may be more than one hardtop offered, meaning there could be two different styles to choose from.
* Tire sizes may change by the time the car is offered to the general public.
* The diff will be limited slip.
* The car has adjustable front swaybar endlinks.
* The engine has a timing chain instead of a belt.
* They will keep the 4X100 lug pattern for sure.
* 15" and 16" rims may be offered, there is absolutely no 17" rim in the works.
* Mazda will be looking at different tax brackets (based on engine size) for different markets, and that will dictate engine size for a particular market.
* A pre-release test drive program is planned. Selected individuals wil be invited for those events. (There was a drawing, and two people were selected in Barcelona for that purpose)
* I was in the heart of Europe, and everybody speaks Mexican.

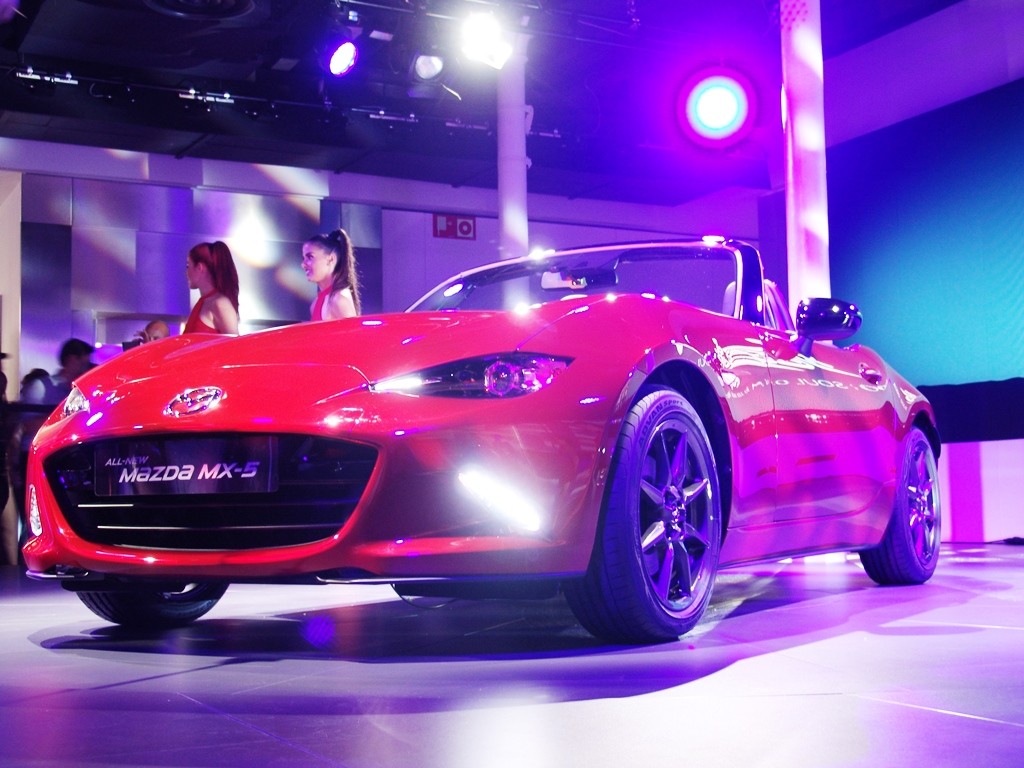

Alrighty, here are the pics:




And, apparently the ND has some *****:

Attached Thumbnails
ND reveal in Barcelona-qwtf2j.jpg   ND reveal in Barcelona-k79rix.jpg

Last edited by Godless Commie; 09-08-2014 at 12:24 PM.
Godless Commie is offline   Reply With Quote
Old 09-08-2014, 11:22 AM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,227
Total Cats: 2,874
Default

Oh snap, you DROVE the car?

very cool. also some of that info is really cool (and contradicts what they told us here in 'Murricuhh)
18psi is offline   Reply With Quote
Old 09-08-2014, 11:26 AM   #3
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,612
Total Cats: 247
Default

Ohh, more juicy deets. I guess it's just the stupid US market that gets dumb 17" wheels, unless the US rep was lying to us in the reveal here.'

You DROVE it? how was it? did you wot? GIVE US DEETZ.
Fireindc is offline   Reply With Quote
Old 09-08-2014, 11:32 AM   #4
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,188
Total Cats: 545
Default

I know there are a million pics of the exterior of the car..
I wanted document the guts:

(Please keep in mind I was competing with a bunch of people around the chassis, and the light was "funky")

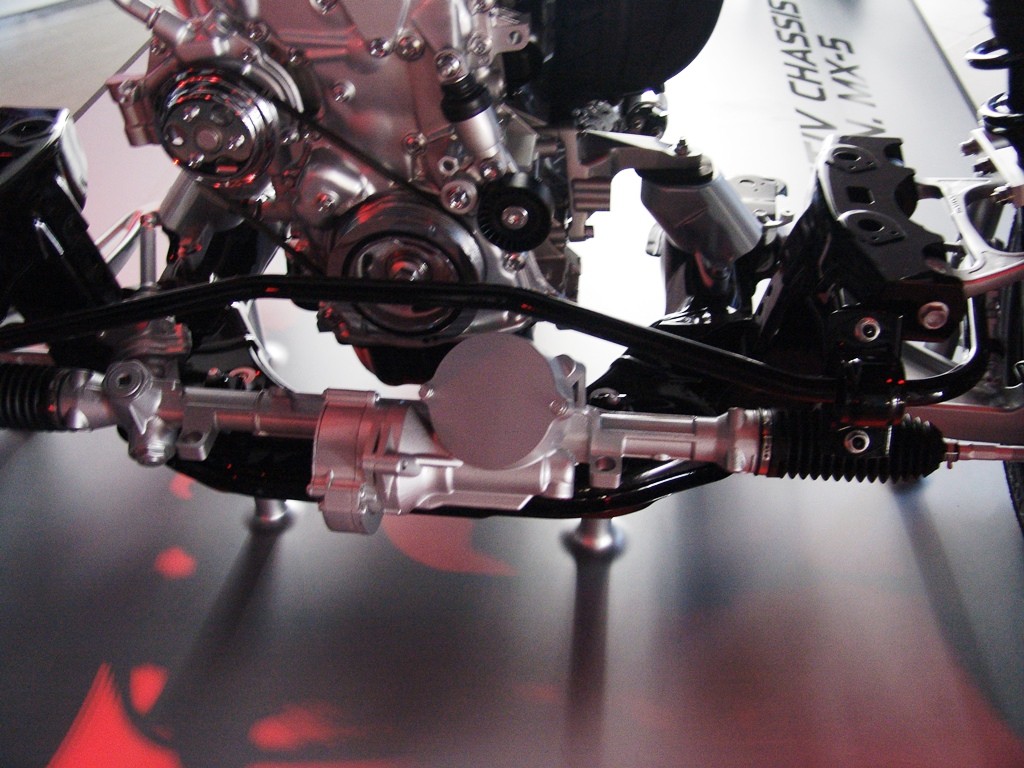

The much talked about EPAS steering system:

Attached Thumbnails
ND reveal in Barcelona-6pti4i.jpg   ND reveal in Barcelona-f6g2zr.jpg   ND reveal in Barcelona-xuzzox.jpg   ND reveal in Barcelona-6rd53x.jpg   ND reveal in Barcelona-jyvsuf.jpg

ND reveal in Barcelona-zxexz9.jpg   ND reveal in Barcelona-zj6yux.jpg   ND reveal in Barcelona-3kkid9.jpg   ND reveal in Barcelona-l4z9mi.jpg   ND reveal in Barcelona-2hqkby.jpg

ND reveal in Barcelona-kthbqs.jpg   ND reveal in Barcelona-4qbwbq.jpg   ND reveal in Barcelona-diems8.jpg   ND reveal in Barcelona-8oeu5k.jpg   ND reveal in Barcelona-n676ez.jpg

ND reveal in Barcelona-pbt6be.jpg   ND reveal in Barcelona-hjgfxh.jpg   ND reveal in Barcelona-kpyc3u.jpg   ND reveal in Barcelona-ij722j.jpg   ND reveal in Barcelona-ektd7t.jpg

ND reveal in Barcelona-kkxlgr.jpg   ND reveal in Barcelona-df6gfd.jpg   ND reveal in Barcelona-51h17a.jpg   ND reveal in Barcelona-k79rix.jpg   ND reveal in Barcelona-zmewus.jpg


Last edited by Godless Commie; 09-08-2014 at 12:24 PM.
Godless Commie is offline   Reply With Quote
Old 09-08-2014, 11:35 AM   #5
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,188
Total Cats: 545
Default

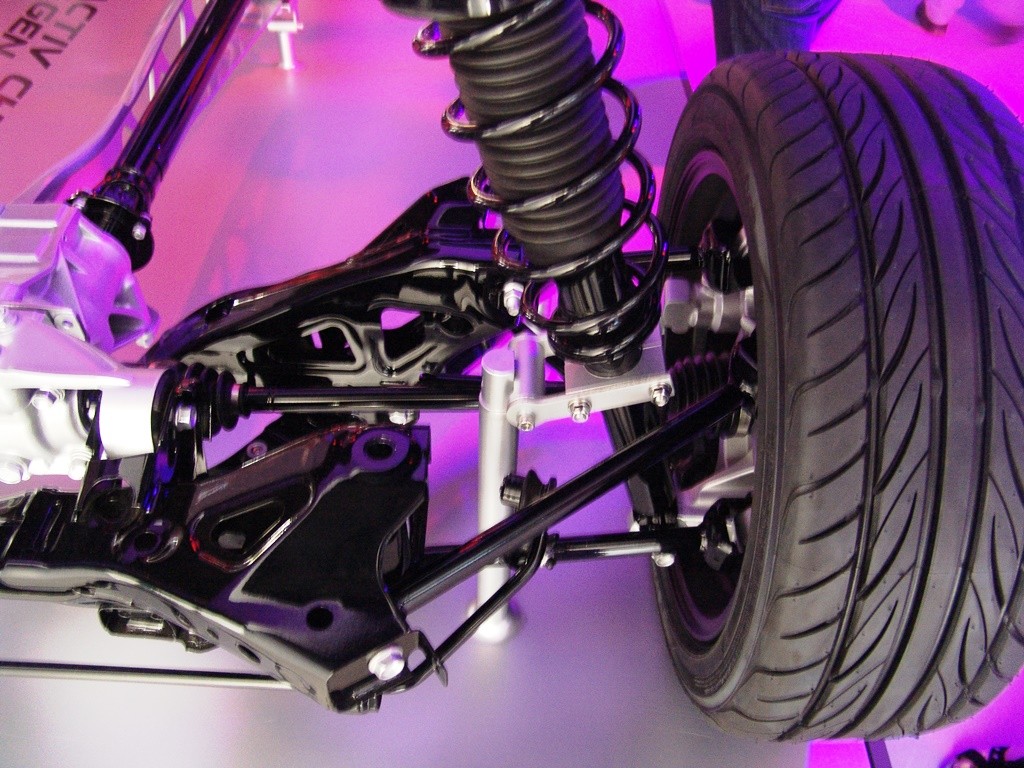

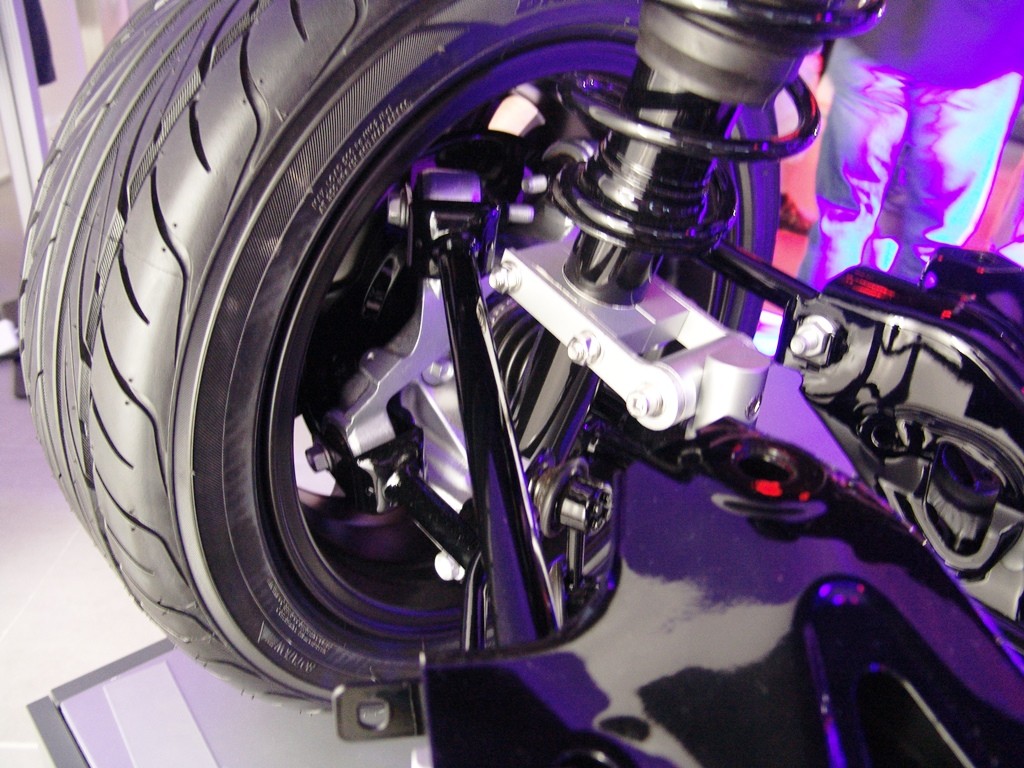

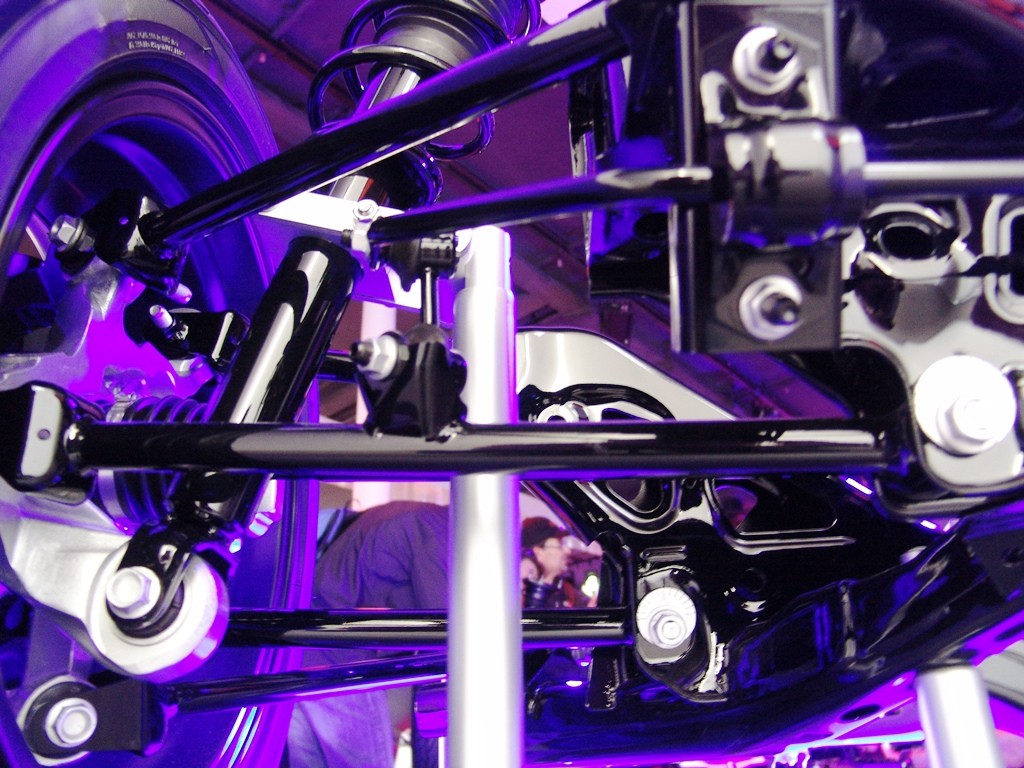

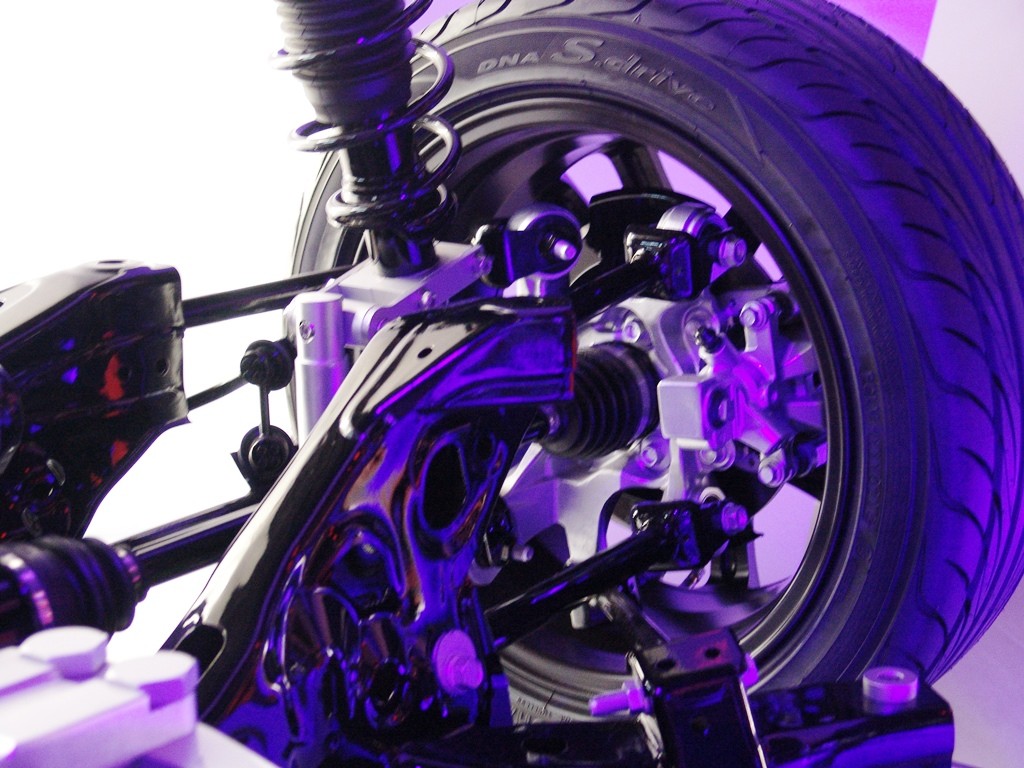

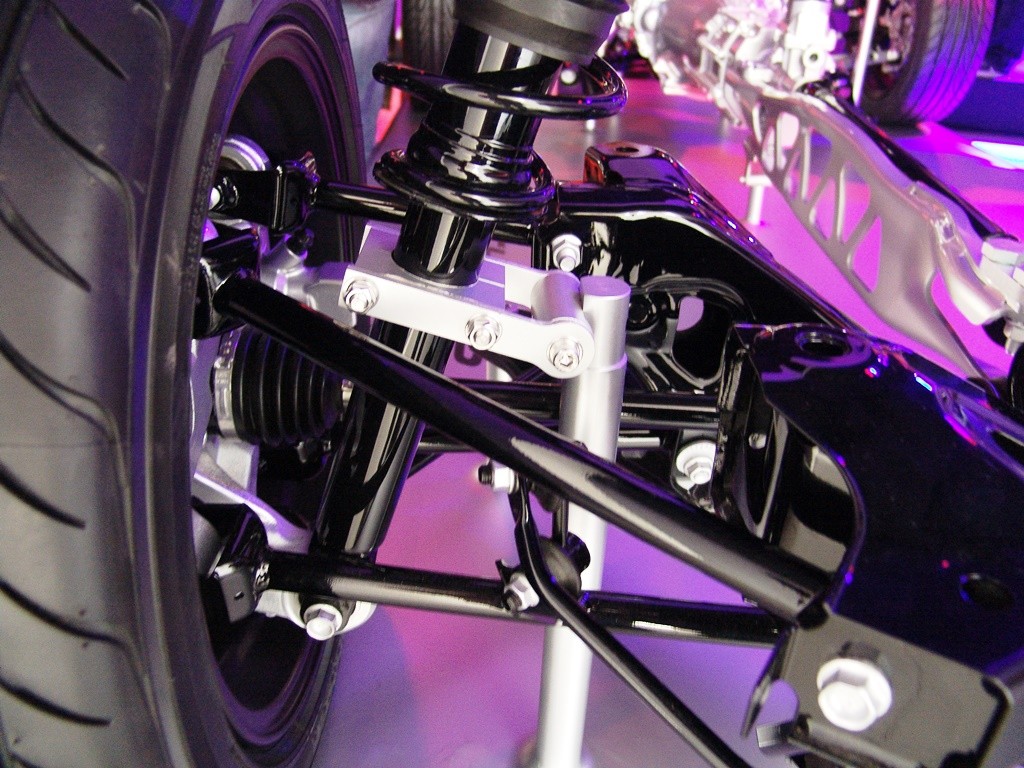

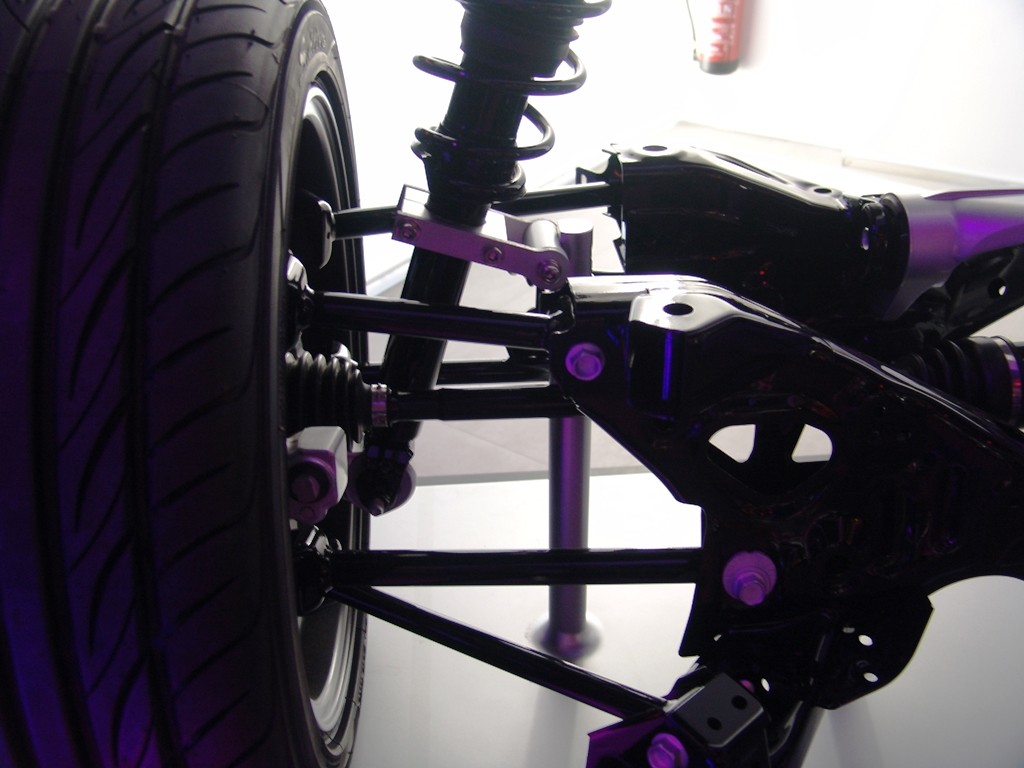

Close ups of the multilink rear setup:
















Attached Thumbnails
ND reveal in Barcelona-6rd53x.jpg   ND reveal in Barcelona-jyvsuf.jpg   ND reveal in Barcelona-zj6yux.jpg   ND reveal in Barcelona-3kkid9.jpg   ND reveal in Barcelona-l4z9mi.jpg

ND reveal in Barcelona-2hqkby.jpg

Last edited by Godless Commie; 09-08-2014 at 12:25 PM.
Godless Commie is offline   Reply With Quote
Old 09-08-2014, 11:38 AM   #6
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,188
Total Cats: 545
Default

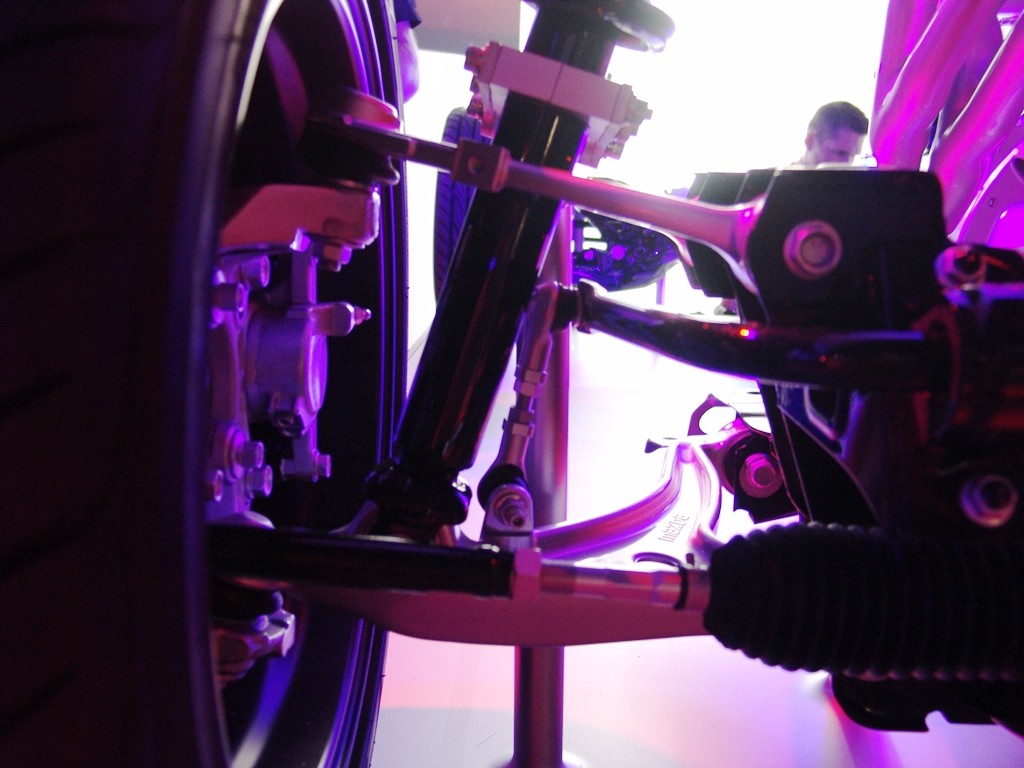

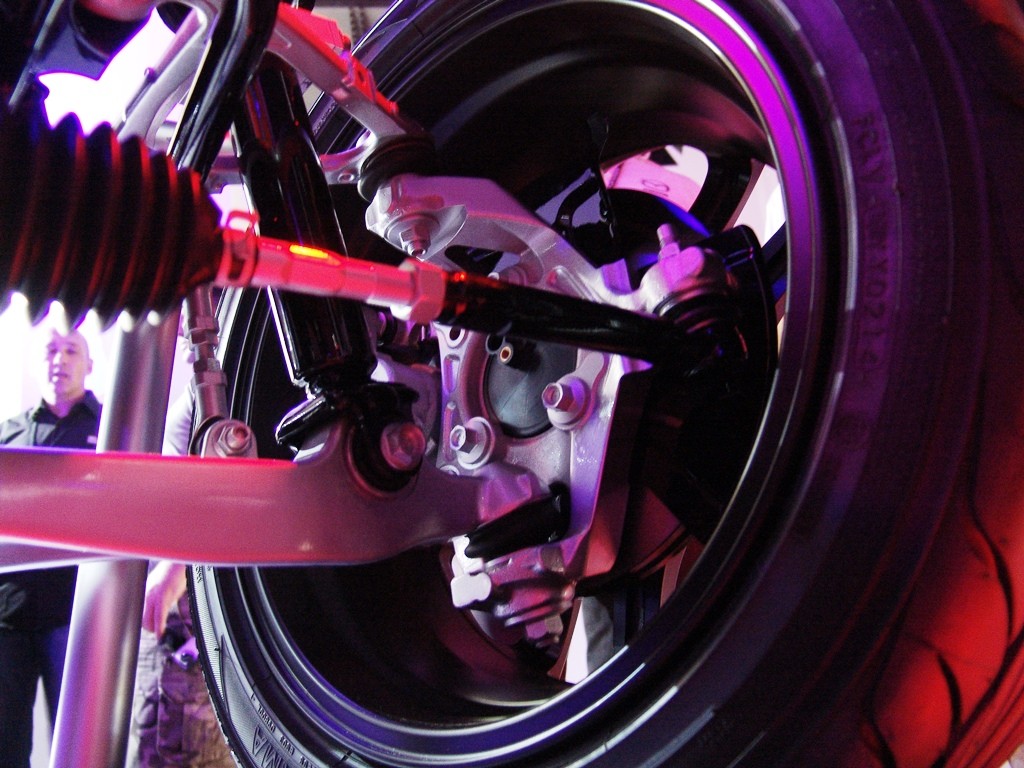

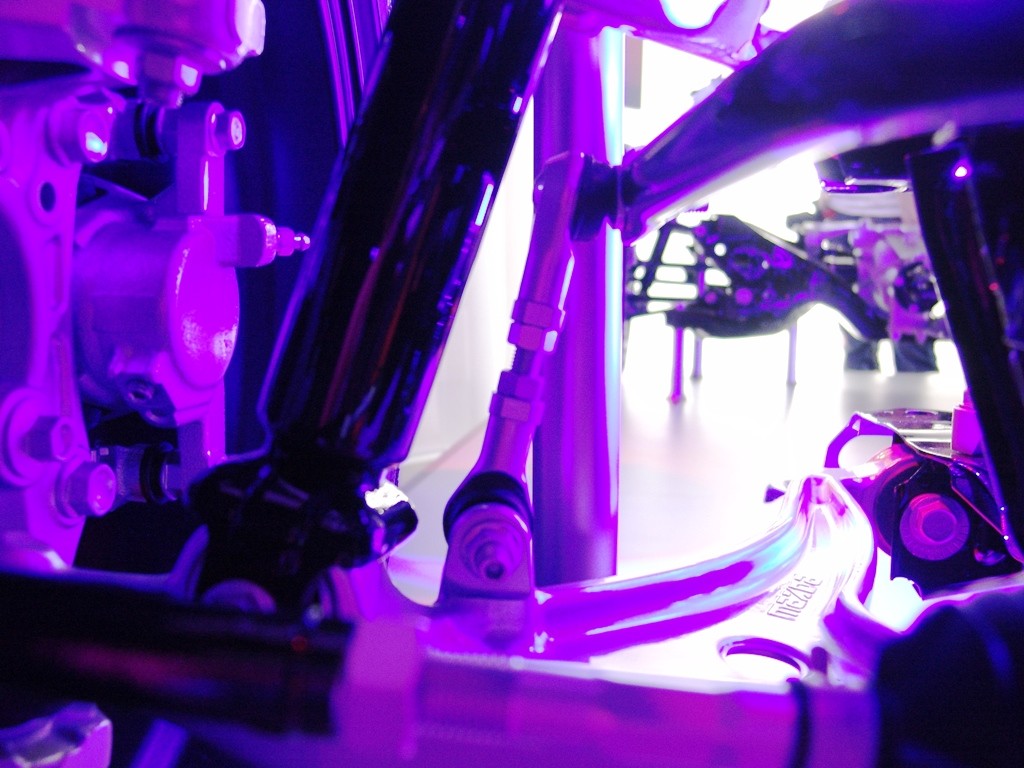

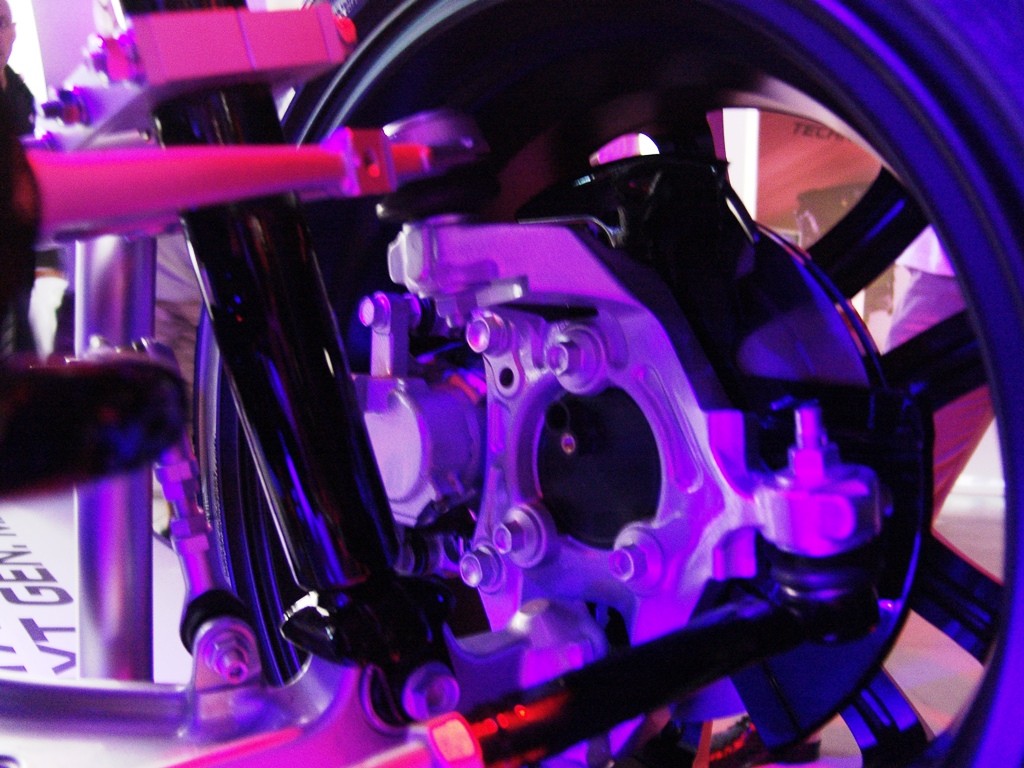

Front suspension with adjustable endlinks (I was told production car would feature these)










Attached Thumbnails
ND reveal in Barcelona-8oeu5k.jpg   ND reveal in Barcelona-n676ez.jpg   ND reveal in Barcelona-f6g2zr.jpg   ND reveal in Barcelona-xuzzox.jpg

Last edited by Godless Commie; 09-08-2014 at 12:25 PM.
Godless Commie is offline   Reply With Quote
Old 09-08-2014, 11:43 AM   #7
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,188
Total Cats: 545
Default

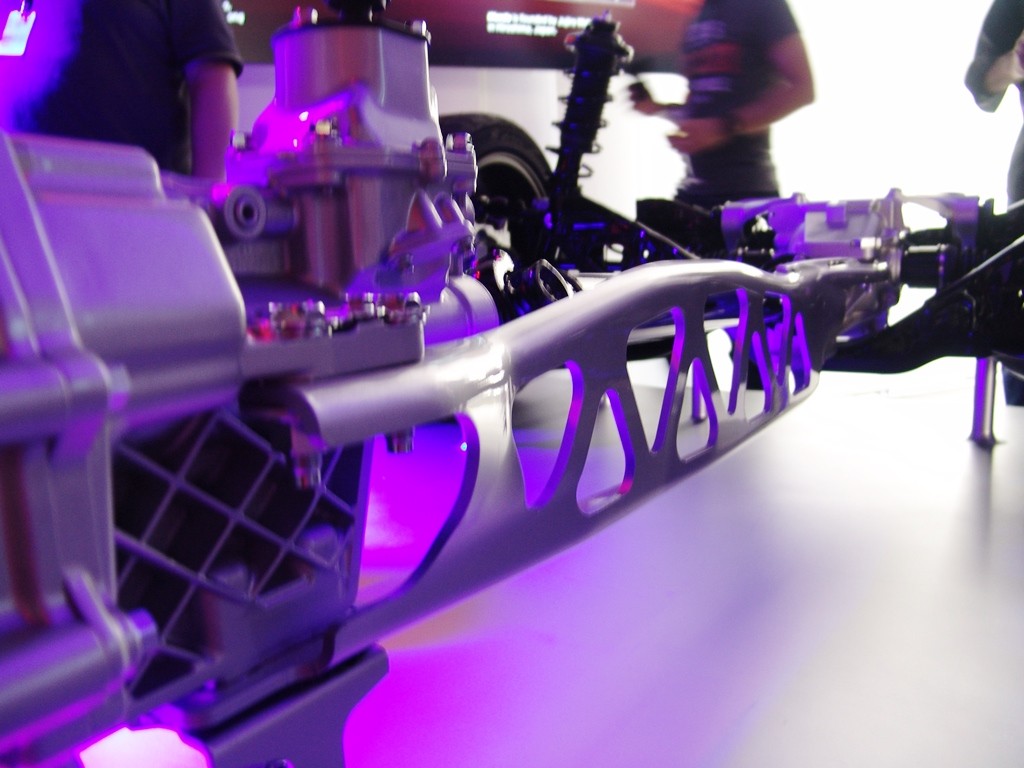

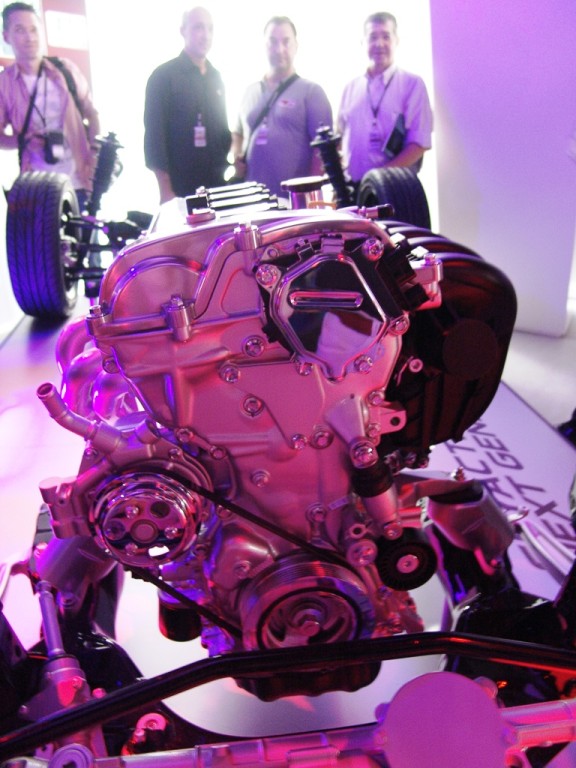

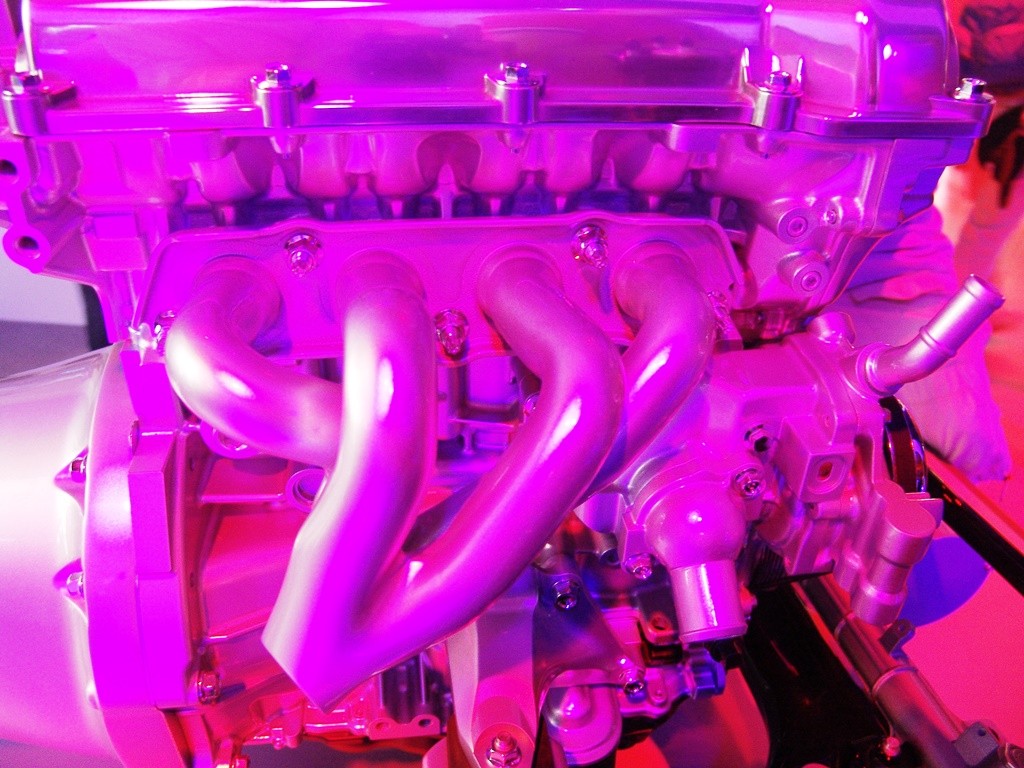

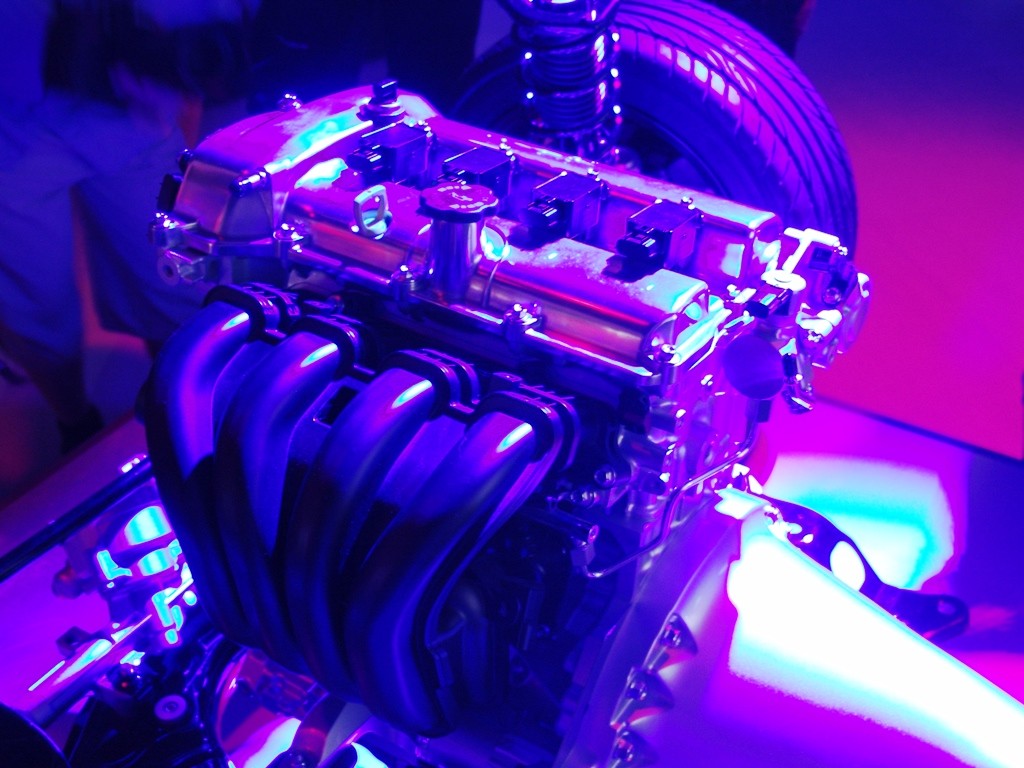

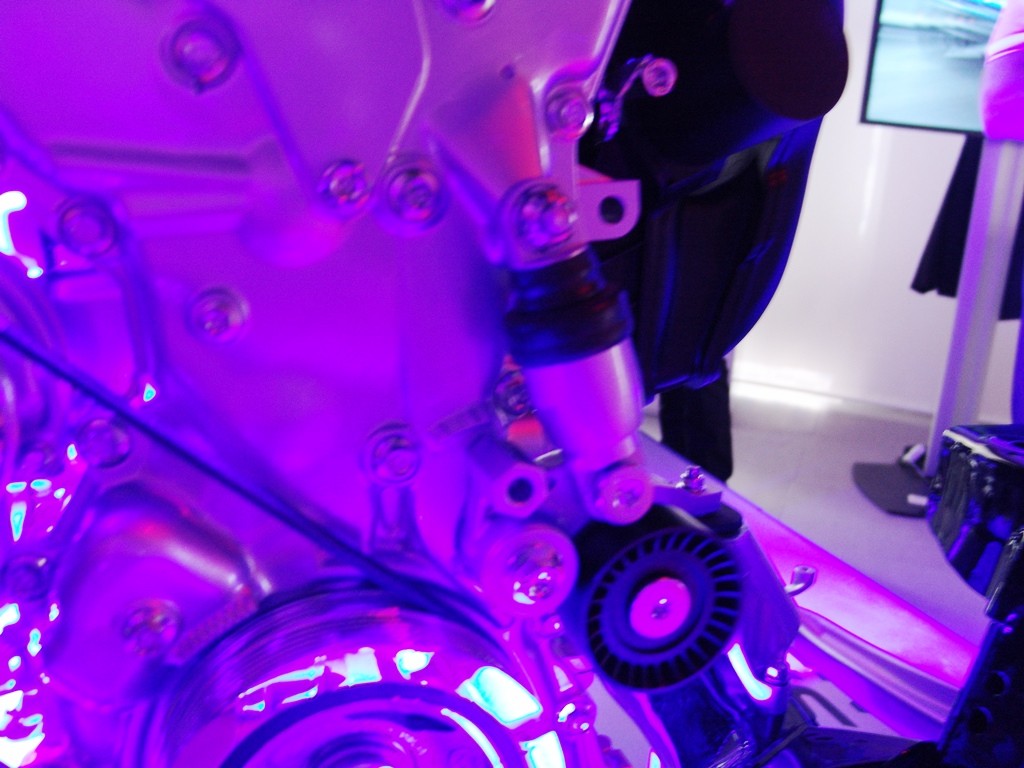

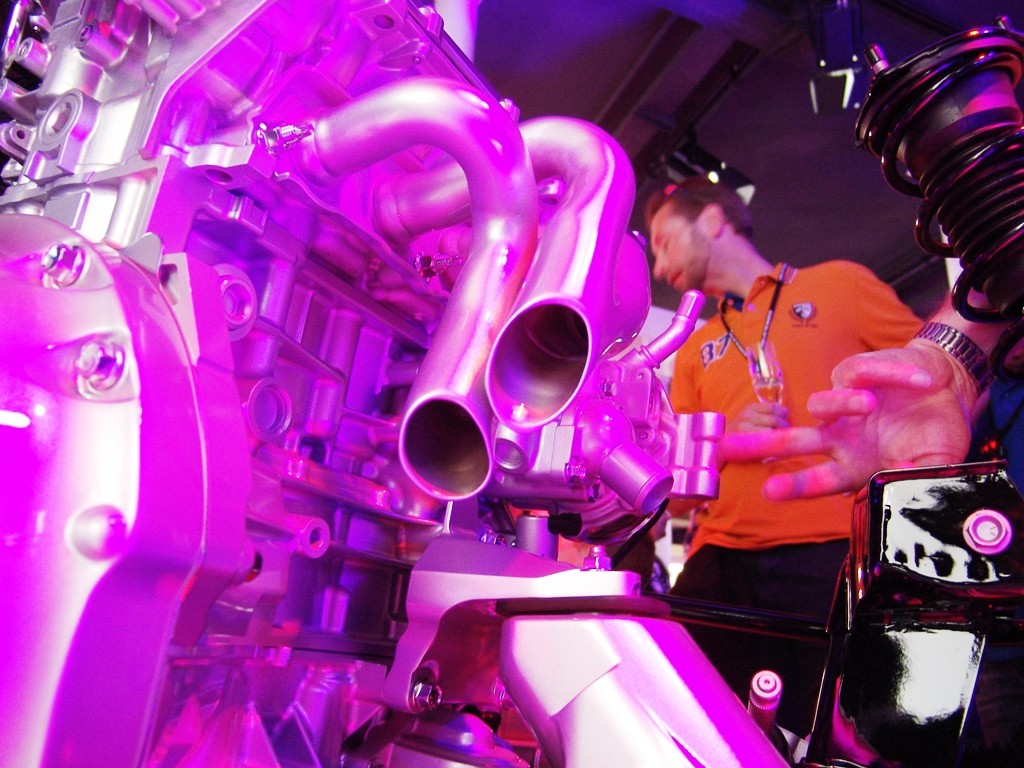

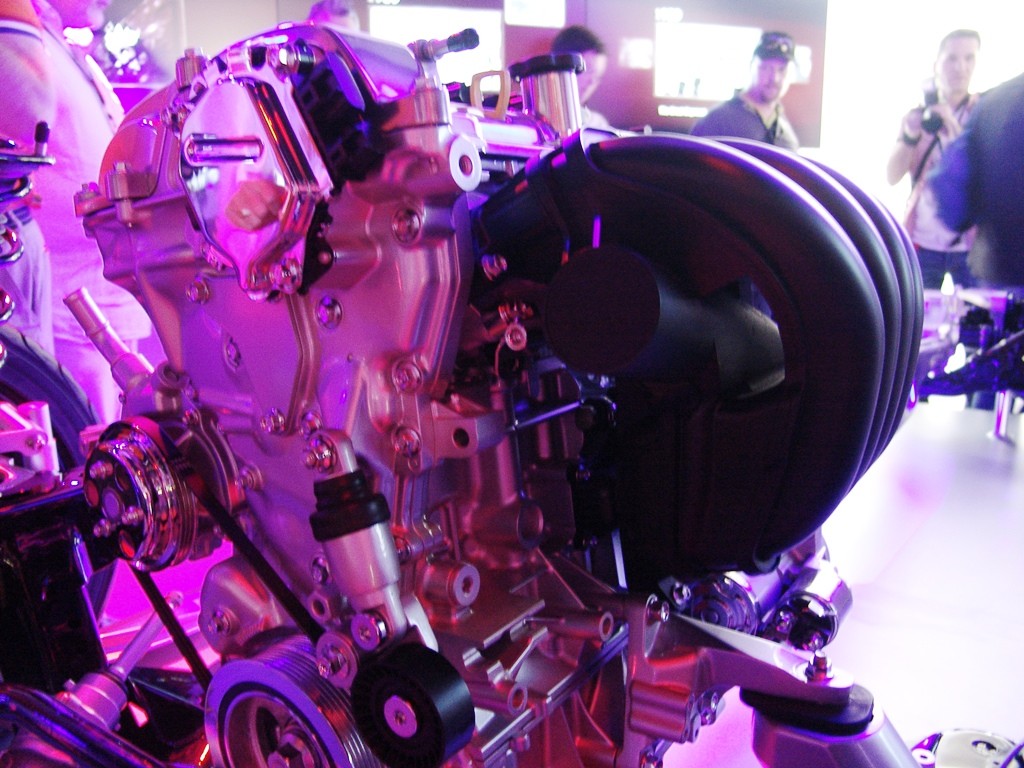

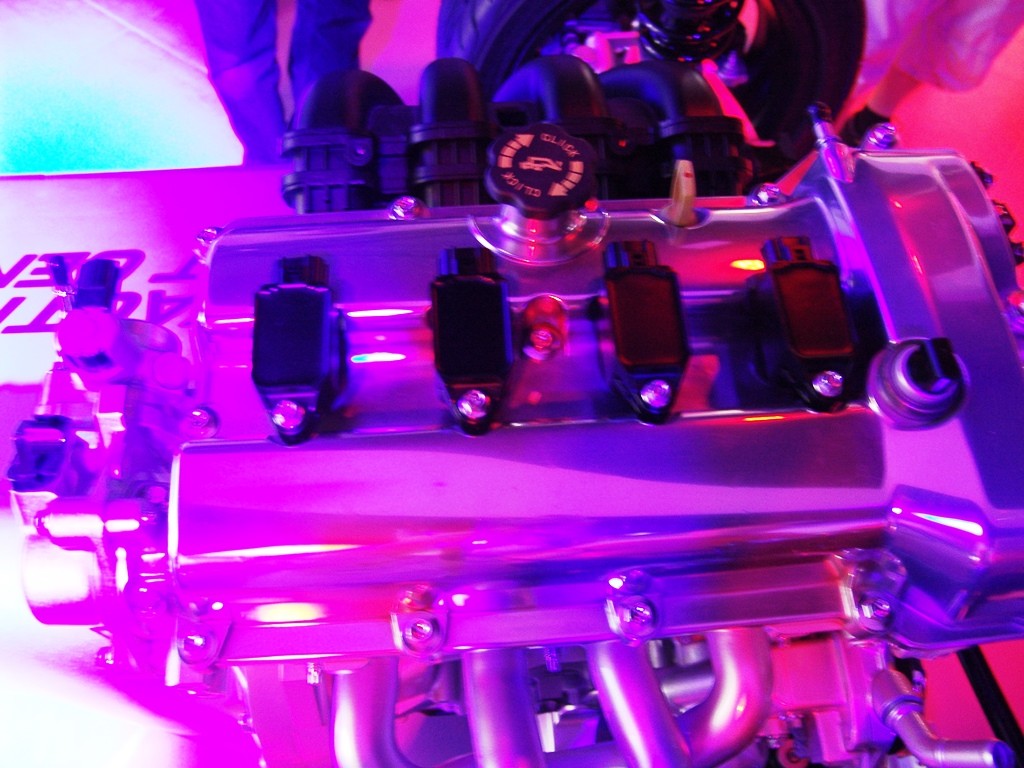

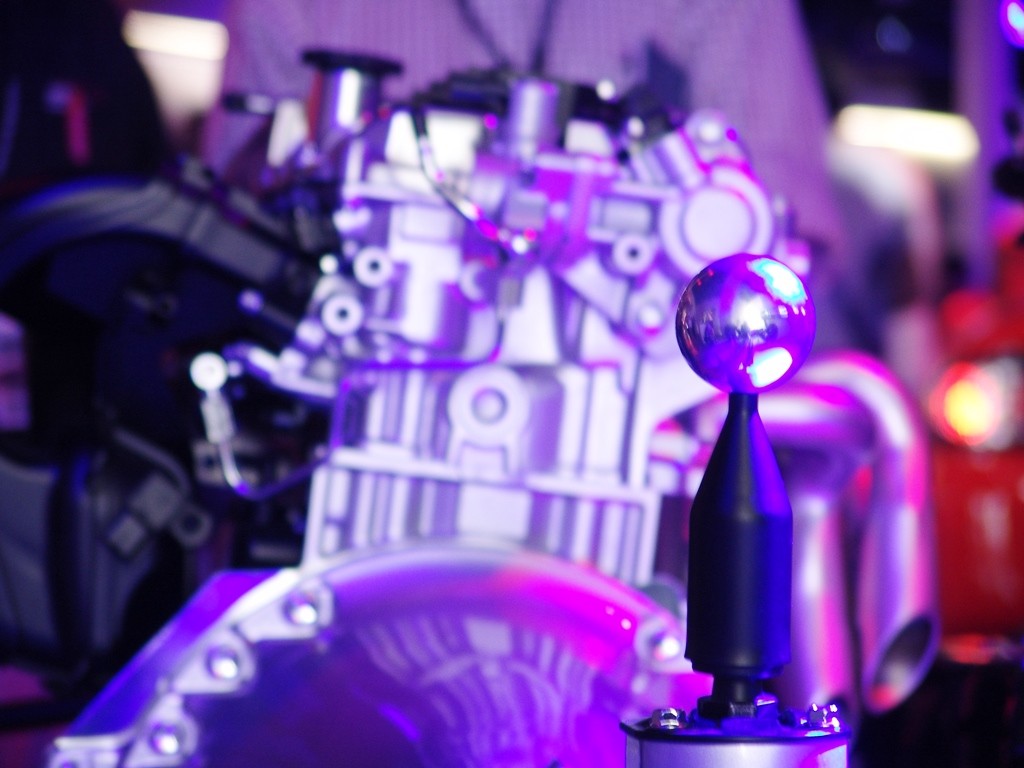

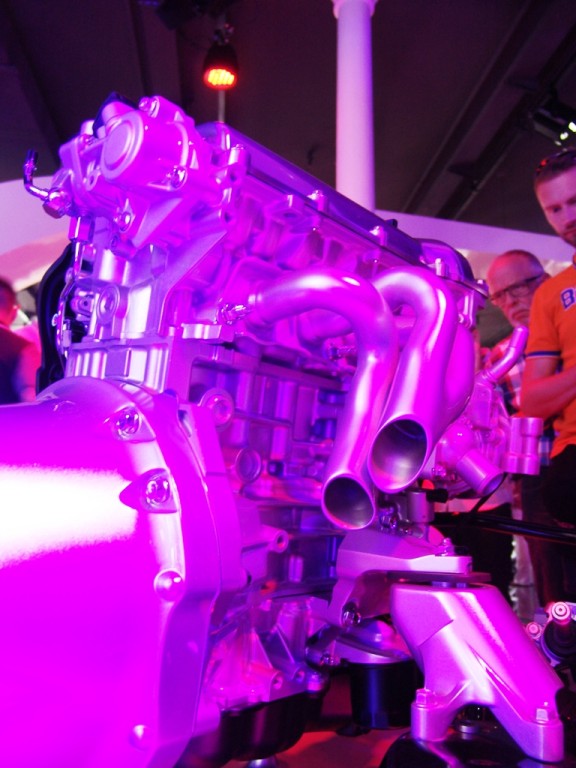

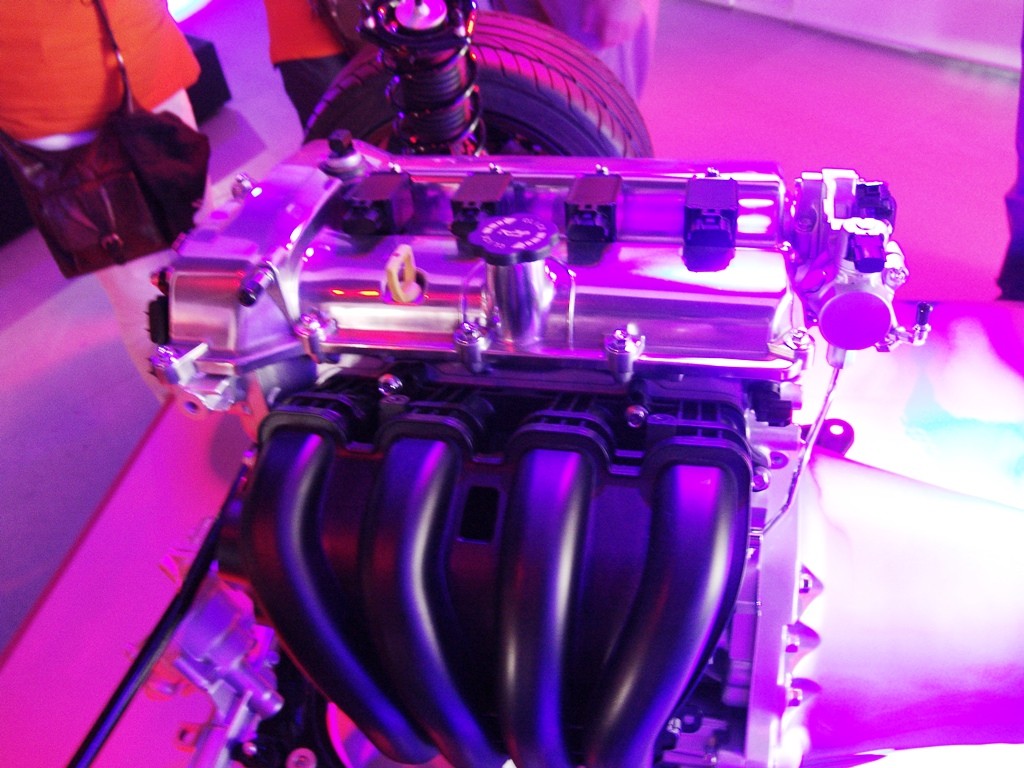

Engine and the rest of the drivetrain:




































Incidentally, I asked the guy in charge about steel inserts on the PPF where the bolts run through at the front (transmission) end, and he was delighted to hear about that.
He said they ran into some eventual misalignment problems due to the fact that aluminum wears out over time.
I thought steel inserts would eliminate having to deal with noise issues from the diff after a clutch job or two.
Attached Thumbnails
ND reveal in Barcelona-zxexz9.jpg   ND reveal in Barcelona-kthbqs.jpg   ND reveal in Barcelona-4qbwbq.jpg   ND reveal in Barcelona-diems8.jpg   ND reveal in Barcelona-pbt6be.jpg

ND reveal in Barcelona-hjgfxh.jpg   ND reveal in Barcelona-kpyc3u.jpg   ND reveal in Barcelona-ij722j.jpg   ND reveal in Barcelona-ektd7t.jpg   ND reveal in Barcelona-kkxlgr.jpg

ND reveal in Barcelona-df6gfd.jpg   ND reveal in Barcelona-51h17a.jpg

Last edited by Godless Commie; 09-08-2014 at 12:26 PM.
Godless Commie is offline   Reply With Quote
Old 09-08-2014, 11:47 AM   #8
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,188
Total Cats: 545
Default

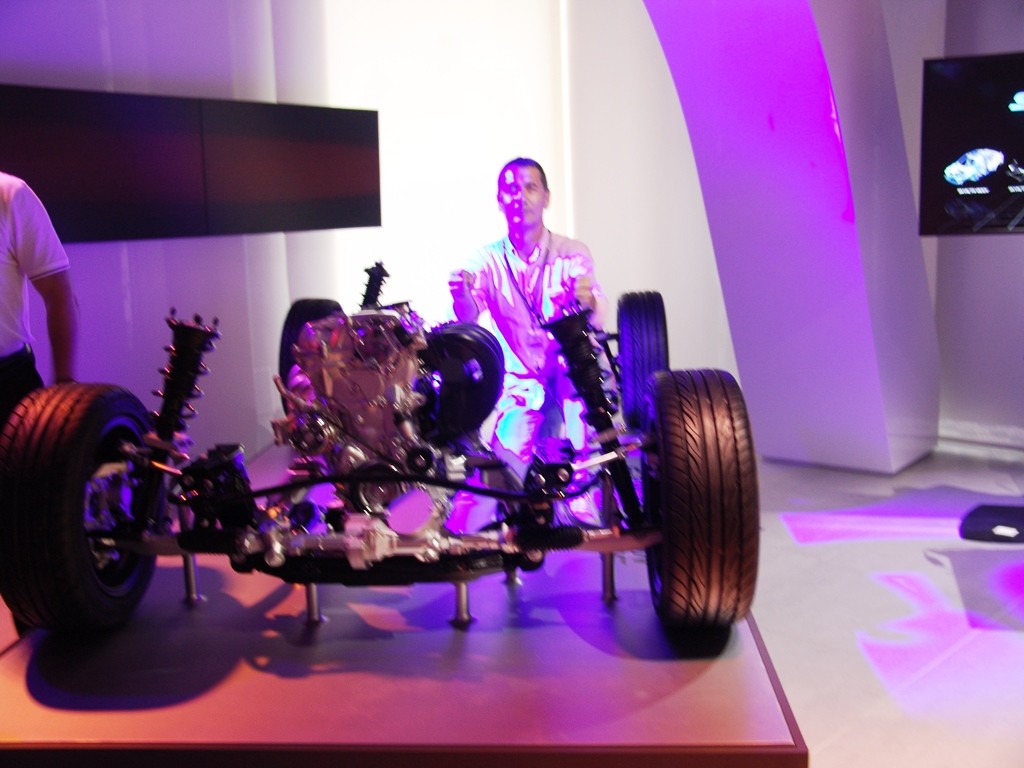

Sadly, this was as close as I could get to driving the car...

They did allow me to climb on the display platform once the crowd thinned a bit, and I asked very nicely...








So there...
Attached Thumbnails
ND reveal in Barcelona-luvswu.jpg   ND reveal in Barcelona-zjsips.jpg

Last edited by Godless Commie; 09-08-2014 at 12:27 PM.
Godless Commie is offline   Reply With Quote
Old 09-08-2014, 11:49 AM   #9
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,188
Total Cats: 545
Default

And, I was in Barcelona after all, so I had to go see the incredible works of Gaudi and pay respect...

Attached Thumbnails
ND reveal in Barcelona-fwn3an.jpg

Last edited by Godless Commie; 09-08-2014 at 12:27 PM.
Godless Commie is offline   Reply With Quote
Old 09-08-2014, 11:56 AM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,227
Total Cats: 2,874
Default

wow, thats really cool stuff man. thanks for the pics.
18psi is offline   Reply With Quote
Old 09-08-2014, 12:06 PM   #11
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,188
Total Cats: 545
Default

Forgot one thing..
The car looks beautiful in person.
I don't think pics do it justice.
Godless Commie is offline   Reply With Quote
Old 09-08-2014, 12:12 PM   #12
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 18,996
Total Cats: 418
Default

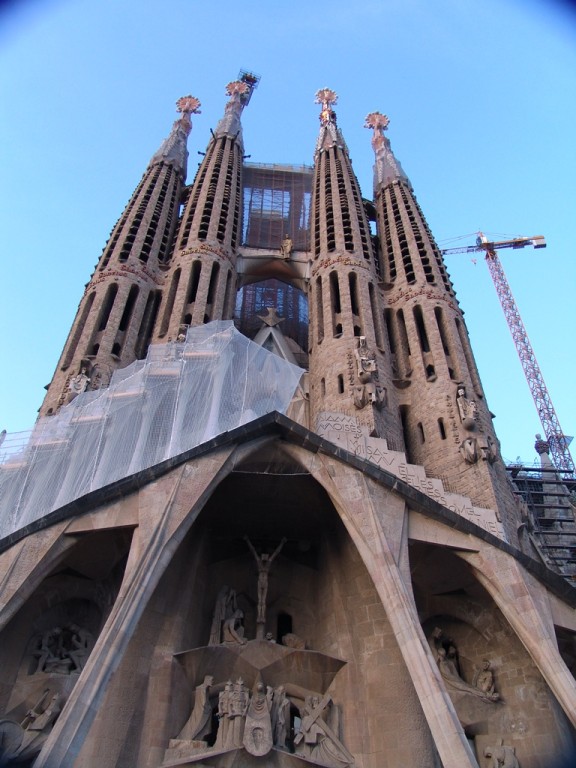

Sagrada Familia still under construction?
y8s is offline   Reply With Quote
Old 09-08-2014, 12:19 PM   #13
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,188
Total Cats: 545
Default

İt is, and will be indefinitely.













Attached Thumbnails
ND reveal in Barcelona-e79957.jpg   ND reveal in Barcelona-kdutdr.jpg   ND reveal in Barcelona-iyw3hl.jpg   ND reveal in Barcelona-fztzta.jpg   ND reveal in Barcelona-s3ns1w.jpg

Godless Commie is offline   Reply With Quote
Old 09-08-2014, 12:21 PM   #14
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,612
Total Cats: 247
Default

Damn that is nuts. Thanks for sharing all those awesome pictures, looks like a hell of a time.
Fireindc is offline   Reply With Quote
Old 09-08-2014, 04:36 PM   #15
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 16,539
Total Cats: 1,755
Default

Excellent report. I'm curious how differently it will appear in person than in the pictures I've seen.
sixshooter is offline   Reply With Quote
Old 09-08-2014, 05:19 PM   #16
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,387
Total Cats: 109
Default

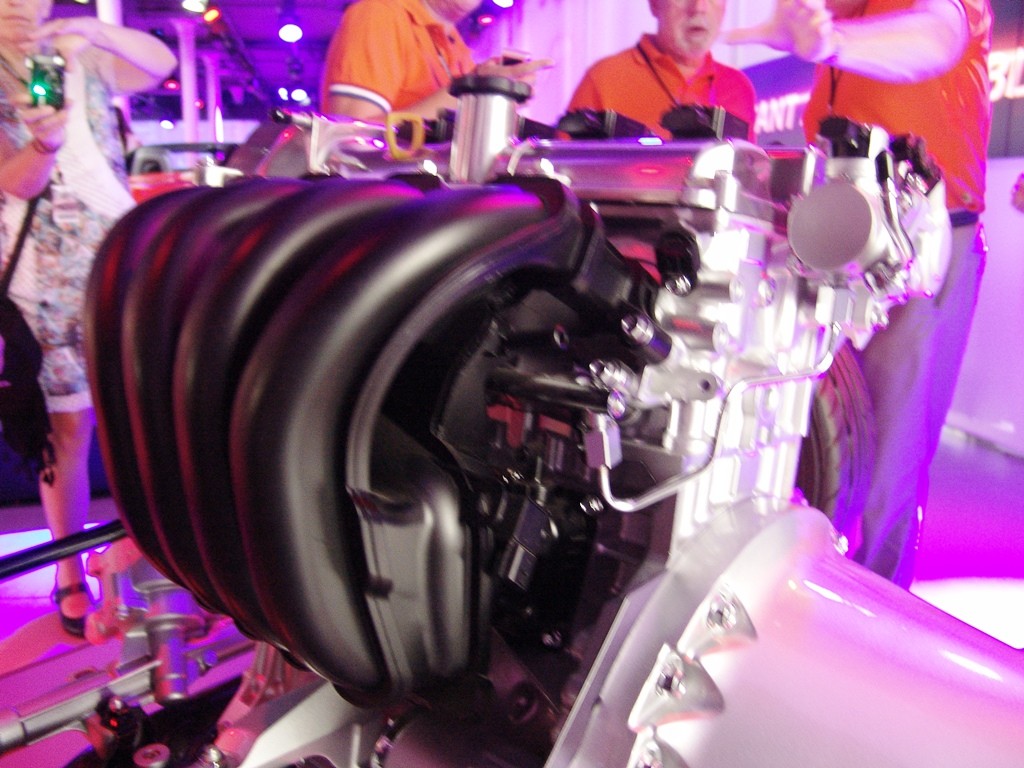

I like how they did the intake manifold. I wonder if there are benefits to a similar design for the BP
cyotani is offline   Reply With Quote
Old 09-08-2014, 05:27 PM   #17
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,378
Total Cats: 58
Default

Bolt in hub units, hope they can take some serious abuse.
NiklasFalk is offline   Reply With Quote
Old 09-12-2014, 05:11 AM   #18
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,946
Total Cats: 614
Default

Quote:
Originally Posted by Godless Commie View Post
İt is, and will be indefinitely.
Seeing the outside, even with its amazing scale, didn't prepare me for stepping inside. Incredible masterpiece of art/architecture/design/vision/craziness.

-Ryan
ThePass is offline   Reply With Quote
Old 09-12-2014, 09:51 AM   #19
Senior Member

Join Date: Sep 2013
Posts: 907
Total Cats: 59
Default

Amazing pics and trip report!

Quote:
Originally Posted by cyotani View Post
I like how they did the intake manifold. I wonder if there are benefits to a similar design for the BP
There probably is. Emilio is always looking for longer intake runners, and with fancy things such as DBW, you don't have to worry about routing a throttle cable.
Dunning Kruger Affect is offline   Reply With Quote
