Default Need CLT measurements
Im making a Reroute spacer and I need some dimensions for the stock sensor.

I would pull out my sensor but my miata is under 3 feet of snow and I dont have a garage.

I NEED:
1) Is the thread BSPT or NPT, or not a pipe thread at all ??I have seen it listed as m12 x 1.5

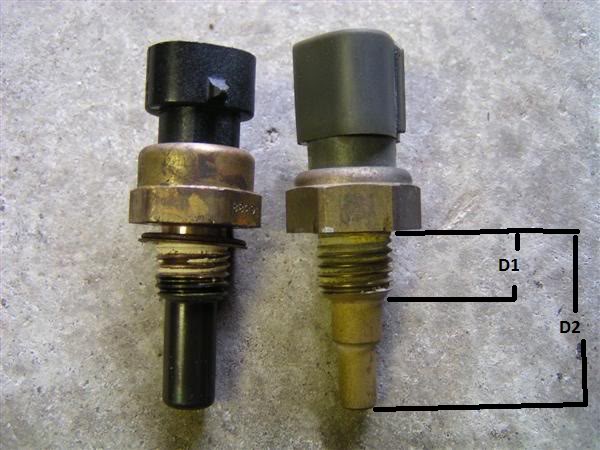

2) These dimensions-
Name: Coolanttempsensor.jpg Views: 68 Size: 52.3 KB
Reply
Leave a poscat 0 Leave a negcat
Old Jan 15, 2011 | 06:11 PM
Share
  #2
Reverant's Avatar
Reverant
Elite Member
iTrader: (10)

Joined: Jun 2006
Posts: 6,020
Total Cats: 369
From: Athens, Greece
Default
Assuming you talk about the sensor on the right...10mm and 28mm.
Reply
Leave a poscat 0 Leave a negcat
Old Jan 15, 2011 | 06:13 PM
Share
  #3
240_to_miata's Avatar
240_to_miata
Thread Starter
Elite Member
iTrader: (2)

Joined: May 2007
Posts: 2,617
Total Cats: 16
From: Cromwell, Connecticut
Default
Yeah Sorry I am specifically looking for a 96 sensor. I just randomly found that pic online and edited it. I believe it is a ls1 sensor on the left.
Reply
Leave a poscat 0 Leave a negcat
Old Jan 15, 2011 | 06:16 PM
Share
  #4
Reverant's Avatar
Reverant
Elite Member
iTrader: (10)

Joined: Jun 2006
Posts: 6,020
Total Cats: 369
From: Athens, Greece
Default
Well, the sensor on the right is a 99-05 clt sensor, so the dimensions I gave you are from that one. Sorry, I don't have a 96 sensor handy.
Reply
Leave a poscat 0 Leave a negcat
Old Jan 15, 2011 | 11:59 PM
Share
  #5
BarbyCar's Avatar
BarbyCar
Junior Member
iTrader: (1)

Joined: Apr 2007
Posts: 471
Total Cats: 25
From: Toronto, Canada
Default
Originally Posted by Reverant
Assuming you talk about the sensor on the right...10mm and 28mm.
And it is M12 x 1.5
