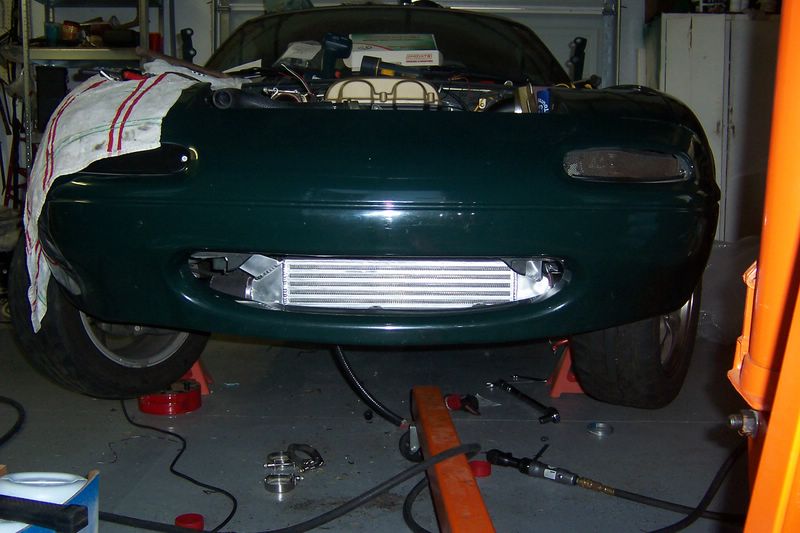

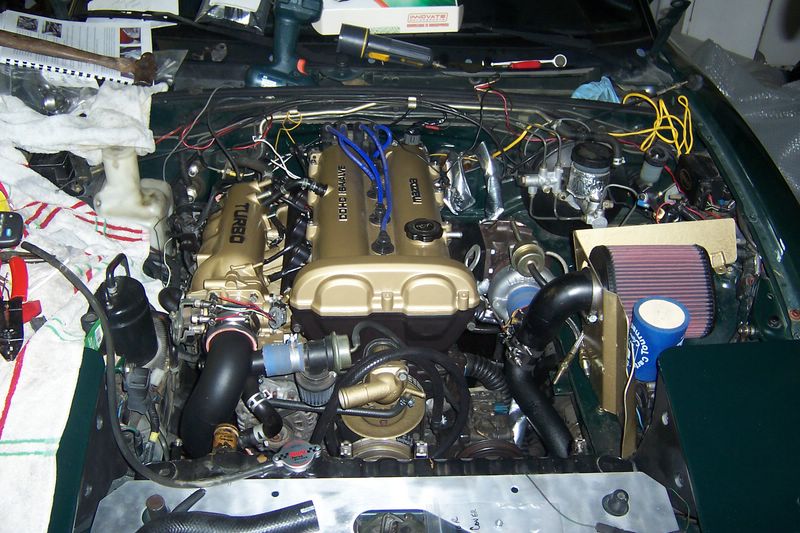

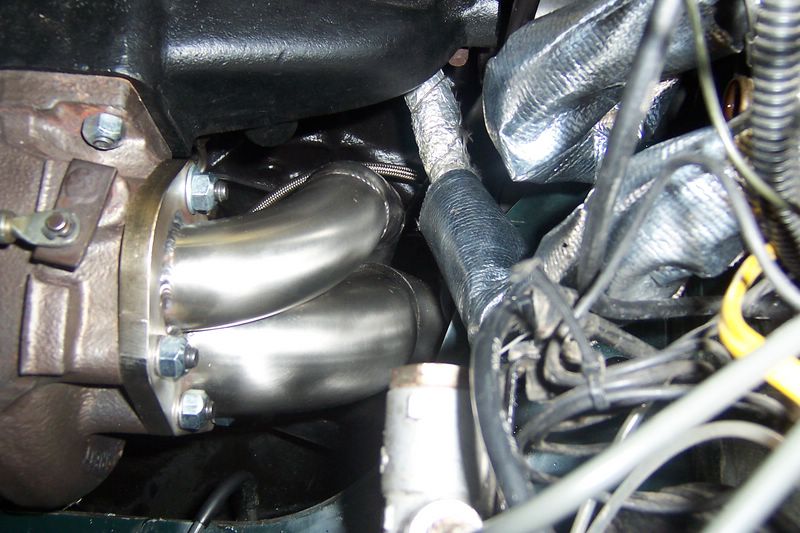

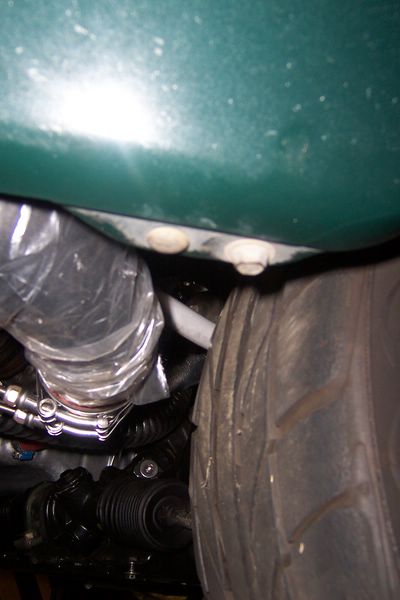

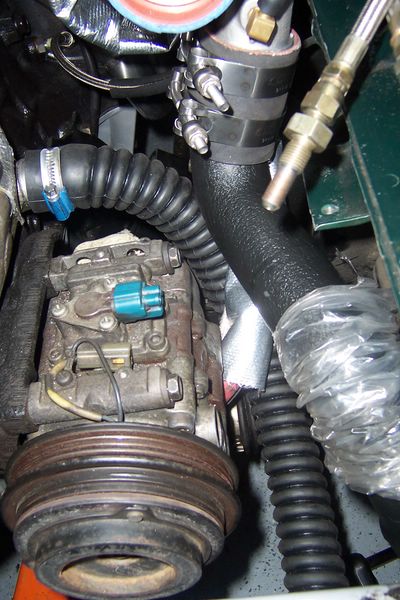

At the risk of being called the son of hustler, for taking so long to swap motors and turbo setups , I'm posting some new pics of the motor and turbo in the car. Interesting notes: the intercooler pipes on the driver's side extend pretty far into the wheel well. with the wheel turned full right lock there's about 1.5 to 2 inches of clearance. the compressor out tube passes under one of the sway bar mounting bolts. the 1.8 motor places the A/C compressor within a 1/4 inch of my FM front sway bar. will have to drop the sway bar when I finish reinstalling the A/C. Plenty of clearance between the downpipe and the heater hoses. I used FM's method of substituting a flexible radiator hose for the coolant return hose. My BEGI down pipe has the friggin O2 bung that is near the cat located on the ****** bottom of the pipe, totaly useless and I will have to drill and weld a new bung on it. I used to be able to get alot more work done on the car before I got remarried
Attached Thumbnails
new pics-5-22-07car-006-%5B800x600%5D.jpg   new pics-5-22-07car-009-%5B800x600%5D.jpg   new pics-5-22-07car-008-%5B800x600%5D.jpg   new pics-5-22-07car-011-%5B800x600%5D.jpg   new pics-5-22-07car-014-%5B800x600%5D.jpg


Last edited by Mymiataflys; 05-23-2007 at 06:17 PM.
Mymiataflys is offline   Reply With Quote
Old 05-23-2007, 01:32 PM   #2
Elite Member
iTrader: (3)

Join Date: Dec 2004
Location: Houston
Posts: 2,904
Total Cats: 4
Default

nice
Pitlab77 is offline   Reply With Quote
Old 05-23-2007, 01:46 PM   #3
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

What are the dimensions on that flexible radiator hose, if you don't mind? I was planning to pick up one of those flexible radiator hoses after seeing FM's install manual, but forgot to take measurements last night. It would save me a trip back out to the parts store
bripab007 is offline   Reply With Quote
Old 05-23-2007, 01:51 PM   #4
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

I'd also like to know what diameter and length of the rad hose.
jayc72 is offline   Reply With Quote
Old 05-23-2007, 02:01 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,831
Total Cats: 1,786
Default

do you realize how much easier my install would have been if I just redid my lower radiator hose similar to that?! But that's crazy talk, I don't work like that.
Braineack is online now   Reply With Quote
Old 05-23-2007, 02:03 PM   #6
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

I went to a junkyard and sourced a new hose of an '88 Accord... an early '80's VW Fox will also work. Elminates the need for the stupid S-bend hardline. Not having AC or PS helps. Junkyards are awesome sources for hose.
samnavy is offline   Reply With Quote
Old 05-23-2007, 02:10 PM   #7
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Quote:
Originally Posted by samnavy View Post
I went to a junkyard and sourced a new hose of an '88 Accord... an early '80's VW Fox will also work. Elminates the need for the stupid S-bend hardline. Not having AC or PS helps. Junkyards are awesome sources for hose.
You miss the point. The flex rad hose will make it MUCH easier to route I/C piping if you HAVE AC or PS.
jayc72 is offline   Reply With Quote
Old 05-23-2007, 02:16 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,831
Total Cats: 1,786
Default

yeah, I had to work my pipes around the hose, not to mention my oil drain line had to be redone as the hose sits just under the turbo
Braineack is online now   Reply With Quote
Old 05-23-2007, 02:20 PM   #9
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

I think I found the ID to be 1 1/4", but still not sure on the approximate length. Swapping my rad out soon and would like to use this style of hose.
jayc72 is offline   Reply With Quote
Old 05-23-2007, 03:55 PM   #10
Junior Member
Thread Starter

Join Date: Dec 2006
Posts: 172
Total Cats: 1
Default

Mine is 1.25 X 20"
Mymiataflys is offline   Reply With Quote
