Default Reverse Rice-ology (SlickAuto.net APR GTC-200 inside)

Hustler, you need this. (excuse my shitty photos, I possess neither an SLR nor the skills to use one)

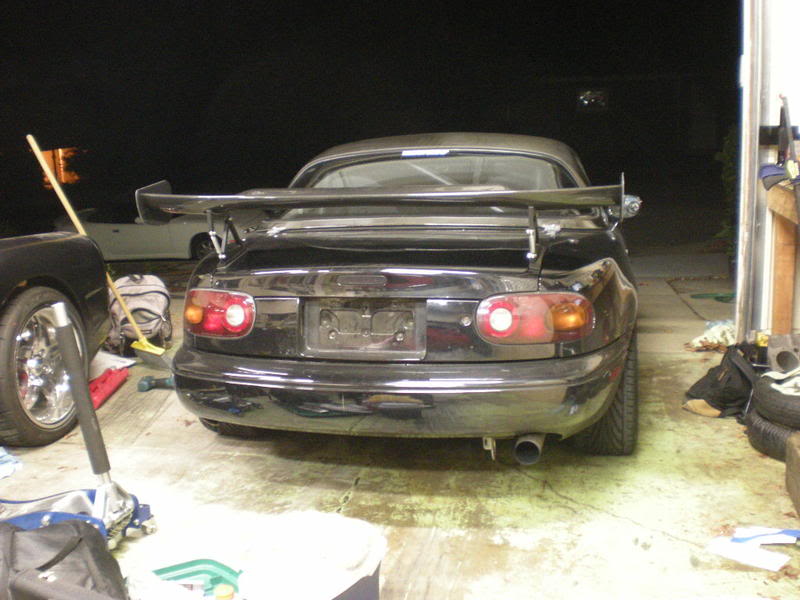

Name:  DSCN1217.jpg
Views: 137
Size:  70.2 KB

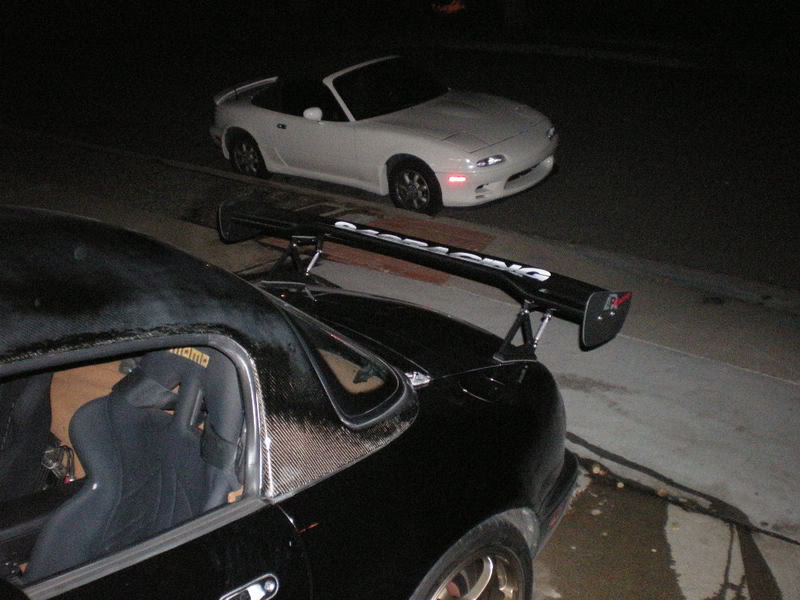

Name:  DSCN1215.jpg
Views: 39
Size:  65.8 KB

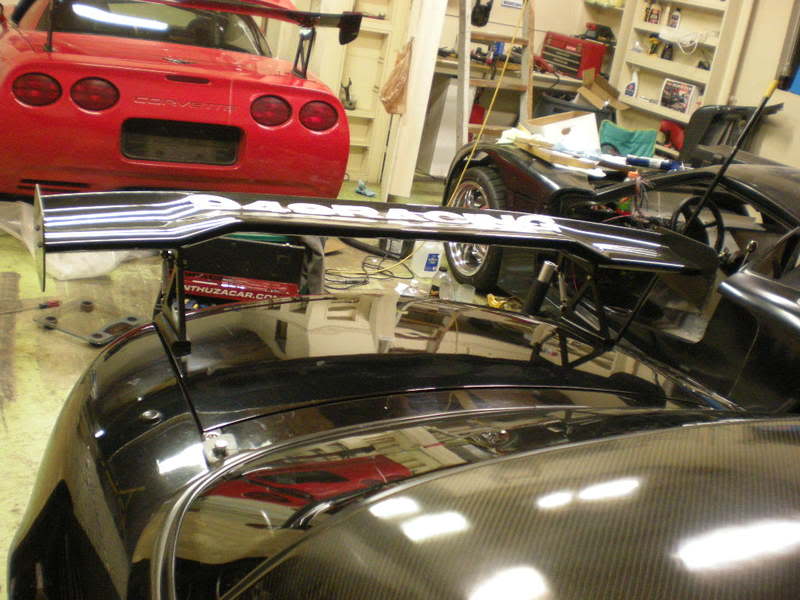

Name:  DSCN1218.jpg
Views: 50
Size:  75.5 KB

APR GTC-200. I can feel a difference at 50mph. Instead of struggling to lay power down in 3rd exiting slow stuff, it just STICKS. I have to consciously try to power-over exiting corners or else it just pushes from the apex out. It's unreal. I need to build a big front splitter to balance it out, though.

The really nice part is that this is the first official Miata-specific version of this wing, instead of just their universal wing. The Miata-specific setup mounts at the very edge of the trunklid:

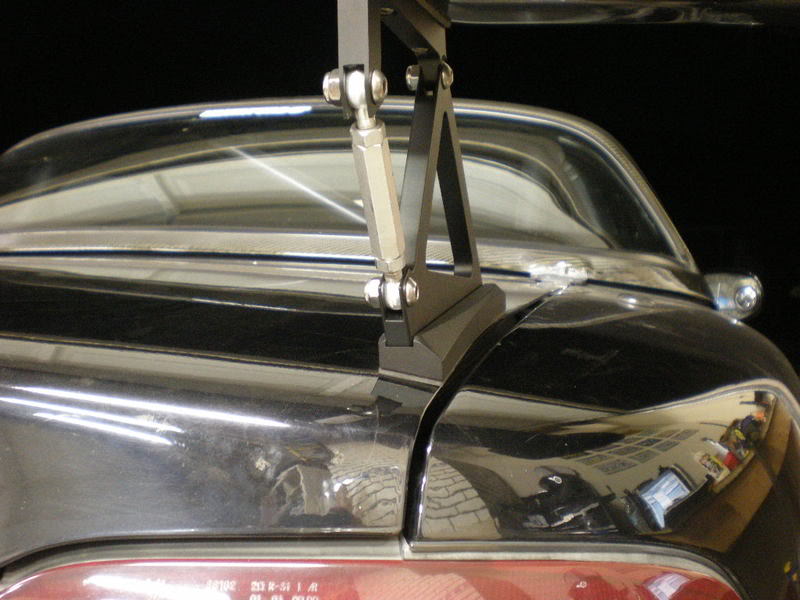

Name:  DSCN1221.jpg
Views: 109
Size:  68.7 KB

so you don't have to dick around with huge support braces or anything. The wing presses directly down onto the edge of the trunklid.

Big props to Jeff at SlickAuto.net for delivering it to Willow Springs this morning and for getting it together in time for the event. Even on total junk for rubber, I managed to eek out 2nd place out of 5 in the Unlimited class of the Miata Challenge event.
Savington is offline   Reply With Quote
Old 01-12-2009, 03:52 AM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

did you adjust it any to see if there's a huge difference in downforce between different settings?

pretty cool man, though lots of people will think you're the typical ricer and have it on there to look cool on the street lol
18psi is offline   Reply With Quote
Old 01-12-2009, 03:54 AM   #3
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Pretty cool. Even if it is a huge wing. Wouldnt have imagined that much of a difference in downforce. Maybe at 80+, but not at 50. As long as it helps times, thats all that matters. It even looks better than most monster wings Ive seen.

+1 to the above. I would feel bad if I had to drive it on the street. I know I laugh at people with wings. You going to take it off between events or use it all the time?

Is that a GTM next door...?
NA6C-Guy is offline   Reply With Quote
Old 01-12-2009, 03:57 AM   #4
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

$?
curly is offline   Reply With Quote
Old 01-12-2009, 04:03 AM   #5
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

hardtop needs more peanut butter
thesnowboarder is offline   Reply With Quote
Old 01-12-2009, 04:18 AM   #6
Senior Member
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,404
Total Cats: 263
Default

Nice! If its functional, then it isn't rice. Was the trunklid edge bent from the mounting and the drag?

Edit: That white Miata is clean!
99mx5 is offline   Reply With Quote
Old 01-12-2009, 04:20 AM   #7
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

Trunklid edge bent a little to contour to the mounts. My crap photo sort of makes it look worse than it is. I did adjust it to see what the difference was, but mostly to remove downforce since the car was pushing at anything over 70mph. It went from scary 4th gear oversteer to annoying understeer, if that's any indication of how much it did.

I am going to get a second trunklid for street use.
Savington is offline   Reply With Quote
Old 01-12-2009, 04:22 AM   #8
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

Quote:
Originally Posted by curly View Post
$?
$725. Sounds like a lot, but it's carbon fiber and they post their CFD data. For a 200whp track-driven Miata, it's worth every penny. 5 cars in Unlimited class, the top 3 had this wing on.
Savington is offline   Reply With Quote
Old 01-12-2009, 04:28 AM   #9
Senior Member
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,404
Total Cats: 263
Default

Cool! Congrats on your finish! Anything that drops your times is worth it. Are you going to do a more aggressive alignment to compensate for the wing?
99mx5 is offline   Reply With Quote
Old 01-12-2009, 04:34 AM   #10
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

I'll have to see how the tire wear works out. I don't anticipate it being necessary.
Savington is offline   Reply With Quote
Old 01-12-2009, 04:39 AM   #11
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

I like it Sav, wings like that got a bad rap after all the F&F ricer crap that has been rolling around for the past couple of years, but they do have their place. Was it strange to feel the handling change as the downforce built up?
akaryrye is offline   Reply With Quote
Old 01-12-2009, 05:26 AM   #12
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

It is an odd feeling. There are a couple of places where I would slide the car a little on exit, and then even though I was still on power the rear end would just magically settle down all on its own. Very eerie.
Savington is offline   Reply With Quote
Old 01-12-2009, 09:16 AM   #13
Former Vendor

Join Date: Oct 2008
Location: Oklahoma City
Posts: 395
Total Cats: 4
Default

Very nice
Deatschwerks is offline   Reply With Quote
Old 01-12-2009, 09:45 AM   #14
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,679
Total Cats: 1,561
Default

I read a while back about Jaguar adding a small spoiler lip to the rear of one of their cars to help "settle" the rear end at high speeds. It added a couple of hundred lbs. to the rear end at 120mph, but that leveraged the front of the car upward and caused air to get under it. Net result was a couple hundred lbs. of lift in the front at 120mph with terrible understeer. They had to make adjustments to the front to remedy the problem.

The law of unintended consequences?

I'm not a fan of street wings, but on a race car? Hell yeah. Get your grip.
sixshooter is online now   Reply With Quote
Old 01-12-2009, 10:12 AM   #15
Junior Member
iTrader: (4)

Join Date: Sep 2007
Location: Hampton Roads, VA
Posts: 398
Total Cats: 0
Default

that thing is so huge



^^
gompers is offline   Reply With Quote
Old 01-12-2009, 10:13 AM   #16
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

what is the front of the car doing with this week at say 30 and 80mph? I'm interested in one, but not sure about downforce in the front. I need to get a spare trunklid for "trackmode." Is there a cheaper option out there? I'm saving for a house right now, and trying not to spend any more cash on the miater.
hustler is offline   Reply With Quote
Old 01-12-2009, 10:55 AM   #17
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Why not just bolt the wing to the hard top? This way it pushes down on the middle of the car and it balances out nicely.
Saml01 is offline   Reply With Quote
Old 01-12-2009, 11:49 AM   #18
Junior Member
iTrader: (4)

Join Date: Sep 2007
Location: Hampton Roads, VA
Posts: 398
Total Cats: 0
Default

ever think about some canards?
gompers is offline   Reply With Quote
Old 01-12-2009, 11:50 AM   #19
Senior Member
iTrader: (3)

Join Date: Jan 2008
Location: Plano,TX
Posts: 674
Total Cats: 3
Default

Thanks for posting up this feedback, Sav. I really need to test a wing. It's another part I have to add to the test list.

I can imagine how much more stable the car felt. I had the opportunity to crew for Matt Andrews a month ago. He was testing some tires at MSR and had to do it on an HPDE day. They put him in the advanced group and he was raping every car on track. Most of the cars on track were C5/C6 vettes, various porsches, various high hp mercedes, etc. His car just sticks!

Sav, Did you track the car on the Advan's or 6ul's?
johnwag is offline   Reply With Quote
Old 01-12-2009, 12:55 PM   #20
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

I ran a big ricer wing for a test weekend (with alignment changes) when motorola cup was considering them as legal and it made a huge difference in entry and cornering speeds. We were gaining mph on straights preceded by high speed turns, but losing mph on straights preceded by slow turns at Rd Atlanta. Still showed quicker lap times with it. And we were quicker with it at Daytona. And it was awesome in a sprint I ran in the rain Rd Atl making a huge difference in traction under power on the rear.

And this was a ricer jdm wing too. The biggest problem with the cheap wings is the amount of drag they create due to the large radius on the trailing edge vs. a sharp edge.

The other issue was mounting it to the trunk. The wing compressed all the weather stripping and the sheet metal which changed it's approach angle to the oncoming air. The photo above is better mounting at the edges, but not ideal. It needs to be mounted solid - so thru the trunk and to the "frame rails" in some manner. Think prototype/formula where it's bolted to the gearbox.
m2cupcar is offline   Reply With Quote
