Old 01-17-2009, 10:02 PM   #101
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

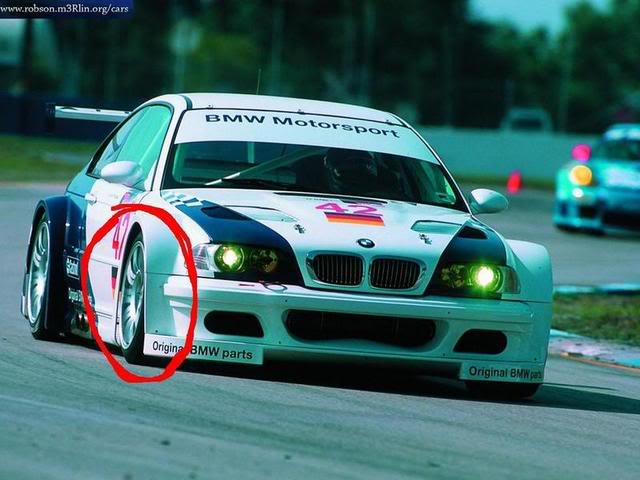

while reading through that m.net thread I noticed they talked about the reverse mud-flaps on S2000's for diverting air from the tires. I have also noticed that the new Corolla's have these reverse mud flaps as well. I suppose a wide body kit could fix this. Or create a vertical piece on your splitter that went in front of the wheels, rising into the wheel wells.

Name:  bmw_m3_gtr_1_2001-2circle.jpg
Views: 139
Size:  46.2 KB
mazda/nissan is offline   Reply With Quote
Old 01-19-2009, 02:16 PM   #102
Junior Member
iTrader: (1)

Join Date: Aug 2007
Posts: 387
Total Cats: 10
Default

here is my setup.

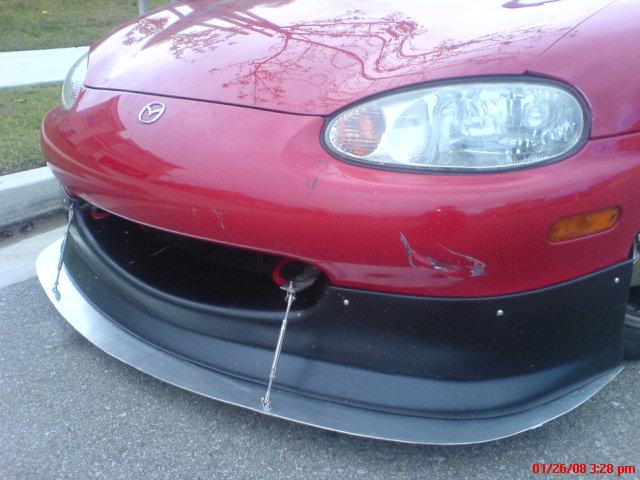

1st pic was ISC air dam with splitter.
umm, going off road a few times destroyed my ISC air dam, it is also impossible to roll on and off my trailer with it. so I gave up, and installed a Home Depot front spoiler and wheel spat that Savington is referring to in 2nd pic.

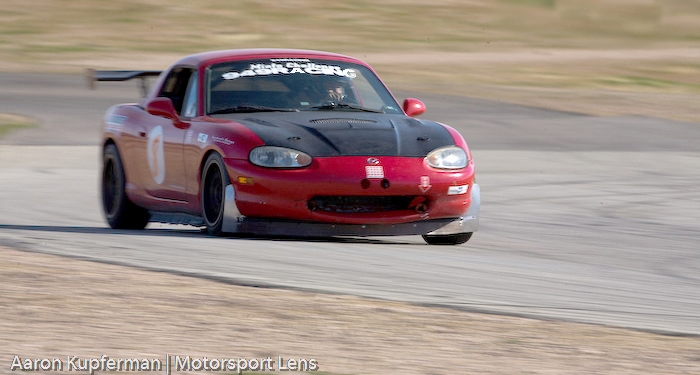

2nd also pic shows my side skirt. cost me $10 at Home Depot. hasn't need replacement yet for over an year.

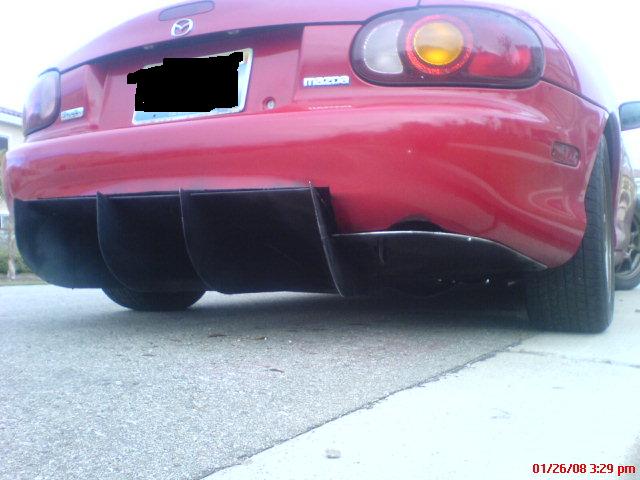

3rd pic shows my rear diffuser, since have taken it off. too much hassle and it weighs about 20LB.
Attached Thumbnails
Reverse Rice-ology (SlickAuto.net APR GTC-200 inside)-spoiler6.jpg   Reverse Rice-ology (SlickAuto.net APR GTC-200 inside)-miata-challenge.jpg   Reverse Rice-ology (SlickAuto.net APR GTC-200 inside)-diffuser6.jpg
Attached Images

bellwilliam is offline   Reply With Quote
Old 01-19-2009, 02:23 PM   #103
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Bellwilliam,

Opinion on how well the DIY dam and skirts do at balancing out that wing?
cueball1 is offline   Reply With Quote
Old 01-19-2009, 02:25 PM   #104
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,308
Total Cats: 1,328
Default

Quote:
Originally Posted by cueball1 View Post
That ISC dam looks from the pics like it does a good job of blocking air from the front wheels. Does it?
Nope. My ISC on the OGK leaves a good 3~4" of tire hanging out in the wind. The plan is to add a plate splitter that's as wide as the tires and a dive plane to cover the tires. Like Savington said, two birds with one stone.

The ISC for the NB's leaves even more tire exposed.
emilio700 is offline   Reply With Quote
Old 01-19-2009, 02:55 PM   #105
Junior Member
iTrader: (1)

Join Date: Aug 2007
Posts: 387
Total Cats: 10
Default

Quote:
Originally Posted by cueball1 View Post
Bellwilliam,

Opinion on how well the DIY dam and skirts do at balancing out that wing?
I still get quite a bit of push. but Home Depot air dam and wheel spat are very strong (they survive quite a bit of off roading ). where ISC air dam is probably for someone who never ever goes off.

I do want a splitter, but it really is a lots of hassle to install it. in my picture 1. it was easier for me to take off the whole bumper with splitter on. I will install my splitter again if I find a good aftermarket bumper or if I find an easy and strong way to mount it.

wheel spat is just 2 pcs of aluminum. about $15 at Home Depot and 3 bolts per side to mount it. took me about 10 minutes.
bellwilliam is offline   Reply With Quote
Old 01-19-2009, 06:33 PM   #106
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

With that set up still pushing are you thinking about maybe a less effective wing for better balance or are you looking for more downforce / less lift in the front to offset it?
cueball1 is offline   Reply With Quote
Old 01-19-2009, 07:03 PM   #107
Junior Member
iTrader: (1)

Join Date: Aug 2007
Posts: 387
Total Cats: 10
Default

I can always run less rear wing still (going negative instead of zero angle). But I am hoping to get an easy to install splitter, to offset the rear wing. hoping for some easy idea. I've seen a Bomex front bumper, it has a small front lip built-in. that might work. and/or run dive plane like Emilio said.
bellwilliam is offline   Reply With Quote
Old 01-19-2009, 10:05 PM   #108
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

How goofy is the idea of using the Miata factory style mud flaps mounted to the opposite sides so they are in front of the tires. The curve fits the front of the wheel well opening pretty closely. Tried and not wide enough?
cueball1 is offline   Reply With Quote
Old 01-20-2009, 12:59 AM   #109
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

Quote:
Originally Posted by cueball1 View Post
How goofy is the idea of using the Miata factory style mud flaps mounted to the opposite sides so they are in front of the tires. The curve fits the front of the wheel well opening pretty closely. Tried and not wide enough?
thought of the same thing just a minute ago
mazda/nissan is offline   Reply With Quote
Old 01-20-2009, 04:17 AM   #110
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Would probably work, but I doubt the fit would be exact, nor would there be holes to mount it, but I dont expect you thought that anyway. (or am I wrong?)
NA6C-Guy is offline   Reply With Quote
Old 01-20-2009, 08:34 AM   #111
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

Quote:
Originally Posted by NA6C-Guy View Post
Would probably work, but I doubt the fit would be exact, nor would there be holes to mount it, but I dont expect you thought that anyway. (or am I wrong?)
you are going to let a lack of mounting holes deter you from aerodynamic pleasure?
mazda/nissan is offline   Reply With Quote
Old 01-20-2009, 03:04 PM   #112
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

No, I wouldnt use the stock flaps anyway. If I were to do it, I would do something custom like the aluminum ones.
NA6C-Guy is offline   Reply With Quote
Old 01-20-2009, 03:36 PM   #113
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

I just figured the stock mud flaps would be a jumping off part. The curve isn't that far off and it wouldn't be hard to fab tabs to bolt them up to. Also the curve of them is less of a sail than the flat plate. In looking to improve aero I'm figuring their smoother wedge shape might be better. I've got a couple used ones coming to work with already. Figured those and my ABS DIY splitter project could be done at the same time.

We'll see. Looking to improve aero/ reduce lift to make up for all the weight I've added to the car. I like the simple let off at 70-80mph timed deceleration idea for checking aero improvements.
cueball1 is offline   Reply With Quote
Old 01-20-2009, 03:58 PM   #114
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,641
Total Cats: 1,559
Default

Thinking of Smokey and the Bandit Trans Am fender skirts and a die grinder.
Make it fit.

I went searching for fender flares and splitters and found things. Unnatural things. Ugly things.

Is that a kitchen table?
Attached Thumbnails
Reverse Rice-ology (SlickAuto.net APR GTC-200 inside)-splitterx.jpg
sixshooter is online now   Reply With Quote
Old 01-20-2009, 04:00 PM   #115
Former Vendor

Join Date: Oct 2008
Location: Oklahoma City
Posts: 395
Total Cats: 4
Default

I have never understood that style, i think the japanese are making fun of american ricers
Deatschwerks is offline   Reply With Quote
Old 01-20-2009, 05:51 PM   #116
Senior Member
iTrader: (13)

Join Date: Jul 2008
Location: Macon, Ga
Posts: 826
Total Cats: 0
Default

thats bozoku racing style. they often put oil coolers on the front there too. its just one of their old fads.

Last edited by Sam Amporful; 01-21-2009 at 07:05 PM.
Sam Amporful is offline   Reply With Quote
Old 01-28-2009, 09:57 PM   #117
Senior Member
iTrader: (3)

Join Date: Dec 2008
Location: KY
Posts: 698
Total Cats: 48
Default

Quote:
Originally Posted by bellwilliam View Post
I still get quite a bit of push. but Home Depot air dam and wheel spat are very strong (they survive quite a bit of off roading ). where ISC air dam is probably for someone who never ever goes off.

I do want a splitter, but it really is a lots of hassle to install it. in my picture 1. it was easier for me to take off the whole bumper with splitter on. I will install my splitter again if I find a good aftermarket bumper or if I find an easy and strong way to mount it.

wheel spat is just 2 pcs of aluminum. about $15 at Home Depot and 3 bolts per side to mount it. took me about 10 minutes.
You guys might think this is ghetto, but it's an idea I had for splitter attachment while walking through home depot one day. They have bigass rolls of braided steel cables that you can buy in whatever lengths you want. Depending what size you get, the ratings on it are easily strong enough for anything like this. Get some of that, attach it to the splitter with eye bolts or something like what's already installed on your metal splitter in the picture, and then have eye bolts on the chassis up inside the bumper so that you can just use carribeaners for quick disconnect. Mount it somewhere in the rear with a few bolts and it should be pretty easy ro remove by just jacking up the car. You'd have to make sure the cables were tight enough to keep the splitter snug up against the bumper and keep it from flapping up or down (which would probably screw up handling pretty bad) but if done right I think it'd be pretty easy to install/remove and it'd be cheap as hell.
jpreston is offline   Reply With Quote
Old 01-28-2009, 10:18 PM   #118
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,641
Total Cats: 1,559
Default

Quote:
Originally Posted by jpreston View Post
You guys might think this is ghetto, but it's an idea I had for splitter attachment while walking through home depot one day. They have bigass rolls of braided steel cables that you can buy in whatever lengths you want. Depending what size you get, the ratings on it are easily strong enough for anything like this. Get some of that, attach it to the splitter with eye bolts or something like what's already installed on your metal splitter in the picture, and then have eye bolts on the chassis up inside the bumper so that you can just use carribeaners for quick disconnect. Mount it somewhere in the rear with a few bolts and it should be pretty easy ro remove by just jacking up the car. You'd have to make sure the cables were tight enough to keep the splitter snug up against the bumper and keep it from flapping up or down (which would probably screw up handling pretty bad) but if done right I think it'd be pretty easy to install/remove and it'd be cheap as hell.
Good idea.

Have we met? You should post in the Meet and Greet section and add your location to your details. We might be local to each other.
sixshooter is online now   Reply With Quote
Old 01-28-2009, 11:27 PM   #119
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I have a home-depot lip in my garage...in for ideas on how I can make brake ducts, and center duct with my begi scoooper, and a splitter with it.
hustler is offline   Reply With Quote
Old 01-30-2009, 05:17 AM   #120
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,322
Default

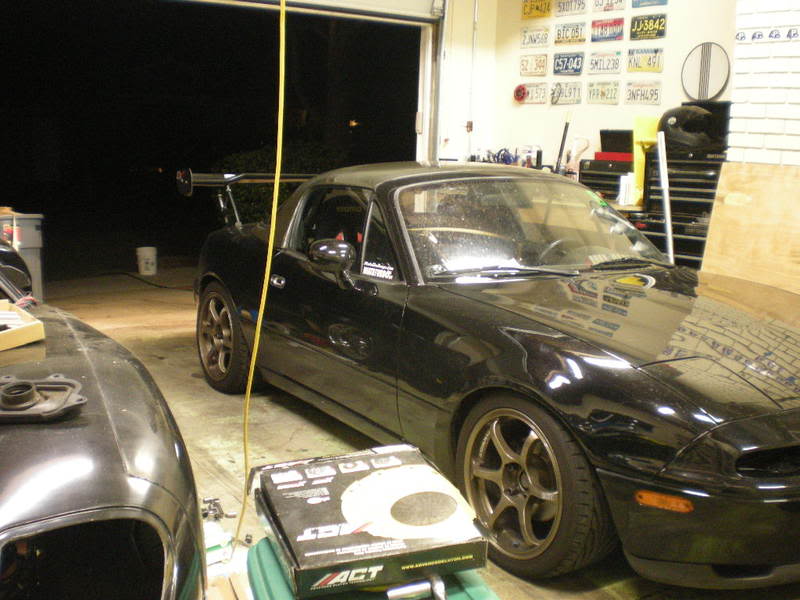

Name:  DSCN1246.jpg
Views: 36
Size:  71.9 KB

2.5" risers installed today. Haven't tried it out, but it should increase the downforce a tad by getting the wing up into cleaner air.
Savington is offline   Reply With Quote
