Default Is this right? (Pic)

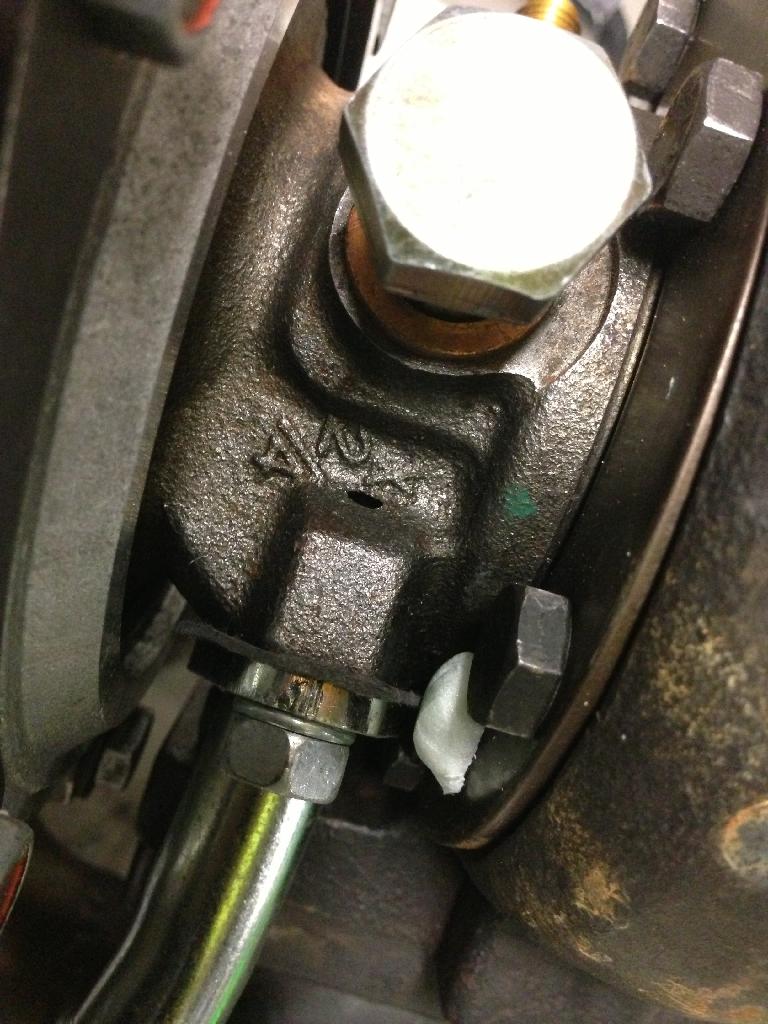

Turbo arrived today and looks nice except I noticed this hole... is this normal?

Attached Thumbnails
Is this right? (Pic)-36a55560-90aa-42ed-82c0-55cf3db77edd_zpsn9zr1hjd.jpg
carnut169 is offline   Reply With Quote
Old 01-14-2014, 10:22 PM   #2
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

No. Thats not good.

Where did you buy it from?
dieselmiata is offline   Reply With Quote
Old 01-14-2014, 10:39 PM   #3
Junior Member
iTrader: (1)

Handsome Greg's Avatar

Join Date: Aug 2010
Posts: 94
Total Cats: 14
Default

looks like a hole/void in the casting? can you pressurize the oil/water circuits to see if it's communicating to either?
Handsome Greg is offline   Reply With Quote
Old 01-14-2014, 10:47 PM   #4
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Atlanta, Ga
Posts: 265
Total Cats: 36
Default

carnut169 is offline   Reply With Quote
Old 01-14-2014, 11:02 PM   #5
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Atlanta, Ga
Posts: 265
Total Cats: 36
Default

More I think about it more pissed I am. Not visible in add pics and not in the description. It took me a second to see the hole... no way the seller didn't see it. Also not described were the repairs to the header but they seem to be well done. I'm requesting a refund.
carnut169 is offline   Reply With Quote
Old 01-14-2014, 11:40 PM   #6
Senior Member
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 695
Total Cats: 140
Default

If it only connects to the oil drain bolt hole and none of the fluid passages it could be ok...
gesso is offline   Reply With Quote
Old 01-14-2014, 11:44 PM   #7
Junior Member
iTrader: (6)

Evergreen's Avatar

Join Date: Apr 2012
Location: Washington
Posts: 158
Total Cats: 0
Default

I just received your email about this. Honestly I never even saw that. I never installed this kit. I opened the box when I got it and put it away in the garage. I have since decided to go bigger so I sold the kit. I am very sorry about this. I am just as surprised and pissed about this as well being I bought this from a member on here too. Who never said anything about it either.

Have you pressurized it at all to see what happens?

This is who I bought it from biohzrd53188. https://www.miataturbo.net/miata-par...rything-74728/

Last edited by Evergreen; 01-15-2014 at 01:34 AM.
Evergreen is offline   Reply With Quote
Old 01-15-2014, 12:06 AM   #8
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

It looks like it just goes to the bolt for the bolt on oil drain flange and doesnt see fluid.
Leafy is offline   Reply With Quote
Old 01-15-2014, 12:53 AM   #9
Junior Member
iTrader: (6)

Evergreen's Avatar

Join Date: Apr 2012
Location: Washington
Posts: 158
Total Cats: 0
Default

Quote:
Originally Posted by 18psi
Nope. But,
That hole goes to the oil drain bolt and not the passages. take out the bolt and see for yourself. I think its a casting defect from garrett, and not damage, to damage the chra like that you'd leave a huge mark. The guy I got it from used it for a couple years if not more, with no problems.

Also the manifold was repaired by the guy I got it from. Very good fabricator and it was a hairline crack that appeared on the runner and downpipe after about 2-3 years of use. he repaired it properly and didn't cut any corners. He disclosed the repair to me and I disclosed it to the guy that got it from me, obviously he didn't disclose it to the next guy, and likewise with the next guy after that. Then it was sold to you, probably undisclosed too.

Tubular manifolds crack. Its not a matter of if, its a matter of when. Even high quality ones from absurdflow and artech.

Hope that helps.
Does this help?
Evergreen is offline   Reply With Quote
Old 01-15-2014, 02:58 AM   #10
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,808
Total Cats: 183
Default

Pressure test it...if it fails, maybe garrett would replace it?
thirdgen is offline   Reply With Quote
Old 01-16-2014, 10:50 PM   #11
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Totally normal on the 2860. Mine has the exact same hole in it. It is a void that is opened when they drilled tapped a bolt hole. Does not go INTO the turbo housing or oil/coolant area at all.

Don't worry about it, I freaked out about it until I studied it closer and saw that it has no relation to the internals of the turbo.
Jeffbucc is offline   Reply With Quote
Old 02-03-2014, 02:30 AM   #12
Junior Member
iTrader: (6)

Evergreen's Avatar

Join Date: Apr 2012
Location: Washington
Posts: 158
Total Cats: 0
Default

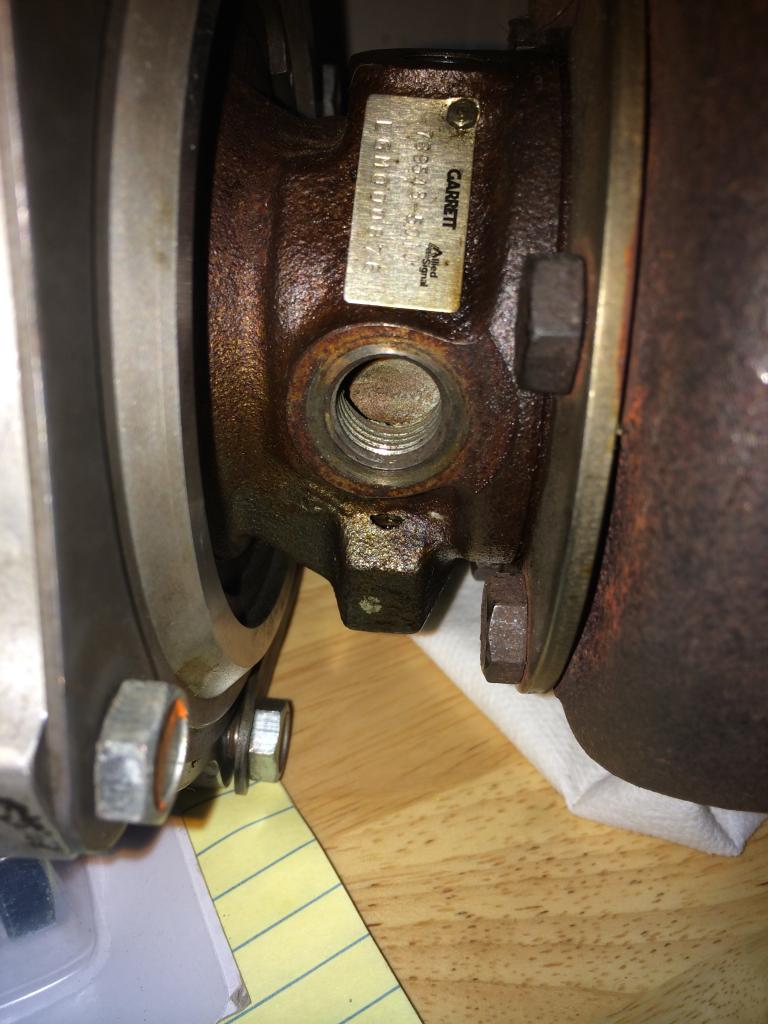

Well after a couple of weeks the buyer escalated this to a claim with paypal. He has been informed that this turbo is functional. I even pulled another 2860 out of storage and it too has the same casting spot.

This is my other turbo.
Attached Thumbnails
Is this right? (Pic)-img_0639_zps832163a3.jpg
Evergreen is offline   Reply With Quote
Old 02-03-2014, 09:17 AM   #13
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Atlanta, Ga
Posts: 265
Total Cats: 36
Default

Yes, 3 reasons. I had someone look at the turbo who knows way more that I. He was not overly concerned with the casting/ tapping void/ error, and basically stated what others above have said- it should not be an issue. However, he also said that the shaft has way too much play in/out- that it should have almost none. This one moves roughly 2mm and needs to be rebuilt.
So...
1. Undisclosed casting error.
2. Undisclosed manifold repairs.
3. Undisclosed rebuild required.

It's a train wreck. Why not just allow me to return it? I have not used it and I'm not a satisfied buyer. Shouldn't have to involve Paypal IMHO. I also offered to keep the system if Evergreen paid for the rebuild by refunding $500.
Do I want to go spend double and buy an FM no electronics kit? No. Also been trudging along buying things assuming this would work- things like the IC kit, an external WG, etc.
carnut169 is offline   Reply With Quote
Old 02-03-2014, 09:37 AM   #14
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

$500 to rebuild a 2860? Wut?
concealer404 is offline   Reply With Quote
Old 02-03-2014, 09:41 AM   #15
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Seems about right depending on the damage for a dual ball bearing turbo. I've seen anywhere from $200-600
Jeffbucc is offline   Reply With Quote
Old 02-03-2014, 09:43 AM   #16
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Oh right, fancy turbos, my bad.

I usually do mine for $50 on my kitchen table in 2 hours. Or if i'm feeling lazy, i just buy another one.
