Old 03-05-2013, 04:54 PM   #1
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default Show me your custom tiny battery bracketry

I have a tiny Deka ETX14 replacement battery for my NB. I'm looking for ideas on how to make a bracket for it.
The NB bracket is a rod that goes across with 2 little angle bar pieces that hold the battery down.
The Deka is lower, and smaller......
JasonC SBB is offline   Reply With Quote
Old 03-05-2013, 05:03 PM   #2
Senior Member
iTrader: (22)

Join Date: Oct 2007
Location: bay area, ca
Posts: 551
Total Cats: 19
Default

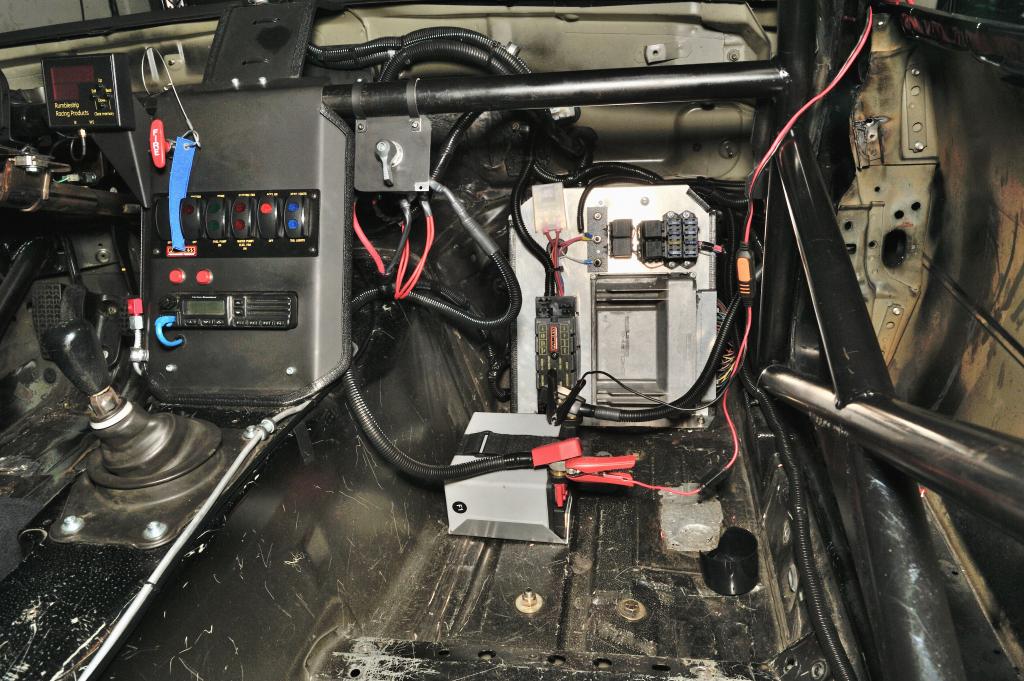

I'll have to post some pics when I get home tonight. For the street, I have a piece of aluminum with folded sides that rivets into the body that holds a Pb battery. It's solid. The only thing I worry about is the rivets failing. Bolts/screws may be a better choice. There's a velcro strap glued to the bottom that straps the battery in. You can see part of it in the pic below with a etx20l. For the track I'm going to build a plastic battery box around it with a second strap to keep the LiFe battery from getting out.

Attached Thumbnails
Show me your custom tiny battery bracketry-dsc_7063_zpsd2b38369.jpg
orion4096 is offline   Reply With Quote
Old 03-05-2013, 05:08 PM   #3
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 781
Default

^Off topic... but could you remind me who makes those switches/switchpanels?
concealer404 is offline   Reply With Quote
Old 03-05-2013, 05:59 PM   #4
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Seems like a small piece of 2x4 on the stock bracket is pretty popular and seems to hold well until you start to make somewhere north of 1.3g of grip. Then sweet sweet grounding to the chassis.
Leafy is offline   Reply With Quote
Old 03-05-2013, 07:13 PM   #5
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Default

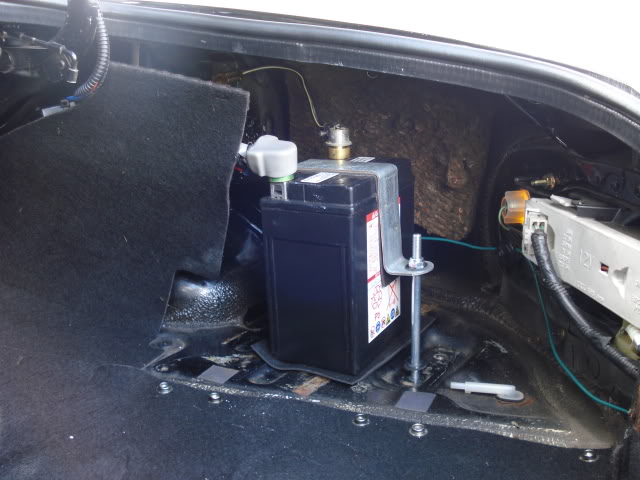

Yuasa YTX14AHL: 210 CCA, 12 Ah, 7.7 lbs; 5 5/16" x 3 1/2" x 6 9/16"

Attached Thumbnails
Show me your custom tiny battery bracketry-dsc03963.jpg
Scrappy Jack is offline   Reply With Quote
Old 03-06-2013, 12:07 AM   #6
Senior Member
iTrader: (22)

Join Date: Oct 2007
Location: bay area, ca
Posts: 551
Total Cats: 19
Default

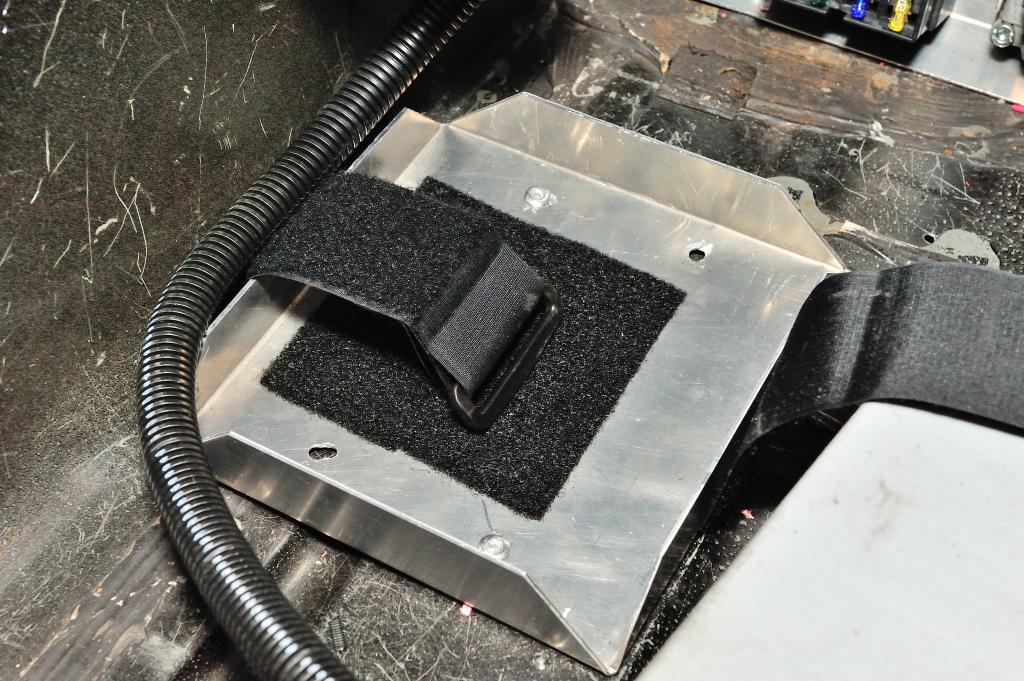

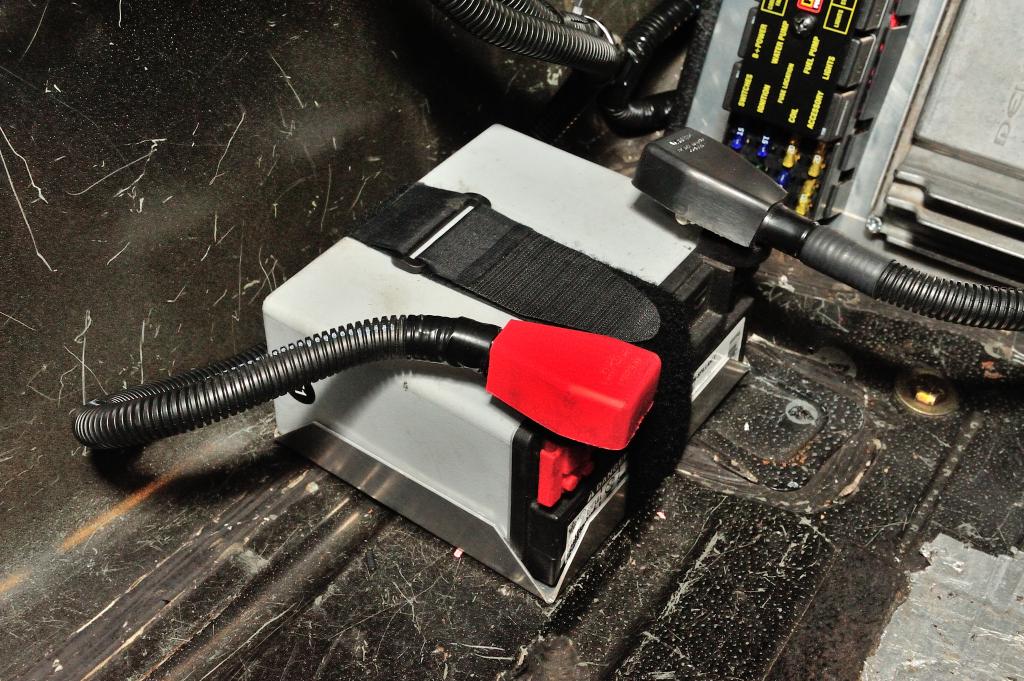

Better pics. I've been lazy and didn't put all 4 rivets in when I moved it.

Switches are painless 50005. Pricey for what they are. If you have the money I'd go with a smartwire.



Attached Thumbnails
Show me your custom tiny battery bracketry-dsc_7091_zps4fdef36d.jpg   Show me your custom tiny battery bracketry-dsc_7094_zpsa8e6a0b1.jpg
orion4096 is offline   Reply With Quote
Old 03-06-2013, 01:53 AM   #7
Elite Member
iTrader: (6)

TorqueZombie's Avatar

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default



Attached Thumbnails
Show me your custom tiny battery bracketry-ddri7.jpg
TorqueZombie is offline   Reply With Quote
Old 03-06-2013, 10:03 PM   #8
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by Leafy View Post
Seems like a small piece of 2x4 on the stock bracket
Hah! A piece of 1x4 cut to length did the trick! Thanks!
JasonC SBB is offline   Reply With Quote
Old 03-06-2013, 10:25 PM   #9
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 951
Total Cats: -252
Default

Quote:
Originally Posted by TorqueZombie View Post


Any issues with starting the car?
wannafbody is offline   Reply With Quote
Old 03-07-2013, 12:43 AM   #10
Elite Member
iTrader: (6)

TorqueZombie's Avatar

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

Other than the fact there is no engine in the car? Nope. Was having idle droop issues when the fans turned on (FM big fans) and decided on overkill. Turned out I had a motor issue. But the few weeks it was running nope, no issues at all. I could probably leave the lights on all day and start it. It's what FM uses in their V8 cars, but cheaper on Autozone.com
TorqueZombie is offline   Reply With Quote
Old 03-07-2013, 12:57 AM   #11
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Hopefully it's more robust than the model 35 red-top. Mine lasted two years.
Joe Perez is online now   Reply With Quote
Old 03-07-2013, 01:03 AM   #12
Elite Member
iTrader: (6)

TorqueZombie's Avatar

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

I hope so too. Been sitting about 9 months and just took a charge up the other day fine. We'll see. I think it's bigger than the one in my Jeep + winch capacity wise.
TorqueZombie is offline   Reply With Quote
