Default Tachometer Jump/Half RPM

The tach begins life showing half of the true RPM, ie. if the engine is turning 3k RPM, the tach shows 1500RPM. Then when it feels appropriate, it begins to jump around without any real logic that I can see. I've read all the threads on this, checked all the ground I could find, pulled the cluster out and checked wiring, pins, etc. Checked the wiring at the ECU and it seems to be in working order. The stink of it is that my Link ECU readout tells the true RPM, so how they show two different reading baffles me. Please send help before I set the car on fire.

Thanks,
Michael
TheBandit is offline   Reply With Quote
Old 03-05-2010, 08:57 PM   #2
Elite Member
iTrader: (11)

chicksdigmiatas's Avatar

Join Date: Apr 2008
Location: Texas, 'Murica
Posts: 2,505
Total Cats: 7
Default

Sunpro monster tach, seriously, i have another tach, if you want me to send it to you, that could be it, if everything else is in working order.
chicksdigmiatas is offline   Reply With Quote
Old 03-14-2010, 11:18 PM   #3
Supporting Vendor
Thread Starter
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

No need to replace the tach, it appears to be doing its job. The main problem I'm having trouble fixing is the half rpm on the tach. I spliced the bl/wh wire from each coil together so I know for a fact that both signals should be getting to the tach. Unfortunately it is still reading half of what it should be. I'm beginning to think that one coils isn't sending out the signal. Has anyone ever heard of that?

Michael
TheBandit is offline   Reply With Quote
Old 03-14-2010, 11:35 PM   #4
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Yup, mine did that exact same thing. Turned out to be an issue with my COPs harness. Switch coils, wires, plugs, etc, see if anything changes. You're on the right track suspecting your coil. Is it running ok otherwise?
curly is offline   Reply With Quote
Old 03-15-2010, 08:50 PM   #5
Supporting Vendor
Thread Starter
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

Well I spliced both the signal wires together last night, to ensure that both signals were connected and that should've fixed it. Well as you might expect it didn't. So I first clipped the wire on the passenger side coil. Started car, idled just the same as before (half rpm). I then cut the other signal wire. Started car and no tach at all, which is what I would've expected. So now I have to source another coil, even though the coil still works, it isn't sending a signal out for the tach. I wish there was a way around that, as replacing a coil that is functioning except for the tach signal just seems silly.

Comments/Suggestions Welcome.

Thanks

Michael
TheBandit is offline   Reply With Quote
Old 03-15-2010, 10:31 PM   #6
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

Quote:
Originally Posted by TheBandit View Post
I wish there was a way around that, as replacing a coil that is functioning except for the tach signal just seems silly.
With a couple of transistors, you could build a circuit to simulate the tach pulse off of the coil trigger wires.

Basically this:


Last edited by Joe Perez; 03-16-2010 at 01:39 PM. Reason: Added series 1k to Q1 / Q2 base
Joe Perez is offline   Reply With Quote
Old 03-15-2010, 11:26 PM   #7
Supporting Vendor
Thread Starter
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

Joe,

What kind/size of transistors would you use for this application? Also, what is the significance of the 1K resistor?

Thanks,

Michael
TheBandit is offline   Reply With Quote
Old 03-15-2010, 11:30 PM   #8
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

Quote:
Originally Posted by TheBandit View Post
What kind/size of transistors would you use for this application?
Any small-signal NPN would be fine. RadioShack® NPN Transistors (15-Pack) - RadioShack.com


Quote:
Also, what is the significance of the 1K resistor?
It provides the voltage pullup that the tach needs, yet prevents the transistors from exploding the instant they turn on.
Joe Perez is offline   Reply With Quote
Old 03-16-2010, 12:23 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

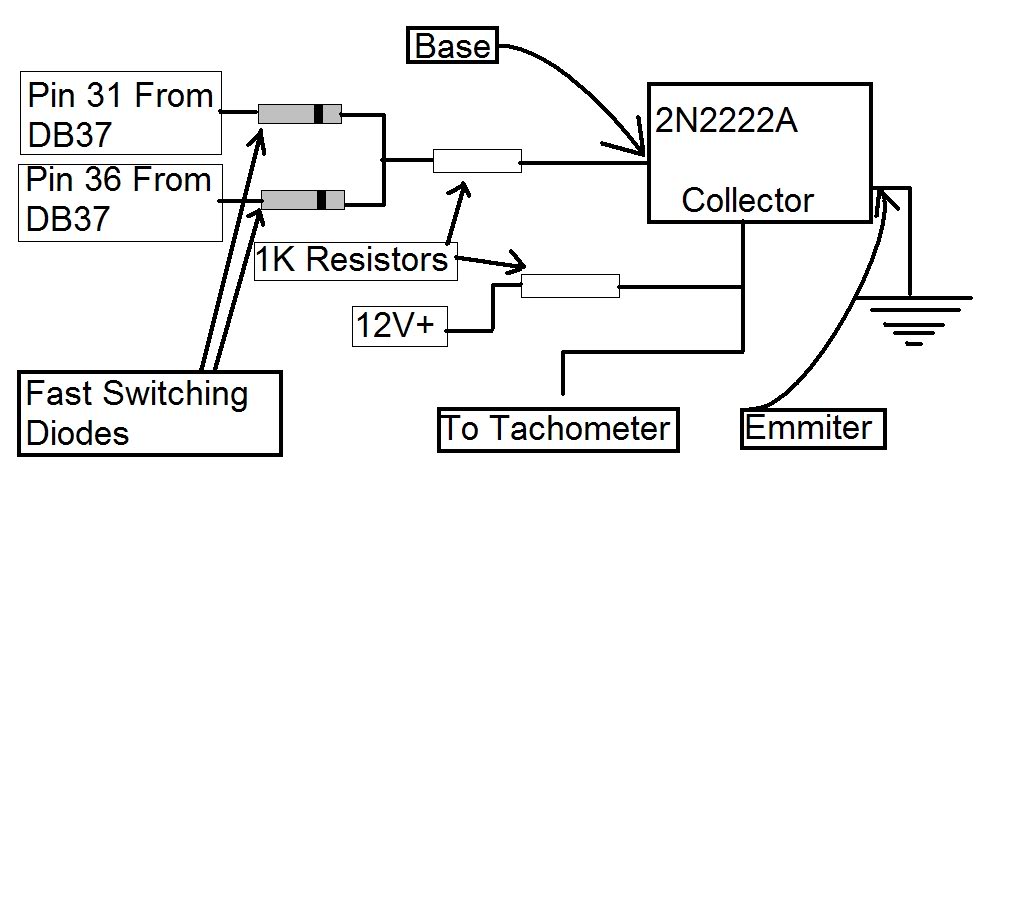

should also suffice...

Name:  richardspic.jpg
Views: 65
Size:  58.6 KB
Braineack is offline   Reply With Quote
Old 03-16-2010, 01:39 AM   #10
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Braineack, is this you?
curly is offline   Reply With Quote
Old 03-16-2010, 01:50 AM   #11
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

Yeah, I probably shoulda drawn a 1k resistor in series with the base of each transistor. (Between the base and the brown or brn/yel wire).

That's what I get for drawing circuits while intoxicated...

Oh, Brain, you mis-spelled Emmmmmmmitttttttter.
Joe Perez is offline   Reply With Quote
Old 03-16-2010, 09:29 AM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

I didn't make that circuit, Patmx5 did.
Braineack is offline   Reply With Quote
Old 03-16-2010, 01:39 PM   #13
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

My schematic above is revised to include resistors in series with the base of the two transistors.
Joe Perez is offline   Reply With Quote
