Default TII Transmission Adapter plate

Hey all, hopefully I don't get castrated for this but for my build I'm making a TII adapter plate/kit.

I'm gauging interest, like for real interest if ANYONE would use it type deal. This isn't getting manufactured yet or at all but I'm making one for my car regardless and will possibly have the plate scanned. I was wondering if anyone would ever want an adapter plate to use this transmission? They are good for about 500whp, and they have slightly taller gears (like a useful first gear).

I've already got the clutch figured out and its an off the shelf Part # as well as the slave/starter compatibility. Outside of that you would need to create a trans mount and diff mount (for the miata) and have a driveshaft made.

These transmissions can be found pretty inexpensively (~200) and they are very durable.

Kit would be high quality made in the USA much like this one...

http://zilvia.net/f/drivetrain/37070...uantities.html





http://zilvia.net/f/drivetrain/37070...uantities.html


It would be made by the same guys and of the same quality work, and around the same price, if this were to happen/be interest.


Again, this isn't a FS thread or a group buy interest but just me trying to bring a new option to the development of higher powered/higher developed cars.

If there is interest I have no doubt they will pay to be a sponsor here to sell those plates I'm just seeing if this is even worth it or if any one desires this swap.

Just chime in to let me know what your thoughts are or if you would be interested, this will help decide if we have any made
Attached Thumbnails

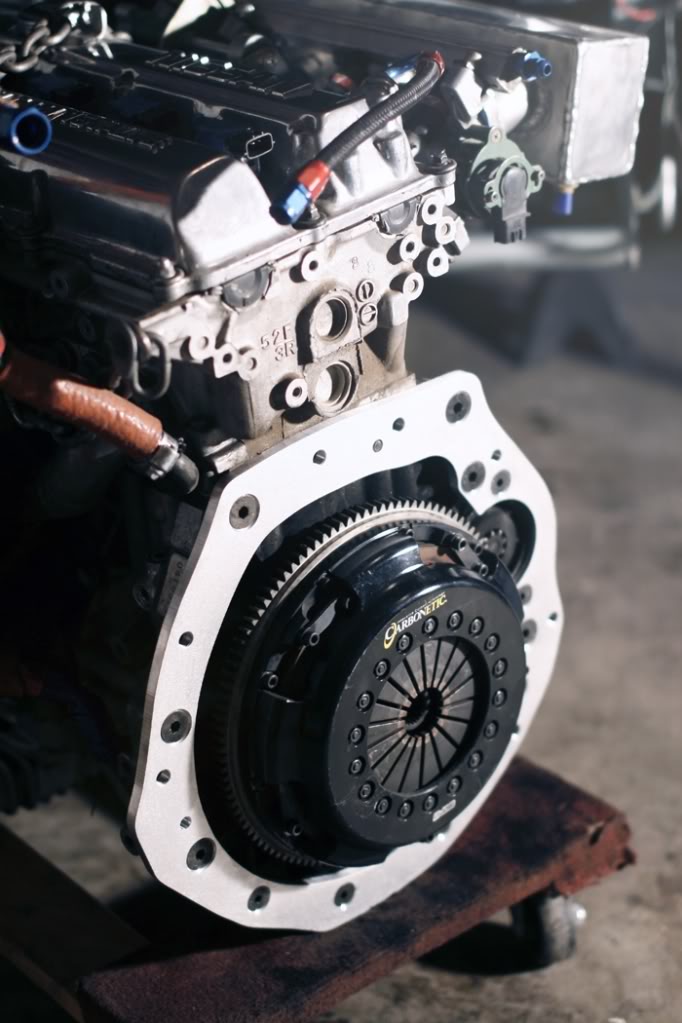

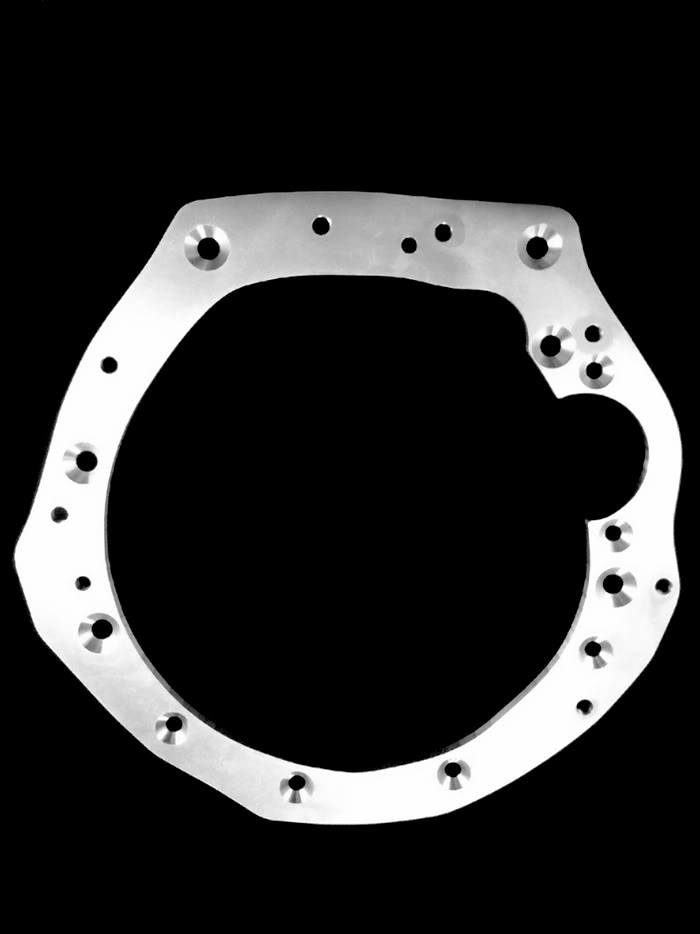

TII Transmission Adapter plate-img_0058s.jpg   TII Transmission Adapter plate-_mg_5376ss.jpg
theshdwconspracy is offline   Reply With Quote
Old 05-20-2012, 02:00 AM   #2
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

I'm subscribed. I'd like a transmission that I could really beat on and not worry. I still feel like my 6 spd is somewhat delicate.
miatauser884 is offline   Reply With Quote
Old 05-20-2012, 06:40 AM   #3
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

I would order one today at that price.
TNTUBA is offline   Reply With Quote
Old 05-20-2012, 12:46 PM   #4
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Quote:
Originally Posted by TNTUBA View Post
I would order one today at that price.
Would we have to machine our bellhousing for this plate?

FYI, I'd also be in at this price.
miatauser884 is offline   Reply With Quote
Old 05-20-2012, 12:47 PM   #5
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

I will buy one today too. How long would it take for you to do a run? If you can do one quickly, I won't put this six speed in my car... to replace my broken six speed.
Faeflora is offline   Reply With Quote
Old 05-20-2012, 12:51 PM   #6
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

How would this trans mesh with a 3.6 r&P?
miatauser884 is offline   Reply With Quote
Old 05-20-2012, 01:35 PM   #7
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by djp0623 View Post
How would this trans mesh with a 3.6 r&P?
It really depends on your turbo and power curve.

Look here, 3/4 of the way down the page.

http://solomiata.com/Drivetrain.html

Gearing is a bit longer than a six speed.
Faeflora is offline   Reply With Quote
Old 05-20-2012, 01:44 PM   #8
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,072
Total Cats: 253
Default

I'd be in.
viperormiata is offline   Reply With Quote
Old 05-20-2012, 03:50 PM   #9
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

Awesome guys thanks for the fast responses. We're going to start it this week and in a couple weeks we could easily have it done.

Bell housing won't have to be machined but you have to modify the throw out bearing just a little bit to make up for the extra space but it is a simple solution.

Thank you guys for the replies and I will keep you updated on progress!
theshdwconspracy is offline   Reply With Quote
Old 05-20-2012, 03:56 PM   #10
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Quote:
Originally Posted by theshdwconspracy View Post
Awesome guys thanks for the fast responses. We're going to start it this week and in a couple weeks we could easily have it done.

Bell housing won't have to be machined but you have to modify the throw out bearing just a little bit to make up for the extra space but it is a simple solution.

Thank you guys for the replies and I will keep you updated on progress!
Any guidelines for this/instructions?
miatauser884 is offline   Reply With Quote
Old 05-20-2012, 04:29 PM   #11
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

What do you mean?
theshdwconspracy is offline   Reply With Quote
Old 05-20-2012, 07:27 PM   #12
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

I didn't understand what modifications to the throwout bearing were necessary.
miatauser884 is offline   Reply With Quote
Old 05-20-2012, 07:30 PM   #13
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

spacing it out because obviously the plate takes up some room so you need to add material to the bearing/fork to move the fork closer to the pressure plate in order to engage/disengage clutch. This is a fairly easy process and once I do it I will post up pictures of what is necessary

also machining the bellhousing will probably be unneccesary and instead the throwout bearing modification will be what is needed.
theshdwconspracy is offline   Reply With Quote
Old 05-21-2012, 01:42 AM   #14
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

Whats the shifter location look like?
chpmnsws6 is offline   Reply With Quote
Old 05-21-2012, 01:53 AM   #15
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 259
Default

Would buy one as well.
soviet is offline   Reply With Quote
Old 06-13-2012, 09:46 PM   #16
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

Hey guys, just want to DROP MAD UPDAYYYYYYETS.

first plate is at the machine shop getting cut/drilled/tapers for bolting to the block, should be here this week.

We will then cut the shape of the bellhousing and drill/tap holes to mount trans to the plate.

Then it is off to the scanner once more to get copied and we will machine the first 5 after that. Usually a 2-3 week turnaround from that point.

The input shaft reaches in the motor, it is the same size, throwout bearing and pilot bearing both fit the input shaft.

Things left to do: mount starter (should be straight forward) and check throw out bearing clearance/throw.

You will probably have to trim the shifter hole back a little bit to accommodate for the longer trans, but it won't be terribly far back. You will need a driveshaft and a transmission mount or mount to PPF.
theshdwconspracy is offline   Reply With Quote
Old 06-13-2012, 09:48 PM   #17
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Please have this for sale as soon as I re-install my regular transmission and get it back in my car.
Faeflora is offline   Reply With Quote
Old 06-13-2012, 09:51 PM   #18
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

Quote:
Originally Posted by Faeflora View Post
Please have this for sale as soon as I re-install my regular transmission and get it back in my car.
Based on how that car is going...I'll have this done.

I would anticipate sometime in the end of july at the LATEST early august
theshdwconspracy is offline   Reply With Quote
Old 06-13-2012, 09:55 PM   #19
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

How does this transmission feel compared to the stock five speed? Shifting, ect. What options would there be for clutches?
Nagase is offline   Reply With Quote
Old 06-13-2012, 09:58 PM   #20
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

It's still a good transmission but beefier, so solid feeling shifts.

Anything available for an NC is an option
theshdwconspracy is offline   Reply With Quote
