Default underdash wiring

Anyone have pictures of how it should look? The PO is/was/forever will be a jackass. Appears the car used to have an alarm but all the dude took was the unit itself and left all the messy wiring. Also any shots of behind the glovebox would be helpful too. NA btw... Thanx.

Also posting this on miata.net

Edit: 1990, any wires under the dash at all its a mess! under the wheel, behind the glove box, behind and around the center consul. anything
icantthink4155 is offline   Reply With Quote
Old 06-25-2008, 04:32 PM   #2
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

I can think of a couple of reasons why the next three posters are going to give you smartass answers:

1- Which year Miata?

2- What part of the wiring, specifically?
Joe Perez is offline   Reply With Quote
Old 06-25-2008, 04:37 PM   #3
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by icantthink4155 View Post
Anyone have pictures of how it should look? The PO is/was/forever will be a jackass. Appears the car used to have an alarm but all the dude took was the unit itself and left all the messy wiring. Also any shots of behind the glovebox would be helpful too. NA btw... Thanx.

Also posting this on miata.net

Edit: 1990, any wires under the dash at all its a mess! under the wheel, behind the glove box, behind and around the center consul. anything
I have a 90' and I have alot of the interior taken apart. I can go snap some pics and have them posted in a hour or so.

Vash-
Vashthestampede is offline   Reply With Quote
Old 06-25-2008, 04:41 PM   #4
Elite Member
Thread Starter
iTrader: (12)

Join Date: Apr 2008
Location: Longs, SC
Posts: 2,583
Total Cats: 13
Default

thanx Vash, Ive taken some stuff out already but I dont want to go too far before I know whats what, mostly stuff that wasnt connected to anything. Its pretty bad...
icantthink4155 is offline   Reply With Quote
Old 06-25-2008, 04:56 PM   #5
Elite Member
Thread Starter
iTrader: (12)

Join Date: Apr 2008
Location: Longs, SC
Posts: 2,583
Total Cats: 13
Default

also behind the glovebox, there a black box, I have something velcroed to that that doesnt look like it belongs, and I dont really see mazda using velcro to attack stuff... does that belong there?
icantthink4155 is offline   Reply With Quote
Old 06-25-2008, 04:58 PM   #6
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Would that big black box happen to be the A/C evaporator box?

Pretty common place to stick things, actually. Before I removed my A/C entirely, the power supply for my in-car PC was stuck to it. So far as I'm aware, there is no factory device adhered to that box with Velcro. But as will all things of this nature, trace the wires.
Joe Perez is offline   Reply With Quote
Old 06-25-2008, 05:18 PM   #7
Elite Member
Thread Starter
iTrader: (12)

Join Date: Apr 2008
Location: Longs, SC
Posts: 2,583
Total Cats: 13
Default

lol I dont know anything at all about the AC I cant even find the circuit breaker relay.
icantthink4155 is offline   Reply With Quote
Old 06-25-2008, 05:32 PM   #8
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

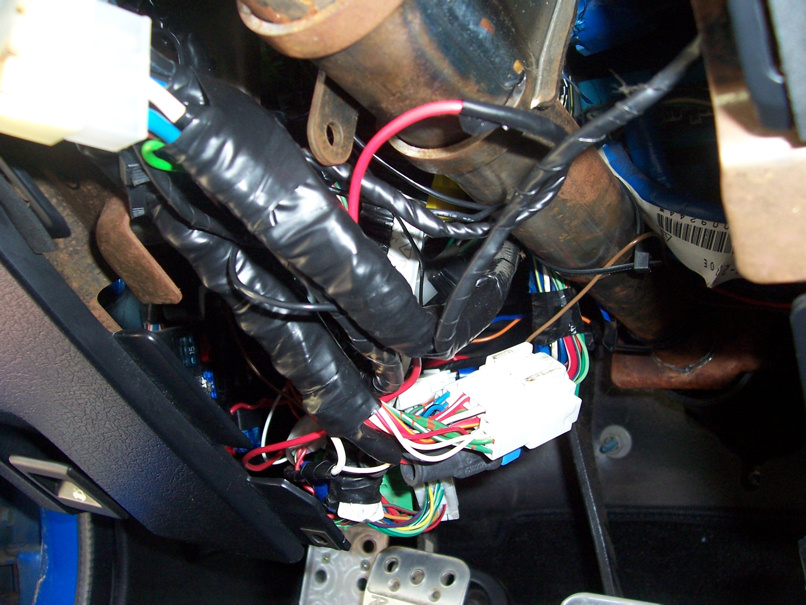

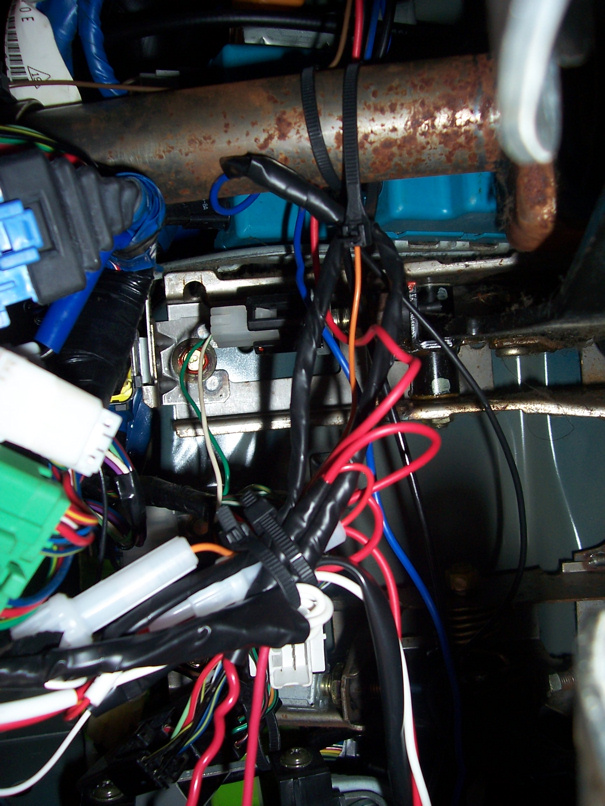

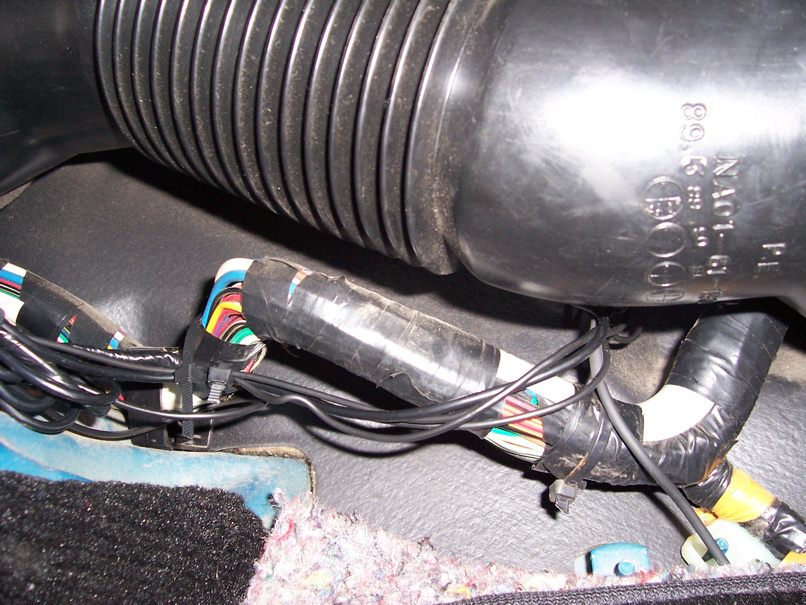

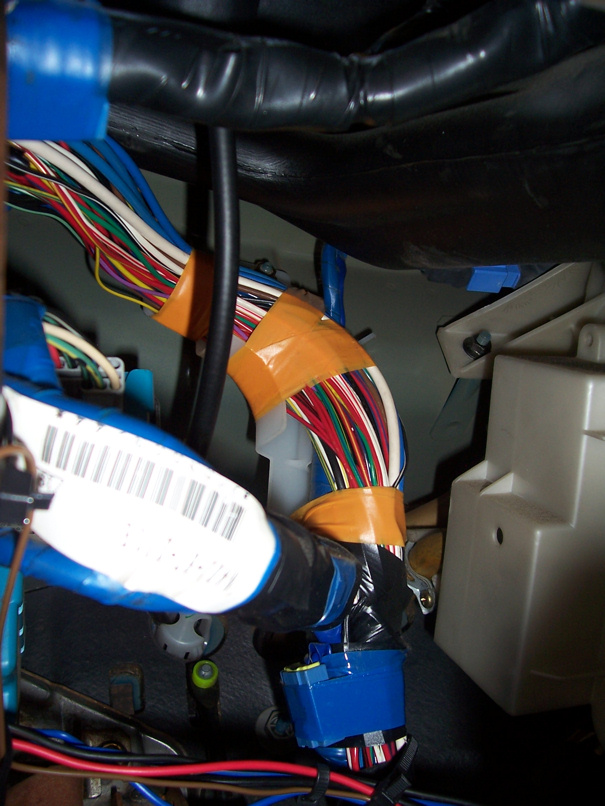

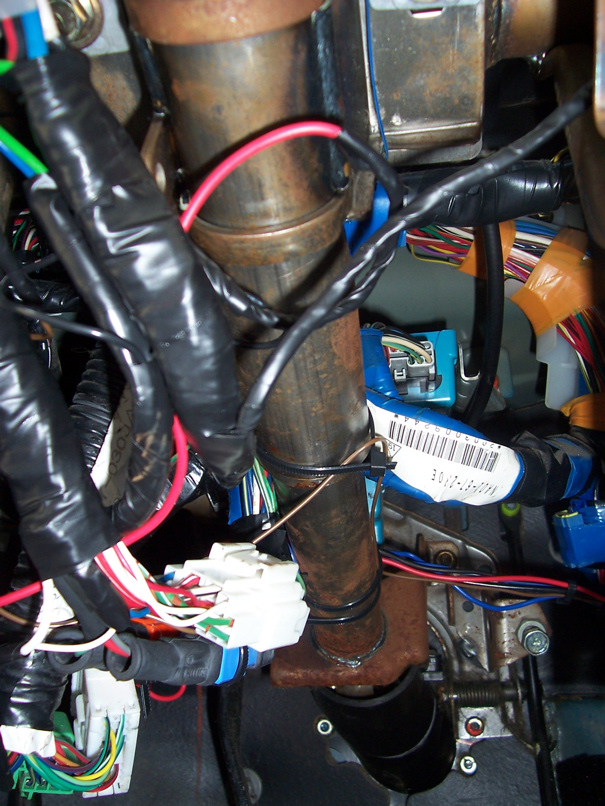

Well now that I think about it.....I'm not sure if my shots will help you at all. I had my dash apart to wire up my new gauges, LC1, and turbo timer.....so some of my **** looks different than it should. But I took the pics anyway, hopefully they can help you some. Ohh, and I didn't see anything with velcro behind my glovebox, but I also don't have AC.

Vash-
Attached Thumbnails
underdash wiring-wires1.jpg   underdash wiring-wires2.jpg   underdash wiring-wires3.jpg   underdash wiring-wires4.jpg   underdash wiring-wires5.jpg

Vashthestampede is offline   Reply With Quote
Old 06-25-2008, 05:51 PM   #9
Elite Member
Thread Starter
iTrader: (12)

Join Date: Apr 2008
Location: Longs, SC
Posts: 2,583
Total Cats: 13
Default

thats so much cleaner then mine is... I think Im gonna need to find someone with one where I can look around
