Default Which year's axles will work (pic)

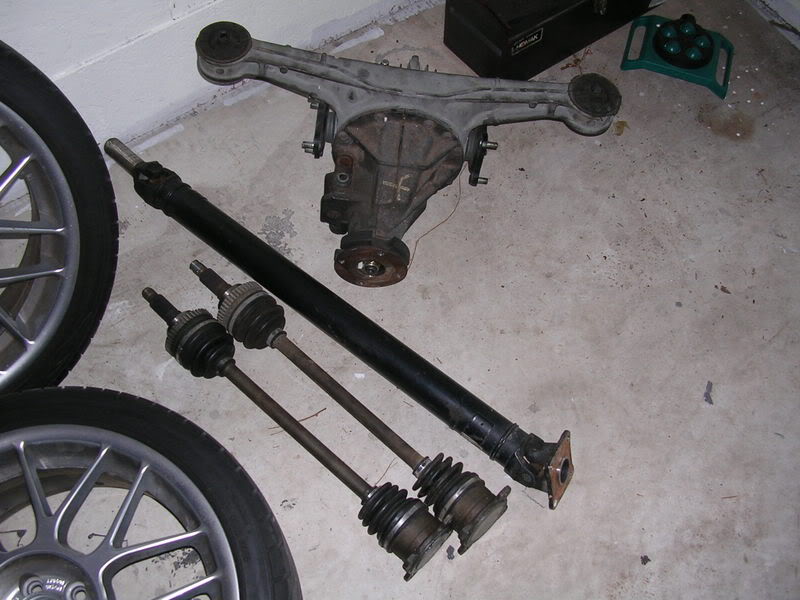

So based on this pic of the 1.8 setup I have:

Name:  6_26_07_miata_parts_008.jpg
Views: 41
Size:  75.8 KB

If one of the axles is damaged beyond use, what year's axles can I use? Apparently one was mushroomed really bad and can't be used so I need to find another.
kotomile is offline   Reply With Quote
Old 09-01-2007, 09:19 PM   #2
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

any 94+ axle will work. I like my 2 peice ones much easier to install i would think oh and nice wheels
magnamx-5 is offline   Reply With Quote
Old 09-01-2007, 09:49 PM   #3
Elite Member
Thread Starter
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

any ol' 94+ axle? Even the one piece ones (there are 1 piece axles 94+, right?)?

If I wanted to keep it the same, which years have the two-piece axles?

edit - wheels aren't mine, those are 17s and go on my friend's minitruck.
kotomile is offline   Reply With Quote
Old 09-01-2007, 10:06 PM   #4
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

How bad is it mushroomed? Post picture please. It may be salvageable.
olderguy is offline   Reply With Quote
Old 09-01-2007, 10:37 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

use can reuse your 1.6L ones. what part is bad? the only difference between the 1.6L and 1.8L axles is the flange for the diff, the rest is interchangable....

so for example, you could pull the diff flange off all four axles and reattach the 1.8L ones onto the 1.6L axles and call it a day.
Braineack is offline   Reply With Quote
Old 09-01-2007, 10:38 PM   #6
Elite Member
Thread Starter
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

I don't know how bad, mechanic brother-in-law tried to save it best he could but was sad to report it was too far gone. I don't have a picture, I'm just taking his word for it.
kotomile is offline   Reply With Quote
Old 09-01-2007, 10:39 PM   #7
Elite Member
Thread Starter
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Quote:
Originally Posted by Braineack View Post
use can reuse your 1.6L ones. what part is bad? the only difference between the 1.6L and 1.8L axles is the flange for the diff, the rest is interchangable....


the threads for the axle nut, I believe, is the damaged part.

so if I (read: he) makes a frankenstein of the two that'd work, mmm?
kotomile is offline   Reply With Quote
Old 09-02-2007, 01:40 AM   #8
Elite Member
Thread Starter
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Also, I linked him to this thread in his email. What's the easiest way to go about this? Just replace the inner part (toward diff) like you said, Brian? Has anyone done this?
kotomile is offline   Reply With Quote
Old 09-02-2007, 07:37 AM   #9
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by kotomile View Post


the threads for the axle nut, I believe, is the damaged part.

so if I (read: he) makes a frankenstein of the two that'd work, mmm?
The threads can be salvaged with a 20mm x 1.5 die cheaper than a new shaft.
olderguy is offline   Reply With Quote
Old 09-02-2007, 02:43 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by kotomile View Post
so if I (read: he) makes a frankenstein of the two that'd work, mmm?
Yes, on my current setup I have my 1.6L hub sections on the 1.8L axles.

since the axles I recieved were without the ABS gears.
Braineack is offline   Reply With Quote
Old 09-02-2007, 03:06 PM   #11
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by Braineack View Post
use can reuse your 1.6L ones. what part is bad? the only difference between the 1.6L and 1.8L axles is the flange for the diff, the rest is interchangeable....
Back up a sec. With a 1.8 diff installed into a '90-'93 car, assuming the diff has the '94-'95 stub shafts in it, the 1.6 half-axles can be used?

Aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaargh!

I bought my 1.8 diff and axles from two places. The diff had the early stub axles in it, but I removed them and used a set of '97 one-piece axles that I bought separately. And those things were a royal pain the *** to install! You mean I could have kept the early 1.8 stubs and bolted by existing 1.6 axles to them?

Joe Perez is online now   Reply With Quote
Old 09-02-2007, 03:31 PM   #12
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

yeah wtf are you saying scot
magnamx-5 is offline   Reply With Quote
Old 09-02-2007, 04:17 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

No, the 1.6L axles couldn't just be used, as the flange that bolts them to the 1.8L stubs is different.

however, everything execpt the flange is the exact same. so the hub side is the same and the length of the axle itself is the same.

Take my situation for example: I bought '94 axles that weere supossed to have abs gears. they didnt. So I remvoed the hub side of the 1.8L axles and installed my 1.6L hub sides to the 1.8L shaft. Instant 1.8L ABS axles.
Braineack is offline   Reply With Quote
Old 09-02-2007, 04:37 PM   #14
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

Um I say that you need to get a grinder out and fix them axles. Machine shop has a tap to clean the threads if you need. Why they used such soft metal ??? is beyond me.
