Old 12-14-2007, 11:47 AM   #21
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Ben View Post
maybe that grinder/autokonexion guy would be willing to make a miata bumper shaped drop-in ducted vent. that is, in the unlikey chance he's actually willing to listen to the market.
look, he made a hood for an NSX, he knows what he's doing, ok?!?! Maybe you should show a little more respect and just buy his product without questioning him. Do not disrespect a potential sponsor.
hustler is offline   Reply With Quote
Old 12-14-2007, 12:03 PM   #22
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Me thinks that each car and install is different enough to justify a "try and see if it works" approach. There are various ways to resolve each issue too. I have a big *** radiator and fan which seem to manage my coolant temps quite well in the SE summer heat, in traffic (sans a/c).

Below is an image showing my plans to restructure the interior of the mouth. The top section may be wishful thinking, but the bottom is absolutely feasible. In my case I've got a larger radiator, but even the stock radiator could be lowered some to provide direct exposure to oncoming air by dropping the lower part of the mouth shrouding as pictured.



I agree- that hole just needs an insert with a finished edge
m2cupcar is offline   Reply With Quote
Old 12-14-2007, 12:26 PM   #23
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

so should I consider that no air going through the intercooler is going to contribute to cooling the radiator from loosing flow and heating the air through the intercooler?
hustler is offline   Reply With Quote
Old 12-14-2007, 01:22 PM   #24
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

you left out the air directors / straighteners / unstraighteners rob
y8s is offline   Reply With Quote
Old 12-14-2007, 02:46 PM   #25
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

Quote:
Originally Posted by Ben View Post
hole saw and jig saw? I've been trying to sack up and do this myself.
just clean up the white edge, then go after the hood situation.
Rotozip all the way, baby. I should have gone a lot slower, and I can still go back and clean up the edges quite a bit. I do have some touch-up paint, but I was also thinking about some black trim around the edges just to clean up the close-up aesthetics a little bit. I used a LOT of painters tape, a tape measure referenced off the top edge of the bumper to get the curvature right, and the cap from a bottle of kitty litter to get the curves at the ends.

I am also going to do a vented hood eventually, but you can see the oil cooler on the left in the photo. Vented hoods are great for getting air through whatever fits in the stock opening, but the oil cooler was going to have to go in the fenderwell, where it would be destroyed by road debris, or behind the intercooler, further sacrificing the current airflow situation. I agree the car is a lot cleaner without the hole, but I think it's growing on me. It's definitely more race-car than street car at this point anyway.
Savington is offline   Reply With Quote
Old 12-14-2007, 02:48 PM   #26
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Stacking exchangers works best when you have the hottest exchanger last to reach the passing air. So your boost air in the IC is going to be the "least hot", then the rad which will benefit because the passing air is still not as hot as the surface of the rad rows/fins.

The top won't work- not with the angle that steep. Another reason to build that bolted on front support so that it goes deeper into the bumper. I think that'd make a BIG difference in air movement into the mouth and through the exchangers.

If the support was moved deeper into the nose/bumper, then I think the contours would come closer to mirroring each other as the expand into the mouth.


y8s I am awaiting your drawings
m2cupcar is offline   Reply With Quote
Old 12-14-2007, 03:11 PM   #27
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: orlando, FL
Posts: 558
Total Cats: 0
Default

christ... if u want function over looks.... JUST RIP THE WHOLE BUMPER OFF!
XxGoKoUxX is offline   Reply With Quote
Old 12-14-2007, 03:17 PM   #28
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I'm cutting a hole like the m3csl in the bottom of the bumper for my oil cooler. I can live with that.
hustler is offline   Reply With Quote
Old 12-14-2007, 03:25 PM   #29
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Hustler, link?

I think it looks just fine. Once the edge is cleaned up it should be pretty badass. I like things like that.
cjernigan is offline   Reply With Quote
Old 12-14-2007, 03:27 PM   #30
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by cjernigan View Post
Hustler, link?

I think it looks just fine. Once the edge is cleaned up it should be pretty badass. I like things like that.


hole saw + this
hustler is offline   Reply With Quote
Old 12-14-2007, 03:54 PM   #31
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

also, has anyone here used the bell air scooper? I'm going to get that **** on the car as soon as I get home to work on it again. It would be really cool if that worked...and I don't rip it off on my first trip to the track.
hustler is offline   Reply With Quote
Old 12-14-2007, 04:31 PM   #32
Supporting Vendor
iTrader: (5)

Join Date: Jun 2006
Location: Duluth, GA 30097
Posts: 798
Total Cats: 0
Default

I'm using it, and it's a great piece, but it does hang a bit low and you have to watch the curb 'stoppers' in parking lot spaces, and some stupidly high speed bumps.
FoundSoul is offline   Reply With Quote
Old 12-14-2007, 04:33 PM   #33
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by FoundSoul View Post
I'm using it, and it's a great piece, but it does hang a bit low and you have to watch the curb 'stoppers' in parking lot spaces, and some stupidly high speed bumps.
have you used it on the track in a turbo car? I have one to go under my r-pack spoiler. Its going to be stupid low.

I didn't know you drove a turbo miata...cool.
hustler is offline   Reply With Quote
Old 12-14-2007, 04:58 PM   #34
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by hustler View Post
have you used it on the track in a turbo car? I have one to go under my r-pack spoiler. Its going to be stupid low.

I didn't know you drove a turbo miata...cool.
Him and Ben are in competition for the fastest 1.6 turbo in the county.
cjernigan is offline   Reply With Quote
Old 12-14-2007, 05:28 PM   #35
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

I'd have a Bell scooper, or something like it, but then I heard it hangs BELOW the R-package lip. My lip is under 4" from the ground. A meaningful scooper would reduce that to sub-3", which is just absurd.

Myron (2/3rdsCobra @ M.net) has done this really trick setup that's like a BEGi scooper, but he cut a slot in the R-package lip. The duct goes right under the IC into the rad.
Savington is offline   Reply With Quote
Old 12-14-2007, 06:23 PM   #36
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I understand that I want to pull air through the radiator, but what about the intercooler? I remember some discussion that turbulent air is best for an intercooler (which doesn't make sense in respect to radiator cooling) so would it be best to seal off my intercooler inside the sealed radiator air track? I'm thinking about building a rad box like matt andrew's car, with a seperate foil for air to the rad, and not the intercooler.
hustler is offline   Reply With Quote
Old 12-14-2007, 07:27 PM   #37
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

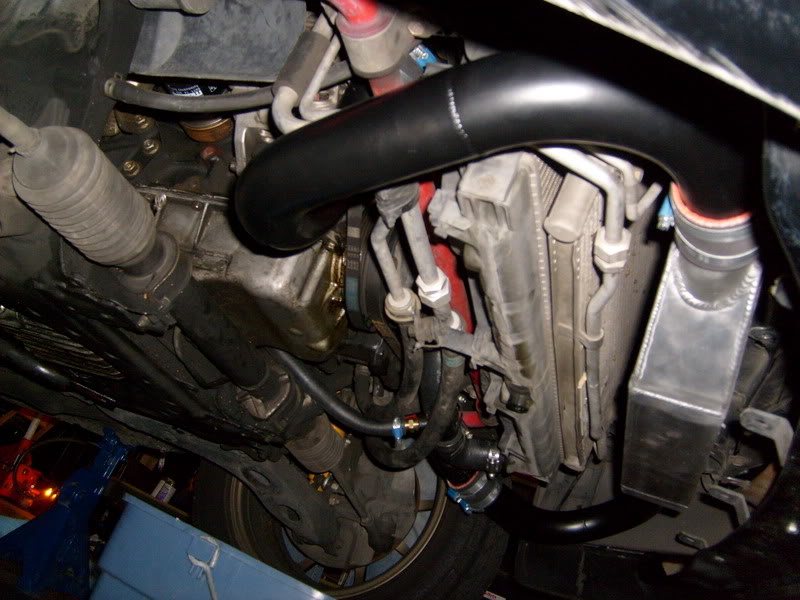

I wonder if sealing off this area alone would do the trick. I have a really ******* big intercooler (begi #3), so I don't have much room to work with for ducting.
Name:  S6300420.jpg
Views: 14
Size:  111.9 KB
hustler is offline   Reply With Quote
Old 12-14-2007, 07:32 PM   #38
Senior Member
iTrader: (8)

Join Date: Mar 2006
Location: Floriduh
Posts: 882
Total Cats: 0
Default

Hustler, is that your car? Is that the way it sits now?
soflarick is offline   Reply With Quote
Old 12-14-2007, 07:35 PM   #39
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by soflarick View Post
Hustler, is that your car? Is that the way it sits now?
not my car (still travelling for work). My **** sits like that, with the same front to rear dimensions and spacing, but a much larger width and height intercooler.
hustler is offline   Reply With Quote
Old 12-14-2007, 08:13 PM   #40
Senior Member
iTrader: (3)

Join Date: Mar 2007
Posts: 567
Total Cats: 1
Default

Quote:
Originally Posted by Ben View Post
maybe that grinder/autokonexion guy would be willing to make a miata bumper shaped drop-in ducted vent. that is, in the unlikey chance he's actually willing to listen to the market.
he makes products if he thinks people will buy them. Id put money that if 10 people on here said theyd buy one hed make em.
slutz4 is offline   Reply With Quote
