Old 02-24-2009, 02:45 PM   #121
Senior Member
iTrader: (2)

Join Date: Jun 2007
Location: Shalimar, FL
Posts: 965
Total Cats: 7
Default

Quote:
Originally Posted by hustler View Post
I don't want to hack my ****...i want to make it look like this:

without the nacas.
I think this qualifies for most badass NA out there (at least based on looks). What sort of stuff is used to make that lip? It kinda looks like some landscaping trim, except the edge isn't rounded.
messiahx is offline   Reply With Quote
Old 02-24-2009, 03:09 PM   #122
Junior Member
iTrader: (1)

Join Date: Feb 2009
Posts: 128
Total Cats: 0
Default

Quote:
Originally Posted by messiahx View Post
I think this qualifies for most badass NA out there (at least based on looks). What sort of stuff is used to make that lip? It kinda looks like some landscaping trim, except the edge isn't rounded.
Probably some sort of abs plastic. My buddy did that because he was getting front end lift on the track (130mph +). Got some abs plastic and molded it to the front. Helped greatly.

I like those scoops...anyone know what they could be?
BarrigaNA is offline   Reply With Quote
Old 02-24-2009, 08:21 PM   #123
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

NACA ducts, you can get them lots of places. Pegasus racing carries them and there's some other places but I can't think of them. I'll be doing those in the front eventually for brake ducting. Another in the triangle window for some air to the driver too.
curly is offline   Reply With Quote
Old 02-24-2009, 08:24 PM   #124
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Savington View Post
Because every professionally built racecar on earth doesn't have a huge ******* intercooler in front of the only opening that feeds air to the radiator. Miatas with FMICs need big, high-flow fans. Period.

I think you're overblowing the cooling thing, as usual. Dual low-pro Spals, stock ducting, a reroute and an FM hood will give you all the cooling you'll ever need.
after you ship my stuff to me I'm going to talk an insane amount of **** to you on the internet. Seriously, get the suicide note ready.


I'm going to do the splitter/scooper ****, then see what happens. Hopefully I can make it through a session.
hustler is offline   Reply With Quote
Old 02-24-2009, 08:30 PM   #125
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,323
Default

Quote:
Originally Posted by messiahx View Post
I think this qualifies for most badass NA out there
Someone should buy it, then. The car's been for sale for a few months now. Canadian '94 BRG, fully caged, T3 setup with an AEM and a DO Progressive kit. Gorgeous car. It was my roadster muse when I first bought my car. I codrove it at an autocross last year and it's fast as hell.
Savington is offline   Reply With Quote
Old 02-25-2009, 12:01 AM   #126
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Savington View Post
Someone should buy it, then. The car's been for sale for a few months now. Canadian '94 BRG, fully caged, T3 setup with an AEM and a DO Progressive kit. Gorgeous car. It was my roadster muse when I first bought my car. I codrove it at an autocross last year and it's fast as hell.
How much is it?
hustler is offline   Reply With Quote
Old 02-25-2009, 12:03 AM   #127
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,323
Default

I think he wants 10k for it. Don't recall exactly.
Savington is offline   Reply With Quote
Old 02-25-2009, 12:33 AM   #128
Senior Member
iTrader: (2)

Join Date: Apr 2008
Location: Tallahassee, FL
Posts: 1,378
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
I think he wants 10k for it. Don't recall exactly.
Try to find me that link/listing/where I can get moar info. I may know someone who was looking.
naarleven is offline   Reply With Quote
Old 02-25-2009, 12:38 AM   #129
Elite Member
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

Quote:
Originally Posted by m2cupcar View Post
Me thinks that each car and install is different enough to justify a "try and see if it works" approach. There are various ways to resolve each issue too. I have a big *** radiator and fan which seem to manage my coolant temps quite well in the SE summer heat, in traffic (sans a/c).

Below is an image showing my plans to restructure the interior of the mouth. The top section may be wishful thinking, but the bottom is absolutely feasible. In my case I've got a larger radiator, but even the stock radiator could be lowered some to provide direct exposure to oncoming air by dropping the lower part of the mouth shrouding as pictured.



I agree- that hole just needs an insert with a finished edge
Why do I only see TNa.
Toddcod is offline   Reply With Quote
Old 02-25-2009, 12:42 AM   #130
Elite Member
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

As far as the cut out on Sav's car, You did a good job. I would probably get black door trim and place around the hole to make the edges smooth and uniform.

You may have already done that, I didn't read all 7 pages.
Toddcod is offline   Reply With Quote
Old 02-25-2009, 12:44 AM   #131
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Longs, SC
Posts: 2,583
Total Cats: 13
Default

Quote:
Originally Posted by Toddcod View Post
Why do I only see TNa.
Todd, could you tone down the straightness please? It might offend a few people.
icantthink4155 is offline   Reply With Quote
Old 02-25-2009, 01:16 AM   #132
Junior Member

Join Date: Mar 2008
Location: GJ, CO
Posts: 224
Total Cats: 0
Default

GT3man2001 is offline   Reply With Quote
Old 02-25-2009, 01:37 AM   #133
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I wonder if some straighteners would help move air through the heat exchangers too?

Do we actually have anyone here who's running a sealed/shrouded radiator, without a cut bumper who's seen the track?

GT3man...se the useless metal above your tow hook? Cut that out with a sawz-all and hit the other side too. You'll move lots more air.
hustler is offline   Reply With Quote
Old 02-25-2009, 01:40 AM   #134
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default


I wonder how those NACAs would look painted to match? I could run a 2-hole NACA for the oil cooler and it would be really easy...but will it move enough air for a 24-row 6x10" heat exchanger?
hustler is offline   Reply With Quote
Old 02-25-2009, 01:41 AM   #135
Junior Member

Join Date: Mar 2008
Location: GJ, CO
Posts: 224
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
GT3man...se the useless metal above your tow hook? Cut that out with a sawz-all and hit the other side too. You'll move lots more air.
Never thought of that. I'll be sure to do that this weekend. I have the front bumper off of the car right now for paint.
GT3man2001 is offline   Reply With Quote
Old 02-25-2009, 01:46 AM   #136
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by hustler View Post
I wonder if some straighteners would help move air through the heat exchangers too?

Do we actually have anyone here who's running a sealed/shrouded radiator, without a cut bumper who's seen the track?

GT3man...se the useless metal above your tow hook? Cut that out with a sawz-all and hit the other side too. You'll move lots more air.
I swear you ask so many dumb questions. You seriously don't believe what anybody tells you. 10 ******* engineers that did the aero aspect of the miata could come here and tell you what will improve it and you'd still doubt them.

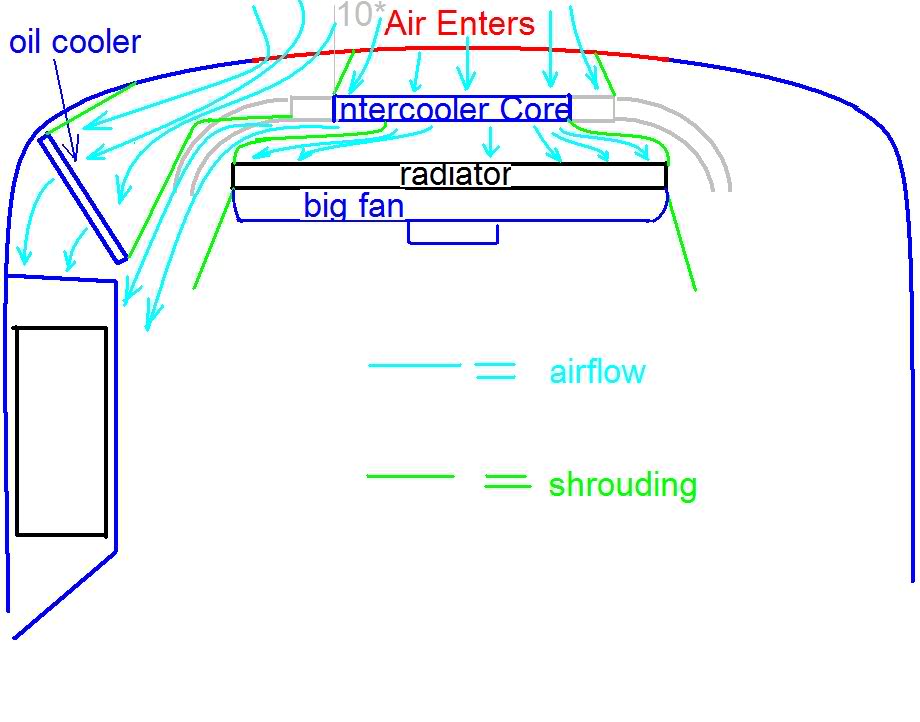

How bout this: Stock radiator, 20x12x3 core IC sealed in front of it with the stock A/C condenser sealed to it. Stock NB shrouding. I can cruise at 70mph all day long A/C blasting and make pulls up to speed and it never thinks about overheating. I can sit idling with A/C on and it's fine. My **** works. I think you should do what I posted earlier with regards to ducting. Maybe others will comment on its effectiveness. Here it is again...
Name:  shrouding.jpg
Views: 6
Size:  61.7 KB
patsmx5 is offline   Reply With Quote
Old 02-25-2009, 01:59 AM   #137
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by patsmx5 View Post
I swear you ask so many dumb questions. You seriously don't believe what anybody tells you. 10 ******* engineers that did the aero aspect of the miata could come here and tell you what will improve it and you'd still doubt them.

How bout this: Stock radiator, 20x12x3 core IC sealed in front of it with the stock A/C condenser sealed to it. Stock NB shrouding. I can cruise at 70mph all day long A/C blasting and make pulls up to speed and it never thinks about overheating. I can sit idling with A/C on and it's fine. My **** works. I think you should do what I posted earlier with regards to ducting. Maybe others will comment on its effectiveness. Here it is again...
i'm following your advice and doing this set-up. However, I'm going to move the oil cooler to the other side of the car for convenience, and I'm putting brake ducts in the air-dam.

Why don't you understand that stomping on the gas in 5th gear is different from tucking behind a train in 2nd and 3rd gear for laps at a time? I'm tearing up the pegasus catalog right now too.
hustler is offline   Reply With Quote
Old 02-25-2009, 02:07 AM   #138
Senior Member
iTrader: (13)

Join Date: Jul 2008
Location: Macon, Ga
Posts: 826
Total Cats: 0
Default

R.S. Aizawa? or my Vary bumper?
REV9 Autosport
Sam Amporful is offline   Reply With Quote
Old 02-25-2009, 02:12 AM   #139
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

I'd be willing to bet that if you did nothing more than put a big ******* fan on that radiator the engine would never overheat. You don't believe this though. But it's the ******* truth. A big 25 or 30A fan will pull so much ******* air through that radiator the car will lurch forward at a red light when it comes on....

Or if you did the shrouding like I showed it wouldn't overheat with stock fans. IMO, adding scoopers and ducts to get more air to the front is a joke. There's plenty of area up there for all the air you need. You don't race at 3 mph. Most of the air that hits the front of the car doesn't go through the mouth. It goes around it. Putting a bigger opening won't do ****. Putting a scooper won't do ****. You have to do things to make air flow. Pressure building up in the engine bay doesn't help flow through the heat exchanger. So adding 4 times more frontal area to the mouth just causes more air to built up under the hood.
patsmx5 is offline   Reply With Quote
Old 02-25-2009, 02:13 AM   #140
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

hustler is offline   Reply With Quote
