Old 01-08-2008, 11:19 PM   #61
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

make a splitter. that's what they are fores
Braineack is offline   Reply With Quote
Old 01-08-2008, 11:39 PM   #62
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

the more I look at this pic, the more I realize I'm going to end up doing something like this:


I think i could trim off the bumper from my previous post, get some aluminum and screw it to the underside of the bumper, in front of the IC, then screw it into the extended copy of the splitter I can trace my my sister's bf's car with the TDR splitter. Its going to be scary when I gut the r-pack air dam.
hustler is offline   Reply With Quote
Old 01-08-2008, 11:40 PM   #63
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

i considered cutting mine up at one time but i would never want to give up or cut up my front air dam



paul is offline   Reply With Quote
Old 01-08-2008, 11:47 PM   #64
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

i think its a pretty safe bet that I'm going to have extreme cooling issues on the track...especially in the 100* tx summers.
hustler is offline   Reply With Quote
Old 01-08-2008, 11:49 PM   #65
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

does anyone here run the BEGi scooper? I keep forgetting I have that thing, but I know I'm going to rip it off on my first track day.
hustler is offline   Reply With Quote
Old 01-09-2008, 12:05 AM   #66
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Savington- I think it looks good.
patsmx5 is offline   Reply With Quote
Old 01-09-2008, 01:19 AM   #67
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

Quote:
Originally Posted by hustler View Post
i think its a pretty safe bet that I'm going to have extreme cooling issues on the track...especially in the 100* tx summers.
Tell you what...before you go hacking ****, get the car running, do some runs on it, and take it to a track, if she starts to get hot, you know you'll have a cooling issue then.


Savington: Use touch up paint on the insides of the cut and it will look slick.
miatamania is offline   Reply With Quote
Old 01-09-2008, 02:38 AM   #68
Senior Member
iTrader: (5)

Join Date: Dec 2007
Location: worcester ma
Posts: 1,124
Total Cats: 0
Default

hey Savington, i think im going to do this soon, any tips?

and please supply more Name:  28.gif
Views: 6
Size:  3.3 KB
urgaynknowit is offline   Reply With Quote
Old 01-09-2008, 02:51 AM   #69
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,052
Total Cats: 8
Default

How many of you serious track guys have considered doing a v-mount setup?
Efini~FC3S is offline   Reply With Quote
Old 01-09-2008, 03:35 AM   #70
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Quote:
Originally Posted by urgaynknowit View Post
hey Savington, i think im going to do this soon, any tips?

and please supply more
Go SLOW. I went just a tiny bit too fast and my cut is a little rough on the top. I also need to do the touch-up paint thing (I have a jar at home, 200 miles away ) I'm using electrical tape right now and it keeps peeling up.

I'll shoot some more photos tomorrow.

Hustler, wait until you actually have cooling issues on track. I'm still running a stock hood, and before adding the new hole and the oil cooler I was seeing stock temp gauge creep and oil temps of 270-275 degrees at Buttonwillow in 110* heat. I guarantee your intercooler is not bigger than mine, too. (27" core) I do have a big radiator, but I still need more airflow. If you run a fair-sized rad, big fans, and a vented hood, I don't think it's gonna matter what IC you have in front of the radiator.
Savington is offline   Reply With Quote
Old 01-09-2008, 09:15 AM   #71
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

or your could use that stick on door edge guard trim stuff. just don't do chrome or gold.
paul is offline   Reply With Quote
Old 01-09-2008, 09:49 AM   #72
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Attached Thumbnails
Your thoughts on the enormous new hole in my bumper.-splitterz.jpg
Braineack is offline   Reply With Quote
Old 01-09-2008, 08:10 PM   #73
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

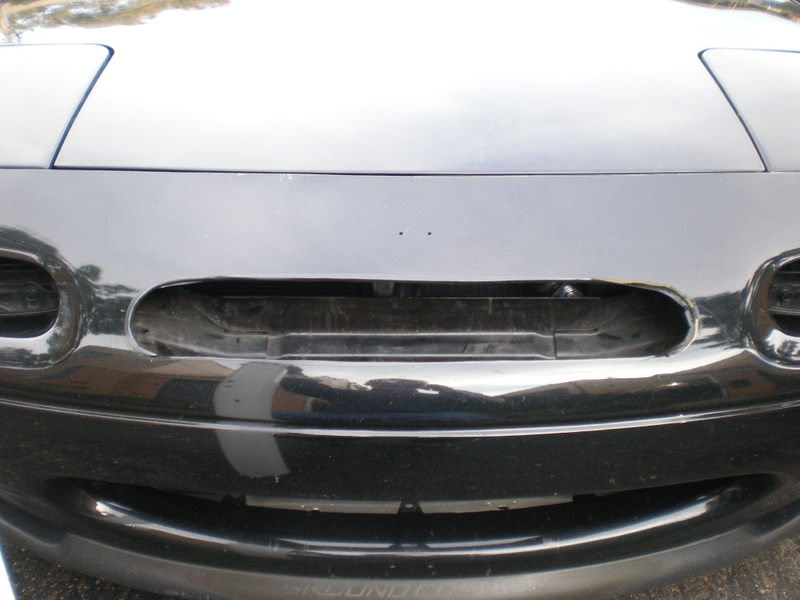

Ask and ye shall recieve:

Name:  DSCN0035.jpg
Views: 6
Size:  51.1 KB

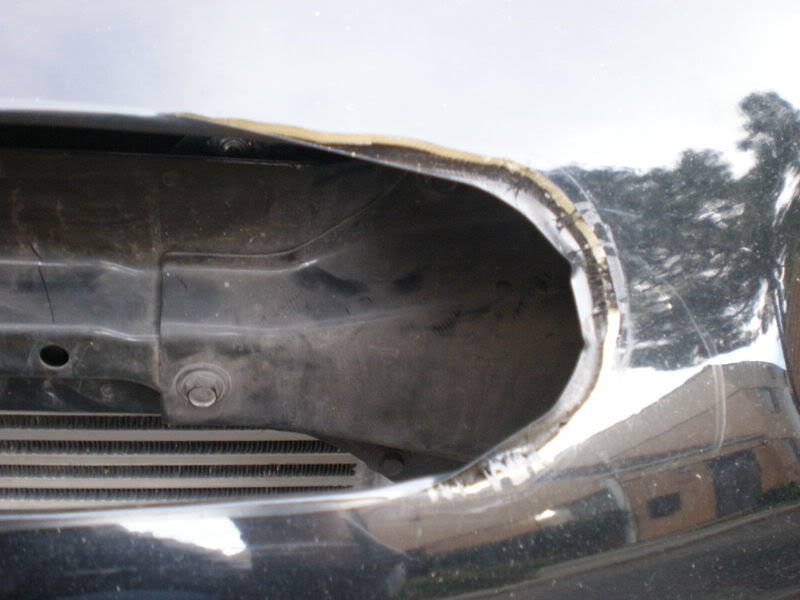

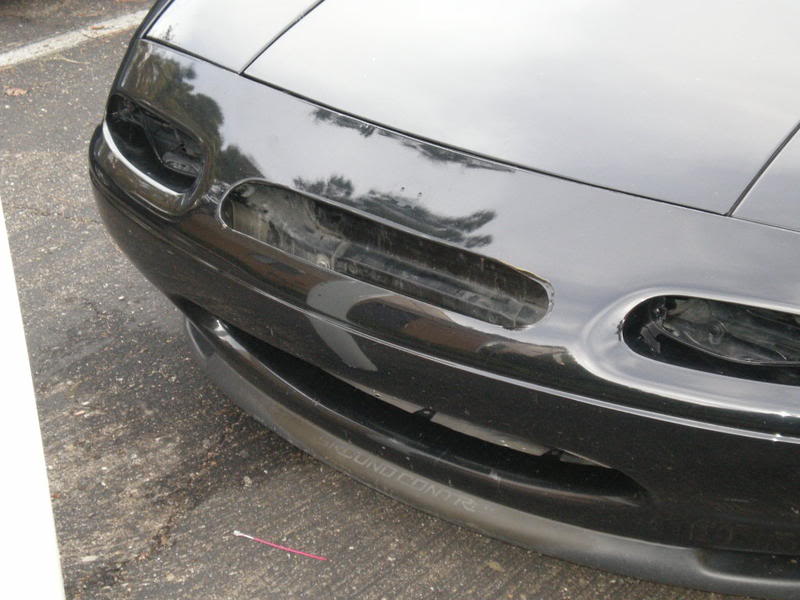

Don't use electrical tape:
Name:  DSCN0036.jpg
Views: 6
Size:  53.4 KB

Name:  DSCN0039.jpg
Views: 6
Size:  65.7 KB

Name:  DSCN0040.jpg
Views: 6
Size:  48.7 KB

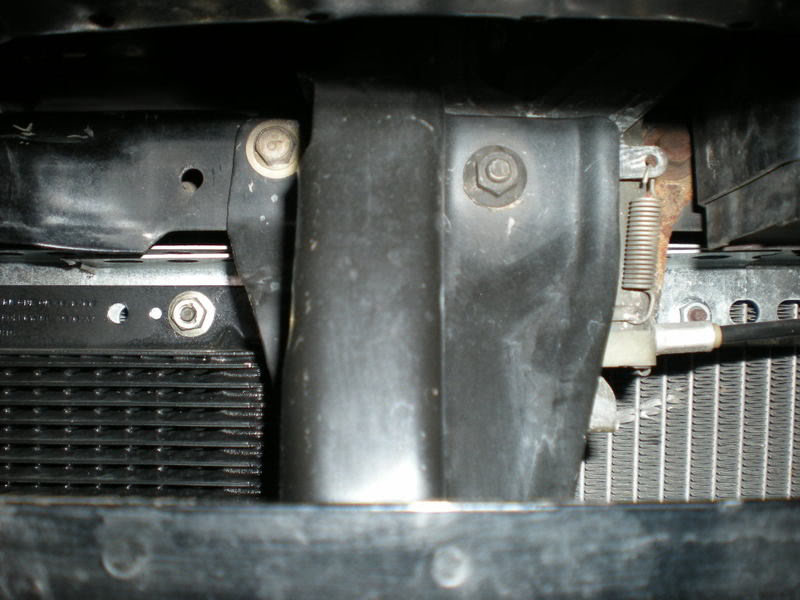

What the hole actually uncovers. You can see the oil cooler to the left and the radiator to the right. Opens up a fair bit of DIRECT airflow to the radiator, which is hard to get with a big intercooler.

Name:  DSCN0038.jpg
Views: 6
Size:  64.3 KB
Savington is offline   Reply With Quote
Old 01-09-2008, 08:37 PM   #74
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Nice, just what ive been waiting for- more sweet sweet photographs.

Hm, i really like that fourth pic looks pretty aggressive. I wonder how it would look with turn signals still in place.
Fireindc is offline   Reply With Quote
Old 01-09-2008, 09:11 PM   #75
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
the more I look at this pic, the more I realize I'm going to end up doing something like this:

what type of lights will fit beneath that plastic where the pop-ups were?
and huster those all look good, but will take major work to make look good, e.g. lots of bondo
mazda/nissan is offline   Reply With Quote
Old 01-09-2008, 10:36 PM   #76
Senior Member

Join Date: Sep 2007
Location: Alamo City, Tejas
Posts: 774
Total Cats: 1
Default

Quote:
Originally Posted by Savington View Post
Hustler, wait until you actually have cooling issues on track. I'm still running a stock hood, and before adding the new hole and the oil cooler I was seeing stock temp gauge creep and oil temps of 270-275 degrees at Buttonwillow in 110* heat. I guarantee your intercooler is not bigger than mine, too. (27" core) I do have a big radiator, but I still need more airflow. If you run a fair-sized rad, big fans, and a vented hood, I don't think it's gonna matter what IC you have in front of the radiator.
+1

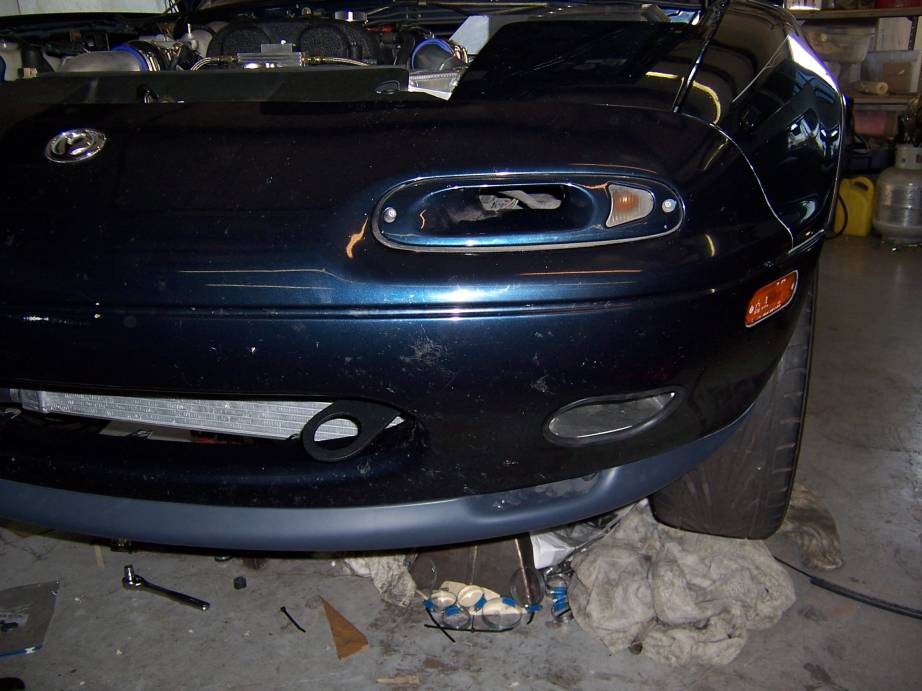

When Corky and I were planning the ducting for the heat-exchangers on my car, his expressed rule of thumb was a 1:8 ratio, opening to exchanger surface area.

Considering the abuse I have planned for my car, I expect you should have more than enough *potential* air coming into the bay. But like your engine, air won't get in if it can't get out...

(Note-1: The ducting has yet to be installed, as well as the hood vents.)
(Note-2: The hole next to the "standard" radiator duct is for the oil-cooler.)

- L
Attached Thumbnails
Your thoughts on the enormous new hole in my bumper.-snout-01.jpg
l_bader is offline   Reply With Quote
Old 01-10-2008, 12:21 AM   #77
Newb

Join Date: Nov 2006
Posts: 27
Total Cats: 0
Default

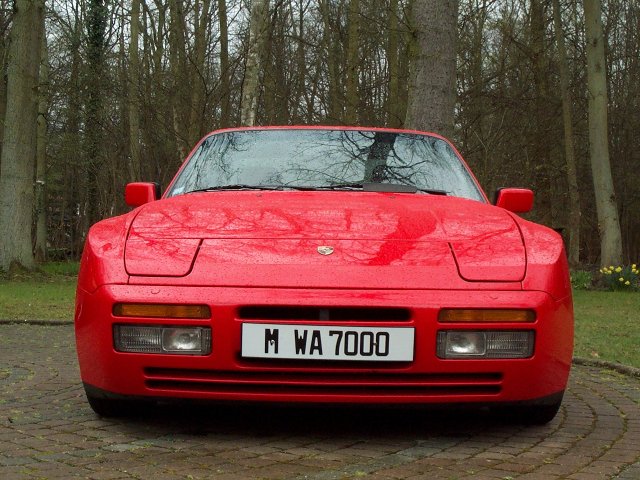

Used to own an 86 Porshe 944 turbo. Always thought that slot in the nose might look good on the Miata. Be great if Racing beat or someone else would develope a replacement nose that incorporated it.
Attached Thumbnails
Your thoughts on the enormous new hole in my bumper.-944-turbo.jpg
mx5jon is offline   Reply With Quote
Old 02-23-2009, 08:55 AM   #78
Junior Member
iTrader: (1)

Join Date: Jul 2006
Location: Colorado
Posts: 403
Total Cats: 2
Default

Quote:
Originally Posted by Chris Swearingen View Post
I like it. Even did mine too. I agree that screen is counter productive. I am looking for some moulding to go around the edges. I am going to put the turn signals back in though.
back from the dead.....

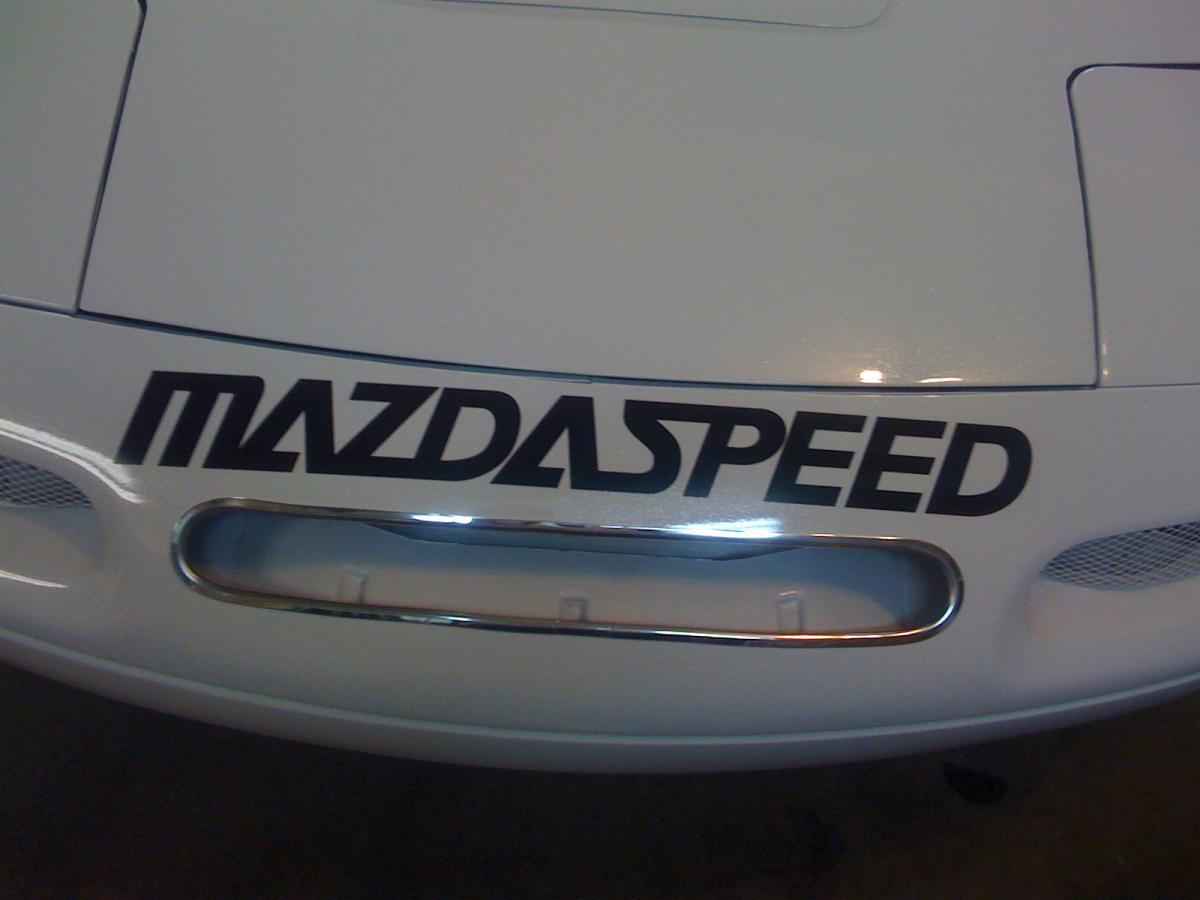

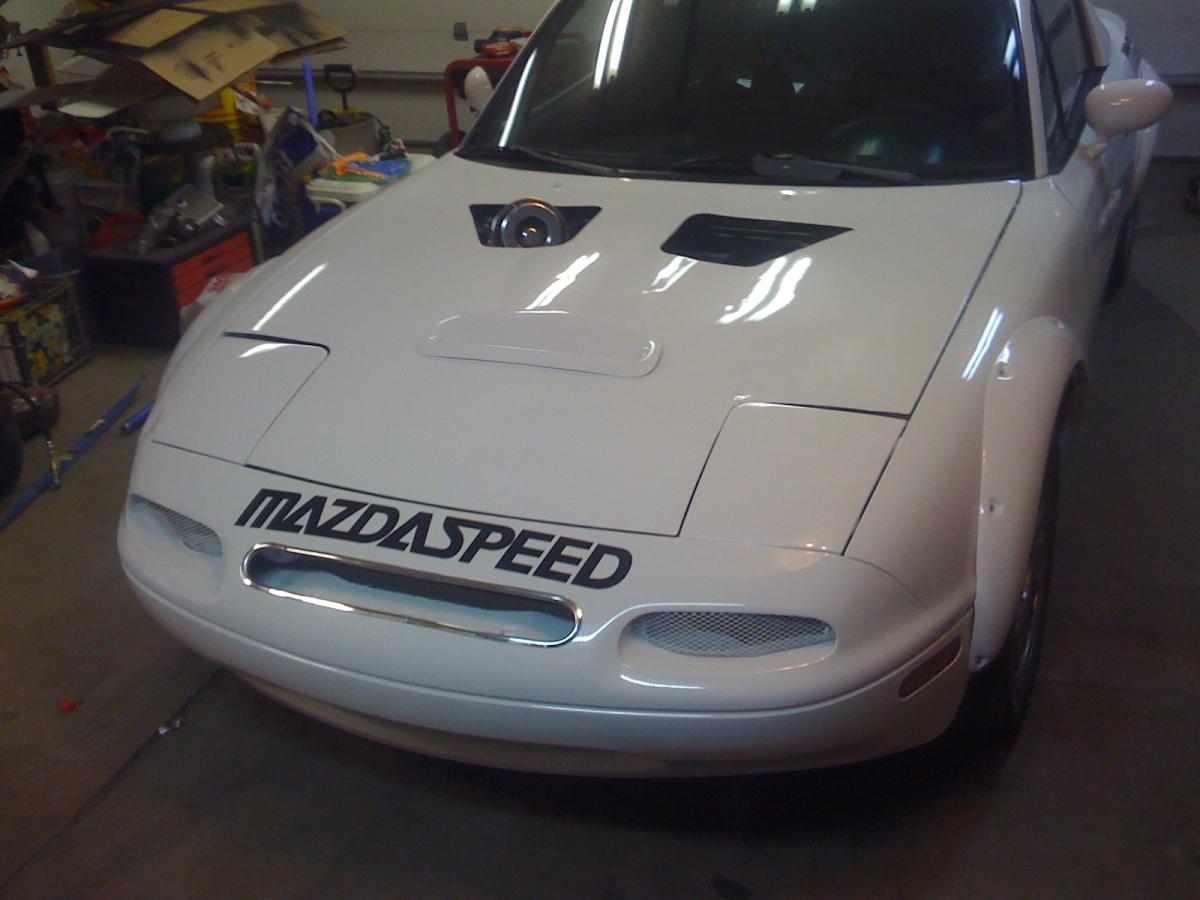

I finally found some moulding I like the looks of. Pep boys special Chrome truck door edge moulding. Come in a long package with two 46" strips. Which just happens to be about 3/4" too short to go all the way around mine.
Attached Thumbnails
Your thoughts on the enormous new hole in my bumper.-nose-009.jpg   Your thoughts on the enormous new hole in my bumper.-nose-011.jpg
Chris Swearingen is offline   Reply With Quote
Old 02-23-2009, 09:38 AM   #79
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,684
Total Cats: 1,562
Default

I can't believe that you resurrected a 13-14 month old thread for that ghastly bit of chrome trim.

You should have bought the chromed plastic wheel covers to match.
sixshooter is online now   Reply With Quote
Old 02-23-2009, 09:43 AM   #80
Junior Member
iTrader: (1)

Join Date: Jul 2006
Location: Colorado
Posts: 403
Total Cats: 2
Default

Quote:
Originally Posted by sixshooter View Post
I can't believe that you resurrected a 13-14 month old thread for that ghastly bit of chrome trim.

You should have bought the chromed plastic wheel covers to match.
Actually I looked and pep boys was out of the Spinner ones.
Chris Swearingen is offline   Reply With Quote
