Old 11-23-2009, 05:40 PM   #201
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

he needs to shill 1600 more images of various other projects first.
Braineack is offline   Reply With Quote
Old 11-23-2009, 06:46 PM   #202
Junior Member

Join Date: Jul 2009
Posts: 89
Total Cats: 0
Default

It will be something we have already fixtured up and to buy, however it is possible it will be a proprietary item for some other company to sell (it will still have my name on it though).

I can't lie, actual intake manifolds are still many moons away however ITB setups are much closer to reality at the moment

-James
BMCRace is offline   Reply With Quote
Old 11-23-2009, 07:17 PM   #203
Junior Member

Join Date: Jul 2009
Posts: 89
Total Cats: 0
Default

What slows us down the most is, depart from how much we would like to be, we are not a automotive ONLY shop. Right now nearly 75% of our income is coming from the oil industry due to sales being so low on our own product line (automotive parts). This ends up eating up obviously 75% of our time leaving us with very little time to actually develop new parts, instead what time we have left over is primarily spent on producing our already existing product line.

So short summary:
We are to busy working on other things that aren't even car related to get to anything soon at all at the moment.
BMCRace is offline   Reply With Quote
Old 11-23-2009, 09:57 PM   #204
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

This^^^^ This right here^^^^ Its gay.
leatherface24 is offline   Reply With Quote
Old 11-23-2009, 10:02 PM   #205
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by leatherface24 View Post
this^^^^ this right here^^^^ its gay.
qft
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 11-23-2009, 10:09 PM   #206
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

Search your feelings luke...you know it be true.
leatherface24 is offline   Reply With Quote
Old 11-24-2009, 12:00 AM   #207
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Thumbs down

Quote:
Originally Posted by BMCRace View Post
What slows us down the most is, depart from how much we would like to be, we are not a automotive ONLY shop. Right now nearly 75% of our income is coming from the oil industry due to sales being so low on our own product line (automotive parts). This ends up eating up obviously 75% of our time leaving us with very little time to actually develop new parts, instead what time we have left over is primarily spent on producing our already existing product line.

So short summary:
We are to busy working on other things that aren't even car related to get to anything soon at all at the moment.
wow i just slit my wrists because of you.
Faeflora is offline   Reply With Quote
Old 11-24-2009, 12:12 AM   #208
Junior Member

Join Date: Jul 2009
Posts: 89
Total Cats: 0
Default

This includes even the Honda Intake manifolds.

The intake manifolds are a very new endeavor for us and thats why it is taking so much time to work out good designs, while being cost effective to reproduce. This is not just limited to our work on the Miata's, we have been working at this B Series Intake for close to 6 months now and it is just finally nearing its completion.
BMCRace is offline   Reply With Quote
Old 11-24-2009, 12:18 AM   #209
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Ya.... just because its affecting honda intake manifolds too doesn't make us any less restless... No chance in hell I'm waiting another 6 months for you to "just now" finish a miata manifold.
neogenesis2004 is offline   Reply With Quote
Old 11-24-2009, 12:22 AM   #210
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

There's other options out there.
JayL is offline   Reply With Quote
Old 11-24-2009, 12:24 AM   #211
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

That's my point exactly Jay.
neogenesis2004 is offline   Reply With Quote
Old 11-24-2009, 12:24 AM   #212
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Quote:
Originally Posted by JayL View Post
There's other options out there.
Flipside FTW...no reason to wait around guys....


Cspence is offline   Reply With Quote
Old 11-24-2009, 12:26 AM   #213
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Quote:
Originally Posted by Cspence View Post
Flipside...no reason to wait around guys....
That's who built mine.
JayL is offline   Reply With Quote
Old 11-24-2009, 12:34 AM   #214
Junior Member

Join Date: Jul 2009
Posts: 89
Total Cats: 0
Default

This is an endurance race for us, not a sprint. We have to take everything in time. I wish that I was the owner of BMCRace and could make the things that I want to happen as fast as I wanted however I can't and all I can do is make suggestions to those who can.

BMC is owned by my father, whom is 50years old now. I just work here and help with design and do all the fabrication, however he is the machinist and without him to produce the parts I need it would take much longer.

If yall want a quick fix, I can order spun velocity stacks from velocity-of-sound, I can chop your head flanges off, sand blast them and regrind them. I can use my plasma cutter and cut out the plenum pieces and patch everything together, it will be no different than the manifold yall posted above. However if you want something more it will take time for Sam to produce the necessary parts for me to fabricate it.

For reference time, if I was to chop the head flange, and hand build everything it would take about 3 days per manifold. There would be zero waiting on the machinist....

If it would be better for me to provide this as a service rather than develop a new part for your community let me know, as obviously it would be a quicker route for yall...

-James
BMCRace is offline   Reply With Quote
Old 11-24-2009, 03:54 AM   #215
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

What would be the price of above manifold?
ARTech is offline   Reply With Quote
Old 11-24-2009, 04:24 AM   #216
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Quote:
Originally Posted by Cspence View Post
Flipside FTW...no reason to wait around guys....
Can Flipside show me a CAD drawing with CFD data that guarantees I'm not melting another $2500 shortblock due to starving number 1 or number 4? Nobody with an IM on the market today seems to be able to give me this guarantee. There is a whole lot more to making these things than sticking a set of stacks inside a plenum, slapping a throttle body on it, and calling it a day. You can very, very easily design a manifold that will create scrap metal of every motor you attach it to.

That's not to say Flipside's pieces are bad - they are well-made and I've never heard of anyone having a problem with one. My point is that if you haven't done the modeling and analysis, you have no idea what you're bolting to your motor. There was a thread about this a while ago, and it was clear that it's really, really easy to **** this up.
Savington is offline   Reply With Quote
Old 11-24-2009, 04:50 AM   #217
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,481
Total Cats: 3
Default

standing by for pictures of what was supposed to be my intake/itb setup

one lucky local son of a bitch will get it for free. who will that be..?
UrbanSoot is online now   Reply With Quote
Old 11-24-2009, 04:53 AM   #218
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Quote:
Originally Posted by Savington View Post
Can Flipside show me a CAD drawing with CFD data that guarantees I'm not melting another $2500 shortblock due to starving number 1 or number 4? Nobody with an IM on the market today seems to be able to give me this guarantee. There is a whole lot more to making these things than sticking a set of stacks inside a plenum, slapping a throttle body on it, and calling it a day. You can very, very easily design a manifold that will create scrap metal of every motor you attach it to.

That's not to say Flipside's pieces are bad - they are well-made and I've never heard of anyone having a problem with one. My point is that if you haven't done the modeling and analysis, you have no idea what you're bolting to your motor. There was a thread about this a while ago, and it was clear that it's really, really easy to **** this up.

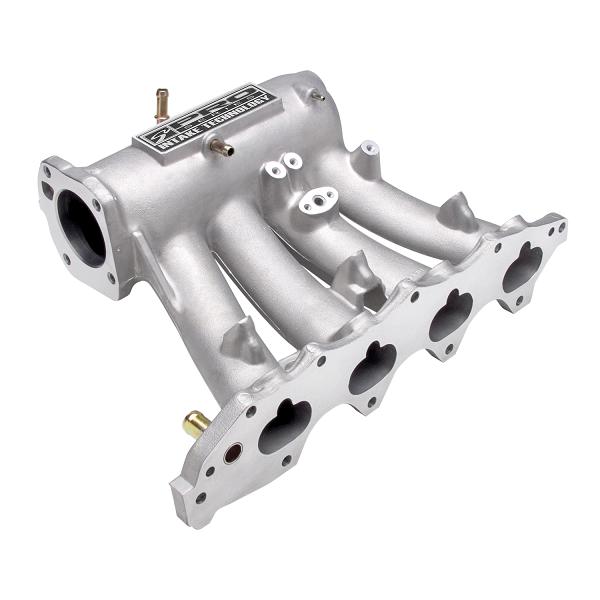

Thats why you just take an aftermarket Edelbrock or Skunk2 Honda B-series manifold (which has very similar port spacing to the BP), and put a BP flange on it.



Full_Tilt_Boogie is offline   Reply With Quote
Old 11-24-2009, 12:50 PM   #219
Junior Member

Join Date: Jul 2009
Posts: 89
Total Cats: 0
Default

Quote:
Originally Posted by ARTech View Post
What would be the price of above manifold?
For me to build an intake manifold from your original factory manifolds, I would have to charge $550 shipped back to you.

All the things I would do would be:
Cut off your factory head flange from the manifold, plane flat on our belt sander the weld surface, then sandblast to clean up and prep for weld.
150mmx45mm spun velocity stack Velocity Stacks
Had fabricated sheet plenum constructed from 1/8" wall 6061
New CNC Machined throttlebody flange (to recycle the original off the factory manifold would take as long as to machine a new one)
All items TIG welded, then flange surfaces planed flat a final time to insure proper sealing
Final Debur and Port Matching the velocity stacks to the head flange to massage out any minor imperfections

To keep the longest straight runner possible while not taking up to much room in the engine bay I will utilize a raised runner design (where the velocity stack is higher than the floor/base of the plenum)

All work should net 3-7 days eta from when I receive your manifold to when it ships back to you.

I would construct stencils and templates on my end to keep these easily repeatable...

As you may notice this is $150 less than my projected price for the manifolds we are already intending on bringing to the Miata scene, however this option is available as an immediate remedy for whomever might not want to wait for our developed product.

I could even offer polishing services for both the intake manifold and your fuel rails.
BMCRace is offline   Reply With Quote
Old 11-24-2009, 06:36 PM   #220
Junior Member

Join Date: Jul 2009
Posts: 89
Total Cats: 0
Default

And here is the FINALLY FINISHED! B Series Sheet Metal Intake Manifold.

I will finally be getting onto the Miata Manifolds now!


















Ohh yeah if you want to know what the inside looks like look below



BMCRace is offline   Reply With Quote
