Quote:
Originally Posted by BMCRace View Post
It was a quick little itb setup I did for the 1.8

If anyone is interested in a 1.8 intake manifold we already have the head flange instock so I could build one very quickly.

Pricing is $700 shipped to anywhere in the USA
What type of design? Do you have any other similar designs you could post? thanks
Faeflora is offline   Reply With Quote
Old 12-02-2009, 11:25 PM   #262
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

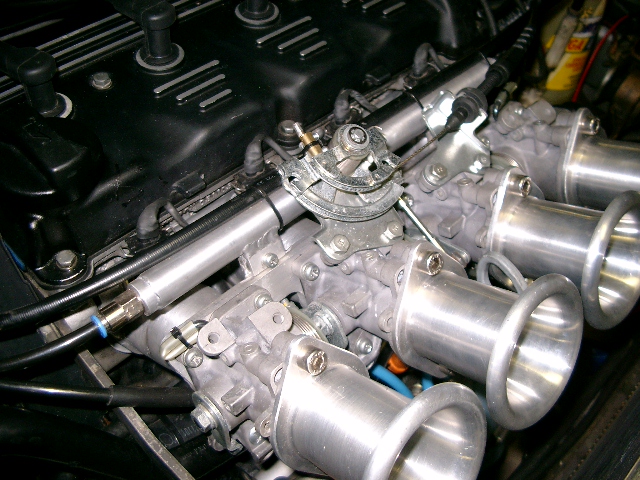

Name:  imgp1616.jpg
Views: 4
Size:  248.4 KB

It looks like they may be seperable.
Nagase is offline   Reply With Quote
Old 12-02-2009, 11:30 PM   #263
Senior Member
iTrader: (2)

Join Date: Oct 2007
Location: Northeastern CT
Posts: 547
Total Cats: 2
Default

a stock mustang TB is 65mm, but i'd imagine you could cut the flange for one of the larger aftermarket versions and it wouldnt make any difference. (assuming the bolt pattern is the same.) i dont think many people here really NEED much larger than a 65mm throttle body, considering most of us are running stock ~54mm throttles...
therieldeal is offline   Reply With Quote
Old 12-02-2009, 11:41 PM   #264
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

It's hard to say. I don't think anyone has flow tested the throttle and intake manifold seperately to see which is the restriction at X horsepower.

The 65mm should flow about 45% better than the 54...

But again, without empirical testing, it's impossible to draw any conclusions. Could the people that have the programs that simulated the air flow in the manifolds give this a shot maybe?
Nagase is offline   Reply With Quote
Old 12-03-2009, 09:56 AM   #265
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

Quote:
Originally Posted by therieldeal View Post
IMO a ford 4.6 throttle body would be best, they are big, cheap, and easy to come by. they also have a standard 0-5v tps, and you can get them with a built in idle valve depending on the source vehicle.

In my experience, the Ford TBs have the weakest clock-spring in the world. So two things can happen, one the throttle doesn't close fast/good, and two it's so light that if your car bounces if pretty ridiculous when you end up stabbing the pedal.

I also still think a 60mm honda TB would be worlds above a 54mm stock TB. Not only is 60mm a 20% larger flow area, the shaft, from the factory, is designed to have flat edges and are less 'obtrusive' than the miata's shaft, providing even more flow area. Not to mention they are cheap as hell, can be ported for cheap at maxbore.com, you can go for a 65mm ITR TB, and they should come with idle vales, linkage, and TPSs that you can utilize easily.

honda:
miata:
Braineack is offline   Reply With Quote
Old 12-03-2009, 10:10 AM   #266
Junior Member
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Wink

I'm thinking of buying an ebay im and modify the flange. What is your opinion?
The cost is extremely low if you consider that for a custom aluminum manifold here in Greece costs 600-700 dollars.
I am sure that I havent reinvented the wheel but it's an idea for the low budget bitches.
Something like this maybe

High Flow Air Intake Manifold Honda D series Civic CRX:eBay Motors (item 150392977810 end time Dec-05-09 14:40:02 PST)
gianic is offline   Reply With Quote
Old 12-03-2009, 10:20 AM   #267
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

Braineack is offline   Reply With Quote
Old 12-03-2009, 10:42 AM   #268
Junior Member

Join Date: Jul 2009
Posts: 89
Total Cats: 0
Default

If yall would like that as a very budget option I can do that for yall.

Just send me what ever manifold you would like mounted to the miata head flange (either you supply or we can supply the head flange) and we can cut, weld, and even do the final port work if yall would like. For a very straight forward cut off the honda manifold weld it to a miata flange would cost $200 shipped back to you (not including the cost of the flange). You could use your factor Miatas head flange vs buying one of ours as well to save even more.

I am all about budget and finding a nice niche that works good for everyone. If I can provide a service that is a nice alternative then it does good for both of us.

-James
BMCRace is offline   Reply With Quote
Old 12-03-2009, 10:43 AM   #269
Junior Member
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

Wow, these runners are huge! But is this going to flow better than stock bp?
gianic is offline   Reply With Quote
Old 12-03-2009, 10:49 AM   #270
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

Those are 9" runners and, on the honda, probably makes the best power at 4000-7000, anything shorter probably makes best power at 7000-10000. You'll also need to cut off a few good inches, and if you fit it to a 1.6L flange, you'll need to cut the runners off leaving about 3" of stock runners so factor that in.
Braineack is offline   Reply With Quote
Old 12-03-2009, 10:55 AM   #271
Junior Member
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

I will use the stock bp flange for sure. So do you think this is the best cheap manifold money can buy to make my experiments?
gianic is offline   Reply With Quote
Old 12-03-2009, 11:07 AM   #272
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

the blox seems to be the cheapest, of you can go with an edelbrock one. performer or victory X
Braineack is offline   Reply With Quote
Old 12-03-2009, 06:32 PM   #273
Junior Member

Join Date: Jul 2009
Posts: 89
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
Those are 9" runners and, on the honda, probably makes the best power at 4000-7000, anything shorter probably makes best power at 7000-10000. You'll also need to cut off a few good inches, and if you fit it to a 1.6L flange, you'll need to cut the runners off leaving about 3" of stock runners so factor that in.

The runner length on our Miata 1.6L manifold are 9.5", we are really trying to get yall some good mid range power.

-James
BMCRace is offline   Reply With Quote
Old 12-03-2009, 07:22 PM   #274
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

Quote:
Originally Posted by BMCRace View Post
The runner length on our Miata 1.6L manifold are 9.5", we are really trying to get yall some good mid range power.

-James
"midrange" on a high powered miata with an intake manifold is 5500-7000.
y8s is offline   Reply With Quote
Old 12-07-2009, 05:01 PM   #275
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Huh yeah the honda TB sounds like a win.
AbeFM is offline   Reply With Quote
Old 01-12-2010, 11:20 AM   #276
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

we had him do all the work and then this died lol
leatherface24 is offline   Reply With Quote
Old 01-12-2010, 11:46 AM   #277
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

Quote:
Originally Posted by leatherface24 View Post
we had him do all the work and then this died lol
see post #201.
Braineack is offline   Reply With Quote
Old 01-12-2010, 11:49 AM   #278
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

LOL well he hasnt even done that anymore
leatherface24 is offline   Reply With Quote
Old 01-12-2010, 11:56 AM   #279
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Blahhhhhhhhh comeon someone put a 1.8 mani on the market.
Faeflora is offline   Reply With Quote
Old 01-12-2010, 12:05 PM   #280
Senior Member
iTrader: (5)

Join Date: Apr 2008
Location: VA
Posts: 828
Total Cats: -2
Default

Quote:
Originally Posted by faeflora View Post
blahhhhhhhhh comeon someone put a 1.8 mani on the market.
+1, wtf
thymer is offline   Reply With Quote
