Old 05-19-2014, 09:06 AM   #41
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,805
Total Cats: 494
Default

I use Unigraphics at work. If I wouldn't get fired immediately, I'd show you gays some pictures of the gigantic printers we use for making but... er... orthopedic implant prototypes.
Monk is offline   Reply With Quote
Old 05-19-2014, 09:32 PM   #42
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

You should make us all MakerBots with it

Attached Thumbnails
I've acquired a new toy. :D-gvmxmye.jpg
EO2K is offline   Reply With Quote
Old 05-19-2014, 09:49 PM   #43
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

18psi is offline   Reply With Quote
Old 05-21-2014, 05:38 PM   #44
Senior Member
Thread Starter

Join Date: Mar 2011
Location: South Chicago
Posts: 701
Total Cats: 26
Default

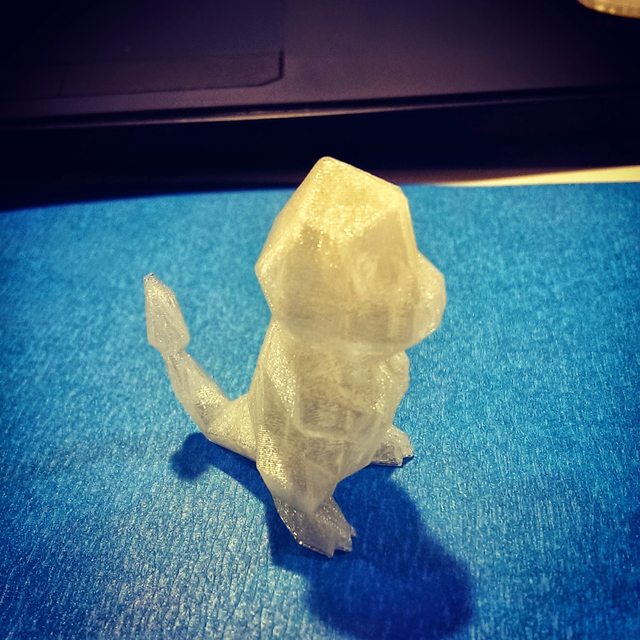

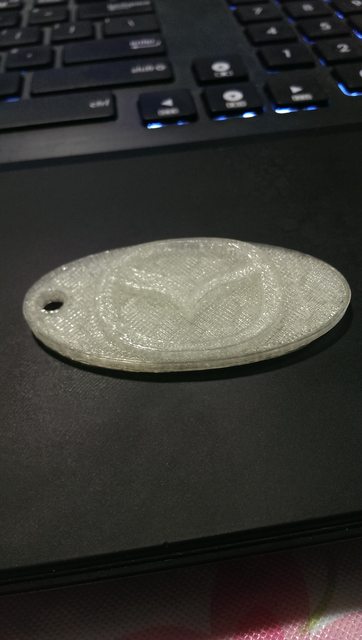

So I've been toying around and printing random things I find on ThingVerse.com.

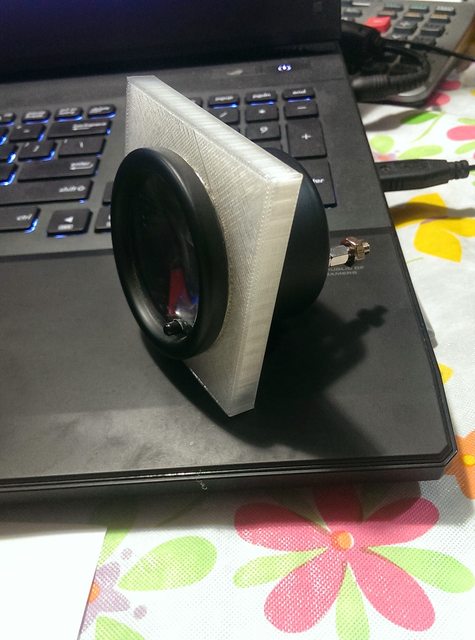

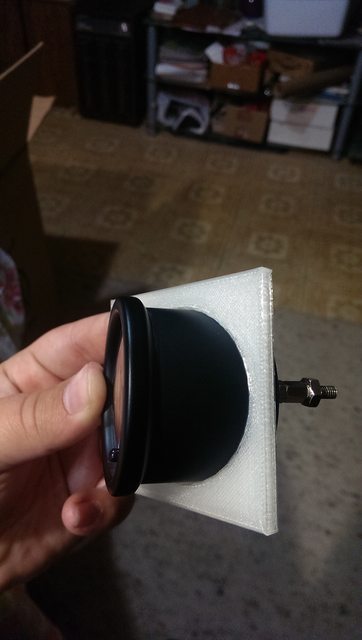

Then I decided I want to try designing something on my own. So Made a simple square that has a 52.5mm hole making it the perfect size for a gauge.

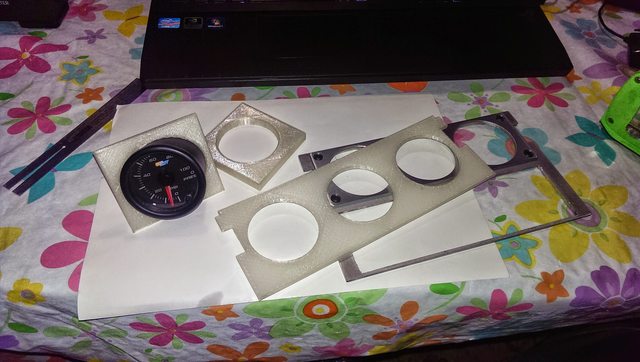

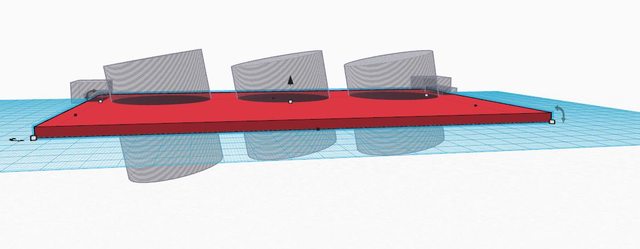

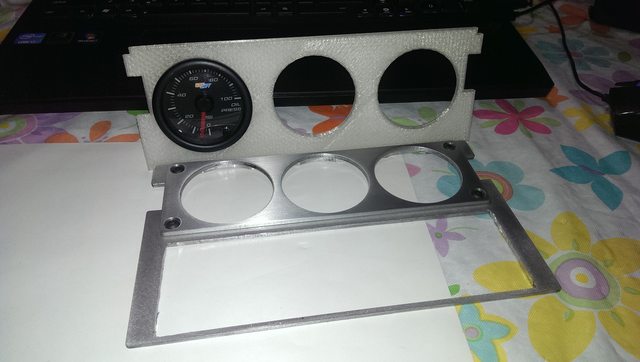

Then I thought I'd take a crack at making a entire center console piece. Mostly going off the design of this !nJoy gauge plate I purchased a long time ago. Except I angled the gauge holes 10 degrees toward the driver.

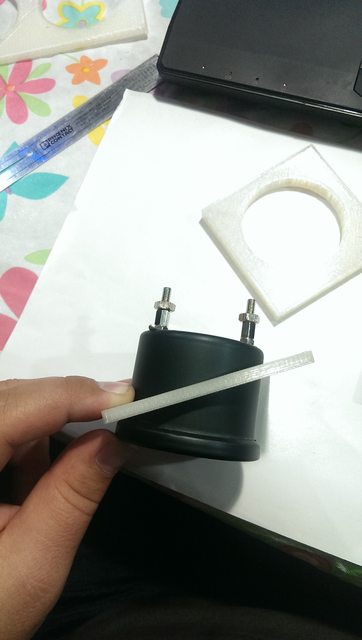

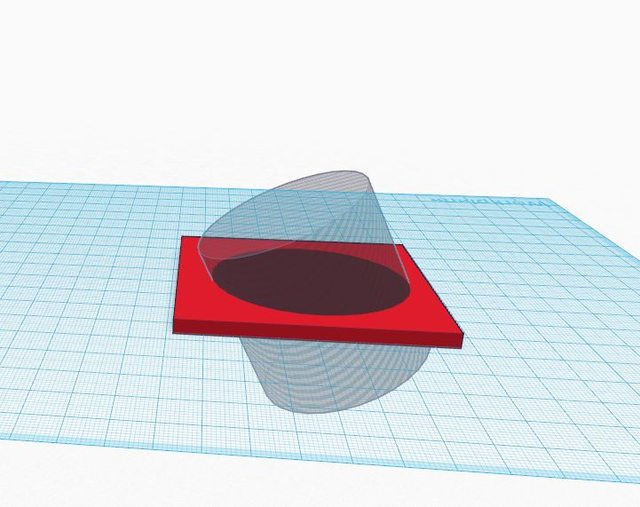

I discovered that a 10 degree angle was not going to be enough to make much of a difference in how the gauge seats inside the bezel. So i figured I'd try something more like a 30 degree angle.

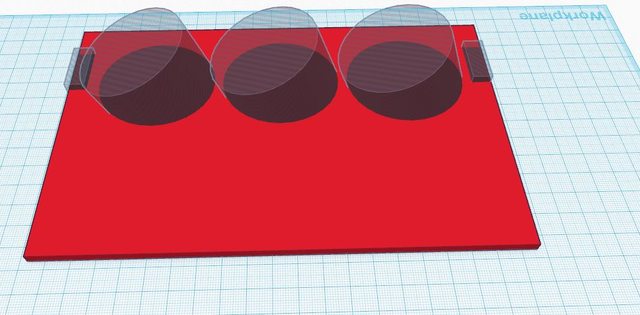

This angle should actually work. But now I need to figure out how to create a sort of rounded bezel for the opposite side of the gauge hole so it sits flush.





I've been learning as I go. Not to bad I think for only really getting into this for 3 days now. I've been trying out a few different cad software and learning the differences. Some are super simple, some are super in-depth, so it's going to be a while till I get a hold on really designing something intricate.

Kudos to Makerbot for their awesome product and software. I really haven't ran into any issues setting the machine up and starting printing. There's been some trial and error figuring out proper print settings and sometimes my prints aren't sticking to the build plate which can wreak havoc as the print head tries to still keep printing. But generally, this thing is pretty ******* awesome. Printing is really the easiest part, it's the designing etc that's getting to be a little overwhelming.

I'm going to work on the design of my center console piece a little more and try a few more prints and hopefully iron out some of the roughness in the design. Once I get something that's workable I'll post up the download for my design for anyone else to try if they want.
Attached Thumbnails
I've acquired a new toy. :D-qkzduvzl.jpg   I've acquired a new toy. :D-kwssdlul.jpg   I've acquired a new toy. :D-objil1cl.jpg   I've acquired a new toy. :D-nbepnpcl.jpg   I've acquired a new toy. :D-facbssxl.jpg

I've acquired a new toy. :D-epiwwxml.jpg   I've acquired a new toy. :D-awwgiwtl.jpg   I've acquired a new toy. :D-ihgq1mgl.jpg   I've acquired a new toy. :D-5afc4wel.jpg   I've acquired a new toy. :D-om1rv4kl.jpg

I've acquired a new toy. :D-ubaqtc1l.jpg
Mazduh is offline   Reply With Quote
Old 05-21-2014, 09:59 PM   #45
Junior Member
iTrader: (3)

Join Date: Mar 2014
Location: North Houston
Posts: 77
Total Cats: 0
Default

That makes me want one so badly. I have the 3D knowledge to create the parts, I just need to have the hardware to print. Any thoughts on how hard it will be to clean up and get a presentable finish from the parts you make? Just some sanding or will body filler be required?
TheProfessor is offline   Reply With Quote
Old 05-21-2014, 11:19 PM   #46
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,687
Total Cats: 216
Default

Very cool.
I wonder if you could have a sleeve extend off of that plate so the gauge bezel was flush with it.
Kinda hard to describe. I almost want to boot up sketchup and try to make it.

Id really like to even just have soemthing that could CNC cut flat stuff. Like a CNC router or laser cutter. Just being able to cut stuff out of plastic and aluminum sheets would be so awesome.
Full_Tilt_Boogie is offline   Reply With Quote
Old 05-21-2014, 11:41 PM   #47
Senior Member
Thread Starter

Join Date: Mar 2011
Location: South Chicago
Posts: 701
Total Cats: 26
Default

Quote:
Originally Posted by ibange View Post
That makes me want one so badly. I have the 3D knowledge to create the parts, I just need to have the hardware to print. Any thoughts on how hard it will be to clean up and get a presentable finish from the parts you make? Just some sanding or will body filler be required?
Depends on the object. Edges and rounded sides come out pretty smooth. It doesn't help that I'm using clear filament either. I'm just using what came with. It's flat surfaces that come out textured but you could totally sand it. I've been seeing a lot of guys filling it with thin layers of bondo then sand it down and paint.


If any of you guys wanna take a stab at making something go ahead and just send me the .stl file and I'll load it into makerware and see if it will print. Just keep in mind that complex objects or a lot of surface space takes a long time to print so for trial and error type pieces leave out useless material till we have a finalized design. Also keep in mind size, prints can only be about 11"x6"x6".
Mazduh is offline   Reply With Quote
Old 05-21-2014, 11:46 PM   #48
Senior Member
Thread Starter

Join Date: Mar 2011
Location: South Chicago
Posts: 701
Total Cats: 26
Default

Here's a link to my current project:

https://docs.google.com/file/d/0B4CwTecU5ESeQWN3TlE2allSSnc/edit?usp=docslist_api
Mazduh is offline   Reply With Quote
Old 05-22-2014, 01:15 AM   #49
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,482
Total Cats: 3
Default

Here is money making idea for you - print a squaretop manifold! I've been seriously considering buying a 3D printer for past couple of weeks. There are just so many things I want to prototype!
UrbanSoot is offline   Reply With Quote
Old 05-22-2014, 02:21 AM   #50
Junior Member
iTrader: (3)

Join Date: Mar 2014
Location: North Houston
Posts: 77
Total Cats: 0
Default

I might take you up on that... I will have to give some thought to what needs the process the worst. I tend to think in terms of the tools I have on hand so I haven't thought in terms of "what could I 3D print" just yet. Maybe I can come up with something useful for all the miata owners out there.
TheProfessor is offline   Reply With Quote
Old 05-22-2014, 03:05 AM   #51
Senior Member
Thread Starter

Join Date: Mar 2011
Location: South Chicago
Posts: 701
Total Cats: 26
Default

Quote:
Originally Posted by ibange View Post
I might take you up on that... I will have to give some thought to what needs the process the worst. I tend to think in terms of the tools I have on hand so I haven't thought in terms of "what could I 3D print" just yet. Maybe I can come up with something useful for all the miata owners out there.
Fine by me. It doesn't cost me much to print something other then the filament material which is about $30 a spool which so far I've been printing tons of stuff and barely made a dent in my current spool. If you actually want the item I'd only ask for some cash to ship it.
Mazduh is offline   Reply With Quote
Old 05-22-2014, 03:52 AM   #52
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

In 4 printed *****.
Doppelgänger is offline   Reply With Quote
Old 05-22-2014, 09:49 AM   #53
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by UrbanSoot View Post
Here is money making idea for you - print a squaretop manifold! I
Quote:
Originally Posted by Mazduh View Post
Also keep in mind size, prints can only be about 11"x6"x6".
That said, the guy who doesn't know much at all about this sort of filament-based printer asks the following: putting aside dimensional concerns (that's what epoxy is for), are there any materials which can be squirted out of these devices that would genuinely be suitable for creating something like an intake manifold, which is subjected to high temperatures and great physical stress?
Joe Perez is offline   Reply With Quote
Old 05-22-2014, 11:25 AM   #54
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Doppelgänger is offline   Reply With Quote
Old 05-22-2014, 11:32 AM   #55
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,805
Total Cats: 494
Default

Possibly Objet High Temperature Material? Here's a link to physical specs: edit*Herp-a, derp-a derp-a OOOOOOOOOH - Cheezburger
Not sure if 167-176 degrees is a high enough HDT (heat distortion temperature) for an intake.

Last edited by Monk; 05-22-2014 at 12:21 PM.
Monk is offline   Reply With Quote
Old 05-22-2014, 11:36 AM   #56
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,805
Total Cats: 494
Default

Quote:
Originally Posted by Doppelgänger View Post
Lots of knee and hip implants are made by a similar process. Get ready to buy lots of polishing attachments for your dremel if you do this.
Monk is offline   Reply With Quote
Old 05-22-2014, 11:47 AM   #57
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by Doppelgänger View Post
Now that's pretty cool. I didn't even realize you could do lost-material casting with PLA. Savington, take note.




Quote:
Originally Posted by Monk View Post
file:///C:/Documents%20and%20Settings/ranglin1/My%20Documents/Downloads/ds_objet_materials.pdf
Protip: you can't hotlink to a file on your own local hard disk.

(Assuming that you're not running an FTP or HTTP server on your desktop.)

I did some Googling, and apparently the heat deflection temperature (the point at which a polymer begins to deform) is only 80°C for Objet High Temperature Material, so that's not good for under-hood parts. And I can't find any meaningful (to me) data which compares it to something like ABS or GRP in terms of strength. Intake manifolds take a lot of abuse and are expected not to break in half. The consequences of that happening on a speed-density engine could be catastrophic.
Joe Perez is offline   Reply With Quote
Old 05-22-2014, 11:50 AM   #58
Senior Member
Thread Starter

Join Date: Mar 2011
Location: South Chicago
Posts: 701
Total Cats: 26
Default

Besides what doppel said, ABS can withstand higher temps than PLA . I don't have an exact number but they said PLA will warp if say you made a coffee mug and filled it with coffee.

PLA prints at 230*C I haven't quite figured out ABS yet.

https://www.whiteclouds.com/abs-or-pla-when-use-what
Mazduh is offline   Reply With Quote
Old 05-22-2014, 12:04 PM   #59
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,805
Total Cats: 494
Default

Oops, sorry about that. Try this one. Materials are at the top of the page. If you scroll down a bit, you can download a spec sheet that lists everything side by side.
http://www.javelin-tech.com/3d-print.../rigid-opaque/
Monk is offline   Reply With Quote
Old 05-22-2014, 12:15 PM   #60
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by Monk View Post
Oops, sorry about that. Try this one. Materials are at the top of the page. If you scroll down a bit, you can download a spec sheet that lists everything side by side.
http://www.javelin-tech.com/3d-print.../rigid-opaque/
Hmm. None of it really looks suitable.

Doing some light googling, it seems that thematerial which OEMs are using for their intake manifolds is a material made by DuPont called "Nylon 66," which has a melting point of 260°C (500°F) and is typically reinforced with 10-20% chopped glass fiber.

https://home.comcast.net/~roadska/nylon66.pdf

So, nothing that would ever be suitable for a 3d printer, given current-gen technology.

Someone here needs to build an aluminum foundry.

Last edited by Joe Perez; 05-22-2014 at 01:26 PM.
Joe Perez is offline   Reply With Quote
