Exclamation WARNING!! CAS O-Ring Fails; Head Gasket Stop Leak Fails!!! Must Read!!

my engine had an oil leak around the CAS area but i thought it was the head gasket. I went to the parts store and bought an additive that said it would fix head gasket leaks.... bad idea. The car was losing preformance, did and 18.5 at the track, the lifters went crazy on me ticking as loud as they could scream and my oil pressure started jumping back and forth...

enough weedy weedy, let the pictures do the talking...

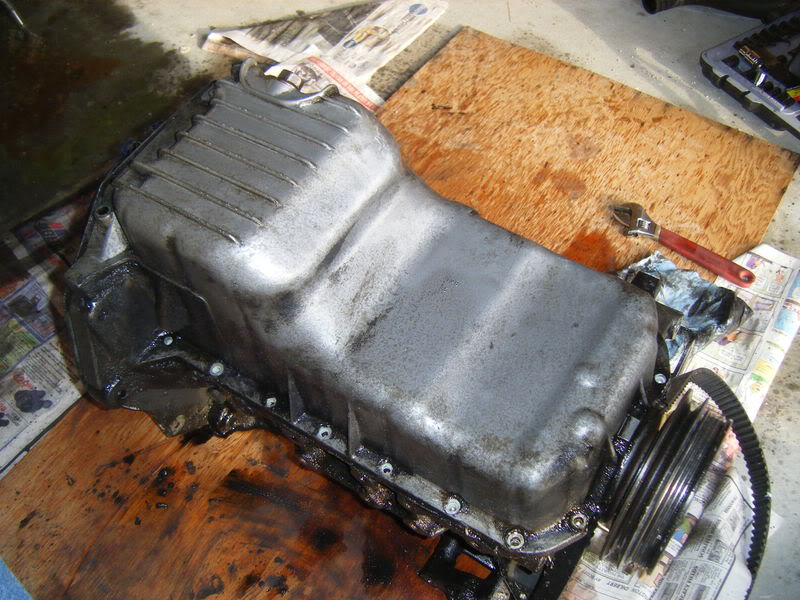

pulled the engine
Name:  headsnmotormay24032.jpg
Views: 137
Size:  104.8 KB

pulled the oil pan of
Name:  headsnmotormay24051.jpg
Views: 155
Size:  99.3 KB

close up, here is the killer of my engine
Name:  headsnmotormay24057.jpg
Views: 69
Size:  70.3 KB

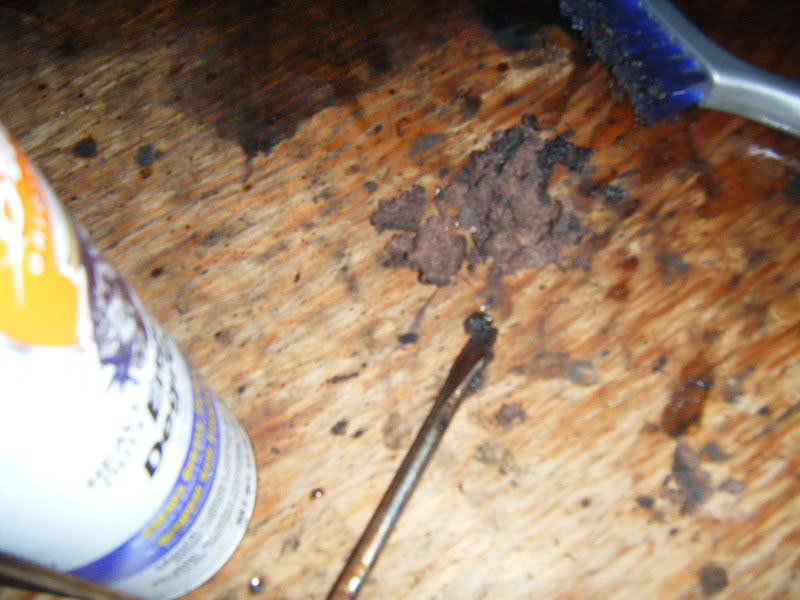

one last pic
Name:  headsnmotormay24060.jpg
Views: 64
Size:  66.3 KB
Mouglie is offline   Reply With Quote
Old 05-25-2008, 02:02 PM   #2
Junior Member
Thread Starter

Join Date: Aug 2005
Location: Iowa
Posts: 338
Total Cats: 0
Default

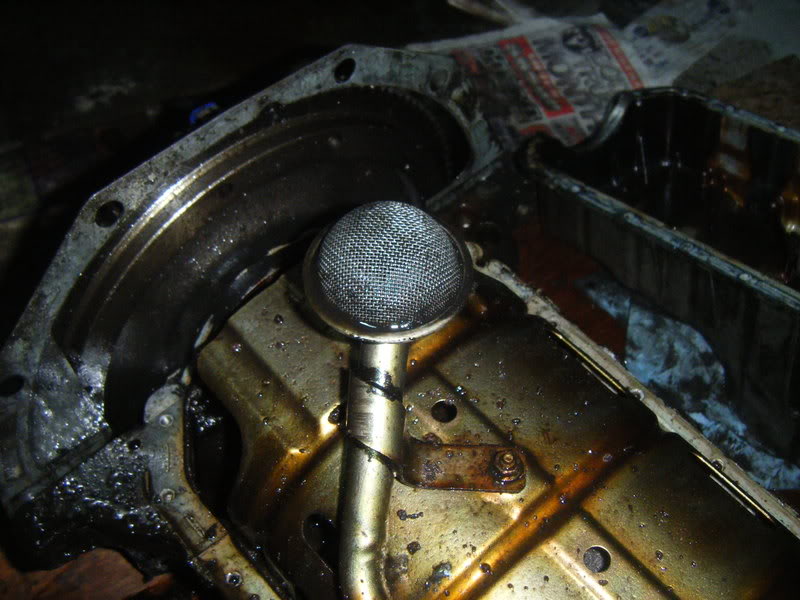

here is what the pick up should look like...
Name:  headsnmotormay24064.jpg
Views: 70
Size:  82.5 KB
Mouglie is offline   Reply With Quote
Old 05-25-2008, 02:04 PM   #3
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Uhm, according to the manufacturer's website, that product is supposed to be added to the cooling system, not the oil.

Quote:
3. Shake well, Mix Head Gasket Repair in bucket or container with approximately 3 quarts of
warm water. Pour this mixture directly into the radiator.
Sources: http://www.barsproducts.com/1100.htm and http://www.barsproducts.com/tech/1100_tech.pdf
Joe Perez is offline   Reply With Quote
Old 05-25-2008, 02:04 PM   #4
Senior Member
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

Wow, that sucks. Note to self, if my head gasket is blown, get a new head gasket.

edit: oh **** nvm, Note to self: follow directions.
wes65 is offline   Reply With Quote
Old 05-25-2008, 02:09 PM   #5
Junior Member
Thread Starter

Join Date: Aug 2005
Location: Iowa
Posts: 338
Total Cats: 0
Default

then imagine your cooling system also getting clogged, you are correct though.
Most additives are poured in your crank case though.
Mouglie is offline   Reply With Quote
Old 05-25-2008, 02:11 PM   #6
Senior Member
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

Quote:
Originally Posted by Mouglie View Post
then imagine your cooling system also getting clogged, you are correct though.
Most additives are poured in your crank case though.
Correct me if im wrong, but your cooling system doesnt have a filter in it like the one on the oil pickup.

I am interested to see where this thread goes over the next few hours. It's probably not going to be good.
wes65 is offline   Reply With Quote
Old 05-25-2008, 02:14 PM   #7
Junior Member
Thread Starter

Join Date: Aug 2005
Location: Iowa
Posts: 338
Total Cats: 0
Default

i was thinking more like your thermostat...

But my purpose here is just to let others see my mistake
and keep them from following my steps.
Mouglie is offline   Reply With Quote
Old 05-25-2008, 02:26 PM   #8
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by Mouglie View Post
i was thinking more like your thermostat...
No, my thermostat doesn't have a filter on it either.

The problem is that the product you added to your crankcase is advertised as consisting of a particulate solid in suspension which is water-soluble.

Quote:
But my purpose here is just to let others see my mistake
and keep them from following my steps.
I think you're the first one here. Or at least the first who admitted it.

Here's a quotation from the manufacturer's FAQ on the product pictured:
Quote:
I accidentally added the Barís Leaks Head Gasket Repair into my engine oil, what should I do?

Barís Leaks Head Gasket Repair is only designed to be added to the cooling system. If the product is installed in the engine oil and the engine has not been started, in many cases you can remove the valve cover and drain the oil leaving the drain plug off. Then use an engine flush washing out the head keeping special attention to the oil return holes that run down to the oil pan. Clean these out and pour the engine flush down these holes flushing everything into the oil pan and out the drain hole. If the engine has been run, you need to take the vehicle to have a professional mechanic evaluate what can be done to clean the inside of the engine.
Lesson of the day- don't pour anything through the oil filler that isn't oil.
Joe Perez is offline   Reply With Quote
Old 05-25-2008, 02:32 PM   #9
I'm Miserable!

Join Date: Apr 2008
Location: versailles Ky,
Posts: 92
Total Cats: 0
Default

You put it in the cooling system! The reason it became clumpy and stuck the the filter. Was because it had a chemical reaction with the head gasket repair. I have used the head gasket repair be for it works if you put it in the cooling system and not the oil!

Let me guess you bought it and poured it in the oil with out reading the directions, mabe next time you will read directions. hope everyone learned from his mistake.


-Justin
boostinboy is offline   Reply With Quote
Old 05-25-2008, 02:33 PM   #10
Junior Member
Thread Starter

Join Date: Aug 2005
Location: Iowa
Posts: 338
Total Cats: 0
Default

lol, it took me a while though before i realized what was going on with my car. Because of this stupid mistake i put in an order for pistons and rods, new lifters, valve springs, i'm polishing heads, and a couple of other small goodies.
Mouglie is offline   Reply With Quote
Old 05-25-2008, 02:34 PM   #11
Junior Member
Thread Starter

Join Date: Aug 2005
Location: Iowa
Posts: 338
Total Cats: 0
Default

Quote:
Originally Posted by boostinboy View Post

Let me guess you bought it and poured it in the oil with out reading the directions, mabe next time you will read directions. hope everyone learned from his mistake.


-Justin
hahaaa, correct...
Mouglie is offline   Reply With Quote
Old 05-25-2008, 02:35 PM   #12
Junior Member
iTrader: (1)

Join Date: Mar 2007
Location: South Florida
Posts: 491
Total Cats: -1
Default

I hate to add insult to injury, but if the CAS was indeed the source of the leak then an 85 cent o-ring would have solved your leak...ouch.

Once you pull the cams off, check the first journals (the ones closer to the timing belt) they are the ones that will suffer the most damage from oil starvation due to the tension of the timing belt. Hope you can save most components.

Question, is the product gritty or fine powder?
mrtonyg is offline   Reply With Quote
Old 05-25-2008, 02:41 PM   #13
Junior Member
Thread Starter

Join Date: Aug 2005
Location: Iowa
Posts: 338
Total Cats: 0
Default

the product comes in liquid form and turns to a spongy material like wet insulation...

as far as the O-ring, it was there but it popped out of place.
Mouglie is offline   Reply With Quote
Old 05-25-2008, 03:59 PM   #14
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,481
Total Cats: 3
Default

my friend used that same **** to fix head gasket leak in his 240sx few months back. car wasnt moving prior to this **** and after he added it to his COOLING SYSTEM it ran fine for about 3 months until he decided to take it apart for a rebuild.
UrbanSoot is offline   Reply With Quote
Old 05-25-2008, 04:49 PM   #15
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Ouch dude..
Fireindc is offline   Reply With Quote
Old 05-25-2008, 05:41 PM   #16
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

ouch....expensive mistake
18psi is offline   Reply With Quote
Old 05-25-2008, 05:51 PM   #17
Elite Member
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,769
Total Cats: 18
Default

lol stupid.
IcantDo55 is offline   Reply With Quote
Old 05-25-2008, 05:54 PM   #18
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

lol....

Vash-
Vashthestampede is offline   Reply With Quote
Old 05-25-2008, 06:09 PM   #19
Junior Member
iTrader: (7)

Join Date: Oct 2007
Location: Gainesville, FL
Posts: 87
Total Cats: 0
Default

Wow...
bradlee is offline   Reply With Quote
Old 05-25-2008, 07:05 PM   #20
Junior Member
iTrader: (1)

Join Date: Feb 2008
Location: Mid Tenn
Posts: 198
Total Cats: 0
Default

I'm a complete moron who can't read a thread.
