Old 03-26-2011, 11:55 PM   #1
Junior Member
Thread Starter

Join Date: Dec 2006
Posts: 54
Total Cats: 1
Default 325 whp NC

Attached Thumbnails

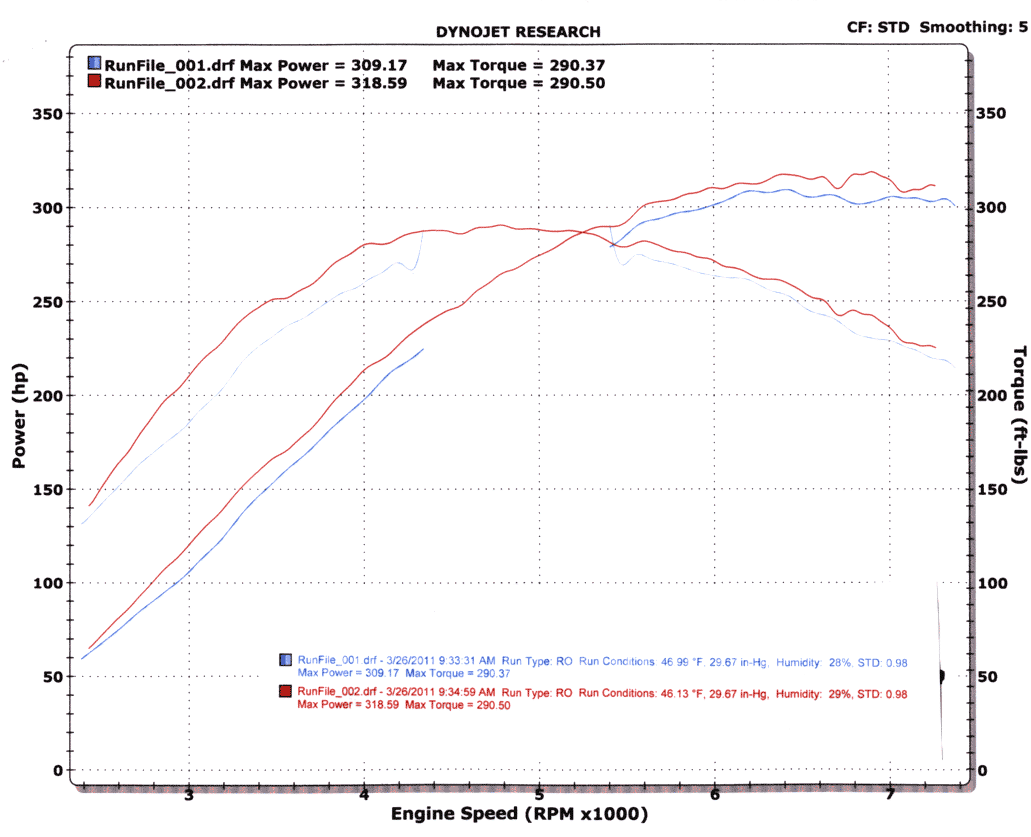

325 whp NC-325whpdyno.png
mann is offline   Reply With Quote
Old 03-27-2011, 12:28 AM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,575
Default

**** that is very nice. That torque curve is excellent too. 'Grats
2871 would have probably kept the torque up past 5 a little better but I doubt you miss it lol
18psi is offline   Reply With Quote
Old 03-27-2011, 01:11 AM   #3
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

Very very nice
leatherface24 is offline   Reply With Quote
Old 03-27-2011, 01:14 AM   #4
Newb

Join Date: Mar 2011
Posts: 12
Total Cats: 0
Default

nice
Rusty323 is offline   Reply With Quote
Old 03-27-2011, 11:36 AM   #5
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default

nice
TurboTim is offline   Reply With Quote
Old 03-27-2011, 11:45 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

impossible. the rods should have sheared in two and impaled a baby seal by now.
Braineack is offline   Reply With Quote
Old 03-27-2011, 11:53 AM   #7
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Thank you for not posting any specifics on your turbonator.
hustler is offline   Reply With Quote
Old 03-27-2011, 11:58 AM   #8
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Bradenton, FL
Posts: 291
Total Cats: 5
Default

Quote:
Originally Posted by Braineack View Post
impossible. the rods should have sheared in two and impaled a baby seal by now.
What he said! ^

Having worked with MZR's a lot I can tell you anything over 250 ft-lbs and you're guaranteed to put a rod threw the block sooner or later. Although the 2.0 liters seem to take boost way better, do to the shorter stroke. Whether the 2.0 liter in the NC's have any beefier of rods, idk. Good number none the less!
Sokool is offline   Reply With Quote
Old 03-27-2011, 11:58 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

he has an NC begi kit running a 2860
Braineack is offline   Reply With Quote
Old 03-27-2011, 01:37 PM   #10
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

That's a 0.64 a/r hotside, right?

That convex shaped torque curve at the low end is something I got with the GT2554 on my 2000. I suspect that that is a mark of a very very tractable low end. Very sweet driveability on the street.
JasonC SBB is offline   Reply With Quote
Old 03-27-2011, 01:38 PM   #11
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by Braineack View Post
impossible. the rods should have sheared in two and impaled a baby seal by now.
The 08+ (?) have forged guts, and maybe can take moar booost?
JasonC SBB is offline   Reply With Quote
Old 03-27-2011, 01:40 PM   #12
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by 18psi View Post
2871 would have probably kept the torque up past 5 a little better but I doubt you miss it lol
Horses for courses. For a street car I'll take the phat low end over maintaining an extra 10 ft-lbs in the top 1000 RPM.

From driving a 3.2L M3, and a GT2554, I can tell you that in traffic, insta-boost low end makes a huge difference in making a car very satisfying to drive.
JasonC SBB is offline   Reply With Quote
Old 03-27-2011, 01:41 PM   #13
Junior Member
iTrader: (6)

Join Date: Jun 2008
Location: Lansdale, PA
Posts: 462
Total Cats: 3
Default

Gorgeous car. Rolled past you on 309 in my wagon yesterday, too bad my Miata was at home...
BradC is offline   Reply With Quote
Old 03-27-2011, 02:09 PM   #14
Junior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 102
Total Cats: 0
Default

do want.

www.moto-east.com


put on a 2560 and push it.
Madvillain is offline   Reply With Quote
Old 03-27-2011, 09:12 PM   #15
Junior Member
Thread Starter

Join Date: Dec 2006
Posts: 54
Total Cats: 1
Default

Quote:
Originally Posted by BradC View Post
Gorgeous car. Rolled past you on 309 in my wagon yesterday, too bad my Miata was at home...
I was probably driving like a jackass...spent half the drive trying to see if I could get knock retard with prolonged boost--but that required 5th...

details: 2860 begi s3 kit, can't remember the a/r. I do the tuning, revs to 7400, 11.8-12.2:1 afr (rich for meth). 3" exhaust, cat + resonator. 14 psi, meth injection ~400cc on top. Custom 3" maf. motor has 50k hard miles on it. I have a DD so this is only for abuse.

Should the rods have snapped 100whp back? Yes, according to internet wisdom. Whoever says they can't make power and survive is wrong as evidenced. I think 99% of it is in the tuning. People run around with 2-5 degrees of KR and think its ok...but working the timings less aggressive nets more power since KR punishes you double.

Stock fuel pump, stock 6 speed drivetrain, fidanza flywheel, act hd clutch, stock ignition.

This kind of a p/w ratio should not be possible reliably for the cost of a 12k NC +6k in turbo/drivetrain/ecu but it is. 325hp is really for silliness, it is more than adequate at 250whp.

Of note, this is significantly higher than any of the cosworth blower systems (typically 200whp sc vs 250whp turbo at 8 psi)

Now if I could just put it down--the short gearing of the 6sp leaves no traction until 4th sometimes once the boost hits...even with 245 v700's.
mann is offline   Reply With Quote
Old 04-01-2011, 09:49 AM
nopistonspwr
This message has been deleted by y8s. Reason: nice
Old 04-13-2011, 02:19 AM   #16
Newb

Join Date: Apr 2011
Location: Colo mountains
Posts: 6
Total Cats: 0
Default

Very impressive!

Gettin' ready to do a BEGi turbo kit on my NC. Outrageous torque curve!

I figure that's gotta be the .64 a/r..

Last edited by MountainMichael; 04-13-2011 at 02:20 AM. Reason: turbine housing
MountainMichael is offline   Reply With Quote
Old 04-13-2011, 02:51 PM   #17
Guest

Join Date: Feb 2010
Posts: 88
Total Cats: -9
Default

Quote:
Originally Posted by mann View Post
Should the rods have snapped 100whp back? Yes, according to internet wisdom. Whoever says they can't make power and survive is wrong as evidenced. I think 99% of it is in the tuning. People run around with 2-5 degrees of KR and think its ok...but working the timings less aggressive nets more power since KR punishes you double.
A true test of a cars tune is out on a track at the top 1/3 of the powerband for 20-30 minutes straight. Doing 5th gear pulls on the freeway doesn't exactly compare.
Trackwhore is offline   Reply With Quote
Old 04-26-2011, 08:19 PM   #18
Junior Member
Thread Starter

Join Date: Dec 2006
Posts: 54
Total Cats: 1
Default

Quote:
Originally Posted by Trackwhore View Post
A true test of a cars tune is out on a track at the top 1/3 of the powerband for 20-30 minutes straight. Doing 5th gear pulls on the freeway doesn't exactly compare.
Specifically that is a test of engine endurance and a tune designed for such a thing. This car is not built for trackdays. If it was it would certainly require a built motor, richer AFRs, and more conservative timing no doubt, along with others like big brakes. Or a much easier method is to turn the boost down a few lbs though even then the brakes will melt the 3rd lap.

But in this trim it is a true test of a tune designed for street and the occasional 140mph run up the gears, which it does very well.
mann is offline   Reply With Quote
Old 04-26-2011, 09:32 PM   #19
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

you're winning.



JasonC, were you joking when you said 08+ has forged rawds?
Faeflora is offline   Reply With Quote
