Old 05-13-2011, 05:46 PM   #61
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by PatrickB View Post
probably your load is way different then what it was on the dyno would be my guess.
Yep, if they don't start a pull when the exhaust is glowing yellow, it's not safe for the track in my opinion.
hustler is offline   Reply With Quote
Old 05-13-2011, 05:47 PM   #62
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by VanMSM View Post
Yup, Bob did the tuning. I even forced him to use one of Jeff's Det Can's.

Interesting enough after tuning on the dyno with no hint of knock I could drive up the "cut" on hwy1 and get knock. So I've pulled some timing since that tune. Makes me wonder whether I'm ingesting oil mist via my PCV valve while coasting and that's what's causing the knock?
I assume you're listening through the Polish det cans?
hustler is offline   Reply With Quote
Old 05-13-2011, 06:02 PM   #63
Junior Member

Join Date: Dec 2006
Location: Vancouver, BC
Posts: 131
Total Cats: 6
Default

Polish Det Cans are excellent. I could correlate with my Hydra knock logs making it easy to decide where to pull timing.

Yeah, I guess it's likely that any temp compensation by the Hydra would have been different on the dyno vs the road.

This was a year ago so my memory fades but when I pulled timing I made sure to also do so in the surrounding cells. So the dyno might not have been hitting some of those cells.

Aaron, sorry for the thread hijack!
VanMSM is offline   Reply With Quote
Old 05-13-2011, 06:18 PM   #64
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

No prob. It's all good info. I just ordered one from Jeff. Better to be safe than sorry.
falcon is offline   Reply With Quote
Old 05-13-2011, 06:27 PM   #65
Junior Member

Join Date: Jan 2009
Location: Floyds Knobs, IN
Posts: 92
Total Cats: 3
Default

Quote:
Originally Posted by falcon View Post
Which is odd because dyna packs are one of the best loading dynos out there.
The dyno itself wouldn't be the issue, it's in how it's used and setup. You can make the dyno apply more or less load. Let's say it take 3 seconds to pull from 2000-6000 rpm in 2nd gear on a level street and the same section of road would take 8 seconds to make the same 2-6k pull in 4th. You've added more load in by going from 2nd to 4th. The dyno needs to be setup the same way. If you have the dyno load set too low, you'll be able to apply much more load to the engine on the street. This is where how you end up with different results on the street. With the eddy current dynos you could make the 2-6k pull in 4th last 2 seconds or 2 hours. The power reading the dyno would give would be the same, you're just simulating two entirely different driving scenarios.

Like any tool, the dyno is only as useful as you make it.
C. Ludwig is offline   Reply With Quote
Old 05-13-2011, 08:25 PM   #66
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Yeah that is good to know. The guy who tuned my car is a pretty knowledgeable guy. He worked in N. Carolina for years and worked on Porsche cup cars and currently crew cheifs for a daytona team. Hes been building/tuning porches for a long time. He was showing me all the different ways the dyno can be set up last time I was there and it's pretty cool. He tuned with both load settings. Tuning the RPM at one load and also the load at varying RPM. Did that make sense?
falcon is offline   Reply With Quote
Old 05-14-2011, 03:45 AM   #67
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

So I measured my Rotrex and crank pulley. Looks like it's actually a 105mm Rotrex pulley and a 127mm crank (or thereabouts). Which means I am only spinning the Rotrex to 96xxRPM instead of it's 10,500RPM. Going to throw a smaller pulley on and lower my rev limit a bit. I thought I had asked to order the Rotrex to have it geared to it's max RPM, but I guess not.
falcon is offline   Reply With Quote
Old 05-15-2011, 07:00 PM   #68
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Had some fun yesterday at a autoX in Bellingham. I was the talk of the event because of how loud my car was. Tried a few things like steel wool to quiet it down but at the end of the day they just gave up and let me run. Just said to make sure it's quiet for next time. According to Anton (wayne_curr) this is the first time he has ever seen anyone get talked to about sound. I asked him before hand if I should be worried and he said they had formula cars over 100db before with no issues. guess it was just too loud.

Anyhow... placed second overall behind bbundy and pax'd 4th IIRC. He FTD'd with a 50.9 and the closet behind was me with a 52.89. I'll get you next time Bob...
falcon is offline   Reply With Quote
Old 05-23-2011, 06:57 PM
beamermario
This message has been deleted by gospeed81. Reason: 10 post spammer
Old 06-04-2011, 06:39 PM   #69
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

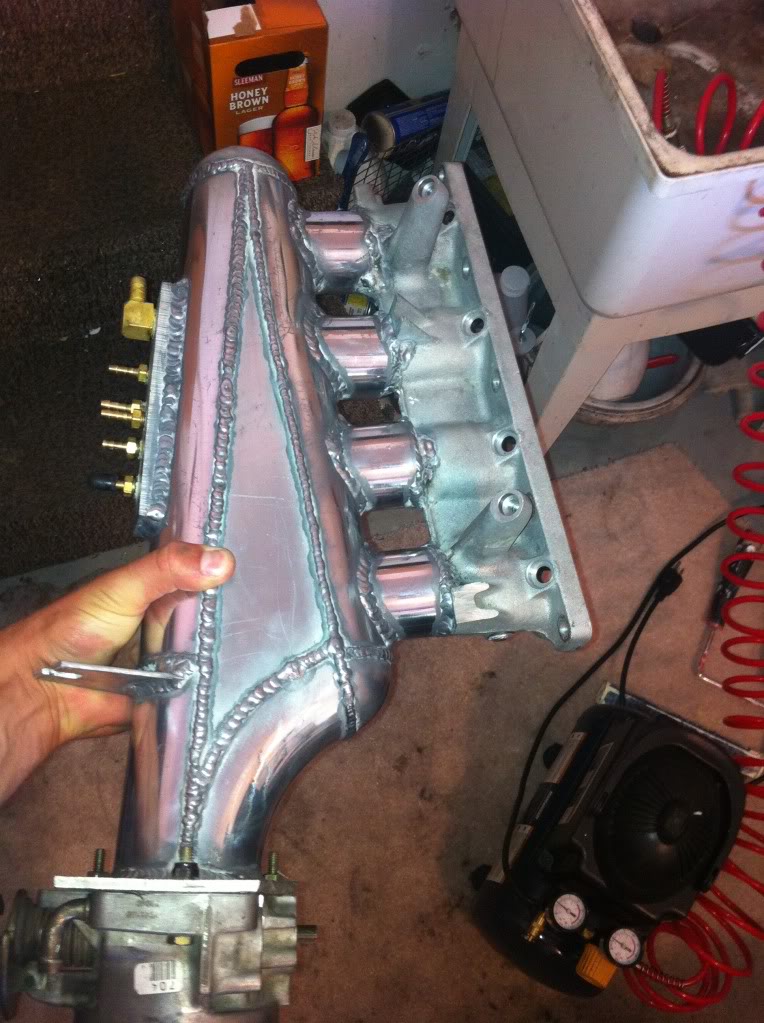

Just received my intake manifold from GotPSI?. Tapered plenum, CNC velocity stacks, LS1 TB... mmmmmmmm

Going to drop my pulley off at a local shop to get turned down a bit to 94mm and add some ridges on the side to keep the pulley centered.

Here comes more boosts.

Name:  intakemanifold001.jpg
Views: 6
Size:  137.5 KB

intakemanifold002.jpg?t=1307223305

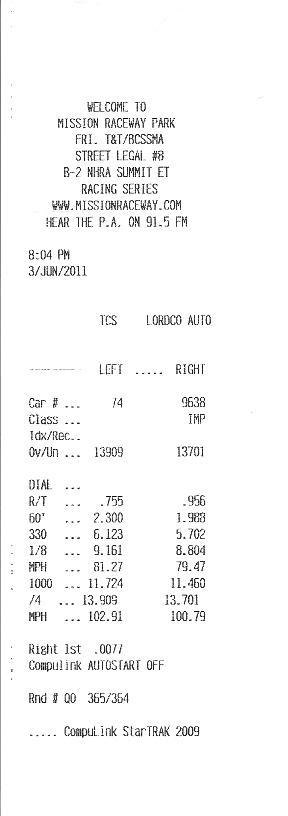

Wanted to see what the car did in the 1/4 and I ran a 13.909 @102MPH last night. Based on my terrible 60' the car has a 13.5 in it, but not with me driving. I was up against a new Audi S4, and he got me on the 60' and ran a faster 1/4 but I had a higher trap and beat him to the finish. I'm on the right.

Name:  aaron.jpg
Views: 6
Size:  25.8 KB
falcon is offline   Reply With Quote
Old 07-09-2011, 01:09 AM   #70
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

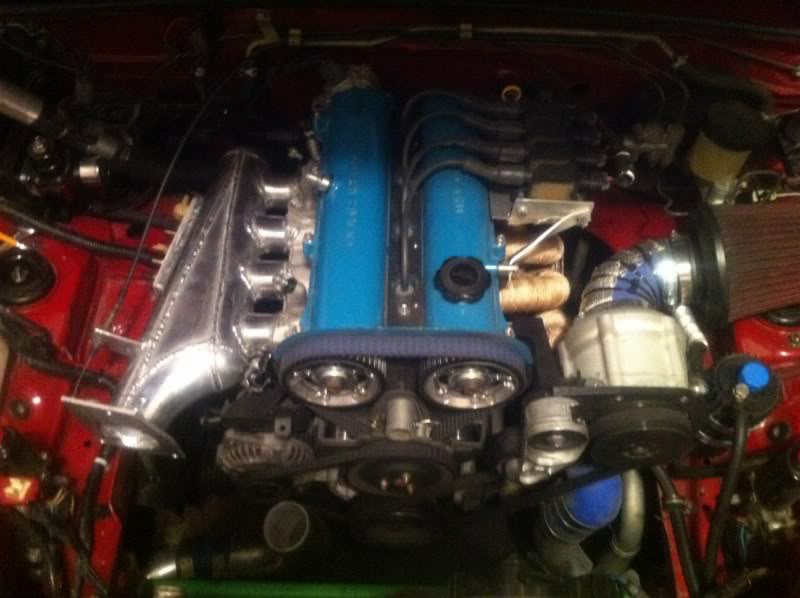

Why hello there...

Name:  motor.jpg
Views: 6
Size:  59.4 KB
falcon is offline   Reply With Quote
Old 07-20-2011, 11:05 PM   #71
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

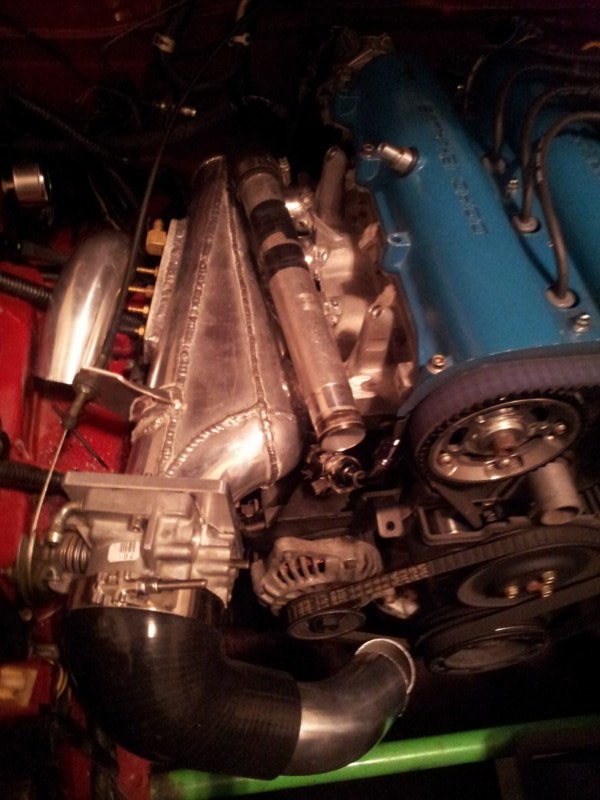

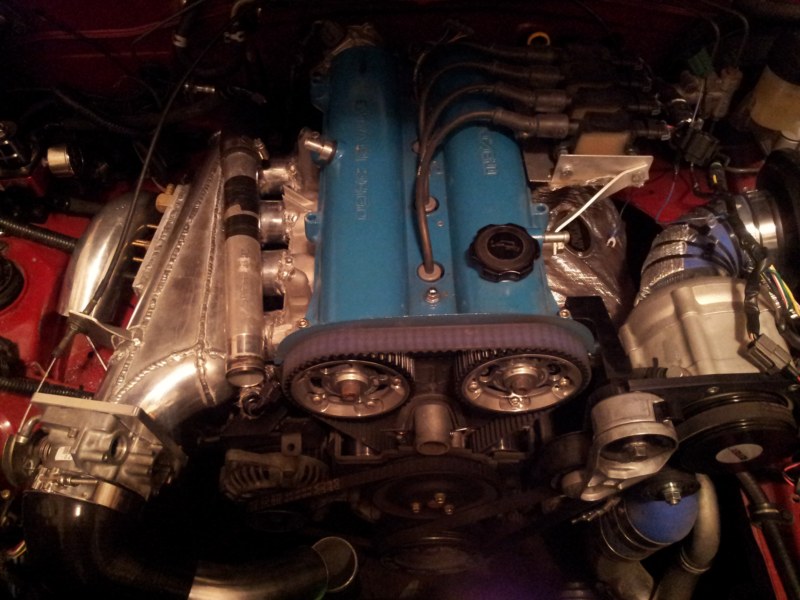

Finally got the new flange on the manifold and bolted er up with a fancy hondata gasket. New Bosch EV14's are here and all I need now is a 45* coupler to finish the piping. Tuning is set for next Monday with the new Rotrex pulley.



Attached Thumbnails
My new engine-2011-07-20185524copy.jpg   My new engine-2011-07-20185519copy.jpg
falcon is offline   Reply With Quote
Old 07-20-2011, 11:49 PM   #72
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

What size is the LS tb?
kotomile is offline   Reply With Quote
Old 07-21-2011, 12:12 AM   #73
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

75mm
falcon is offline   Reply With Quote
Old 07-21-2011, 12:51 AM   #74
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

What is that spikey stuff inside the throttle body? RTV?
Faeflora is offline   Reply With Quote
Old 07-21-2011, 12:53 AM   #75
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Yeah. That's an old pic from when I got it. Pulled it off and when I put the tb on today I used an OEM chev gasket.
falcon is offline   Reply With Quote
Old 07-24-2011, 09:07 PM   #76
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Finished all the prep for the dyno tomorrow. Charge piping all done as well as the new coolant routing. We'll see how she does.

motor1.jpg?t=1311552397
falcon is offline   Reply With Quote
Old 07-25-2011, 03:35 AM   #77
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Took the car for a quick rip around the block... I have to say having not run a TPS before this... it's amazing how much better the car is on tip in, even without tuning so far. I'm looking forward to how much better it will be for light cruise and tip in after tomorrow.

If you don't run a TPS... get one. Trust me
falcon is offline   Reply With Quote
Old 07-25-2011, 03:34 PM   #78
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

When are you going to the dyno?
Gotpsi? is offline   Reply With Quote
Old 07-25-2011, 05:21 PM   #79
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

I went this morning. However it was on a different dyno (mustang) which notoriously reads low so it's hard to make a fair comparison. The car is way more powerful, and wants to keep revving past 8k. Based on all the local guys, the Mustang here reads about 15% lower than the dyna pack I originally tuned on and 18-20% lower than a dynojet.

See other cars for comparison of how heartbreak it is (http://www.m5board.com/vbulletin/can...coquitlam.html, http://forums.clubrsx.com/showthread.php?t=762551). At the end of the day, numbers don't mean much but it would be nice to know the difference. I may go and hook up and do a few pulls on the same dynapack when I have some extra cash to do so.

Also, even going 10mm smaller on the pulley I only gained 1PSI. I belive he intake manifold removed a lot of restriction.

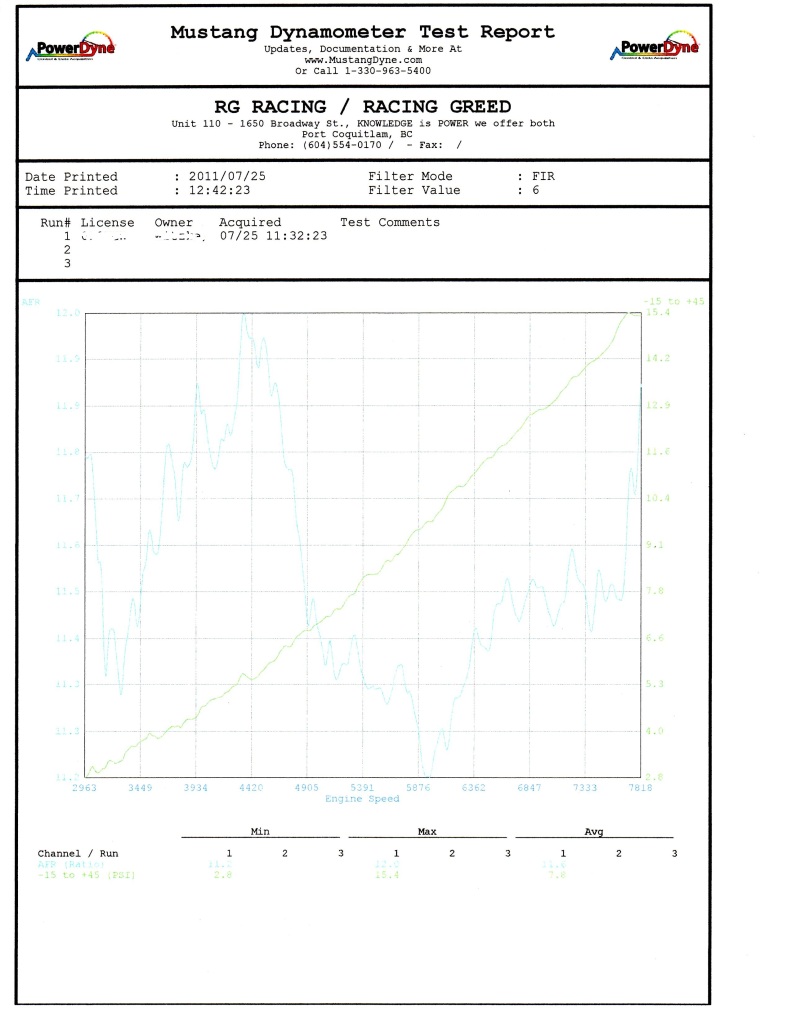

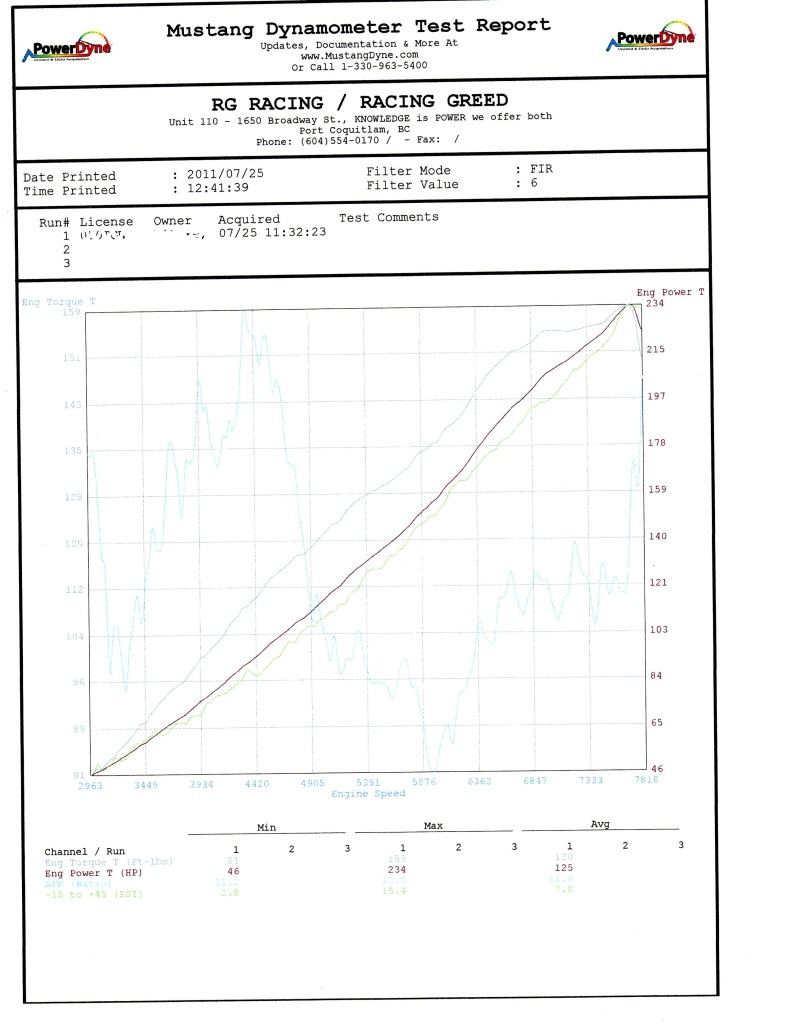

Here are the plots.



Attached Thumbnails
My new engine-img002.jpg   My new engine-img001.jpg

Last edited by falcon; 07-25-2011 at 05:50 PM.
falcon is offline   Reply With Quote
Old 07-25-2011, 07:06 PM   #80
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

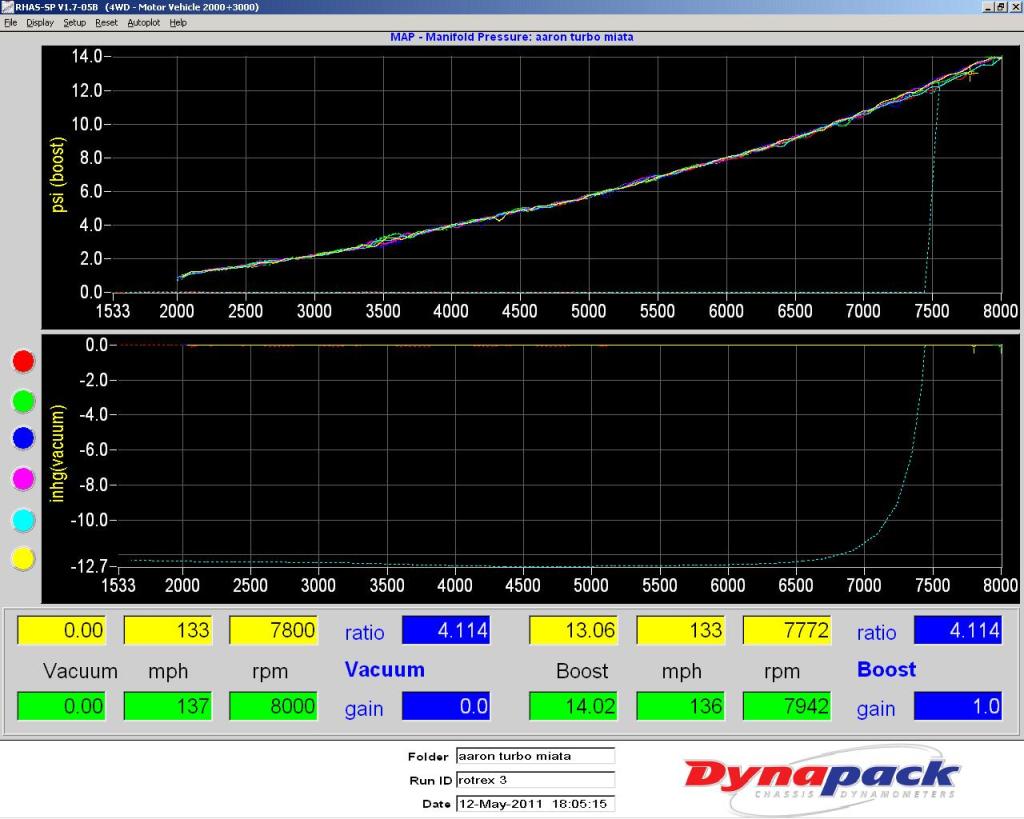

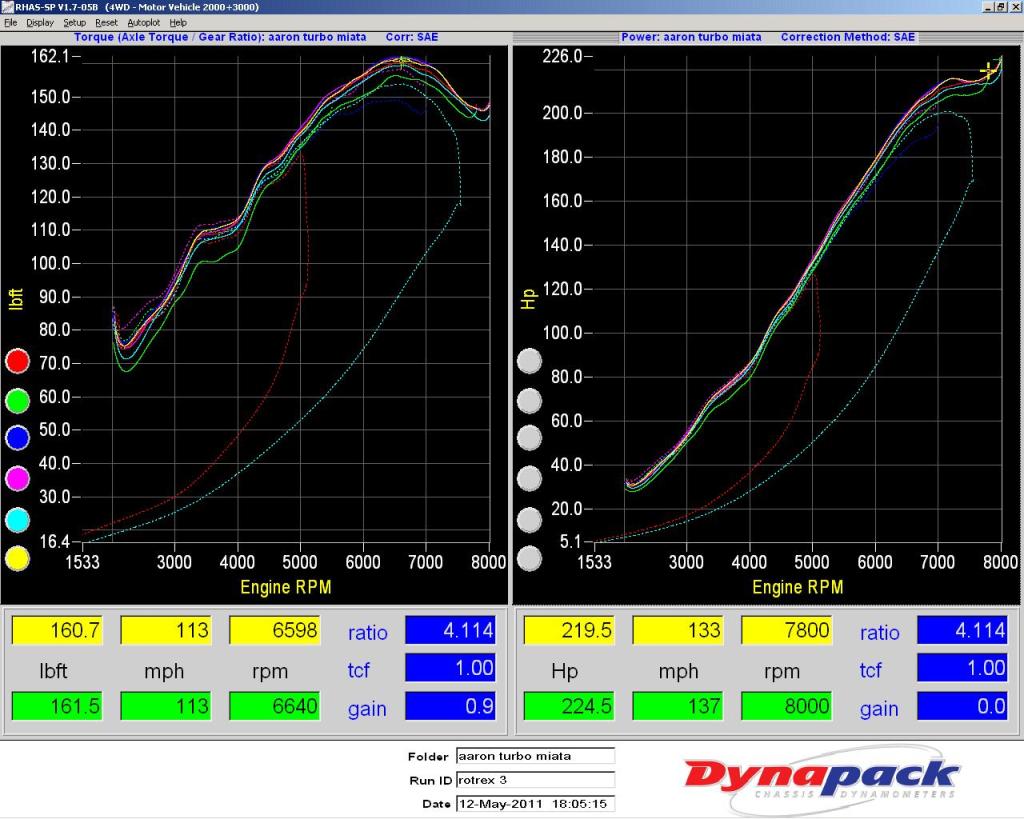

Considering your torque numbers dropped like a brick after 6500 rpm before I would say the intake mani is defiantly doing its job.



Attached Thumbnails
My new engine-tqhprotrex.jpg   My new engine-boostrotrex.jpg
Gotpsi? is offline   Reply With Quote
