crank shaft broke. I'm looking for useful ideas....



I've done everything myself to this motor so to some that might be the whole story... but here goes...

ATI Super damper, MP62 hot side kit with 6rib belt (BRP kit sold by FM about 5 years back), no AC/PS. ~16psi boost (biggest pulley compatible with ATI... don't recall diameter .. will add that info tonight). lightened steel flywheel and stage-2 FM clutch, 235rwhp. wiseco +1mm pistons, carillo a-rods and salvage crank from FM. prior crank woodruff channel wore (that was pre ATI super damper ~4 years ago)

This car is race prep and track use only. TTB @NASA-SE and instructor HPDEs account for about 10 weekends/year. it is pretty much either IGN OFF or WOT.

so, I've been getting some vibration in the SC belt last few events. new belt had same vibration. I assumed the tensioner spring was getting weak. so I [perhaps foolishly] added tension by displacing the SC on the bracket away from the crank pulley. When you're at the track you do what you can... ordering parts doesn't compute... Just 1 washer increased the tension enough to reduce the vibration such that the belt wouldn't hop off the pulley. But, its worth noting the spring loaded tensioner was still necessary.

The vibration turned out to be wobble in the crank pulley. The wobble was very noticeable this Saturday after just 2-3 pulls in the neighborhood (I was chasing a vacuum leak)

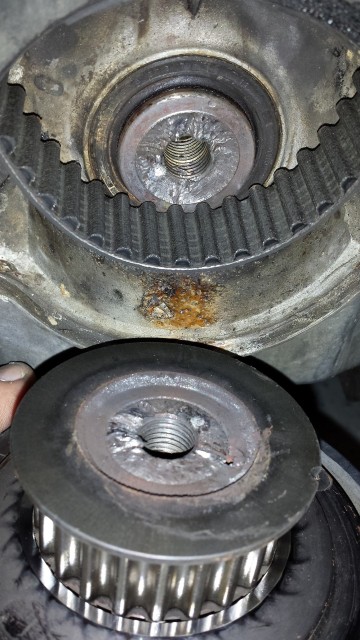

I yanked the crank bolt and the whole pulley assembly just fell off in my hands.

From the looks of the metal in the break it appears to be torsion stress (and not shear)...

Q1: could this have been caused by too much belt tension? (I think not but I'm being open minded here)


Perhaps another fact is there was an electrical issue recently which caused voltage droop on track (at heat, after a few laps). The droop was low enough to cause serious spark issues (perhaps ECU resets). The power was jerking on and off while I was nursing her back into the PIT. Lots of instantaneous load deltas...


Q2: anyone ever seen a crank break like this?
Attached Thumbnails
forum newbie; crank snapped-2ajz5lt.jpg

Last edited by chrislwood; 04-08-2014 at 07:04 PM.
chrislwood is offline   Reply With Quote
Old 04-07-2014, 06:35 PM   #2
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

I've seen a whole bunch of keyways get stripped out, but never seen a crank nose completely snap like that.
dieselmiata is offline   Reply With Quote
Old 04-07-2014, 07:28 PM   #3
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,334
Default

That's pretty impressive.
Savington is offline   Reply With Quote
Old 04-08-2014, 01:29 AM   #4
Newb
Thread Starter

Join Date: Apr 2014
Posts: 4
Total Cats: 0
Default

The SC pulley diameter is: 148mm

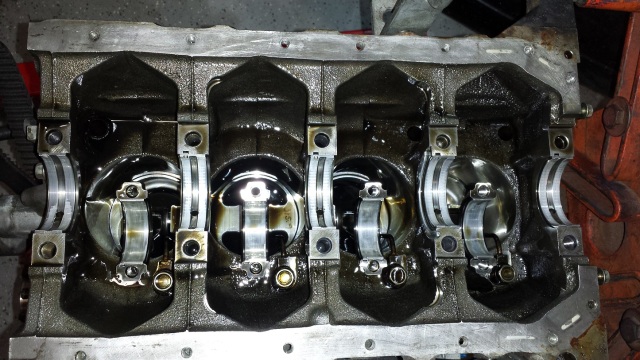

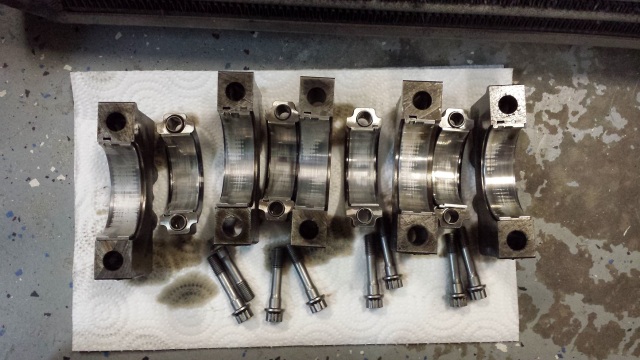

Here are shots of the bearings.
