Old 12-16-2013, 03:46 AM   #1
Newb
Thread Starter

Join Date: Sep 2008
Location: Hong Kong
Posts: 9
Total Cats: 0
Default honging the kong NA6 style

hi guys, I have been lurking on MT for a little while now, thought i'd say hi and introduce my 92 before i track/wall it this weekend in the mainland...

installed so far:
recently (under 3000km) rebuilt 1.6 with stock internals
mspnp1
lc-1 wideband
garrett (T25 iirc) turbo on hks kit manifold
ptp turbo jacket
buddy club cat-back with stock cat
rx7 460cc injectors
sard fuel pressure regulator
walbro 255
vtps
starion intercooler
hks BOV
ebay cone airfilter
upsized aluminum radiator
nb8 flywheel and clutch
4.1 diff with torsen
1.8 brakes with SS lines and EBC yellows
ROTA aleica 15x8 et15 dunlop Z1 195s
tein superstreet F6 R5
FM front sway, stock rear sway
FM butterfly brace
4-point roll bar
front shock tower bar
boss frog arms
ultraracing front subframe brace
properly depowered rack
momo buckets
omp corsica steering wheel

to be installed:
knocklite
COPS
breather bottle
airhorn
oilcooler
fdtunea is offline   Reply With Quote
Old 12-16-2013, 09:46 AM   #2
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

A little information about you, your location, and some pics of the car would be great.
sixshooter is offline   Reply With Quote
Old 12-16-2013, 07:27 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Welcome to the site fdtunea, thanks for joining up!
Braineack is offline   Reply With Quote
Old 12-16-2013, 09:19 PM   #4
Newb
Thread Starter

Join Date: Sep 2008
Location: Hong Kong
Posts: 9
Total Cats: 0
Default

oops, sorry, forgot to introduce myself. My name is Bernie, I am located in Hong Kong. The car is a streeter, will be tracked for the first time this weekend in mainland China. Will upload some pics when i find time to go online at home. cheers.
fdtunea is offline   Reply With Quote
Old 12-16-2013, 10:17 PM   #5
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

I really want to see some pics of what a track in China would look like. Please share many!
sixshooter is offline   Reply With Quote
Old 12-17-2013, 09:48 AM   #6
Newb
Thread Starter

Join Date: Sep 2008
Location: Hong Kong
Posts: 9
Total Cats: 0
Default

Attached Thumbnails

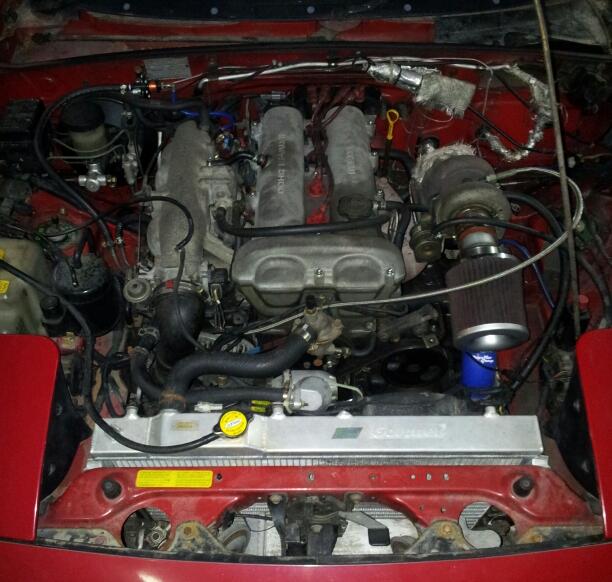

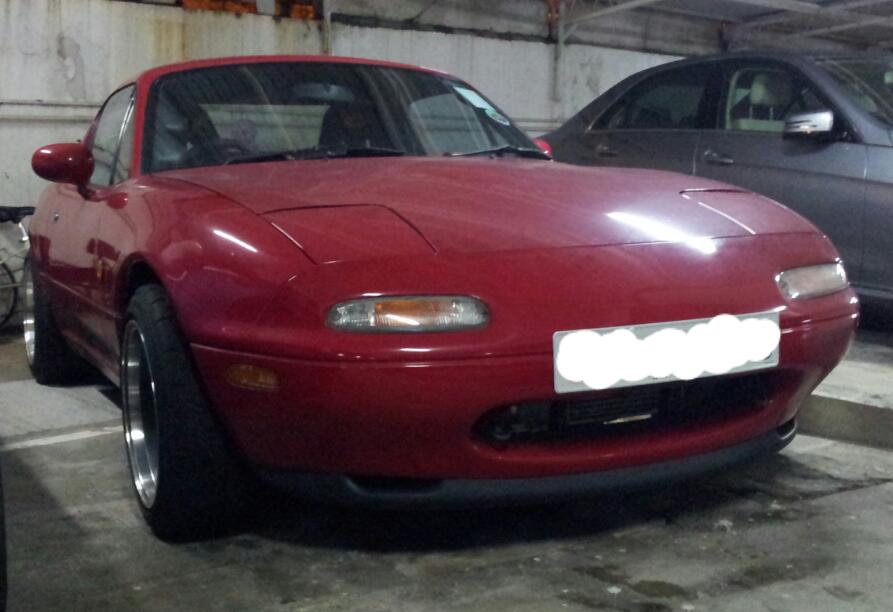

honging the kong NA6 style-2013-12-17-21.39.59-1.jpg   honging the kong NA6 style-20131217_210153-1.jpg
fdtunea is offline   Reply With Quote
Old 12-17-2013, 10:33 AM   #7
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Nobody likes the Tunea here, *******.

Welcome to tha forum sir!
Fireindc is offline   Reply With Quote
Old 12-22-2013, 11:18 PM   #8
Newb
Thread Starter

Join Date: Sep 2008
Location: Hong Kong
Posts: 9
Total Cats: 0
Default

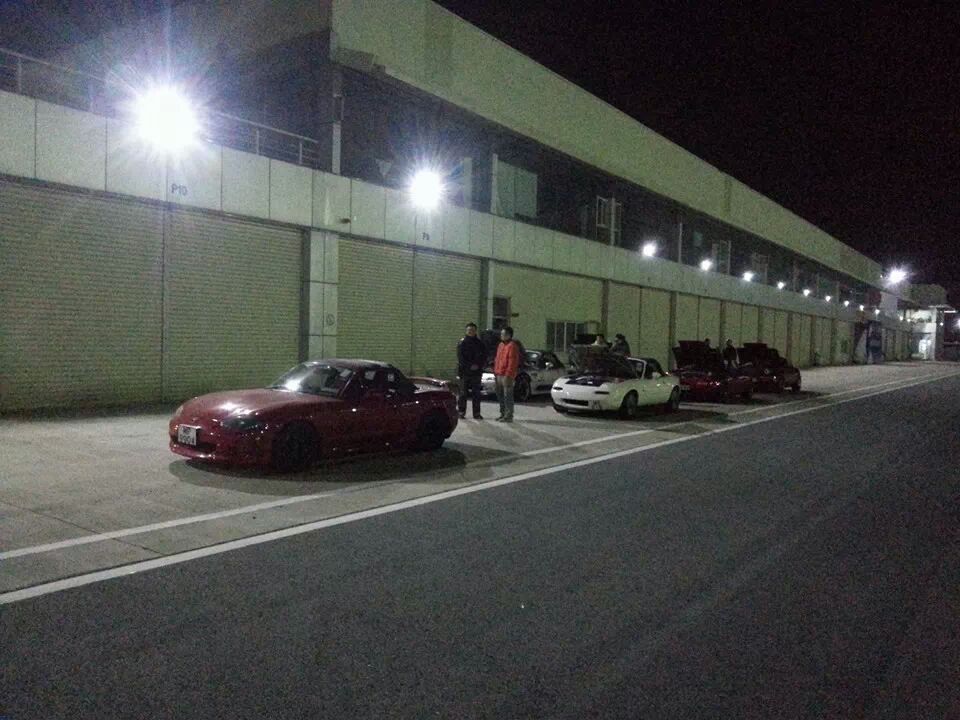

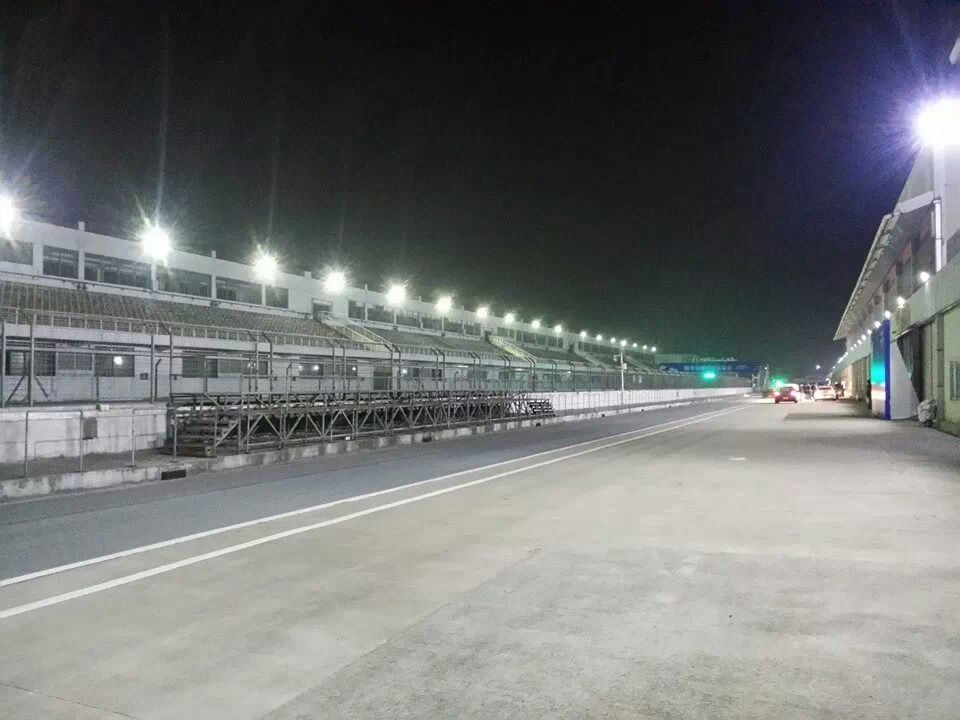

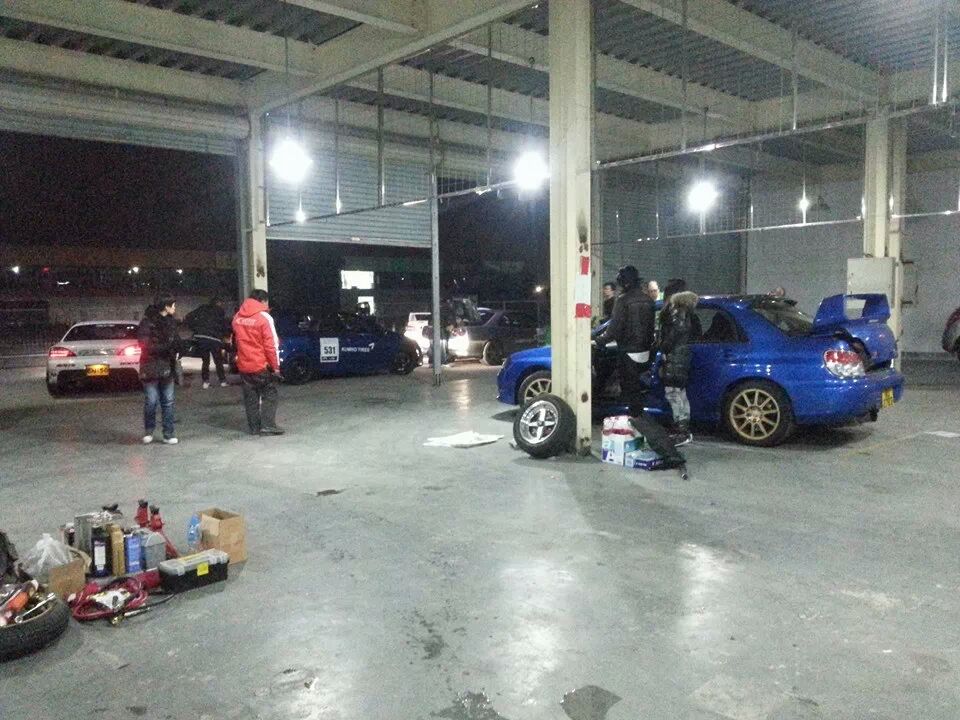

guangdong international circuit tracknight
Attached Thumbnails
honging the kong NA6 style-img_150368939475189.jpeg   honging the kong NA6 style-img_150398477078953.jpeg   honging the kong NA6 style-img_150406161640624.jpeg   honging the kong NA6 style-img-20131222-wa0000.jpg

Last edited by fdtunea; 12-26-2013 at 08:58 PM.
fdtunea is offline   Reply With Quote
Old 12-23-2013, 02:04 PM   #9
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

Quote:
Originally Posted by fdtunea View Post
guangzhou international circuit tracknight
Thanks for the pictures. It looks like it was cold there. Have you been to that track before or was that your first time?
sixshooter is offline   Reply With Quote
Old 12-23-2013, 02:06 PM   #10
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Wow, I've seen that track in a few of the best motoring, etc. videos. Awesome man. Did you get any videos? How was the car?
Fireindc is offline   Reply With Quote
Old 12-26-2013, 09:42 PM   #11
Newb
Thread Starter

Join Date: Sep 2008
Location: Hong Kong
Posts: 9
Total Cats: 0
Default

https://drive.google.com/folderview?...VU&usp=sharing

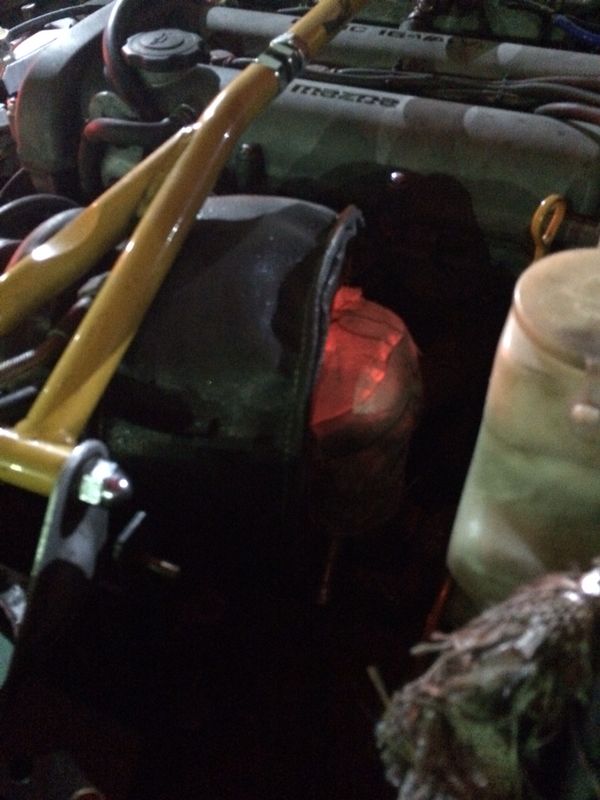

sorry guys, too many pics to attach here. and, no vid this time, cuz i was too busy trying to not blow my shiate up. i was lucky to get away with just a split turbo coolant hose and a bit of a scare from seeing the resulting smoke cloud...

the rest of the car held up ok, i think. i ran only 0.5 bar of boost and my timing map is super retarded, even that was too much for my dunlop Z1 195s. will defo consider running better tyres next time.

Last edited by fdtunea; 12-26-2013 at 10:32 PM.
fdtunea is offline   Reply With Quote
Old 12-26-2013, 09:47 PM   #12
Senior Member

Join Date: May 2011
Location: Pennsylvania
Posts: 1,119
Total Cats: 33
Default

Very cool car. I too have seen that track in a bunch of videos! looks like fun!
supercooper is offline   Reply With Quote
Old 11-25-2014, 12:07 AM   #13
Newb
Thread Starter

Join Date: Sep 2008
Location: Hong Kong
Posts: 9
Total Cats: 0
Default

quick update on build:

1.6 with stock internals
mspnp1
lc-1 wideband
garrett (T25 iirc) turbo on hks kit manifold
ptp turbo jacket
buddy club cat-back with stock cat
rx7 460cc injectors
sard fuel pressure regulator
walbro 255
vtps
starion intercooler
hks BOV
ebay cone airfilter
upsized aluminum radiator
nb8 flywheel and clutch
4.1 diff with torsen
1.8 brakes with SS lines and EBC yellows
ROTA Flush 15x8 et20 wearing 195s
tein superstreet F6 R5
FM front sway, stock rear sway
FM butterfly brace
4-point roll bar
brake master brace
boss frog arms
ultraracing front subframe brace
properly depowered rack
momo buckets
omp corsica steering wheel
securon 4point harness
silicon coolant hoses
greddy profec type-s ebc
knocklite
toyota COPS
breather bottle
13-row oilcooler
superpro wishbone bushings

next mainland track day in early december. dyno time, tyres and alignment now left to be done by then. hope i dont blow up my shiate during tuning before i even leave the border...
fdtunea is offline   Reply With Quote
Old 11-25-2014, 12:38 PM   #14
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

Use the Tunerstudio autotune feature for fuel and set reasonable AFR targets. You should be fine.

Use the overboost protection feature. It can save your engine.

And take a look at what others here are using for spark timing. Don't use too much. If your dyno tuner usually tunes engines other than Miatas it is common for them to use too much timing. Our engines don't handle too much advance well.

Good luck.
sixshooter is offline   Reply With Quote
Old 11-25-2014, 09:22 PM   #15
Newb
Thread Starter

Join Date: Sep 2008
Location: Hong Kong
Posts: 9
Total Cats: 0
Default

Thanks Steve. my afr table is pretty much a copy of yours which you posted quite some time back iirc, and i let VEanal do its stuff based on it.

my current spark map is based on brain's, it works well on the street but knocklite (set to max sensitivity) shows mild knock ard 6-6.5k rpm in boost. not sure if it's real knock or not.

this is supposed to be a budget build, so i am not hiring a tuner to write the spark map. i am just gonna buy a couple of hours of dyno time and try to do it myself...
fdtunea is offline   Reply With Quote
Old 11-26-2014, 08:37 AM   #16
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

Brain's spark map is good and conservative. Just make sure your base timing is perfect at 10 degrees with the timing light and it should be good. Well, that is if your crankshaft pulley keyway is good and the balancer pulley marks haven't moved (which sometimes starts happening when the rubber parts between the inner and outer get old).
sixshooter is offline   Reply With Quote
Old 11-26-2014, 08:48 PM   #17
Newb
Thread Starter

Join Date: Sep 2008
Location: Hong Kong
Posts: 9
Total Cats: 0
Default

the only issue i have with a conservative spark map is getting the manifold and turbo too hot cuz retard...

yup, base timing should be good, i set it to 10degrees when the engine was rebuilt and havent touched the CAS since, and the crank pulley was brand new.
fdtunea is offline   Reply With Quote
