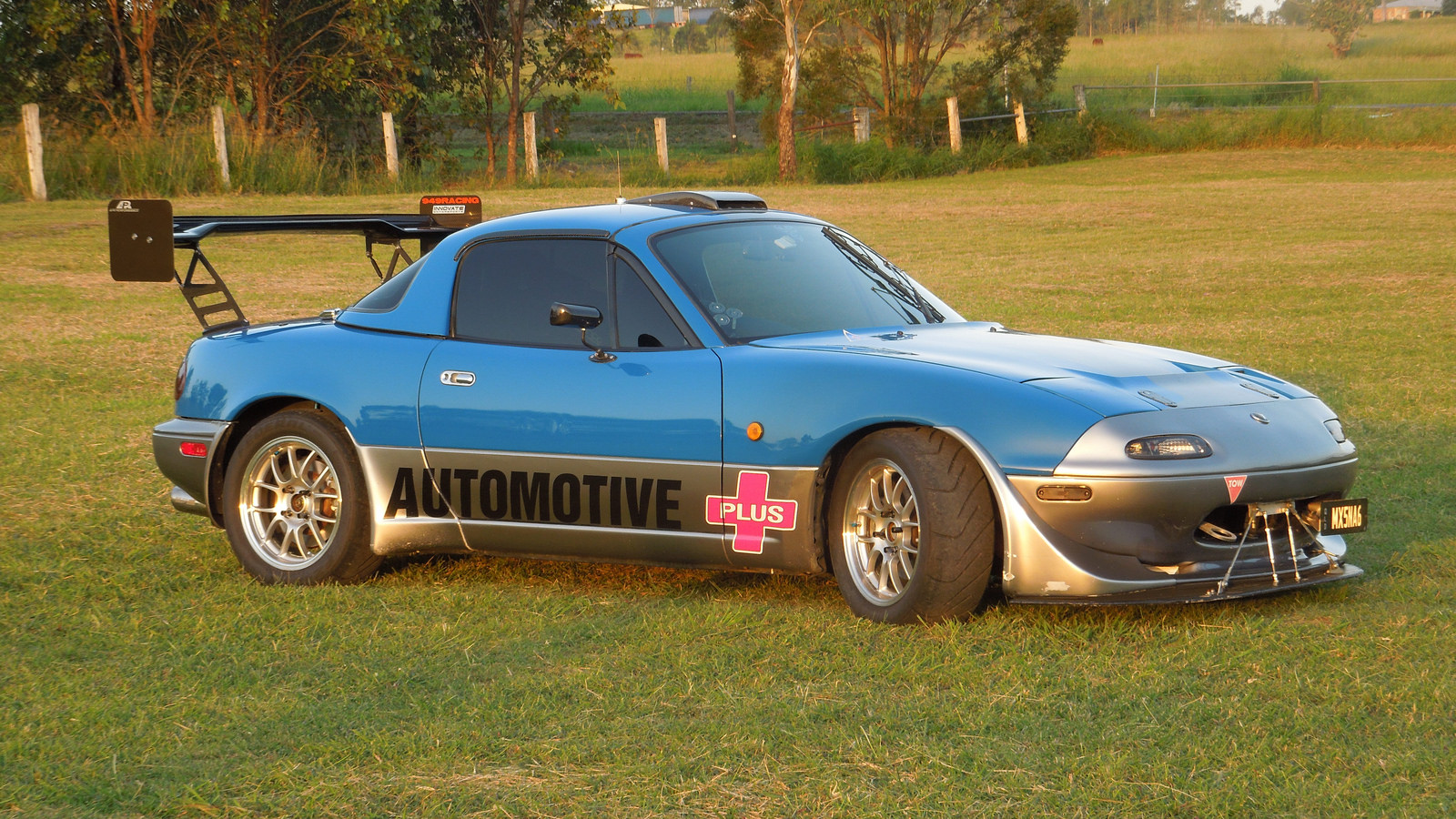

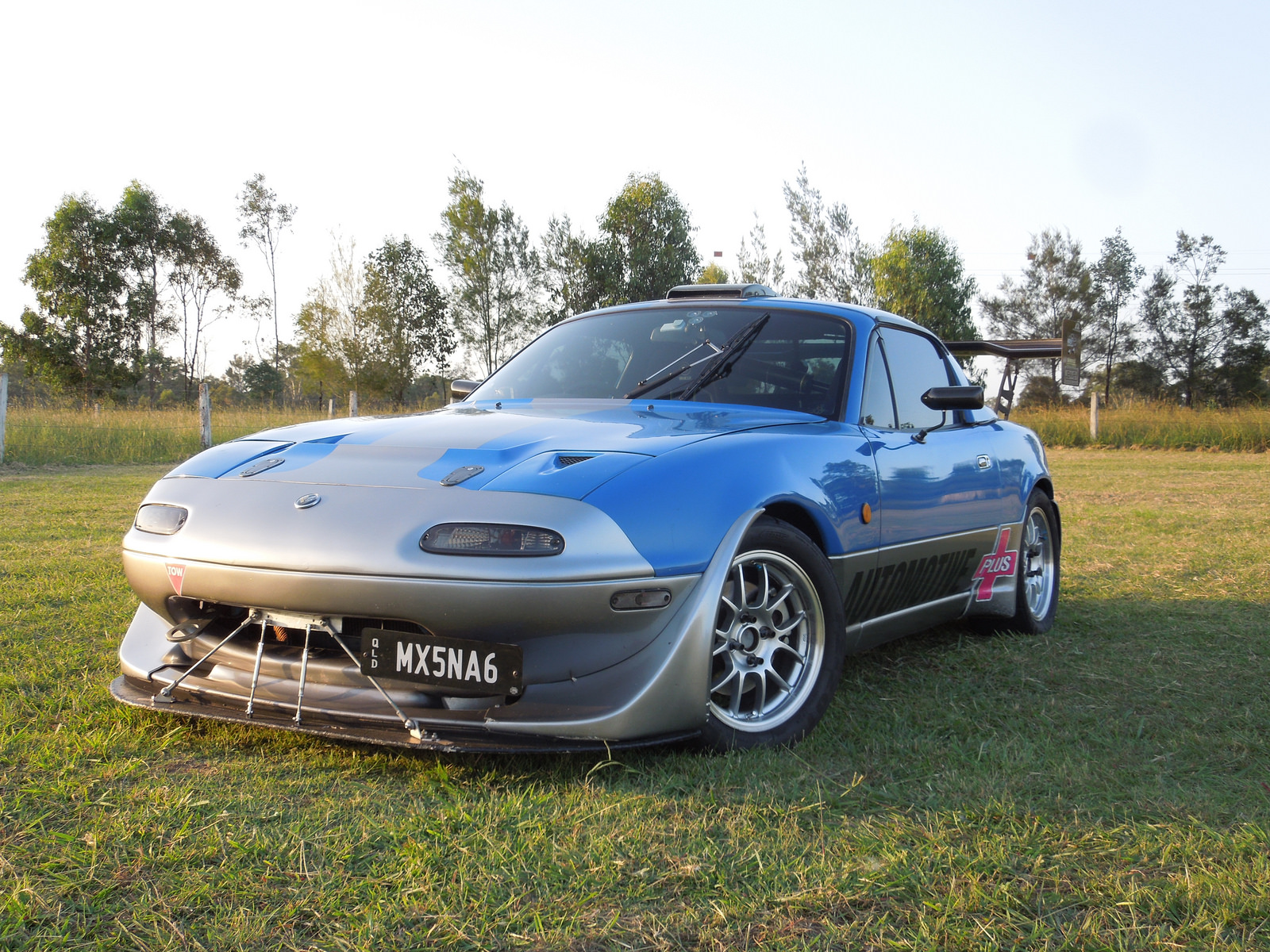

Made a few posts on here so I thought I would make a post with my car in it. Sorry but at the moment it is naturally aspirated, however you never know what the future holds...

Worst Mod - Roof air scoop. It is great for ducting air into the cabin but it is noisy when on the road. On the track with a helmet on you don't hear it.

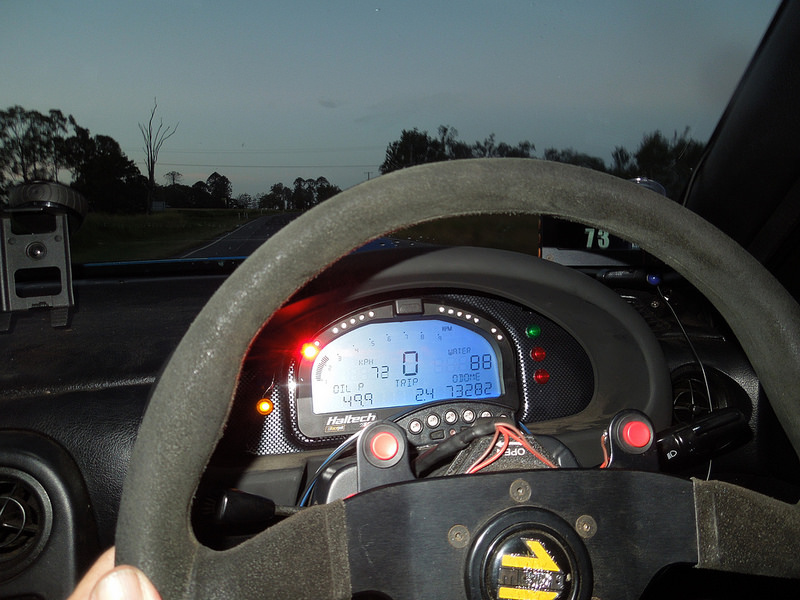

Best Mod - Custom ITB airbox and getting the fuel level to display on the IQ3.

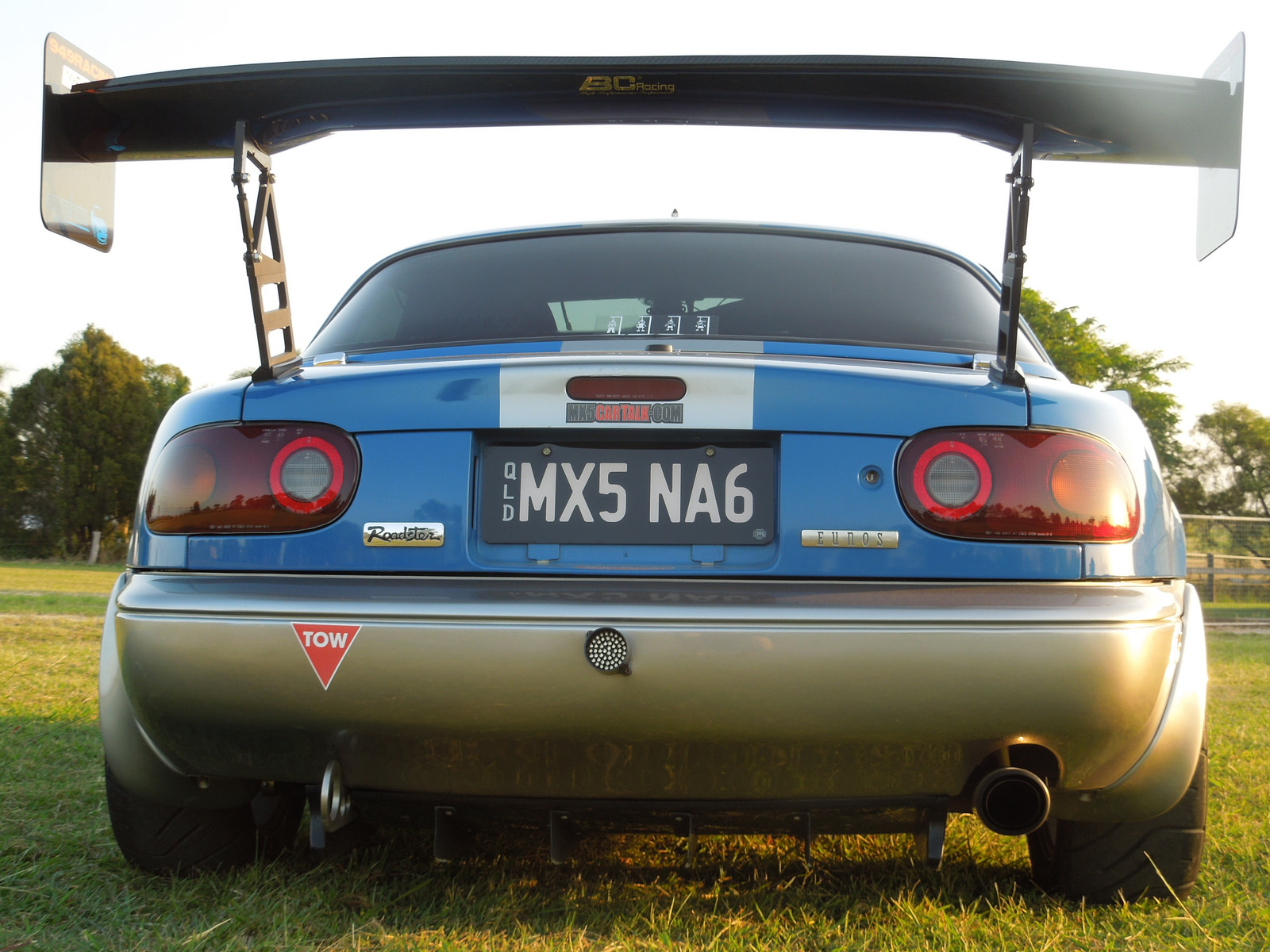

Next mod - custom wing mounts as the current setup has too much side to side movement. There will be bracing inside the boot as well as the new mounts.

DSCN2348 by Eipeip, on Flickr

DSCN2334 X by Eipeip, on Flickr

DSCN2337 by Eipeip, on Flickr

DSCN2369 by Eipeip, on Flickr

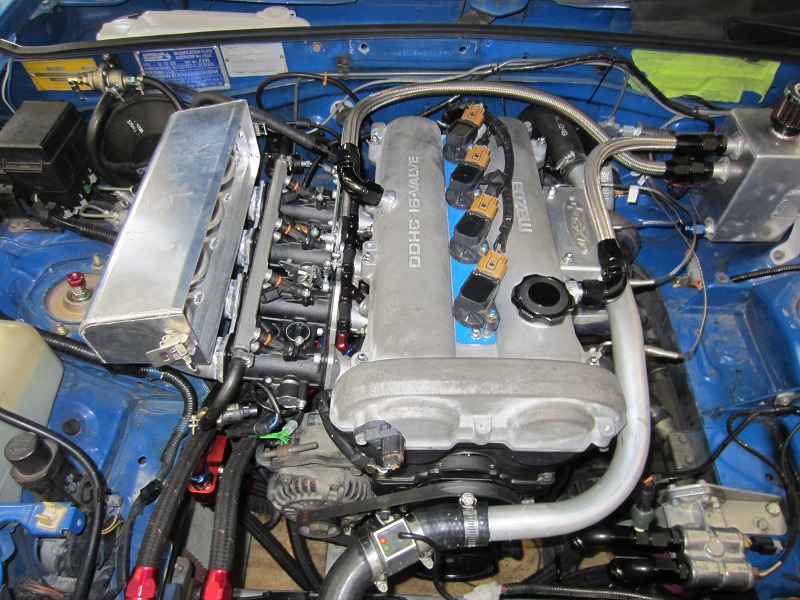

New Engine Bay by Eipeip, on Flickr

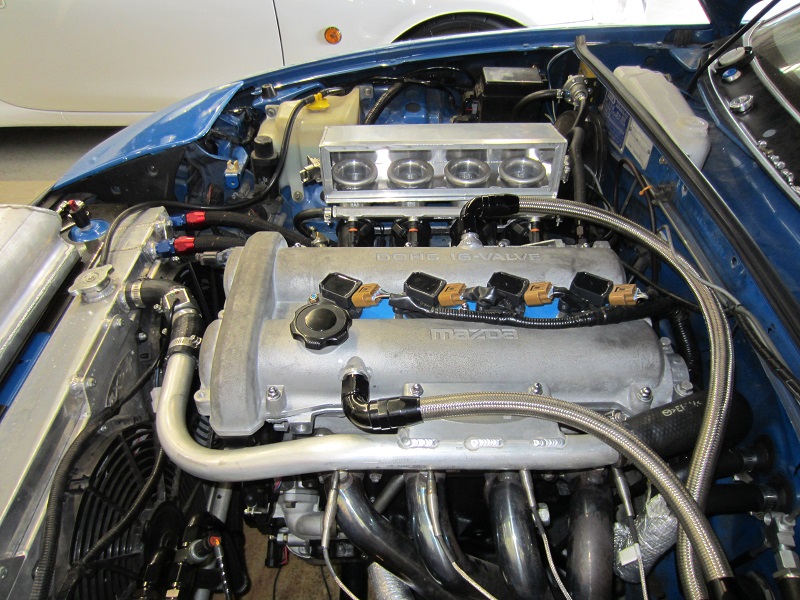

Automotive Plus Custom ITB Air Box (before paint). Trumpet lengths approx. 110mm
IMG_2479 by Eipeip, on Flickr

IMG_2481 by Eipeip, on Flickr

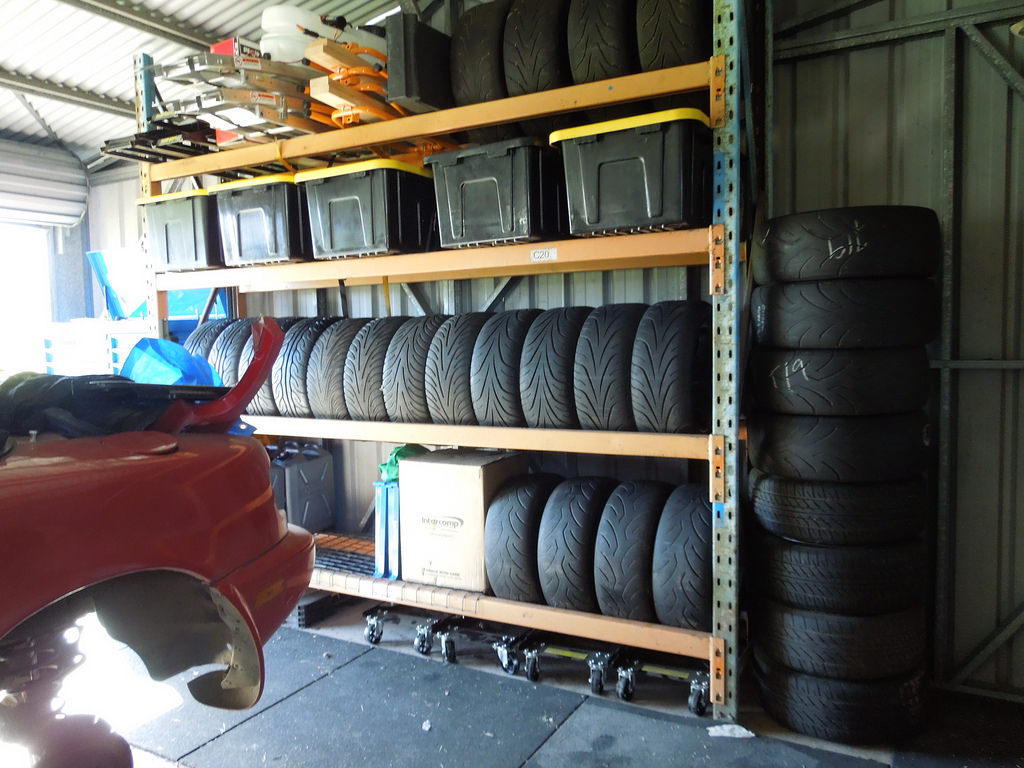

The wheel collection (and a MX5 NA6 shell...)
DSCN2602 by Eipeip, on Flickr

Engine/Engine bay:
Haltech PS1000 ECU
E85 (flex fuel setup)
COP's
NB8 Block (Toda 85 mm pistons, Toda 0.8mm head gasket, Toda timing belt, Carrillo Super A-Rod, balanced lightweight flywheel/HD clutch/crank, Main Bearing Support Plate upgrade, ACL Race bearings)
NA8 head (flowed, port matched, Toda 288 deg in/ex cams, over 10mm lift, base circle reduced, ramp angles softened, titanium springs, 1mm oversize valves)
11:1 compression
Toda adjustable cam gears
Racing beat header/exhaust (full front to back)
Jenvey ITB's 725cc injectors
Tomei fuel pressure regulator
Custom (Automotive Plus) vacuum lines from ITB's
Custom (Automotive Plus) coolant reroute
Custom (Automotive Plus ITB Air Box)
Peterson's Remote Relief Valve
Toda oil pump gears (oil pressure control shimmed so it no longer functions)
Custom oil catch can and breather lines(Automotive Plus)
PWR radiator/oil cooler combo, (custom Automotive Plus) shroud and 2 x SPAL fans.
Radiator cooling panel
Custom (Automotive Plus) oil lines
Oil filter relocation
Air con removed
Power steering - depowered
Cartek coolant alarm (rigged up to a 110 db alarm and warning light
Cartek isolator

Driveline
6 speed box (built for up to 400 Nm of torque)
MiataRoadster short shifter
4.3 Torsen diff
NB8B brakes
NB8B proportioning valve
Braided brake lines
Trackspeed Engineering Brake Ducts as well as custom (Automotive Plus) ducting from GV lip.

Suspension
BC Racing ER's
Butterfly brace
24mm adjustable front sway bar (Whiteline)
Stock rear sway bar adjustable
Super-Pro Eccentric Kit (allows up to an extra -3 deg camber)
SRI Rear Upper Adjustable Arms (allows up to an extra -3 deg camber)
Corner balanced (have Intercomp scales at home)

Exterior
949 Racing FRP GTC-200 rear wing
Jet Stream Rear Diffuser
GV front lip, GV bonnet, GV front/rear wind deflectors
Custom splitter (upto Version 3 now)
KazeSpec Engineering Heim Rod Front Splitter Mounting kit
Carbon fibre roof scoop
Carbon fibre side mirrors
Pitcrew racing single wiper
Dapper HID Projector headlights
Custom blue/silver paint
Rain light
Smoke indicators (front)
Tow hooks (Garage Star Tow Hooks | Garage Star)
Offset License Bracket .
Hardtop Rain Rails

Interior
Automotive Plus Plus Tallboy roll bar
Shift-i shift light
IQ3 Display Dash
Quick release
Mono D type steering wheel
Terraphone intercom
Single warning light if oil or water goes over 120 deg c Coolant alarm light
Cartek Rain light switch
Innovate Data logging (4 x EGT's, oil/water/2 x air intake temps, fuel/oil/brake pressures, RPM, wheel speed, accel/side G force, steering input, AFR, TPS). LMA-3, SSI-4, TC-4, MTX-L: Wideband Air/Fuel Ratio Gauge, MTX-D: Oil Pressure & Temperature, MTX-D: Water Temperature & Battery Voltage and DL-32 daisy chained.
Iron Canyon Motorsport fuel sensor
2 x Sparco Sprints (and harness to suit)
VBOX Lite camera (with micro module)
Hardtop Brackets
Custom Gear ****
Leather Door Pulls
Fire extinguisher
Attached Thumbnails
MX5 NA6 from Australia-16117944544_c5cc2f1b47_h.jpg   MX5 NA6 from Australia-16740290905_2fccc16692_h.jpg   MX5 NA6 from Australia-16120315783_97684690bd_h.jpg   MX5 NA6 from Australia-16749953831_05ff7af78a_c.jpg   MX5 NA6 from Australia-16401765644_59f163037d_o.png

MX5 NA6 from Australia-16729196142_4e8d3ed517_o.jpg   MX5 NA6 from Australia-16729051371_6d73bba68d_o.jpg   MX5 NA6 from Australia-17084913524_d453e88e42_b.jpg
Eipgam is offline   Reply With Quote
Old 06-12-2015, 07:19 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Thanks for joining, Eipgam!
Braineack is offline   Reply With Quote
Old 06-22-2015, 07:48 AM   #3
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Which 6 speed is it Mark?

I always worry about mine breaking!
timk is offline   Reply With Quote
Old 06-22-2015, 10:37 AM   #4
Junior Member
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Love the build, that ITB air box setup is pretty neat. Welcome!
FrankB is offline   Reply With Quote
Old 06-22-2015, 03:45 PM   #5
Junior Member
Thread Starter

Join Date: Jun 2014
Location: Purga, Queensland, Australia
Posts: 65
Total Cats: 3
Default

Timk - OEM 6 speed

FrankB - thanks it took a while to get the air box right. For a RH drive car it fits under the OEM bonnet as well as retains the booster and clutch in their OEM positions. For LH drive cars you do not have those constraints.
Eipgam is offline   Reply With Quote
Old 06-26-2015, 08:51 AM   #6
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

What has been done to it for it to be "built for up to 400 Nm of torque", or is that how they come?
timk is offline   Reply With Quote
Old 06-26-2015, 05:08 PM   #7
Junior Member
Thread Starter

Join Date: Jun 2014
Location: Purga, Queensland, Australia
Posts: 65
Total Cats: 3
Default

The gearbox was rebuilt just before I purchased it from Victoria. Gears were replaced by deburred, polished, Cyro treated then shotpeened ones.
Eipgam is offline   Reply With Quote
Old 07-03-2015, 05:01 PM   #8
Junior Member
Thread Starter

Join Date: Jun 2014
Location: Purga, Queensland, Australia
Posts: 65
Total Cats: 3
Default

The fuel guage setup is a sensor from Iron Canyon http://www.ironcanyonmotorsports.com/icm-fuel-sender/, this is then hooked into the Haltech PS1000 (and into the Innovate data logger) to be displayed by the IQ3.

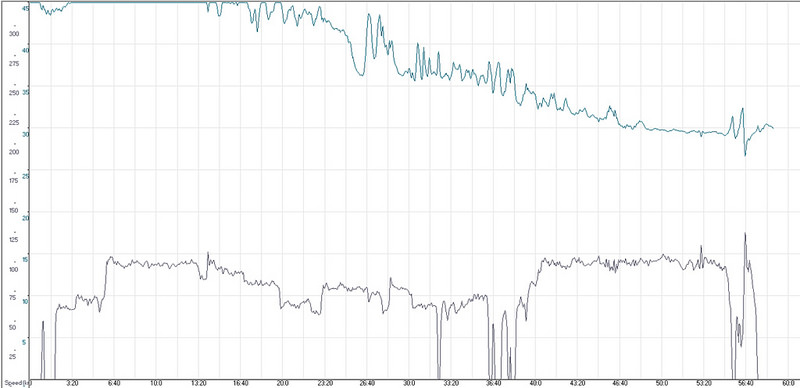

Black line is speed (kmh) and the blue/green line is the fuel level (ltrs).

Home to coffee about 80 kms.

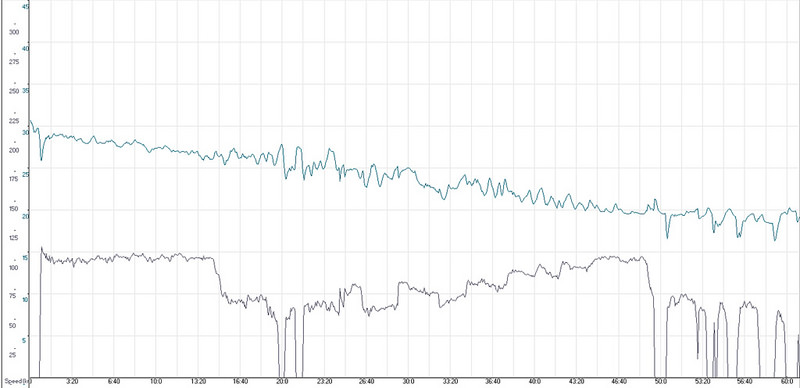

Fuel_01, on Flickr
