Default new from tejas!

Hey guys i'm Justin. I currently reside in College Station TX and I recently bought a 1994 turbo miata. I dont know who built it but it needs all kinds of work I want to get this thing track ready, but for now I would atleast like to get it autox reliable. Ive been racing since I was a little kid in karts



So I felt a turbo miata fit my bill pretty well

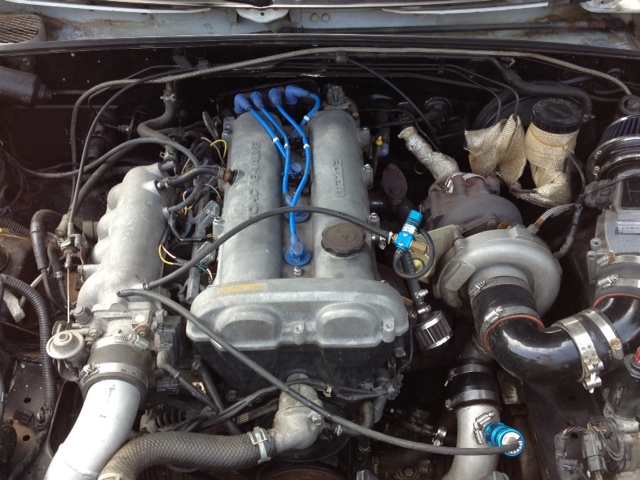

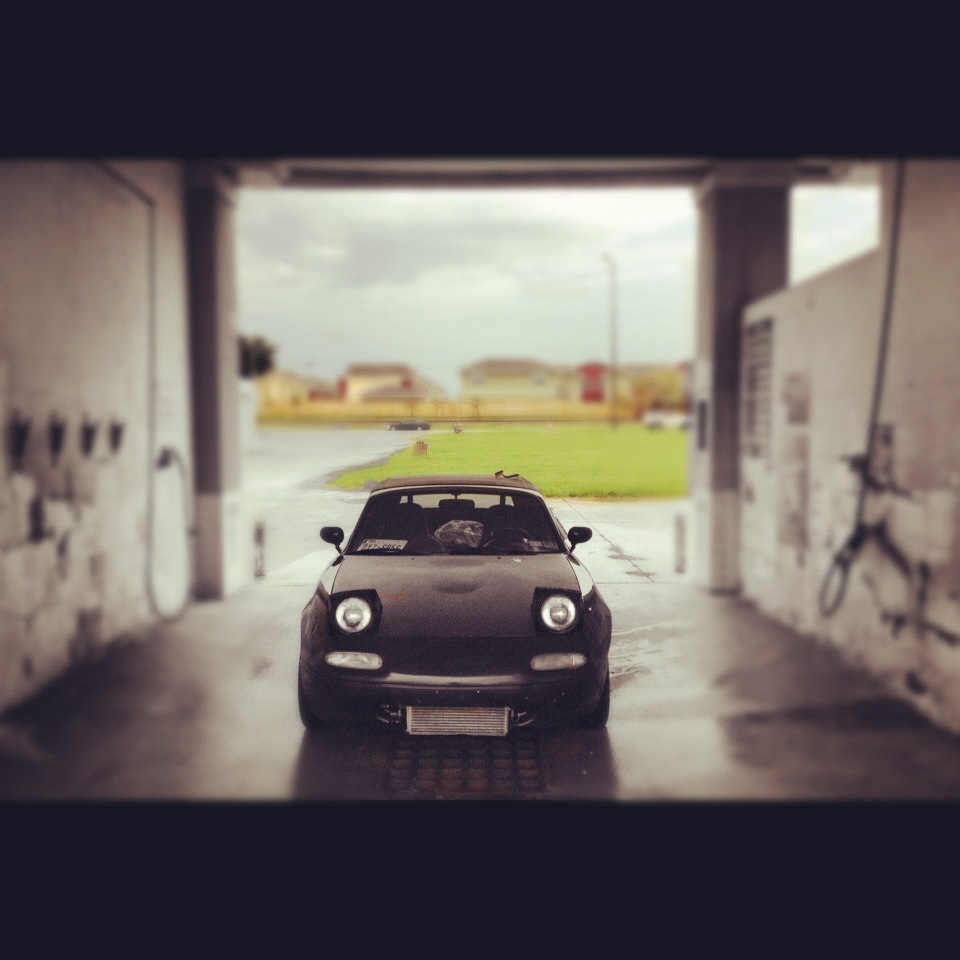

Here is the car

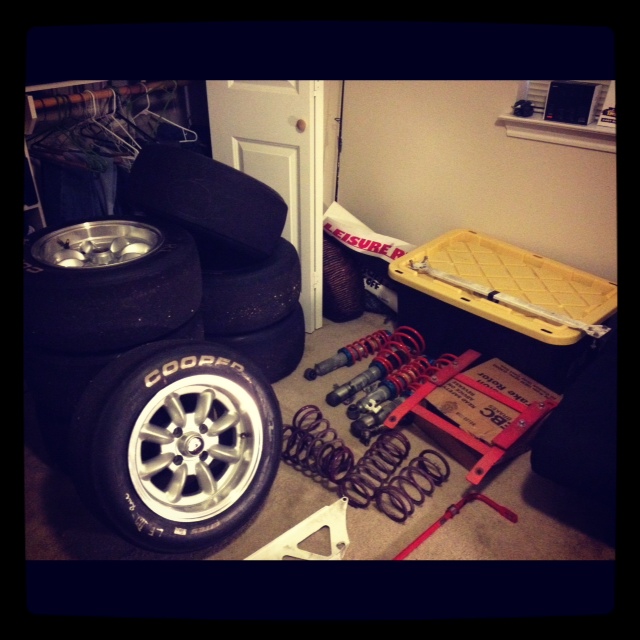

some stuff I have in order for it



I have some over heating issues and from reading this forum for the last week I realize basically the entire cooling system was done wrong
Attached Thumbnails
new from tejas!-swrcdenton-1.jpg   new from tejas!-miataaaa-1.jpg   new from tejas!-newwheels.jpg   new from tejas!-miata.jpg
justintime is offline   Reply With Quote
Old 07-13-2012, 04:48 PM   #2
Elite Member
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

Why does it look like it has an AFM from a 90-93? What is the fuel management? If it is the OEM with bandaids, then you need to recirculate the BOV back in pre turbo. Also, get a clamp on that fuel line. That is just asking for trouble.
rharris19 is offline   Reply With Quote
Old 07-13-2012, 04:50 PM   #3
Newb
Thread Starter

justintime's Avatar

Join Date: Jun 2012
Posts: 11
Total Cats: 0
Default

instead of starting a new thread (but I will if I should) I thought I would post up my problems in here with lots of pics and video lol....

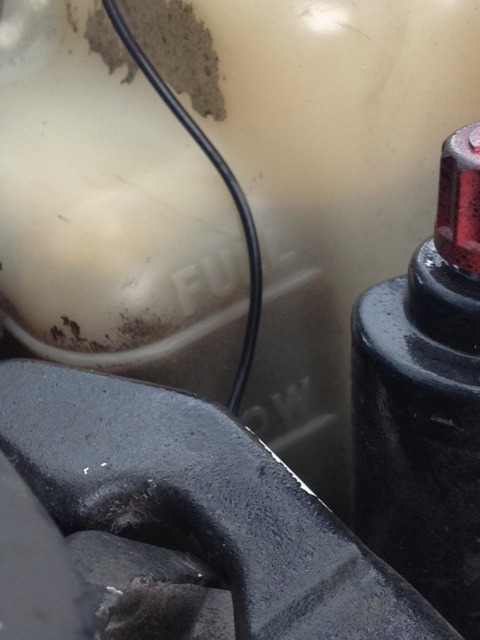

first of all I noticed I have bubbles in the coolant res. I noticed this cause when I was driving yesterday I started smelling coolant and so I pulled over popped the hood and I had coolant all over the power steering rack. It didnt over heat but I took that time to go eat. When I came back I had a small puddle. I drove home a few miles away to investigate further but no more coolant leaking... weird. but I did notice the bubbling in the res.

I let it totally cool and noted that when cool the fluid in the res sits perfectly at full. when hot it goes about an inch higher.

Name:  coolantcold.jpg
Views: 1
Size:  65.8 KB

here is what it looks like when I do a completely cold start (you have to turn it up to 1080p to see bubbles


and here is what it looks like after driving for 15 min (also note res is a lot more full)

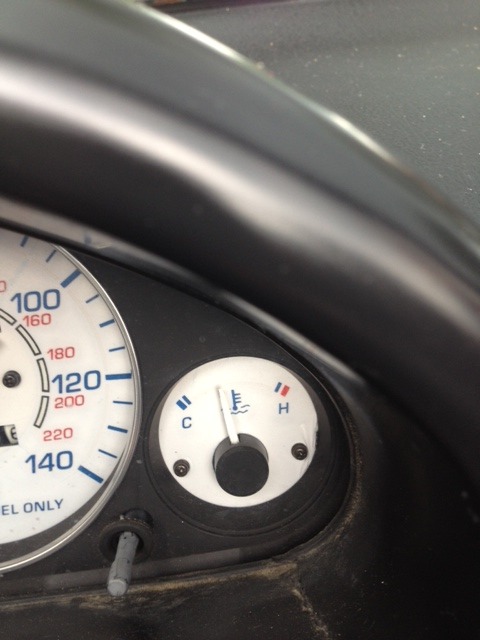

this is where the temp guage was during the whole ordeal as well

Name:  temp.jpg
Views: 1
Size:  60.3 KB

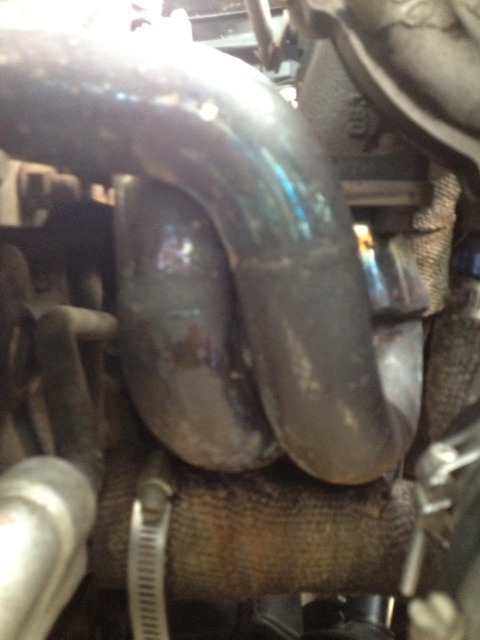

So when I was looking around for leaks I noticed this

Name:  mani.jpg
Views: 1
Size:  68.1 KB

and this

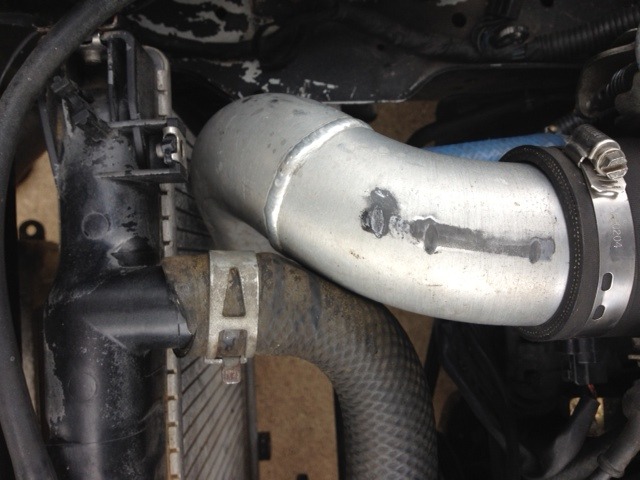

and this Name:  sooclose.jpg
Views: 1
Size:  75.6 KB

so any ideas?
Attached Thumbnails
new from tejas!-coolantcold.jpg   new from tejas!-temp.jpg   new from tejas!-mani.jpg   new from tejas!-sooclose.jpg
justintime is offline   Reply With Quote
Old 07-13-2012, 04:55 PM   #4
Newb
Thread Starter

justintime's Avatar

Join Date: Jun 2012
Posts: 11
Total Cats: 0
Default

Quote:
Originally Posted by rharris19 View Post
Why does it look like it has an AFM from a 90-93? What is the fuel management? If it is the OEM with bandaids, then you need to recirculate the BOV back in pre turbo. Also, get a clamp on that fuel line. That is just asking for trouble.
im not sure what year the afm is. It is running a voodoo box supposedly tuned by begi at 8 psi.

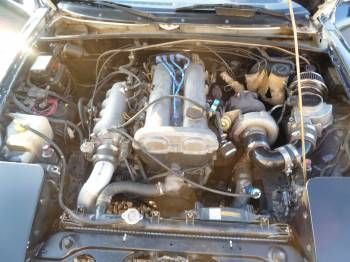

here is the only pic I have at the moment that includes the whole thing. its raining like crazy or Id go take a closer picture of it.

Attached Thumbnails
new from tejas!-miataturbo1.jpg
justintime is offline   Reply With Quote
Old 07-13-2012, 05:01 PM   #5
Newb
Thread Starter

justintime's Avatar

Join Date: Jun 2012
Posts: 11
Total Cats: 0
Default

I ordered an aluminum radiator and fans since I only have one fan And im overheating after an hour or more of driving.

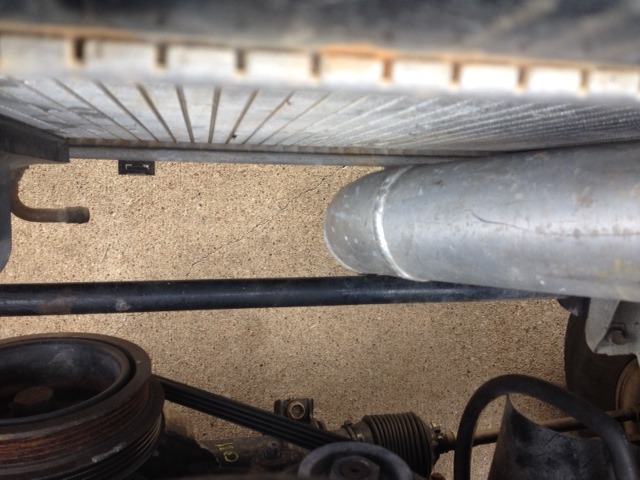

but I have this problem which makes me think it wont fit when it gets here.

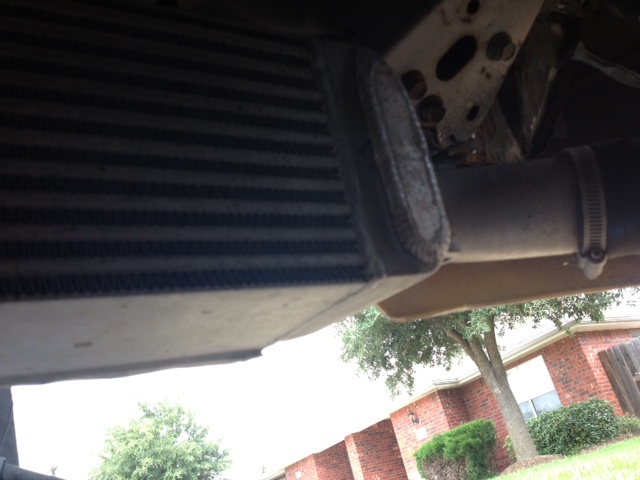

also I have a very very oddly thick looking ic. I was told maybe that was blocking a lot of my air too?



Attached Thumbnails
new from tejas!-pipingmeetsswaybar.jpg   new from tejas!-hugeic.jpg
justintime is offline   Reply With Quote
Old 07-13-2012, 06:03 PM   #6
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,133
Total Cats: 187
Default

The bubbles most likely indicate a failed seal between the head/block. Since failed MLS gaskets on the 1.8s are fairly uncommon, I'm predicting that the engine was overheated pretty severely at one point, and you have a warped head as a result.

The coolant hose and the intake charge pipe being near each other are insignificant.

Consider removing the "heat wrap" on the downpipe/header, heat wrap can lead to more problems down the road. Also, because of the heat wrap, I can't see well enough to figure out what's going on under there

You are overheating because the radiator is not properly ducted - the air is going around the radiator instead of through it. I'm willing to bet that it's more of a problem at highway speeds than in stop/go traffic.

The smoke coming from your downpipe/turbo is exhaust gasses. Something in your exhaust system isn't sealed up properly. May require a gasket. May be loose bolts.
fooger03 is offline   Reply With Quote
Old 07-13-2012, 06:23 PM   #7
Newb
Thread Starter

justintime's Avatar

Join Date: Jun 2012
Posts: 11
Total Cats: 0
Default

you are correct that it seems to overheat on the highway but driving around town its fine.

warped head uggggh

Quote:
Originally Posted by fooger03 View Post
The bubbles most likely indicate a failed seal between the head/block. Since failed MLS gaskets on the 1.8s are fairly uncommon, I'm predicting that the engine was overheated pretty severely at one point, and you have a warped head as a result.

The coolant hose and the intake charge pipe being near each other are insignificant.

Consider removing the "heat wrap" on the downpipe/header, heat wrap can lead to more problems down the road. Also, because of the heat wrap, I can't see well enough to figure out what's going on under there

You are overheating because the radiator is not properly ducted - the air is going around the radiator instead of through it. I'm willing to bet that it's more of a problem at highway speeds than in stop/go traffic.

The smoke coming from your downpipe/turbo is exhaust gasses. Something in your exhaust system isn't sealed up properly. May require a gasket. May be loose bolts.
justintime is offline   Reply With Quote
Old 07-13-2012, 08:46 PM   #8
Newb
Thread Starter

justintime's Avatar

Join Date: Jun 2012
Posts: 11
Total Cats: 0
Default

Quote:
Originally Posted by fooger03 View Post
The smoke coming from your downpipe/turbo is exhaust gasses. Something in your exhaust system isn't sealed up properly. May require a gasket. May be loose bolts.
thats what I thought too, but loooking at it closer I think its burning whatever hose is coming out right there. im guessing heater core hose?
justintime is offline   Reply With Quote
Old 07-13-2012, 09:40 PM   #9
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Welcome. That's quite the head ache there.

Coolant reroute, ducting, what the help is that intake doin in there?

WTF mate
Miater is offline   Reply With Quote
Old 07-13-2012, 09:44 PM   #10
Newb
Thread Starter

justintime's Avatar

Join Date: Jun 2012
Posts: 11
Total Cats: 0
Default


got some video of the possible leak location. any ideas how to route that line so it wont make contact with the manifold? lol
justintime is offline   Reply With Quote
Old 07-14-2012, 08:08 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Welcome, justintime!
