Old 07-16-2014, 01:26 PM   #21
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Quote:
Originally Posted by Ian View Post
My main concern is that the car ran well on the OEM ECU, aside from high 13.x AFR's at WOT. I put in the MS and all goes to **** and the car barley starts with settings that worked well before. Could this be a firmware related issue?

It doesn't add up and that's why I'm so confused as to where to look next.
Why doesn't it add up?
You built a hybrid engine and are trying to run it with hybrid settings. But the settings have not been configured for your type hybrid.

Your firmware is fine the problem seems to be a classic case of PEBCAK
stefanst is offline   Reply With Quote
Old 07-16-2014, 09:21 PM   #22
Ian
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2012
Posts: 163
Total Cats: 4
Default

Quote:
Originally Posted by stefanst View Post
Why doesn't it add up?
You built a hybrid engine and are trying to run it with hybrid settings. But the settings have not been configured for your type hybrid.

Your firmware is fine the problem seems to be a classic case of PEBCAK
Exactly my point. I built a hybrid engine with the same sensors from the old engine, used the same settings that worked previously from old engine, and the car hardly ran. There's no way to simplify it further.

The only variable left is the move to the OEM '03 COPs, hence the title of the thread.

If you want to try to help me productively troubleshoot this, I would appreciate it. If not, don't waste any more of our time by posting petty insults.
Ian is offline   Reply With Quote
Old 07-28-2014, 08:56 PM   #23
Ian
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2012
Posts: 163
Total Cats: 4
Default

I discovered that my rear coolant temp sensor was broken so I replaced it.

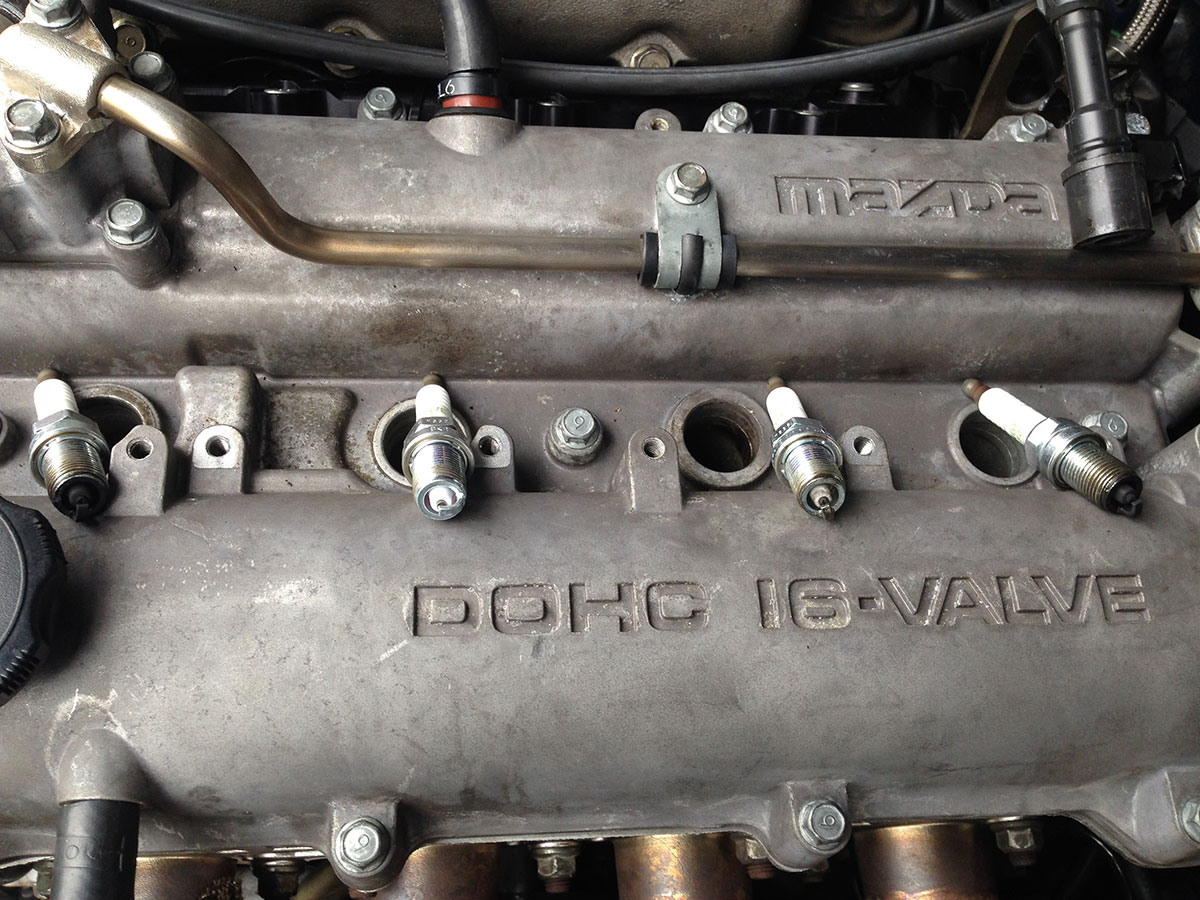

I got new BKR6EIX spark plugs and left the gap as-is at .040. The plugs that came out have me worried. See attached (#1 on left, #4 on right). #2 is the obvious stand-out and it's the same cylinder that failed on my last engine so now I'm paranoid as ****. I checked through my injector sub-harness wiring and connectors, but I cannot see any problem areas without cutting into the outer sleeve.

I am not a mechanic and I don't pretend to be one. I have not tried to start the car again yet - I'd like to spend more time looking through the wiring. I'm stuck on where to go next, so if this makes sense to anyone I'd appreciate any help I can get.
Attached Thumbnails
'03 COP Settings - DIYPNP - Car Is Barely Drivable-plugs.jpg

Last edited by Ian; 08-02-2014 at 07:06 PM.
Ian is offline   Reply With Quote
Old 07-29-2014, 02:27 AM   #24
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Haven't read through much of this, but did you check your injectors recently? As in sent them out for flow testing?
curly is offline   Reply With Quote
Old 07-29-2014, 02:38 AM   #25
Ian
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2012
Posts: 163
Total Cats: 4
Default

Quote:
Originally Posted by curly View Post
Haven't read through much of this, but did you check your injectors recently? As in sent them out for flow testing?
I was running FIC 650's when the last motor died. I put in the NB2 265's to try to test that same theory.

I sent out the FIC's to be checked and just got them back. Total overkill since I'll likely be staying N/A, but at least I will know they aren't the problem. I'll put them in tomorrow.

Anything else to check while I'm in there?
Ian is offline   Reply With Quote
Old 07-31-2014, 06:15 PM   #26
Ian
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2012
Posts: 163
Total Cats: 4
Default

Put in the tested 650cc injectors and new plugs, switched req fuel to 4.7, adjusted deadtime and voltage correction to values provided with injectors and surprise surprise, this ******* piece of **** wont start. Catches barely after cranking about 5-7 times, then dies.

Verified coil wiring. It's correct. Verified timing. It's correct.

Attached composite log of no throttle start attempt and my current tune. I am using the '96 TPS, CAS, crank wheel, crank trigger, and all the old settings that ran great on my previous '00 motor.
Attached Files
File Type: csv 2014-07-31_13.18.11.csv (10.6 KB, 20 views)
File Type: msq CurrentTune.msq (108.8 KB, 38 views)
Ian is offline   Reply With Quote
Old 08-01-2014, 09:56 PM   #27
Ian
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2012
Posts: 163
Total Cats: 4
Default

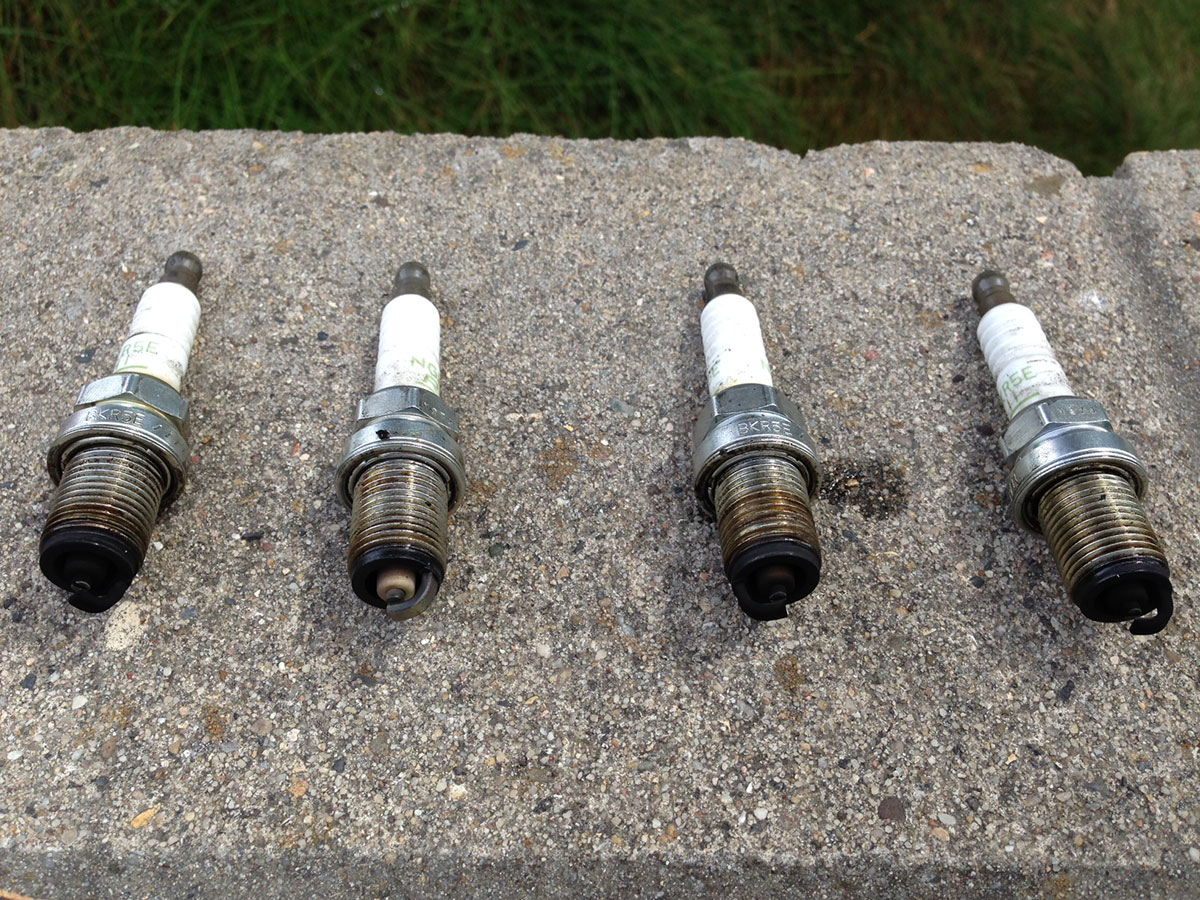

Pulled the plugs to see what's going on since they were brand new:

1 & 4 are black
2 looks brand new still
3 has a little discoloration

Note the bronzing of the top of the plugs.

What is going on? I just re-wired the COP's with heat-shrink crimps to make sure the wiring is solid since it was soldered before, but no change.
Attached Thumbnails
'03 COP Settings - DIYPNP - Car Is Barely Drivable-plugs.jpg
Ian is offline   Reply With Quote
