Default 6 position boost control

6 position switch (5 x Rotary Switch Potentiometer 2pole 6POSITION 15pin | eBay)

A resistor network. (Chief Delphi - View Profile: ZZII 527)

This will give me a 0-5V input in 6 steps.

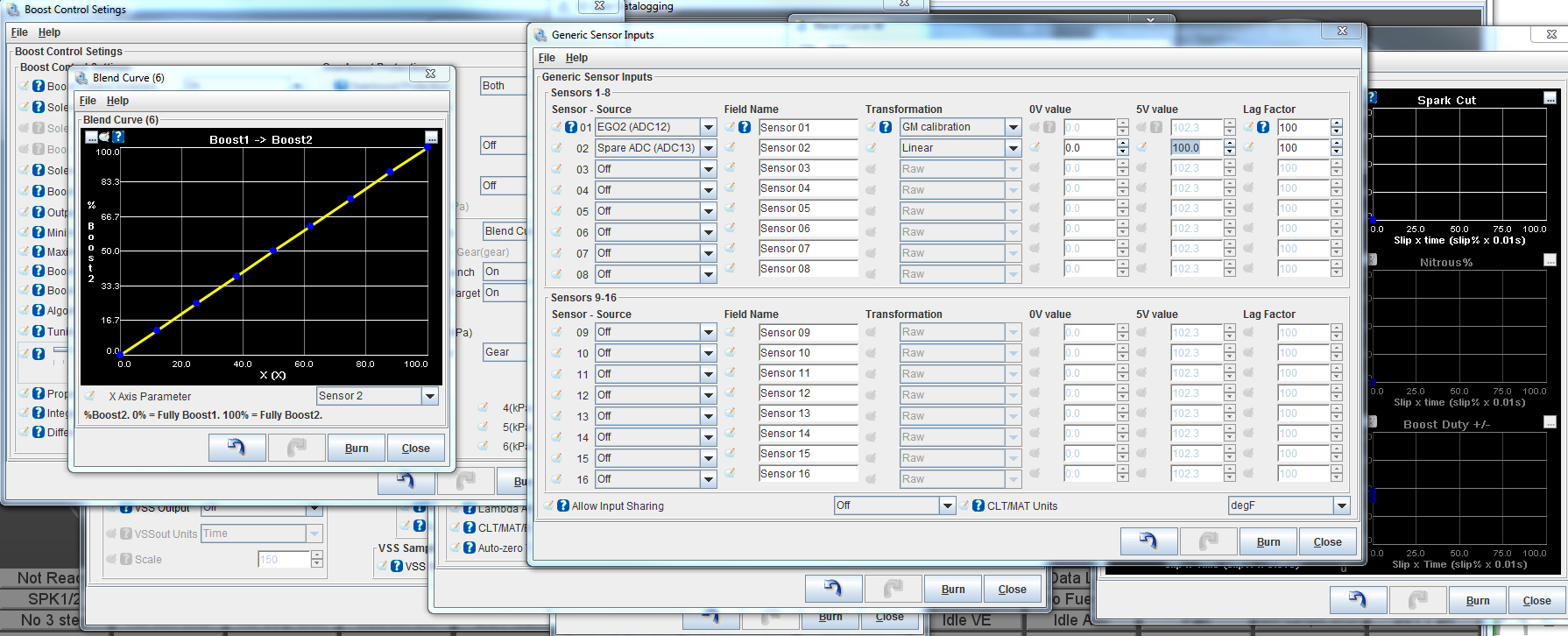

Set this up as a linear sensor in tunerstudio



Set up boost blending. Max boost in table 2, min boost in table 1.

Have 6 levels of boost control!! Wooo

Same switch can be used for launch control and traction control
aidandj is offline   Reply With Quote
Old 11-17-2015, 01:56 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

why?

how about just not suck?
Braineack is offline   Reply With Quote
Old 11-17-2015, 01:57 PM   #3
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by Braineack View Post
why?

how about just not suck?
um...to show off at car meets? duh

Why the **** else would you do it
aidandj is offline   Reply With Quote
Old 11-17-2015, 01:58 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

fair nuff.
Braineack is offline   Reply With Quote
Old 11-17-2015, 01:59 PM   #5
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

aidandj is offline   Reply With Quote
Old 11-17-2015, 03:11 PM   #6
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,371
Total Cats: 1,332
Default

Cool, but even cooler if you set the X axis to react based on Flex%, which is what I plan to do
Savington is offline   Reply With Quote
Old 11-17-2015, 03:18 PM   #7
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Orrrr, you do a dual table flex blend using Blend Curve (8). And the **** based table Blend Curve (6). Then you have 6 positions of boost that also vary based on ethanol content.*



(either way you should be using Blend Curve 8 for Flex blending, because it effects all of the tables.)

*I have not tried this. And I'm not at my car to see if the MS freaks out if I set it up like this.

Last edited by aidandj; 11-17-2015 at 03:36 PM.
aidandj is offline   Reply With Quote
Old 11-17-2015, 03:32 PM   #8
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,858
Total Cats: 272
Default

Quote:
Originally Posted by aidandj View Post
Orrrr, you do a dual table flex blend using Blend Curve (8). And the **** based table Blend Curve (6). Then you have 6 positions of boost that also vary based on ethanol content.



(either way you should be using Blend Curve 8 for Flex blending, because it effects all of the tables.)


Interested in outcome from both of you.
Girz0r is offline   Reply With Quote
Old 11-17-2015, 03:33 PM   #9
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Mine will be boring. I'm on a stock 1.6. Sav's will be epic.
aidandj is offline   Reply With Quote
Old 11-17-2015, 03:45 PM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,202
Total Cats: 2,584
Default

blending both based on ethanol content sounds epic.

work out the details so I can hop on the bandwagon
18psi is offline   Reply With Quote
Old 11-17-2015, 03:46 PM   #11
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Details are worked out

See flex fuel thread and this thread.
aidandj is offline   Reply With Quote
Old 11-17-2015, 03:47 PM   #12
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,202
Total Cats: 2,584
Default

You have this completely ironed out and working perfectly?
18psi is offline   Reply With Quote
Old 11-17-2015, 03:48 PM   #13
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

I mean in my brain it is, thats pretty much the same right?
aidandj is offline   Reply With Quote
Old 11-17-2015, 03:49 PM   #14
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,202
Total Cats: 2,584
Default

where's the -props button
18psi is offline   Reply With Quote
Old 11-17-2015, 03:52 PM   #15
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Thankfully gone.
aidandj is offline   Reply With Quote
Old 11-17-2015, 04:20 PM   #16
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,202
Total Cats: 2,584
Default

18psi is offline   Reply With Quote
Old 11-17-2015, 05:13 PM   #17
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

I have all of the parts and none of the time It will happen eventually.
aidandj is offline   Reply With Quote
Old 11-17-2015, 05:36 PM   #18
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

Ive blended boost based on E% on a Rev MS3. I was very happy with the outcome.

Dann
nitrodann is offline   Reply With Quote
Old 11-17-2015, 05:37 PM   #19
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Yes. Blending boost tables on ethanol % is awesome.

Vlad just for you I'm going to talk yank into doing this on his car. Because he is already running flex fuel and boost control.
aidandj is offline   Reply With Quote
Old 11-17-2015, 05:44 PM   #20
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,202
Total Cats: 2,584
Default

sure
18psi is offline   Reply With Quote
