Default Anybody mind post their AFR Target tables?

I'm playing around with these for the first time and I'm just looking to see what you guys are running.

Thanks!
miatamania is offline   Reply With Quote
Old 01-05-2009, 02:48 PM   #2
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Mine is scaled from 1600 to 7000 rpm. 20kpa - 230kpa.

16 on the lowest line, 15 in cruise sells, 13 at 100KPA 12 at 230KPA.

Fill in the blanks evenly.

Im sorry, im at work and cant post my table :(
Saml01 is offline   Reply With Quote
Old 01-05-2009, 03:04 PM   #3
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

These are pretty arbitrary, but they seem to work well:

Joe Perez is offline   Reply With Quote
Old 01-05-2009, 05:26 PM   #4
Elite Member
Thread Starter
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,172
Total Cats: 5
Default

K.

Thanks Joe.

I'm still trying to get mine to read AFR and volts using the fix you posted.
miatamania is offline   Reply With Quote
Old 01-05-2009, 06:11 PM   #5
Junior Member
iTrader: (7)

Join Date: Apr 2007
Location: South of Houston, Texas
Posts: 329
Total Cats: 0
Default

13:1 at atmospheric, stepping down to 12:1 in boost, cruise close to stoich, part throttle around high 13:1 to 14:1
mikef85 is offline   Reply With Quote
Old 01-05-2009, 06:36 PM   #6
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

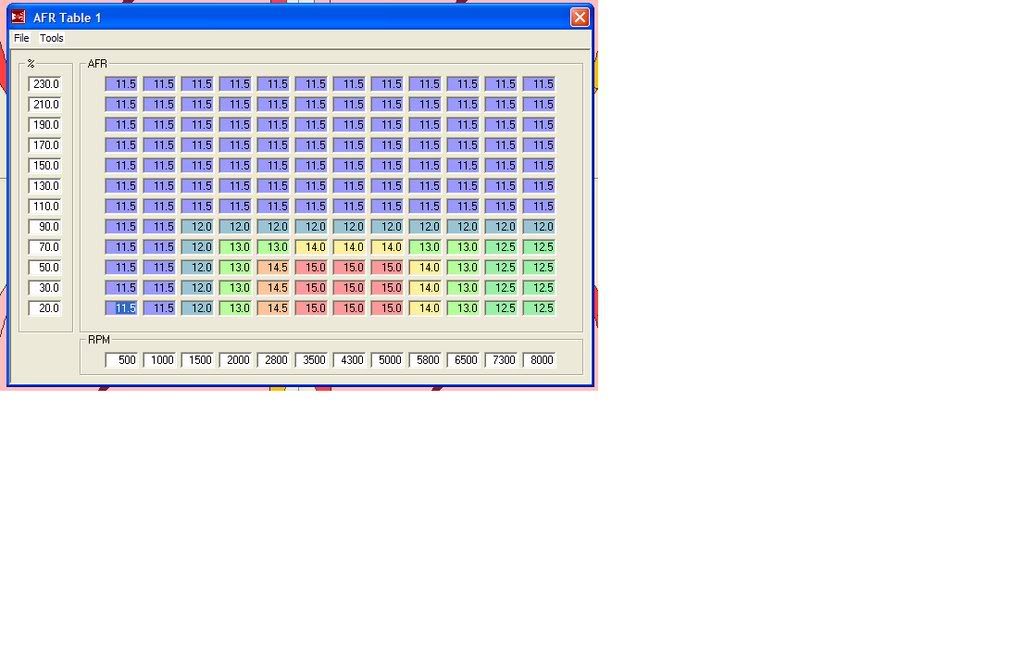

Name:  AFRtable1-5-08.jpg
Views: 54
Size:  73.6 KB
patsmx5 is offline   Reply With Quote
Old 01-05-2009, 06:45 PM   #7
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by patsmx5 View Post
do you work for an oil company? jesus.
y8s is offline   Reply With Quote
Old 01-05-2009, 06:51 PM   #8
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Quote:
Originally Posted by y8s View Post
do you work for an oil company? jesus.
lol. Motor likes fuel. Boosted cells stay rich till I get a new fuel pump and get spark dialed in. For safety, not optimal HP.
patsmx5 is offline   Reply With Quote
Old 01-05-2009, 07:28 PM   #9
Elite Member
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

Quote:
Originally Posted by y8s View Post
do you work for an oil company? jesus.
LOL Thats a great quote.
TravisR is offline   Reply With Quote
Old 01-05-2009, 07:45 PM   #10
Elite Member
Thread Starter
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,172
Total Cats: 5
Default

Quote:
Originally Posted by y8s View Post
do you work for an oil company? jesus.
I lol'd so hard when I read that.

Last edited by miatamania; 01-05-2009 at 09:11 PM.
miatamania is offline   Reply With Quote
Old 01-05-2009, 07:49 PM   #11
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Might have to post mine, I'm sure it'll be the leanest of the bunch. :-) Works well though.
AbeFM is offline   Reply With Quote
Old 01-05-2009, 08:21 PM   #12
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

hustler is offline   Reply With Quote
Old 01-05-2009, 09:01 PM   #13
Elite Member
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

My map looks alot like Hustlers, it drives very smooth once its had time to autotune in.
TravisR is offline   Reply With Quote
Old 01-05-2009, 09:12 PM   #14
Elite Member
Thread Starter
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,172
Total Cats: 5
Default

Thanks guys.

I had an idea of what it was supossed to look like, I got the AFR thing figured out (little different than what was posted) so I'm going to try a few different combinations and see what happens.
miatamania is offline   Reply With Quote
Old 01-06-2009, 02:21 PM   #15
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default



I was pretty convinced this helped my fuel economy a TON over the old settings... but it turned out just to be the freeway miles. Still a bit better, I'd say 20-22 in town, 25-27 freeway. It used to be quite a bit leaner off boost.
AbeFM is offline   Reply With Quote
Old 01-06-2009, 02:42 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

i run dis:

Braineack is offline   Reply With Quote
Old 01-06-2009, 03:29 PM   #17
N3v
Junior Member

Join Date: May 2008
Location: Nashville/Knoxville, TN
Posts: 318
Total Cats: 1
Default

if you're wanting some N/A input I run about 15.6 at cruise, stoich in the low revs at part throttle, then around 13 at WOT
N3v is offline   Reply With Quote
Old 01-06-2009, 04:01 PM   #18
Elite Member
Thread Starter
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,172
Total Cats: 5
Default

Are the larger AFR tables MSII?
miatamania is offline   Reply With Quote
Old 01-06-2009, 04:14 PM   #19
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Yes. MS1 has 8x8 AFR tables, MS2 has 12x12.

The value of larger tables than this would be debatable, as you don't generally want sharp transitions in AFR.
Joe Perez is offline   Reply With Quote
Old 01-06-2009, 04:14 PM   #20
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

good thing MS does a great job averaging between cells!
Braineack is offline   Reply With Quote
