Old 01-10-2009, 06:31 PM   #61
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

Read the manual please. You've been given suggestions but you don't seem to even know enough to use terms appropriately or really understand what is being suggested to you. Not trying to offend you but it's pointless unless you have a better foundation of knowledge. We've all been there and then read and read and read.
johndoe is offline   Reply With Quote
Old 01-10-2009, 07:08 PM   #62
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,320
Total Cats: 1,918
Default

Let's not be too harsh on the new guy. You're making me feel bad about recommending he come over here.

Serious though, Poobs, some reading would be in order. I hate just arbitrarily throwing web sites at people, but you would be well-served to go through pretty much the whole MSnS-Extra Manual a time or two. You really do need to build a foundation of knowledge before you can start effectively tinkering with some of this stuff.

To answer your question, all the tables in MS can be scaled by a multiplier, or shifted by an offset, under "Tools" -> "Table Transform".
Joe Perez is online now   Reply With Quote
Old 01-10-2009, 07:40 PM   #63
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

I didn't think I was being harsh, just blunt. By all means stay here and learn. He seems like a nice guy and eager to take advice.
johndoe is offline   Reply With Quote
Old 01-10-2009, 08:41 PM   #64
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Cool

Quote:
Originally Posted by Joe Perez View Post
Let's not be too harsh on the new guy. You're making me feel bad about recommending he come over here.

Serious though, Poobs, some reading would be in order. I hate just arbitrarily throwing web sites at people, but you would be well-served to go through pretty much the whole MSnS-Extra Manual a time or two. You really do need to build a foundation of knowledge before you can start effectively tinkering with some of this stuff.

To answer your question, all the tables in MS can be scaled by a multiplier, or shifted by an offset, under "Tools" -> "Table Transform".

Oh you guys didn't think that you were going to get rid of me that easy , did you ?

Thanks to the information that you provided I drove the car, logged the data, loaded the data into VEA, accepted the recommend settings which I then burned/saved to the ECU. I will drive the car tomorrow to see how it feels.
It was all short and sweet cause my crappy lap top battery goes dead in a hurry.
One thing that concerns me is what the AFR VE target values are right now and what they are causing MLV VEA to do.

Yes, the ones under "More Settings" scroll down to AFR targets for VE table 1

Later
poobs is offline   Reply With Quote
Old 01-10-2009, 09:03 PM   #65
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

post a screen shot of your current afr table
johndoe is offline   Reply With Quote
Old 01-10-2009, 09:06 PM   #66
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,320
Total Cats: 1,918
Default

Quote:
Originally Posted by johndoe View Post
I didn't think I was being harsh, just blunt.advice.
I said not too harsh. We can beat him with a stick a little, but I don't want any compound fractures. It's difficult to get blood to come off of forum serves.
Joe Perez is online now   Reply With Quote
Old 01-11-2009, 12:07 AM   #67
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Quote:
Originally Posted by Joe Perez View Post
I said not too harsh. We can beat him with a stick a little, but I don't want any compound fractures. It's difficult to get blood to come off of forum serves.
To remove the blood- use a bit map of pic a bottle of hydrogen peroxide.
poobs is offline   Reply With Quote
Old 01-11-2009, 12:25 AM   #68
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Quote:
Originally Posted by johndoe View Post
post a screen shot of your current afr table

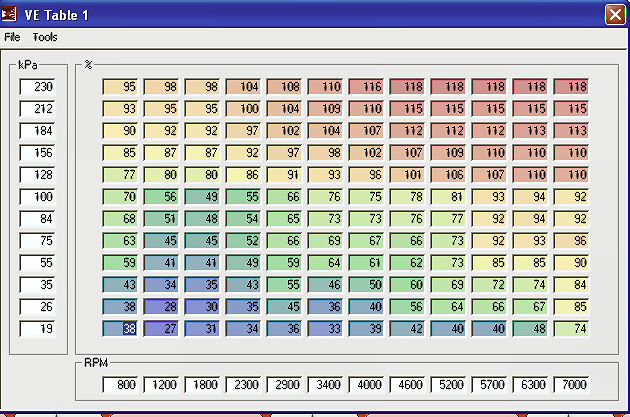

Here it is
Attached Thumbnails
Anybody mind post their AFR Target tables?-my-ve-table-1.jpg
poobs is offline   Reply With Quote
Old 01-11-2009, 01:50 AM   #69
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,320
Total Cats: 1,918
Default

AFR, not VE. He's asking to see what your mixture targets look like. IOW:



For that matter, it'd be helpful to have a whole MSQ.
Joe Perez is online now   Reply With Quote
Old 01-11-2009, 10:38 AM   #70
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by levnubhin View Post
What is that for? Looks lean as heck.
It's a fuel VE table.

How the hell would you know if it's lean/rich or perfect from just looking at it - and for that matter not even knowing what it is!?

What a waste of a post!
richyvrlimited is offline   Reply With Quote
Old 01-11-2009, 10:43 AM   #71
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by AbeFM View Post
You can run a LOT leaner at 101. Unless you're NA and trying to make big power. Otherwise I'd run 15.5:1 at 100 kpa.

I think you can rescale, maybe that's only MS-II.
You run 15:1 at WOT when N/A? don't you burn valves/kill engines doing that? Or have I misunderstood, do you aim for 15.5:1 at 100kpa whilst your engine is FI'd? I'm out of my comfort zone here. If you do, do the latter, what's the benefit?

FWIW I aimed for 13.5:1 when I was N/A though the difference in power between 12:1 and 13.5:1 wasn't detectable via my butt dyno, made a minor improvment in mpg however.
richyvrlimited is offline   Reply With Quote
Old 01-11-2009, 10:59 AM   #72
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by richyvrlimited View Post
It's a fuel VE table.

How the hell would you know if it's lean/rich or perfect from just looking at it - and for that matter not even knowing what it is!?

What a waste of a post!

Oh shnap thanks man I had no idea.

My question was what the heck is it for. Looks really lean compared to all other fuel tables I've seen on here but thats because I've need seen a fuel table for an NA car. Don't be a douche. Your reply was a waste of life.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 01-11-2009, 11:04 AM   #73
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Quote:
Originally Posted by Joe Perez View Post
AFR, not VE. He's asking to see what your mixture targets look like. IOW:



For that matter, it'd be helpful to have a whole MSQ.

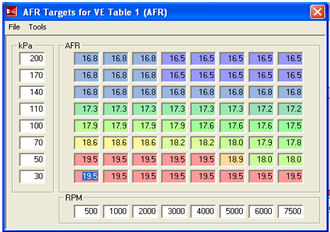

Here is the AFR table

Sorry for the confusion, my brain shut down early last night
Attached Thumbnails
Anybody mind post their AFR Target tables?-afr-table-1.jpg
poobs is offline   Reply With Quote
Old 01-11-2009, 11:14 AM   #74
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Here is the current MSQ

Thanks, I appreciate the help.
Attached Files
File Type: zip Working copy with idle etc.zip (5.7 KB, 44 views)
poobs is offline   Reply With Quote
Old 01-11-2009, 11:34 AM   #75
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by poobs View Post
Here is the AFR table

Sorry for the confusion, my brain shut down early last night
Not sure it's limited to last night.

Where on earth did you get any of these values from? Certainly not from here or the megamanual. Seriously, did you just pull this from thin air?
Ben is offline   Reply With Quote
Old 01-11-2009, 11:53 AM   #76
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Quote:
Originally Posted by Ben View Post
Not sure it's limited to last night.

Where on earth did you get any of these values from? Certainly not from here or the megamanual. Seriously, did you just pull this from thin air?

Thanks

This is basically the AFR table that comes with the base PnP tune. I think the stock table just reads 16.1 all over

Now, when I look at my logs my A/F goes as rich as 12.1 to as lean as 15.2 ( as I recall)

Any ideas ?
poobs is offline   Reply With Quote
Old 01-11-2009, 12:12 PM   #77
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by poobs View Post
Here is the AFR table

Sorry for the confusion, my brain shut down early last night
i bet you have great gas mileage.
y8s is offline   Reply With Quote
Old 01-11-2009, 12:12 PM   #78
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

yikes, if you let MLV tune with that table your engine will not be happy. Please read the manual, please look through this thread to see how drastically different your values are than anyone elses. That is WAY to lean. If you're luckily the car will stop running before you burn stuff/blow stuff up.
johndoe is offline   Reply With Quote
Old 01-11-2009, 12:14 PM   #79
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

poobs, if you tune your engine with that AFR target table, you WILL blow up the engine.

Remember when several members sincerely suggested you should read the megamanual?

Click this:
MegaSquirt - Electronic Fuel Injection Computer by Bowling & Grippo * * 2005
Then on the left hand side, under the column megamanual, there's a point called "tuning" click it. Read.
patsmx5 is offline   Reply With Quote
Old 01-11-2009, 12:23 PM   #80
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default



At some point, you're going to have to start reading the manuals!

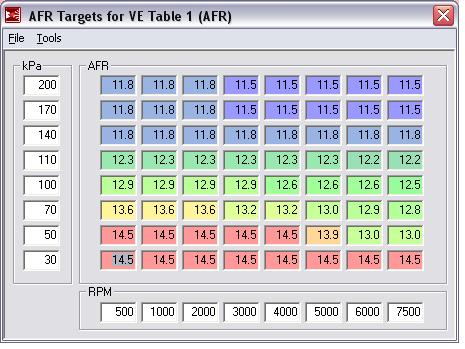

Default chart:
Attached Thumbnails
Anybody mind post their AFR Target tables?-defaultafr.jpg
Ben is offline   Reply With Quote
