Default Brain built MS3x, which output is for CEL?

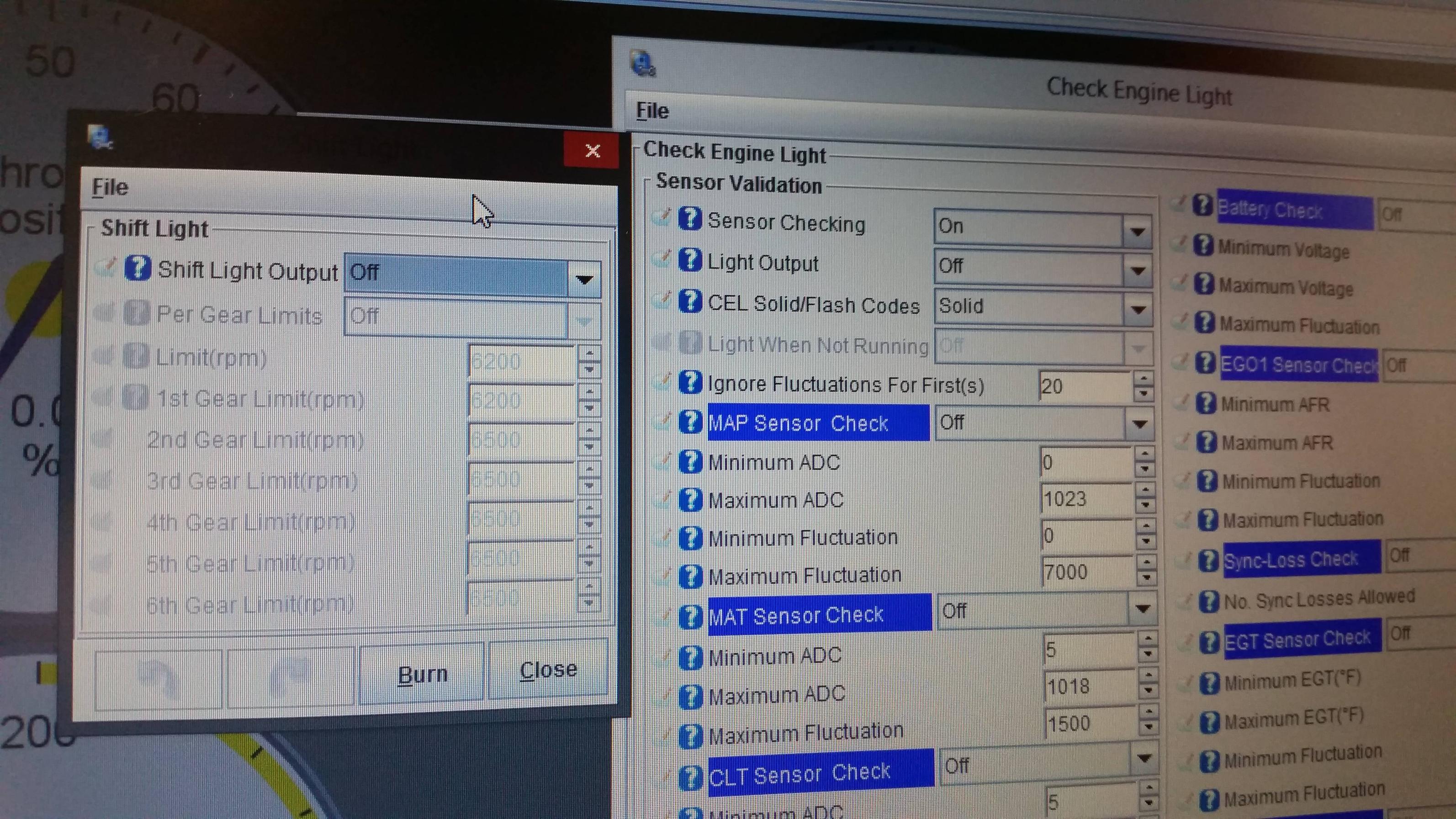

Trying to find which output triggers the CEL for sanity check and possible shift light. Been searching all morning for one little answer but can't find it!

Thanks,

Andy
Mech5700 is offline   Reply With Quote
Old 09-01-2014, 11:03 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,908
Total Cats: 1,793
Default

it's on your alternator control screen. D16 is controlling it.

no one else would ever know this answer. Is it not working correctly?
Braineack is offline   Reply With Quote
Old 09-01-2014, 11:16 AM   #3
Junior Member
Thread Starter

Join Date: Jan 2014
Location: Port Saint Lucie,FL
Posts: 418
Total Cats: 3
Default

D16 is for alternator warning lamp, that seems to be working correctly.

I'm looking for the check engine light output, which I don't see.
Mech5700 is offline   Reply With Quote
Old 09-01-2014, 11:23 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,908
Total Cats: 1,793
Default

ohhh. duh, nothing--nothing is attached to the CEL.
Braineack is offline   Reply With Quote
Old 09-01-2014, 11:38 AM   #5
Junior Member
Thread Starter

Join Date: Jan 2014
Location: Port Saint Lucie,FL
Posts: 418
Total Cats: 3
Default

Interesting. Looks like the CEL is grounded at pin 1E (wht/blue) at the pcm connector according to this wiring diagram I'm looking at. Any reason it's not connected to one of the outputs?

Also, I pm'd you last night about something related to LC.
Mech5700 is offline   Reply With Quote
Old 09-01-2014, 11:41 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,908
Total Cats: 1,793
Default

no more outputs on the ms3x left and ive never, ever, once utilized it.

the whole warning system was never available in firmware before, so that's new to me actually.


correction: i forgot about nitro 1 and 2.
Braineack is offline   Reply With Quote
Old 09-01-2014, 12:11 PM   #7
Junior Member
Thread Starter

Join Date: Jan 2014
Location: Port Saint Lucie,FL
Posts: 418
Total Cats: 3
Default

Got ya.
