Old 01-28-2013, 11:04 PM   #21
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2007
Location: Los Angeles
Posts: 143
Total Cats: 2
Default

Looked over the MS3 board a little more carefully.

Should these pins be bridged like this? There are some other pins on the opposite side that aren't quite bridged, but that definitely have solder trails that are nearly touching.

thebeerbaron is offline   Reply With Quote
Old 01-28-2013, 11:09 PM   #22
Junior Member

Join Date: Jul 2011
Posts: 84
Total Cats: 2
Default

Quote:
Originally Posted by Scrappy Jack View Post
Am I the only one who opened this thread expecting to see something much more dramatic, related to this:

Nope!
sr20det_28 is offline   Reply With Quote
Old 01-29-2013, 08:39 AM   #23
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by thebeerbaron View Post
Looked over the MS3 board a little more carefully.

Should these pins be bridged like this? There are some other pins on the opposite side that aren't quite bridged, but that definitely have solder trails that are nearly touching.


Yes, that's normal, see Megasquirt MSEXTRA / MS3EFI • MS3 Processor Problem (View topic)
richyvrlimited is offline   Reply With Quote
Old 01-29-2013, 09:09 AM   #24
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,865
Total Cats: 1,790
Default

I can look again, but it appears one goes to JP2 on the FLEX pin and the other to the CPU.

If it was a power and a ground I could see c16 blowing up from it.





the CPU pins are supossed to be like that, those are grounds.
Braineack is offline   Reply With Quote
Old 01-29-2013, 12:09 PM   #25
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

A backwards-inserted 'lytic cap can see reverse voltage and will heat up, stew, and finally vent and/or explode, often leaving behind telltale capacitor confetti and the unmistakable stench of disemboweled electrolytic guts.

I've had cans rocket past my scalp more than once. (Rocketing was more common in the old days) I've since learned to power up a new circuit for just a few seconds, power down, then check for hot parts with a thermal camera. Before the advent of the latter I'd use a finger, carefully.
JasonC SBB is offline   Reply With Quote
Old 01-29-2013, 12:30 PM   #26
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,865
Total Cats: 1,790
Default

I like to run the MSes I build on the jimstim for a good long while if I cant test on my car, both units I've ever built that lost C16 only blew once installed on a car, and pretty much instantly roasted.

One happened on my car, I heard a pop during cranking (it would not quite catch) and smelled burning.
Braineack is offline   Reply With Quote
Old 01-29-2013, 01:04 PM   #27
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2007
Location: Los Angeles
Posts: 143
Total Cats: 2
Default

Quote:
Originally Posted by JasonC SBB View Post
A backwards-inserted 'lytic cap can see reverse voltage and will heat up, stew, and finally vent and/or explode, often leaving behind telltale capacitor confetti and the unmistakable stench of disemboweled electrolytic guts.

I've had cans rocket past my scalp more than once. (Rocketing was more common in the old days) I've since learned to power up a new circuit for just a few seconds, power down, then check for hot parts with a thermal camera. Before the advent of the latter I'd use a finger, carefully.
When I was building some of my early circuits, my dad let me reverse-wire some electrolytics just to see how far they'd shoot. Fun.

This board ran perfectly on the JimStim, without CPU, for several minutes while I was checking voltages and adjusting pots. Then it ran again for quite a while with the MS3 + X board while I screwed with R11. Interestingly, no matter how I screwed with R11, the voltage on the lower leg of R17 refused to move. It was (IIRC) 2.6v, I wanted 2.75v to be in the middle of the 2.5-3v range, but after a while I gave up. Perhaps this was a result of the bridged vias? Hmm.

Then again, if one of the vias was an output and was suddenly configured, and the other represented a short to that configuration, that could have done it. Of course that would mean a bunch of current probably went through my CPU...ugh.
thebeerbaron is offline   Reply With Quote
Old 01-29-2013, 01:07 PM   #28
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,865
Total Cats: 1,790
Default

clean up the solder and you can power up on the jimstim without c16 inplace. if you cant connect, you know the CPU is fried.

but I have a feeling it's still okay; when the CPU fries, it's instant. Blowing up c16 takes some time for the circuit ot get hot and explode things.
Braineack is offline   Reply With Quote
Old 01-29-2013, 01:09 PM   #29
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Quote:
Originally Posted by JasonC SBB View Post
A backwards-inserted 'lytic cap can see reverse voltage and will heat up, stew, and finally vent and/or explode, often leaving behind telltale capacitor confetti and the unmistakable stench of disemboweled electrolytic guts.
Tantalums, which C16 is, are even worse. Those ******* are like a little firecracker when they go off.

Quote:
I've had cans rocket past my scalp more than once. (Rocketing was more common in the old days)
Still happens to us here in the lab from time to time when bringing up a new board for the first time. Nearly all of our stuff these days runs off a single 48v supply and has local regulators to make 1.8, 3.3, 5, +/- 19, and whatever else it might need. One board in particular we have hanging on the wall from 2003, which we nicknamed Vesuvius. That one was ugly.
Joe Perez is offline   Reply With Quote
Old 01-29-2013, 01:34 PM   #30
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2007
Location: Los Angeles
Posts: 143
Total Cats: 2
Default

Quote:
Originally Posted by Braineack View Post
clean up the solder and you can power up on the jimstim without c16 inplace. if you cant connect, you know the CPU is fried.

but I have a feeling it's still okay; when the CPU fries, it's instant. Blowing up c16 takes some time for the circuit ot get hot and explode things.
Thanks Scott, I may give that a try.

I don't think I've said it explicitly yet, but thanks to everyone who's chipped in here, even if I didn't reference you personally. Y'all are impressive electronics geeks.
thebeerbaron is offline   Reply With Quote
Old 01-29-2013, 10:03 PM   #31
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by Joe Perez View Post
Tantalums, which C16 is, are even worse. Those ******* are like a little firecracker when they go off.
Oooohhh it's a tant. I had one such ****** pop and fly. Then in the corner of my eye I saw some motion. Said ****** landed in a trash can and set some paper on fire. After I put the fire out I actually found the little **** in there, looking up at me, mocking me.

I don't like tantalums and will avoid using them when possible. They are also poor in the life and reliability department. If you need low ESR and some capacitance use a polymer cap (aka "solid electrolyte" formerly known as "OsCon"). If you don't need so much capacitance use a multilayer ceramic ("MLCC").
JasonC SBB is offline   Reply With Quote
Old 01-29-2013, 10:06 PM   #32
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

I see the value is about 35 uF. You would use an X5R (MLCC) cap instead of a tant. They're available in a 1206 package:
C3216X5R1E476M160AC TDK Corporation | 445-8047-6-ND | DigiKey

Or you can get this through hole guy:
http://www.digikey.com/product-detai...108-ND/2603953

Ceramic caps can take brief overvoltages no prob.

Last edited by JasonC SBB; 01-30-2013 at 01:42 AM.
JasonC SBB is offline   Reply With Quote
Old 01-29-2013, 10:37 PM   #33
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Quote:
Originally Posted by JasonC SBB View Post
I don't like tantalums and will avoid using them when possible. They are also poor in the life and reliability department.
Maybe you got a batch where somebody pissed in the electrolyte?

Tantalums are sensitive little bastards- they get butt-hurt real quick if you over-volt them or subject them to reverse polarity. So we blow a lot of 'em up in the lab while prototyping and bringing up new products for the first time.

But in normal operation, they have proven to be exceedingly reliable. I can't recall ever having any serious problems with them. We've been using 'em in our audio consoles and routers for at least 15 years. A lot of our stuff is now old enough that it's starting to come back in for repair with dried-out electrolytics, but I don't think we've ever seen a systemic issue with tantalums.

FWIW, I don't see any ESR spec on that unit you posted.
Joe Perez is offline   Reply With Quote
Old 01-30-2013, 12:06 AM   #34
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Ceramics have no meaningful ESR (i.e. zero) for the majority of applications. (high current high frequency SMPS output stages are one exception, in some cases).

What you gotta watch out for is their capacitance changes hugely with voltage. For power supply bypassing, it's not a problem.

Tants need voltage derating to increase their life.
IIRC they are sensitive to overheating and like to explode, from ripple (AC) current.
CTTOI if the OP powered his board from a bench supply which for some reason was oscillating, that tant ate lots of ripple current and expressed its displeasure.
JasonC SBB is offline   Reply With Quote
Old 01-30-2013, 12:20 AM   #35
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

For my own education I looked up some 100 uF / 16V tantalums. The low-ESR ones form Vishay can only take 1 A, with 100 mΩ ESR. In contrast the mid-perf polymer Nichicon caps are 14 mΩ and can take >3A, with their bigger hi-current ones, capable of 5.6A with 7 mΩ. These solid electrolyte polymer caps make the highest perfromance 'lytics look wimpy, and have much longer life to boot.
JasonC SBB is offline   Reply With Quote
Old 01-31-2013, 01:01 AM   #36
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2007
Location: Los Angeles
Posts: 143
Total Cats: 2
Default

Success! Got my new caps from DigiKey today, got them installed and tested everything out very, very carefully. Worked perfectly! It took the firmware no problemo and I've loaded Frank's 01 base MSQ (thanks Frank!).

Only issue I have now is the endplate fit. Even though my MS3 board is fully seated in the layers of standoffs, the USB port is maybe 1/8" too high to fit through the endplate. Is this common? I figured I'd borrow a file at work tomorrow and trim it up, but that seems a shame.

Very relieved that this worked out, very unhappy that QC failed so miserably on this card.

Again, thanks to everyone!
thebeerbaron is offline   Reply With Quote
Old 01-31-2013, 09:22 AM   #37
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,865
Total Cats: 1,790
Default

that's how everyone I've built has been, maybe 20 or so? I just push down on the usb port as I slide it fully closed. It's always about 1-2mm off.
Braineack is offline   Reply With Quote
Old 05-06-2013, 01:03 PM   #38
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

picking this thread back up. Is DIY going to use higher voltage caps?
WestfieldMX5 is offline   Reply With Quote
Old 05-06-2013, 01:23 PM   #39
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,865
Total Cats: 1,790
Default

Quote:
Originally Posted by WestfieldMX5 View Post
picking this thread back up. Is DIY going to use higher voltage caps?
Actually I talked to Ben over the weekend, he said he'll push to get higher rated caps when their current supply run out. however, he also said they are really only seeing this in our community, because gaycar.
Braineack is offline   Reply With Quote
Old 05-08-2013, 06:56 PM   #40
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,865
Total Cats: 1,790
Default

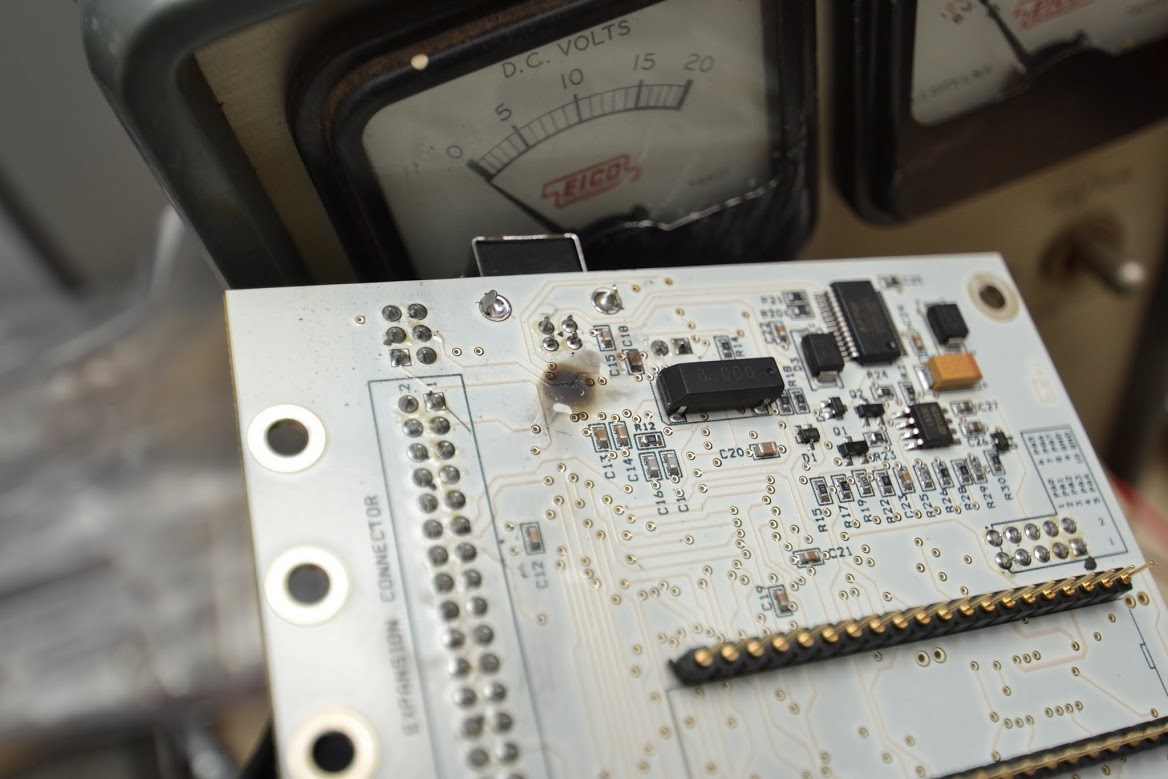

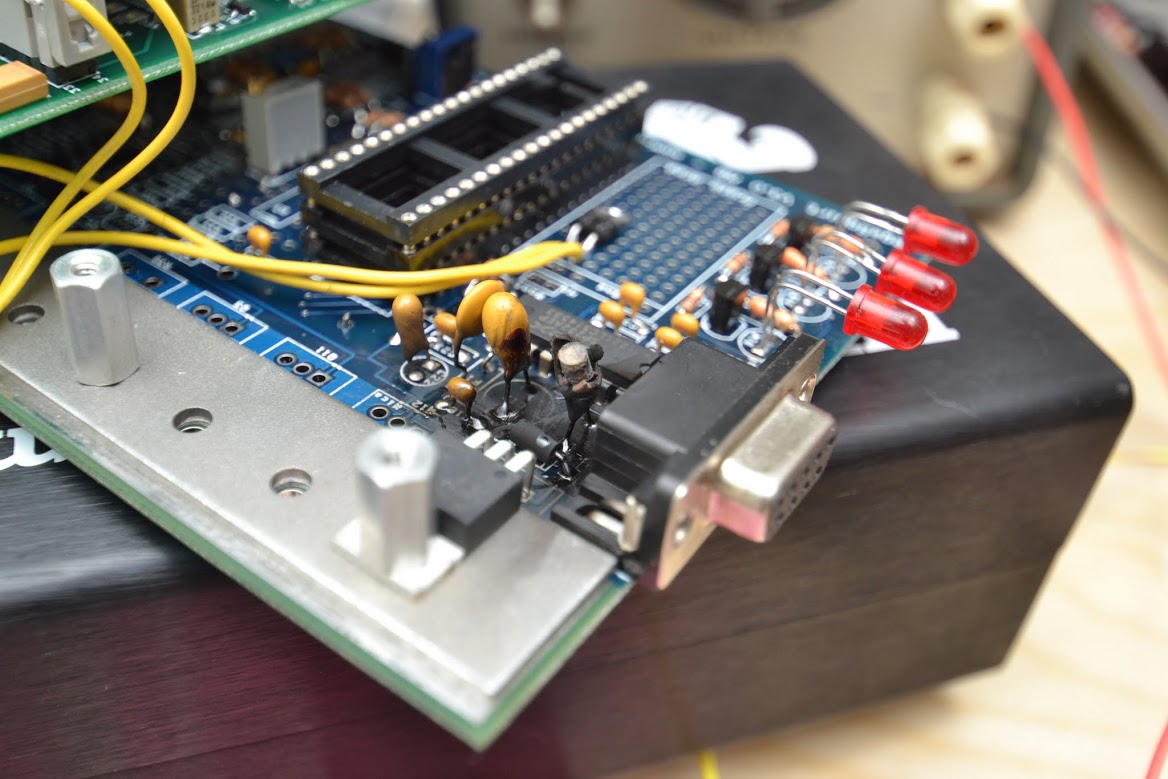

latest victim:



Attached Thumbnails
C16 exploded, carnage inside-dsc_7158.jpg   C16 exploded, carnage inside-dsc_7159.jpg
Braineack is offline   Reply With Quote
